Hatco  |  SKU: CWBR-4

Hatco CWBR-4 Steam Tables & Food Wells

$5,564.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Parts list Well solutions Catalog brochure Owner's manual
Related Searches
Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hatco Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

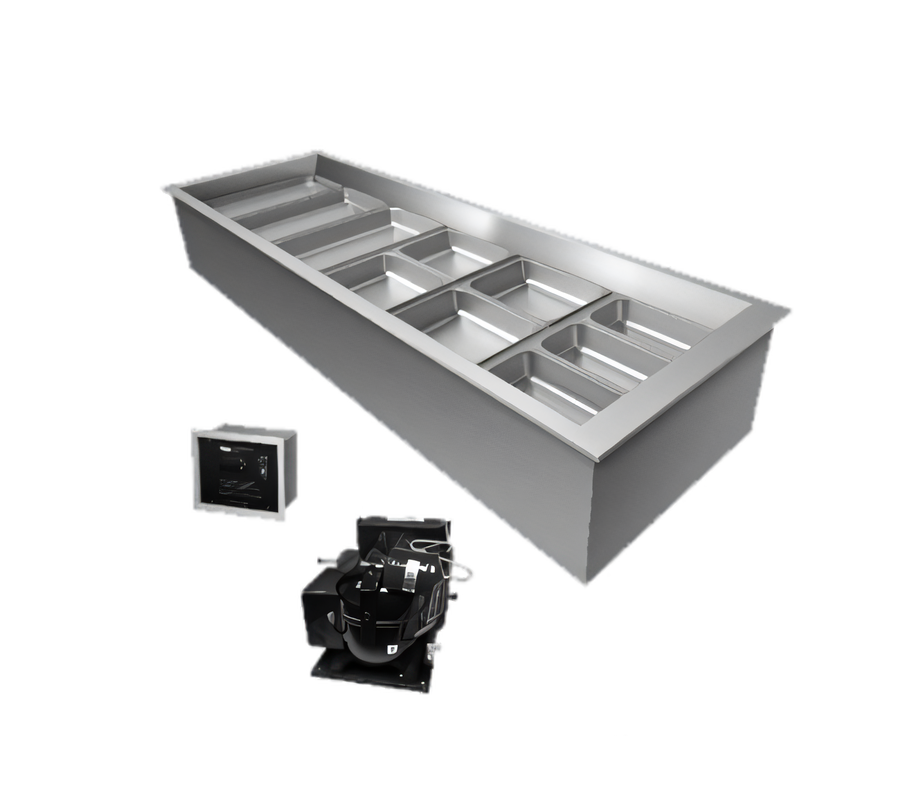

Hatco CWBR-4 Remote Drop-In Refrigerated Well

4-Pan, cold-wall well with remote 1/3 HP condensing unit

Designed for high-volume salad bars, deli counters, and grab-and-go stations, the Hatco CWBR-4 keeps pre-chilled menu items safely below 41 °F (5 °C) without drying them out. A remote refrigeration package (included) lets you place the compressor up to 50 ft. from the well, giving you more design freedom and a quieter front-of-house.

Why you’ll love it

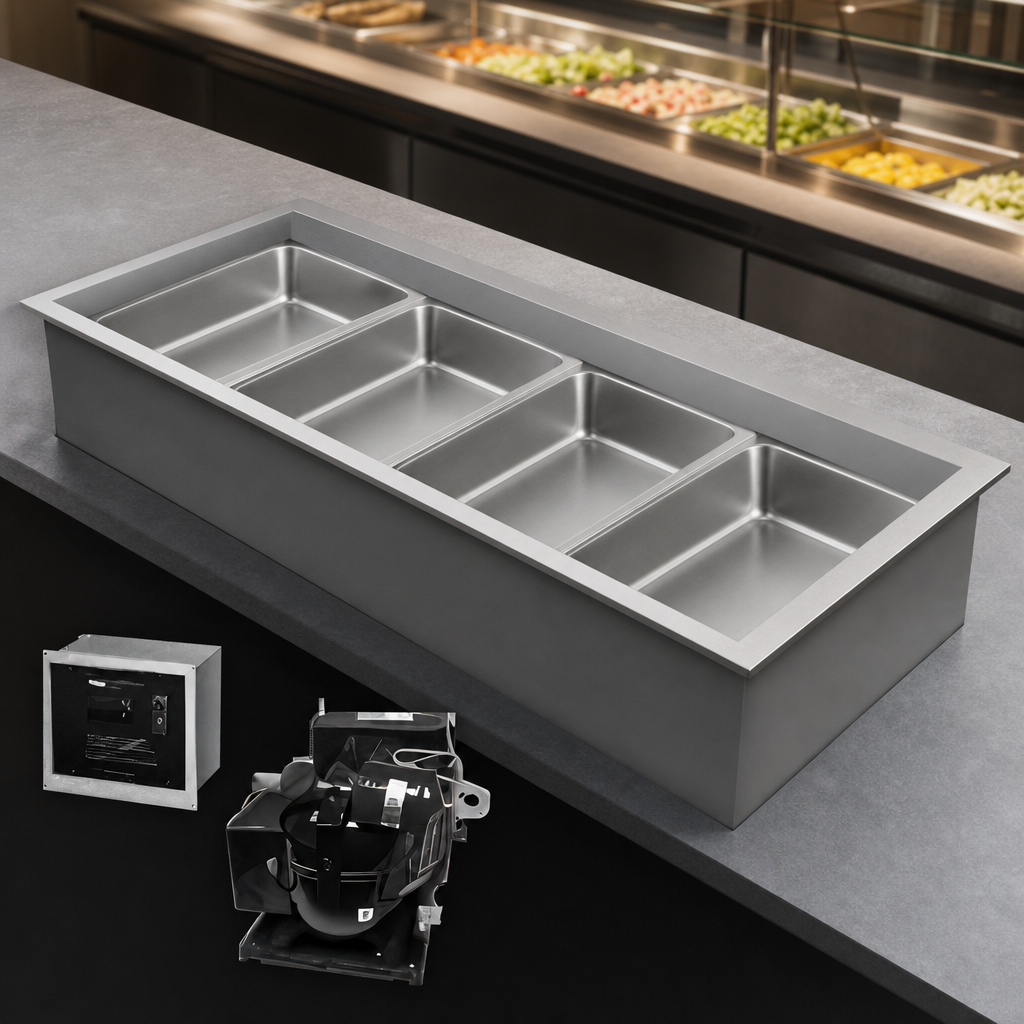

  • Holds 4 full-size 12 × 20" hotel pans in a sleek top-mount footprint.
  • Cold-wall design with angled interior walls blankets food with cold air for even, moisture-retaining cooling.
  • Electronic temperature control with auto-defrost is shipped loose for easy mounting up to 9 ft. away.
  • Includes remote 1/3 HP condensing unit, TXV valve & filter-drier (all shipped loose) — factory charged with eco-friendly R-513A refrigerant.
  • Pan support bars supplied for quick conversion between full-size or fractional pans.
  • 1" NPT brass drain and fully insulated aluminized-steel housing speed up cleaning and prevent condensation.
  • Maintenance-ready with sight glass, service valves, and replaceable filter-dryer.
  • NSF 7 & cULus listed; Made in the USA.
At-a-glance specs
Model CWBR-4
Pan capacity 4 full-size (12" × 20") pans, 6" max depth
Overall well size 58" W × 27" D × 12" H (1473 × 686 × 305 mm)
Recommended cut-out 56.125–57" W × 25.19–26" D (1425–1448 mm × 640–660 mm)
Compressor 1/3 HP remote (R-513A)
Electrical 120 V, 60 Hz, 450 W, 5.9 A  (other voltages available)
Heat rejection ≈ 2,519 BTU/hr
Shipping weight ≈ 200 lb (91 kg) well only
Drain 1" NPT brass
Construction Aluminized-steel housing, stainless-steel bezel
Certifications NSF 7, cULus
What’s included
  • Drop-in refrigerated well with factory-installed cold-wall coil
  • Remote condensing unit (pre-charged, 50 ft. line set allowance)
  • Remote electronic control panel with 9 ft. temperature-probe lead
  • TXV valve & filter-drier (loose) for field installation
  • Full-size pan support bars

Need a tilted presentation? Ask about the optional 5° slant kit, gasketed bezel, stainless steel pans, false bottoms, and wire trivets.

Installation note: This is a remote-refrigeration unit. Field installation must be performed by a licensed refrigeration contractor in accordance with local codes.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

12.0in

Width

58.0in

Depth

27.0in

Shipping Weight

200.0lbs

Style

remote refrigeration (with compressor)

Finish

aluminum & stainless steel

Pan Qty

4-pan

Layout

straight

Pan Size

full-size (12" x 20")

Width (side - side)

55 - 60 inches

Insulation

insulated

Specifications

Drop-In Refrigerated Well, (4) pan size, top mount, electronic temperature control, auto defrost, pan support bars for full-size pans, sight glass, service valves, dryer/filter, insulated with 1" drain, aluminized steel housing, stainless steel bezel, remote refrigeration, condensing unit, control panel, TXV valve (shipped loose) & filter-drier, utilizes R-513A refrigerant, 1/3 HP, cULus, Made in USA
