Description

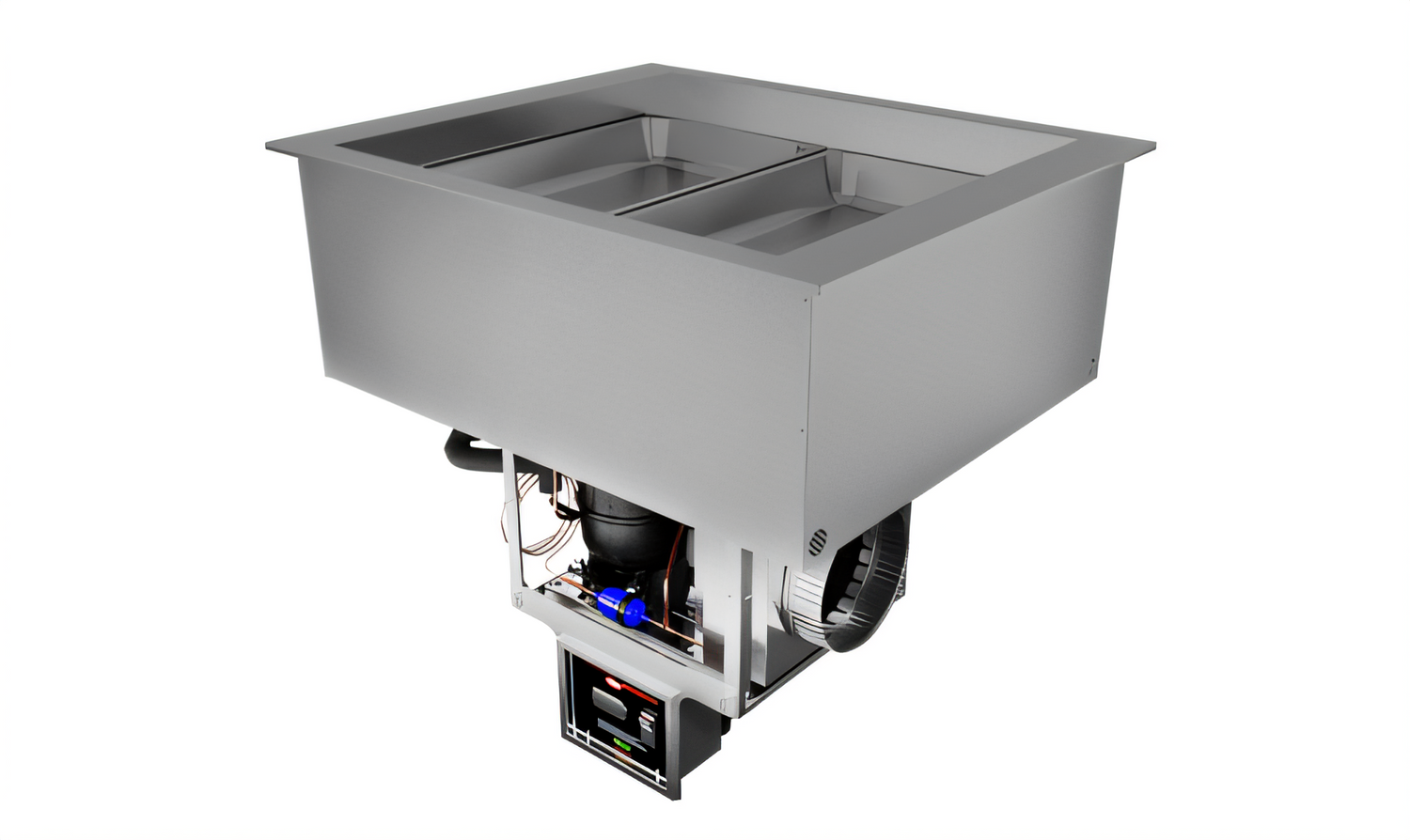

Hatco Quick Ship 2-Pan Drop-In Refrigerated Well

Model CWB-2 QS | R-290 Refrigerant | 1/5 HP Compressor

Keep salads, garnishes and cold entrées perfectly chilled—and get up and running fast—with Hatco’s Quick Ship refrigerated drop-in well. Engineered for high-volume service lines yet shipped in days, this top-mount well combines NSF-7 food safety, eco-friendly refrigeration and legendary Hatco durability in a compact two-pan footprint.

Key Benefits
  • Quick Ship program – typically leaves the factory in 5 business days*
  • Angled cold-wall interior blankets food with cold air without drying it out
  • Precision electronic temperature control with programmable auto-defrost
  • High-efficiency R-290 refrigerant lowers GWP and power consumption
  • Factory-sealed condensing package with sight glass, service valves & dryer/filter for easy maintenance
  • 1 inch NPT brass drain plus stainless steel bezel for quick, sanitary clean-up
  • cULus listed, NSF 7 certified and proudly Made in the USA
Capacity & Footprint

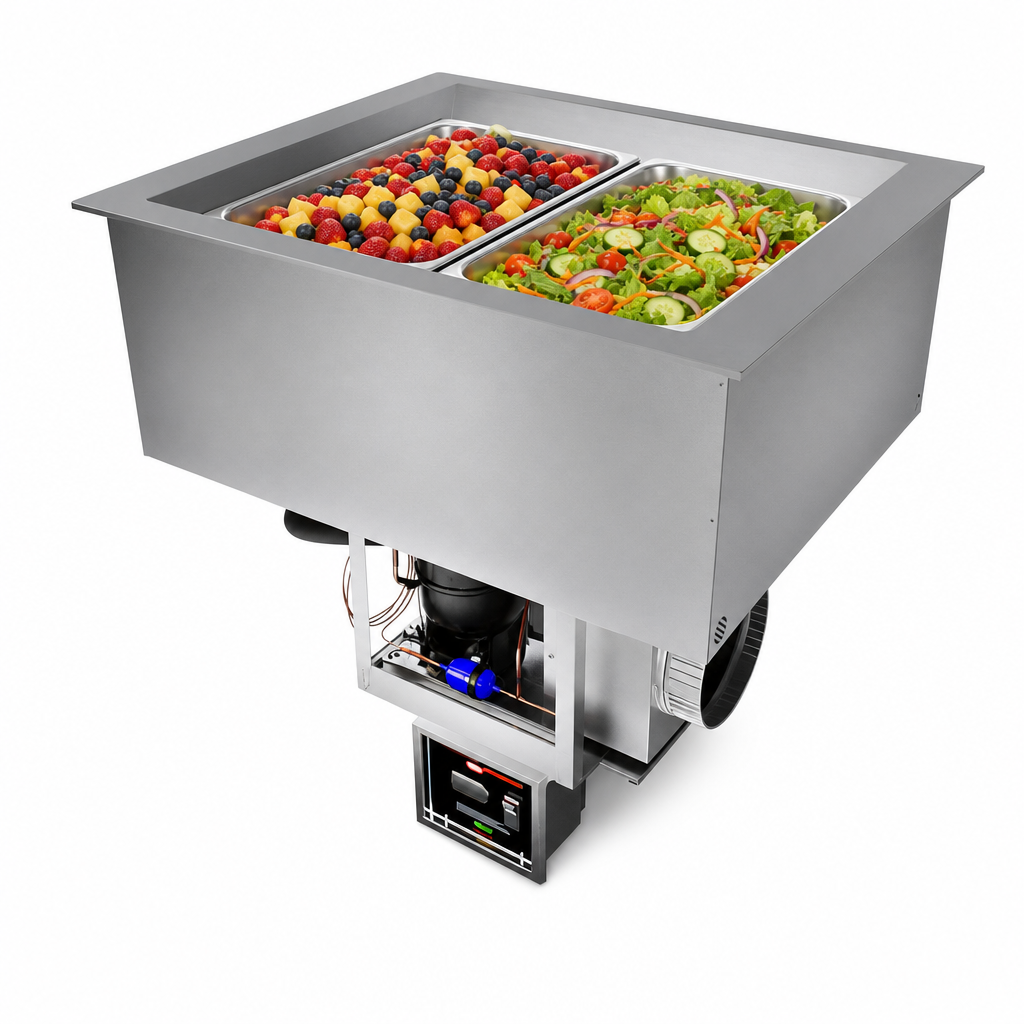

Pan Capacity (2) full-size 12 × 20 in pans (up to 6 in deep)
Overall Dimensions 32 in W × 27 in D × 25.5 in H
Cut-Out (W × D) 30.125 – 31 in × 25.19 – 26 in
Compressor 1/5 HP, hermetic (non-rotating condenser)
Refrigerant / Charge R-290, 2.6 oz (factory-sealed)
Electrical 120 V, 60 Hz, 1-ph, 3.8 A, NEMA 5-15P
Heat Rejection 1,528 BTU/hr
Shipping Weight 155 lb (71 kg)
Agency Listings cULus, NSF 7
Perfect For
  • Self-service salad & deli bars
  • Hotel breakfast buffets
  • QSR & fast-casual prep lines
  • Cafeteria cold stations
Installation note: The control assembly may be mounted up to 4 ft (1219 mm) from the condenser but must not be placed directly above the condensing coil. Provide adequate airflow and service clearance.

*Lead time subject to factory capacity. Contact your representative for current Quick Ship availability.

Features & Specs

Manufacturer

Hatco

Brand_name

Quick Ship

Certifications

cULus, Made in USA

Height

25.5in

Width

32.0in

Depth

27.0in

Shipping Weight

155.0lbs

Finish

aluminum & stainless steel

Insulation

insulated

Width (side - side)

31 - 36 inches

Style

self-contained refrigeration

Pan Qty

2-pan

Pan Size

full-size (12" x 20")

Layout

straight

Specifications

(QUICK SHIP MODEL) Drop-In Refrigerated Well, (2) pan size, top mount, electronic temperature control, condenser unit (cannot be rotated), sight glass, service valves, dryer/filter, insulated with drain, aluminized steel housing, stainless steel bezel, R-290, 1/5 HP, cULus, Made in USA
