Hatco  |  SKU: CWBP-S1

Hatco CWBP-S1 Steam Tables & Food Wells

$4,376.69
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

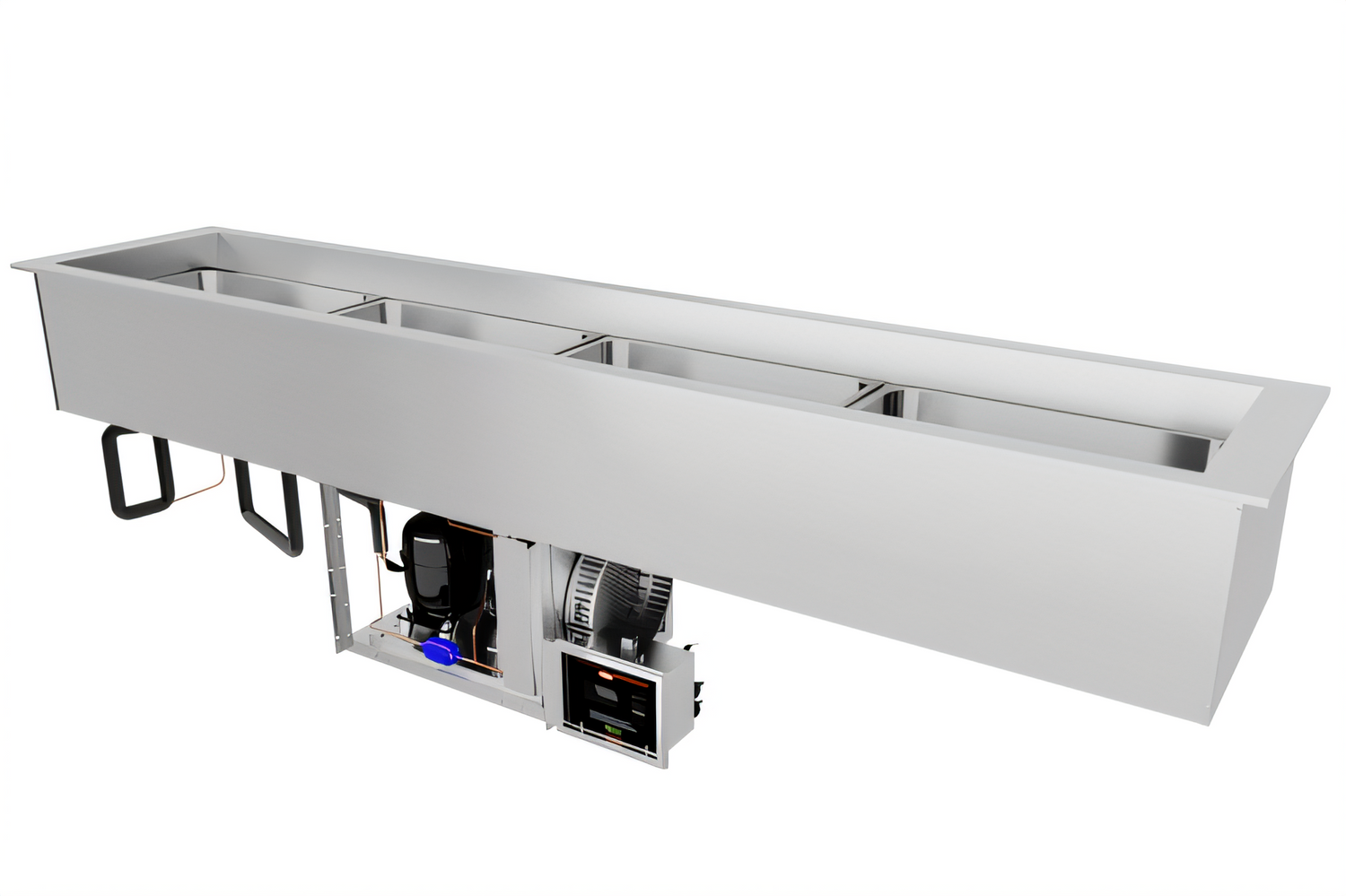

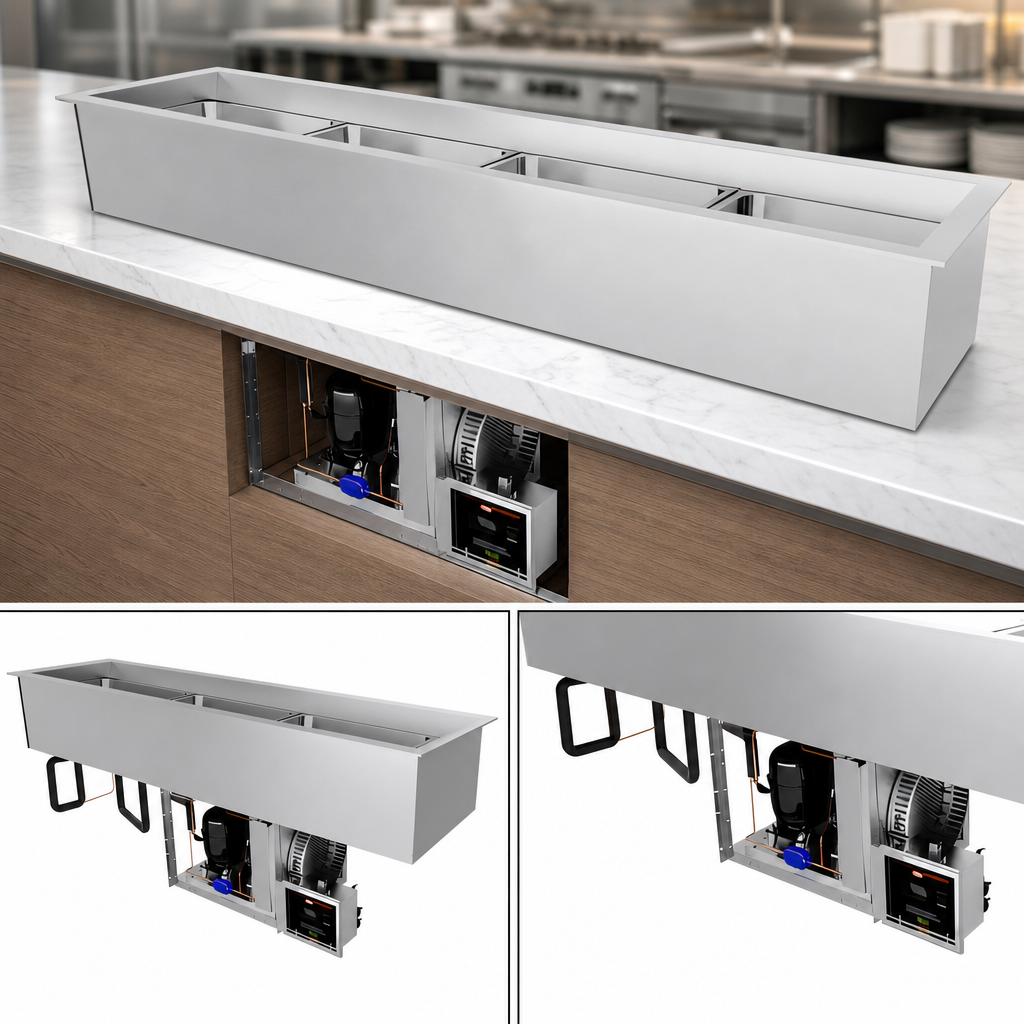

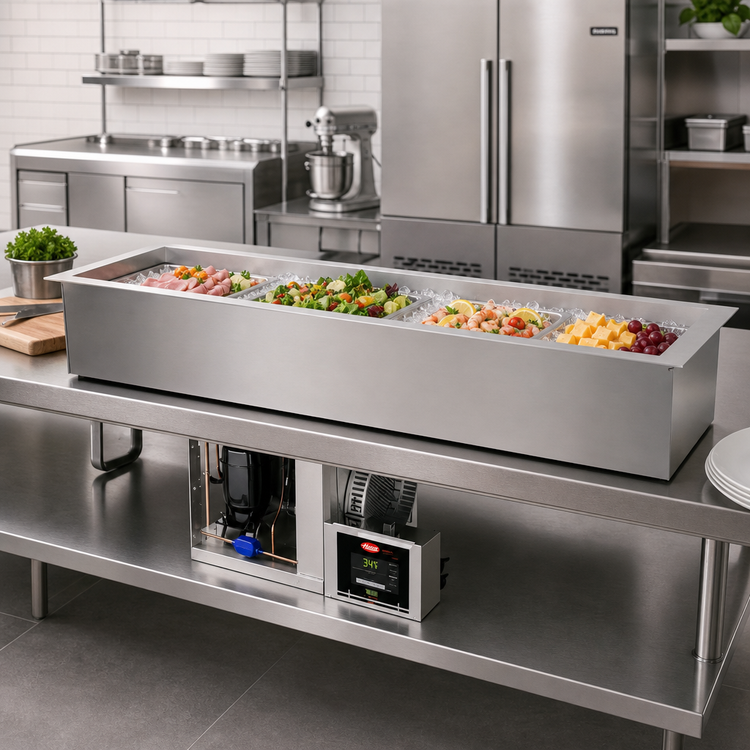

Hatco CWBP-S1 R-290 Drop-In Refrigerated Slim Well

Self-Contained • Top-Mount • 1 Full-Size Pan

Create a convenient, fully refrigerated serving space without sacrificing counter real-estate. Hatco’s CWBP-S1 “Slim” well holds one full-size 12 × 20 inch pan lengthwise, keeping pre-chilled salad, toppings or grab-and-go items at safe temperatures while giving guests a clear, easy reach under sneeze guards.

Why you’ll love it
  • NSF 7 component approved cold-wall construction blankets food with even, moisture-retaining cold.
  • Narrow 12 inch well width fits tight counter lines and keeps product completely within reach.
  • Angled interior sidewall increases cold surface area and improves visibility of displayed food.
  • Eco-friendly R-290 refrigeration with a high-efficiency 1/5 HP compressor.
  • Electronic temperature control plus programmable auto-defrost—no manual ice or timers needed.
  • Factory-installed sight glass, service valves and filter-drier streamline maintenance.
  • Robust aluminized-steel housing with a seamless stainless-steel bezel for a clean, professional drop-in look.
  • Fully insulated on sides and bottom for superior cold retention and lower energy use.
  • 1" brass drain speeds end-of-day cleanup.
Specifications
Pan capacity (1) full-size 12 × 20 in pan (pan not included)
Exterior dimensions 27.06 in W × 18.99 in D × 26.04 in H
Required counter cut-out 25.22 – 26.06 in W × 17.06 – 17.94 in D
Usable well depth 12.02 in
Compressor 1/5 HP, self-contained
Refrigerant / charge R-290, 4.2 oz factory fill
Electrical 120 V, 345 W, 5.2 A, NEMA 5-15P (220–240 V models available)
Certifications NSF 7 Component, UL, Made in the USA
Approx. ship weight 133 lb / 60 kg

Optional accessories—pan support bars, stainless-steel food pans, perforated false bottoms and wire trivets—are available to complete your setup.

Installation note: The fixed condensing unit cannot be rotated. Confirm under-counter clearance and drain location before cutting the countertop.

Features & Specs

Manufacturer

Hatco

Height

26.06in

Width

27.06in

Depth

19.0in

Shipping Weight

133.0lbs

Pan Qty

1-pan

Layout

straight

Style

self-contained refrigeration

Finish

aluminum & stainless steel

Insulation

insulated

Pan Size

full-size (12" x 20")

Specifications

Drop-In Refrigerated Slim Well, (1) full-size pan, top mount, electronic temperature control, auto defrost, condenser unit (cannot be rotated), sight glass, service valves, dryer/filter, insulated with 1" drain, aluminized steel housing, stainless steel bezel, R-290, 1/5 HP
