Hatco CWBP-6 Steam Tables & Food Wells
$6,306.40
Unit price
/
Unavailable
Description

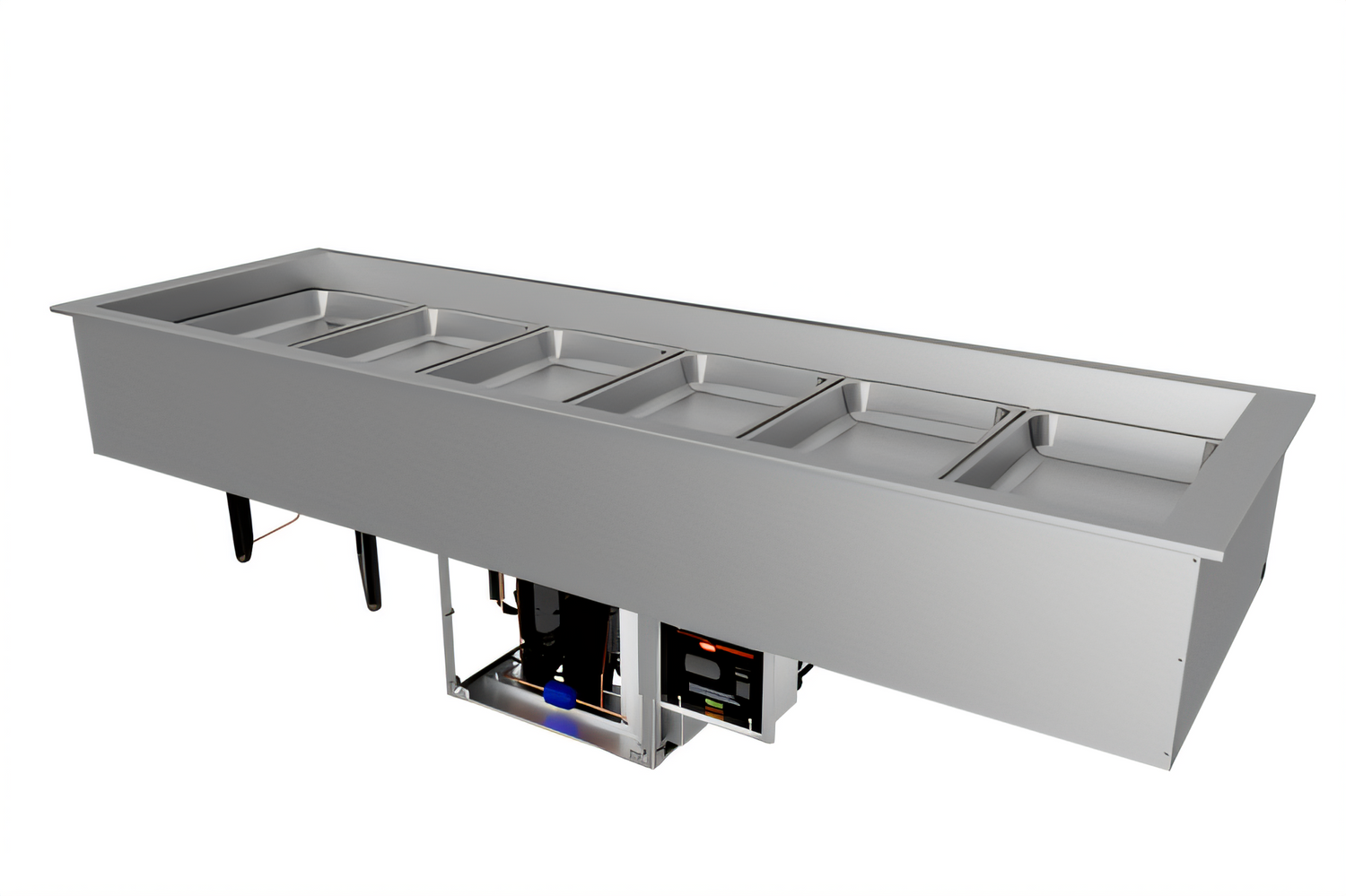

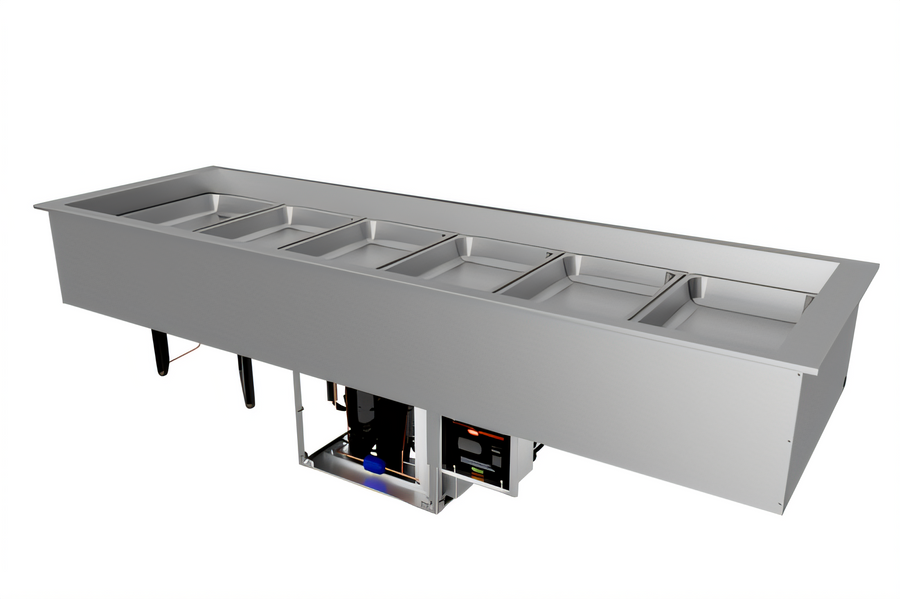

Hatco CWBP-6 R-290 Drop-In Refrigerated Well
6-pan, top-mount cold well with electronic temperature controlKeep salads, toppings and grab-n-go favorites perfectly chilled and presentation-ready—without messy ice. The CWBP-6 combines Hatco’s innovative cold-wall engineering with an eco-friendly R-290 refrigeration system, giving you reliable, energy-smart cooling in a sleek, fully integrated drop-in format.
Why You’ll Love It

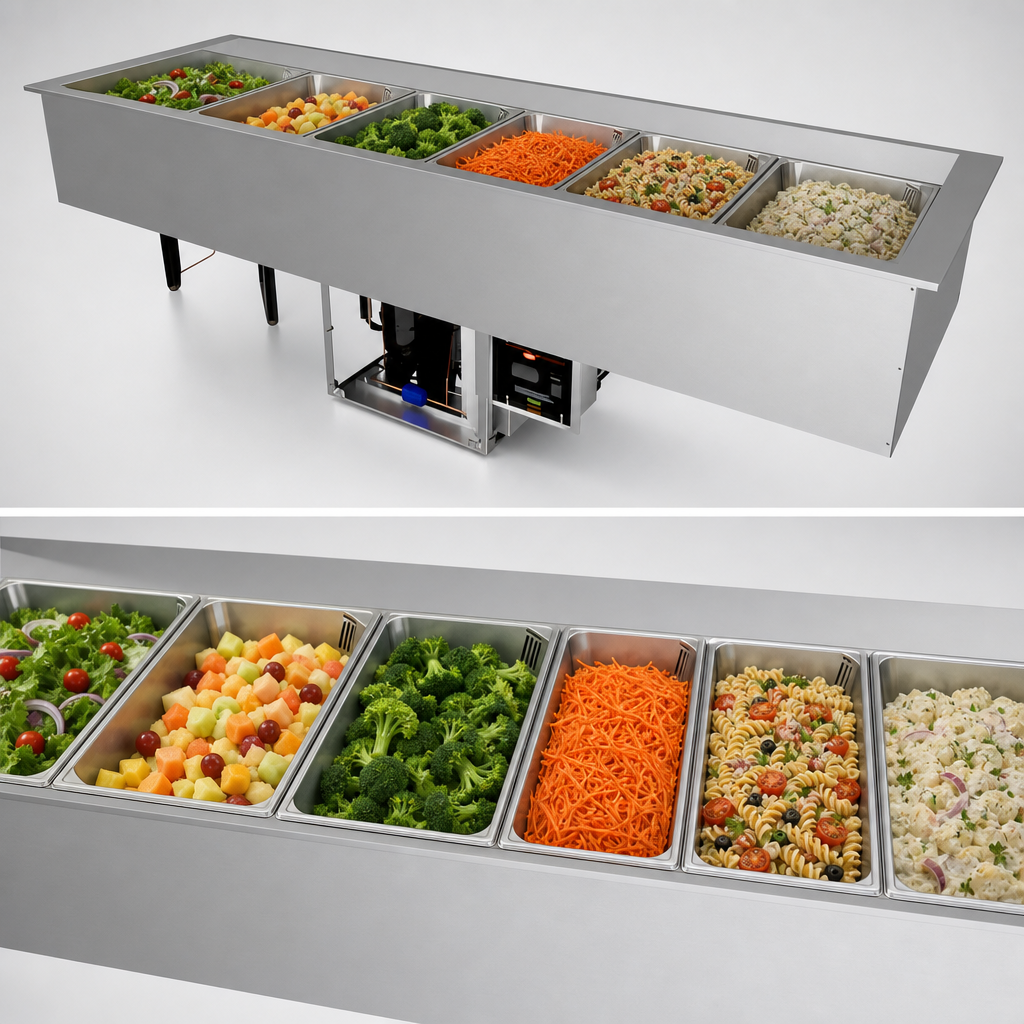

- 6 full-size pan capacity (12 × 20 in. pans or fractional equivalents) for high-volume self-serve or prep lines.
- Top-mount installation creates a clean, flush counter surface and complements Hatco heated wells for a seamless look.
- Angled cold-wall design blankets food with cold air, holding safe serving temps without drying product out.
- Electronic temperature control with auto-defrost—mount on either side of the condenser or remotely up to 4 ft (1.2 m).
- Eco-conscious refrigeration: self-contained 1/5 HP compressor uses R-290 for ultra-low GWP performance.
- Maintenance made easy: sight glass, service valves and filter-dryer are factory-installed; 1 in. brass drain speeds cleanup.
- Built to last: aluminized steel housing, stainless steel bezel and CFC-free insulation stand up to demanding kitchens.
- Certified & safe: cULus listed, NSF 7 component approved and proudly Made in the USA.
Ideal Applications
- Salad bars, deli counters & cafeterias
- Quick-service & fast-casual restaurants
- Convenience stores & grab-n-go stations
- Catering & event buffets seeking an ice-free cold well
Technical Highlights
| Pan Capacity | (6) full-size 12 × 20 in. pans, 4 – 6 in. deep |
|---|---|
| Overall Dimensions | 84 W × 27 D × 25.5 H in. (2134 × 686 × 648 mm) |
| Cut-out (min–max) | 82.125 – 83 W × 25.19 – 26 D in. |
| Compressor | 1/5 HP, air-cooled, self-contained |
| Refrigerant / Charge | R-290 / 5.2 oz (147 g) |
| Electrical | 120 V, 60 Hz, 5.2 A (NEMA 5-15P) – other voltages available |
| Construction | Aluminized steel housing, stainless steel bezel, CFC-free insulation |
| Drain | 1 in. brass drain with strainer |
| Certifications | cULus, NSF 7 component |
| Origin | Made in USA |
| Warranty | 1-year parts & labor; optional extra 4-year compressor parts warranty |
Popular Accessories (sold separately)
- Pan support bars (12 in. & 20 in.)
- Perforated false bottoms
- Stainless steel food pans (full, half & third size)
- Condensate evaporator pan
- 5° slant kit for improved product visibility
- Factory-installed gasket—no silicone needed
Installation Tip: The condensing unit cannot be rotated.
Ensure the 1 in. drain remains on the lower side when installing optional slant kits, and mount the electronic controller no more than 4 ft (1.2 m) from the well—never above the condenser coil.
Need help sizing or specifying? Click “Ask About This Product” and our team will be happy to assist.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, Made in USA
Height
25.5in
Width
84.0in
Depth
27.0in
Shipping Weight
292.0lbs
Layout
straight
Insulation
insulated
Finish
aluminum & stainless steel
Pan Qty
6-pan
Pan Size
full-size (12" x 20")
Style
self-contained refrigeration
Specifications
Drop-In Refrigerated Well, (6) pan size, top mount, electronic temperature control, condenser unit (cannot be rotated), sight glass, service valves, dryer/filter, insulated with drain, aluminized steel housing, stainless steel bezel, R-290, 1/5 HP, cULus, Made in USA
