Hatco CWBP-4 Steam Tables & Food Wells
Description

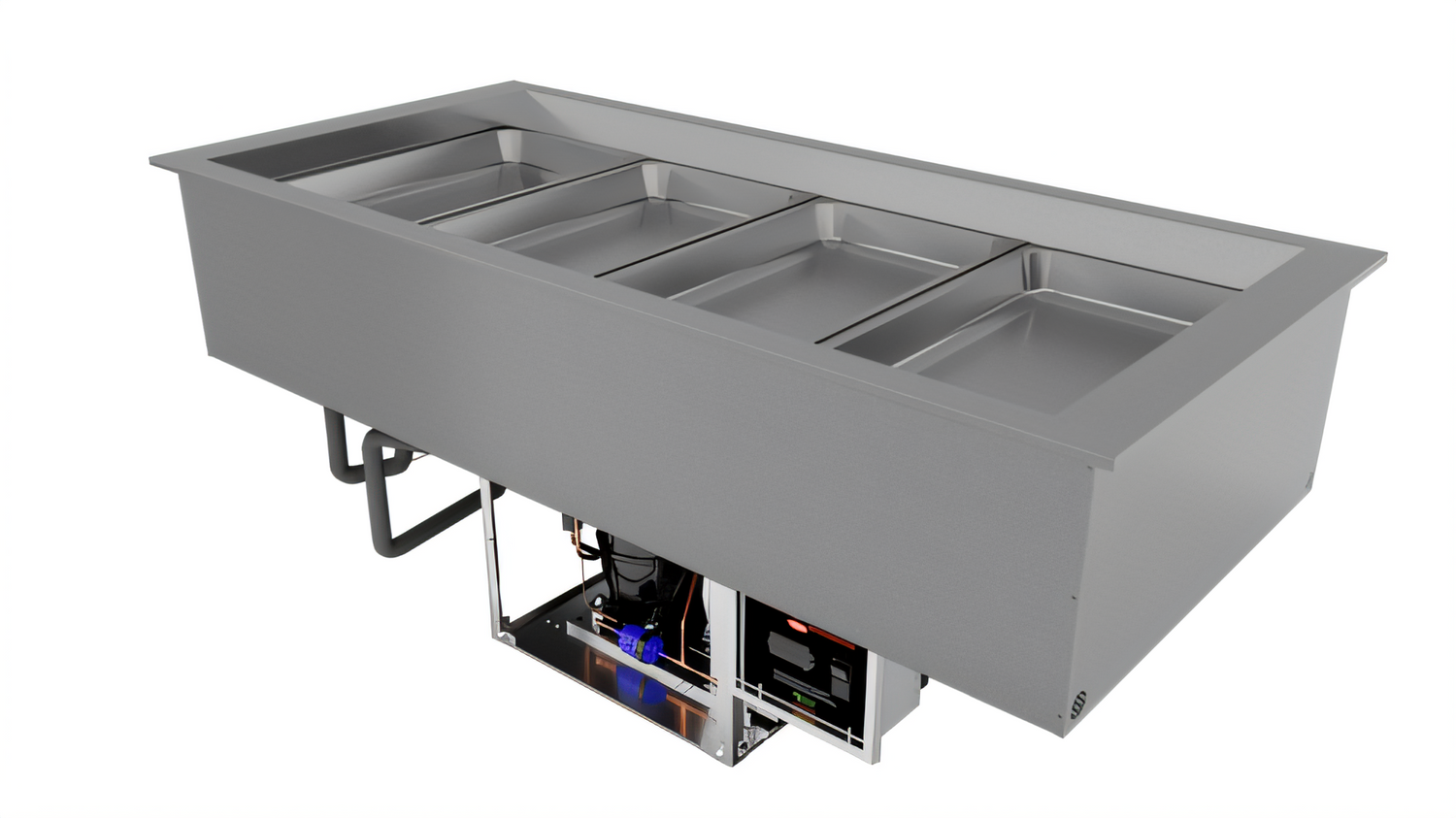

Hatco R-290 Drop-In Refrigerated Cold Well – 4 Pan
Model CWBP-4 | Made in USAGive your chilled menu items a front-of-house presentation they deserve while keeping them safely below 41 °F (5 °C). Hatco’s 4-pan refrigerated drop-in well pairs a space-saving top-mount design with an energy-smart R-290 refrigeration system and an advanced electronic controller that lets you dial-in performance with confidence.
Why You’ll Love It

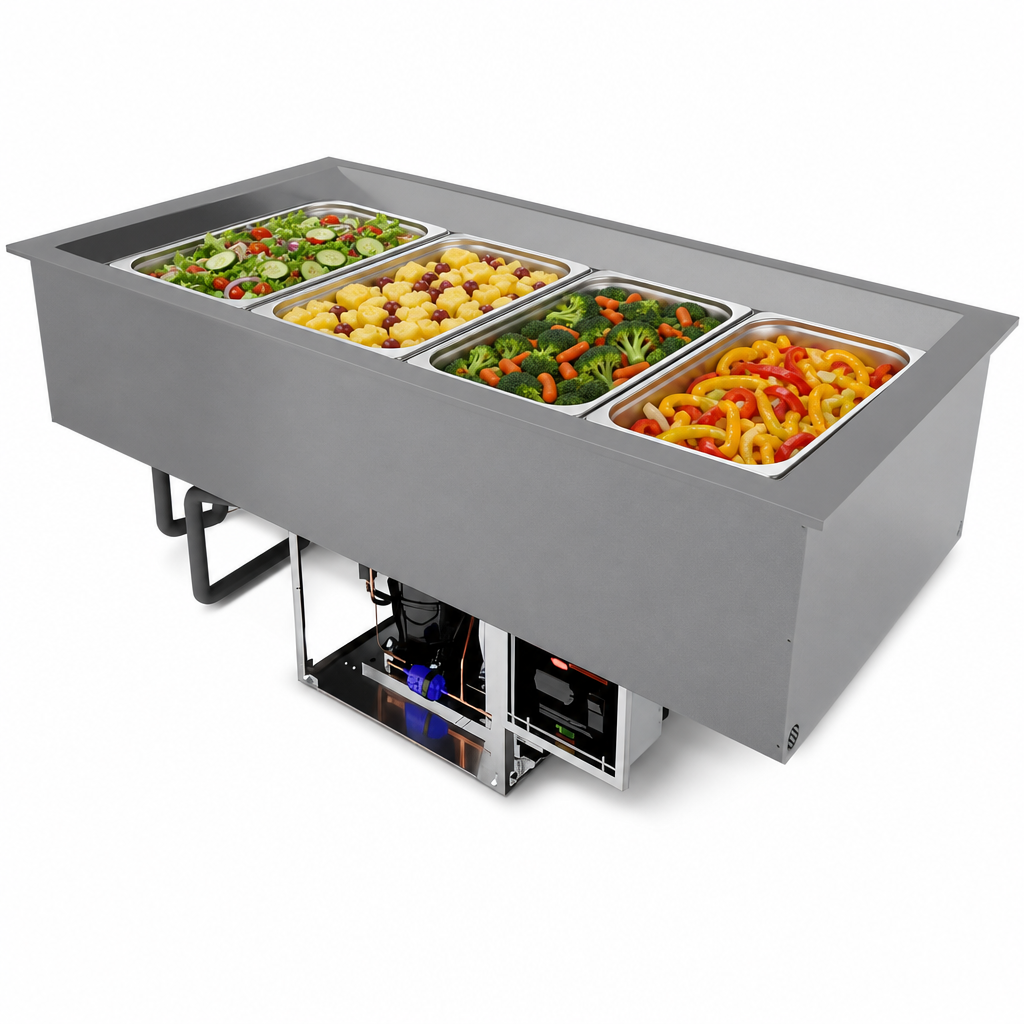

- 4 full-size 12" × 20" hotel pans fit flush with your counter for a clean, professional look.
- NSF 7 component-approved cold-wall construction with Hatco’s unique angled interior walls blankets food with cold air instead of drying it out.
- Eco-conscious R-290 refrigerant and a high-efficiency 1/5 HP compressor keep operating costs low.
- Electronic temperature control (with automatic defrost) mounts on either side of the condensing unit or remotely up to 4 ft (1.2 m).
- Maintenance made easy: integrated sight glass, service valves, and replaceable filter-dryer.
- Fully insulated aluminized-steel housing with a stainless-steel bezel matches Hatco Heated Wells for a cohesive lineup.
- 1" (25 mm) brass drain speeds clean-up at the end of service.
- cULus listed and proudly Made in the USA.
Technical Specs
| Pan Capacity | 4 full-size (12" × 20") pans |
|---|---|
| Overall Dimensions | 58" W × 27" D × 25.5" H (1473 × 686 × 648 mm) |
| Counter Cut-Out | Width 56 ⅛"–57" (1426–1448 mm) | Depth 25 ³⁄₁₆"–26" (640–660 mm) |
| Well Depth | 12" (305 mm) |
| Refrigerant / Charge | R-290 | 4.6 oz (130 g) |
| Compressor | 1/5 HP |
| Electrical (USA) | 120 V, 60 Hz, 6.5 A, 440 W | NEMA 5-15P plug |
| Electrical (Intl. options) | 220/230/240 V, 50/60 Hz (BS-1363, CEE 7/7 Schuko, AS 3112) |
| Shipping Weight | ≈ 211 lb (96 kg) |
| Certifications | cULus, NSF 7 Component |
Factory Options
- 5° Slant kit for improved product visibility
- Factory-installed gasket (eliminates field caulking)
- Additional 4-year parts-only compressor warranty (USA/Canada)
Popular Accessories
- Pan support bars – 12" or 20"
- Stainless-steel food pans (⅓, ½ or full-size depths 2.5", 4", 6")
- Perforated false bottom (for ice displays)
- Condensate evaporator pan (1.75 qt)
- Stainless-steel trivets (half or full-size)
Need help choosing accessories or confirming cut-out sizing? Our equipment specialists are happy to assist before you order.
