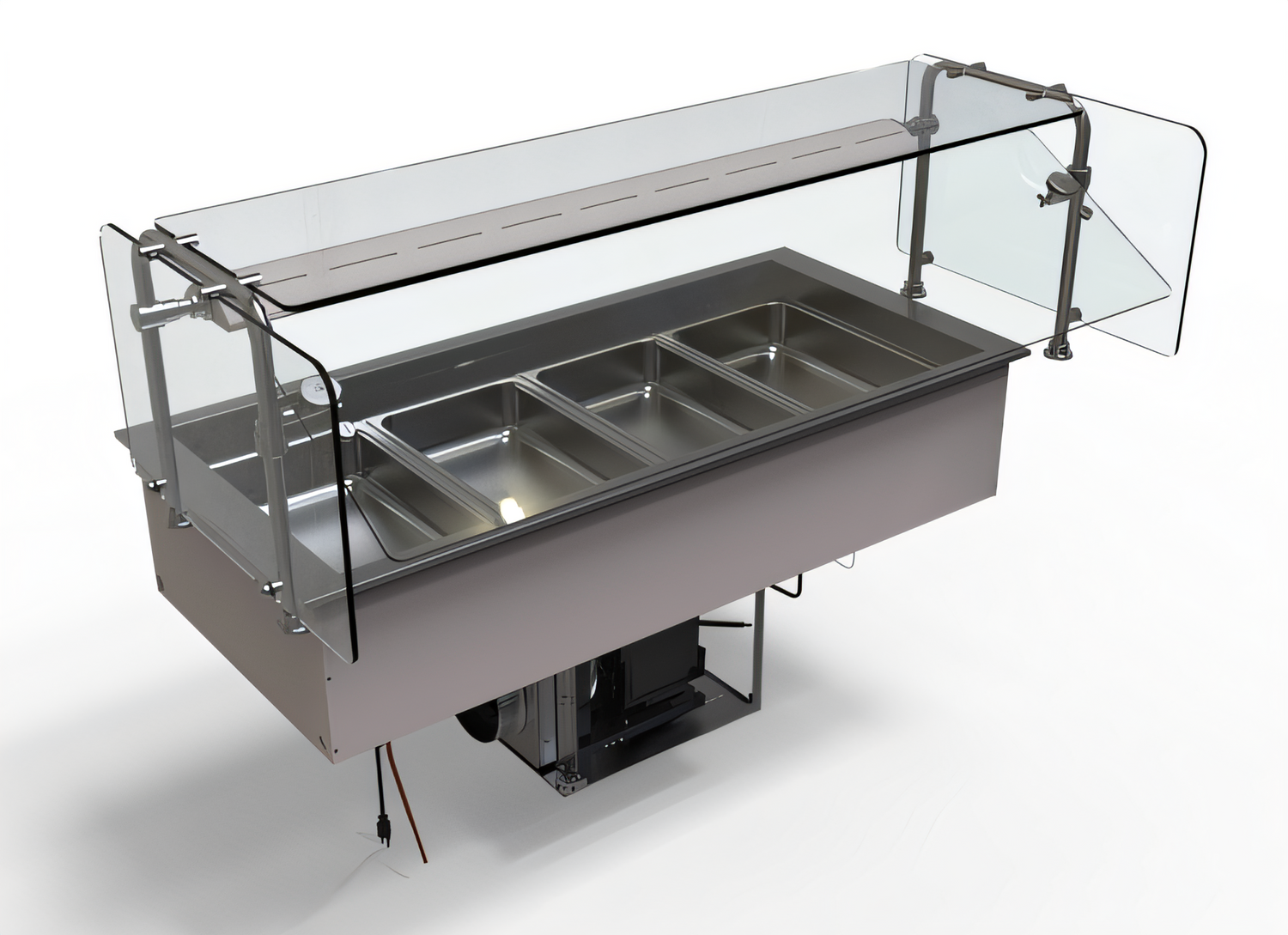

Hatco CWBP-4 Bundle 4-Pan Self-Contained Refrigerated Drop-In Cold Well with Sneeze Guard and Light

Full-Size Pans, Straight Layout, R-290, 120 Volts

This ready-to-install cold well bundle keeps pre-chilled foods safely chilled while adding a sneeze guard and lamp for a polished buffet presentation.

  • 4-pan refrigerated drop-in cold well designed for buffet lines and food bars.
  • Self-contained R-290 refrigeration with electronic temperature control helps maintain safe serving temperatures.
  • Bundle includes the B-ORBIT900-62 sneeze guard and HL5-54NW lamp.
  • Top-mount design holds full-size 12" x 20" pans and uses a straight layout.
  • Aluminized steel housing, stainless steel bezel, insulation, and drain support durability and easier cleanup.
  • 120V, 60 Hz, single-phase power with a NEMA 5-15P plug simplifies installation.

Overall Dimensions:

58.0"W x 27.0"D x 25.5"H

Product Weight:

211.0 lb

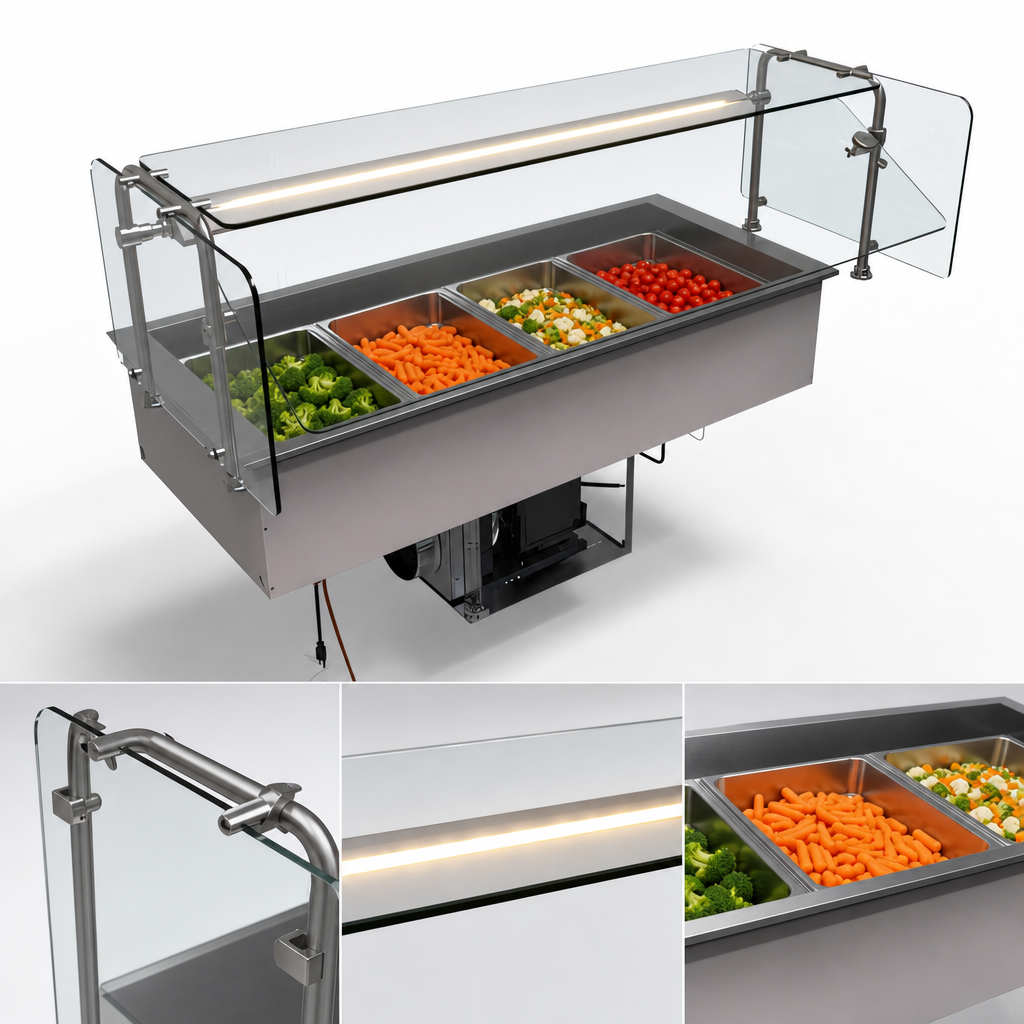

Bundle Includes Sneeze Guard and Light

Supplied with the B-ORBIT900-62 sneeze guard and HL5-54NW lamp for a complete food presentation package.

Four-Pan Full-Size Capacity

Holds four full-size 12" x 20" pans for refrigerated serving line use.

Self-Contained R-290 Refrigeration

Integrated refrigeration with environmentally friendly R-290 refrigerant keeps pre-chilled food at safe serving temperatures.

Electronic Temperature Control

Advanced electronic control helps manage temperatures consistently and supports auto-defrost operation.

Top-Angled Drop-In Design

The angled interior wall design improves access and helps cold air blanket food more effectively.

Durable Cabinet Construction

Aluminized steel housing with a stainless steel bezel is built for commercial foodservice use.

Easy-Clean Drain And Service Access

Insulated construction, a drain, sight glass, service valves, and a dryer/filter help simplify maintenance and cleaning.

Electrical Configuration

120V, 60 Hz, single-phase operation with a NEMA 5-15P plug.

Type Refrigerated Drop-In Well
Style Self-Contained Refrigeration
Installation Type Drop-In
Layout Straight
Pan Capacity 4 Full-Size Pans
Pan Size Full-Size (12 Inches x 20 Inches)
Controls Electronic
Material Aluminized Steel
Refrigerant Type R-290
Horsepower 1/3 HP
Voltage 120 Volts
Amps 6.5 Amps
Watts 440 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Drain Connection Size 1 Inch
Drain Connection Required
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 58 Inches
Shipping Depth 27 Inches
Shipping Height 26 Inches
Shipping Weight 211 lbs.

Certifications & Compliance

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Gr5 operator manual PDF Download PDF Hl5 spec sheet PDF Download PDF Cwbp operator manual PDF Download PDF Hl5 operator manual PDF Download PDF Gr5 spec sheet PDF Download

Frequently Asked Questions

It holds four full-size 12" x 20" pans.
The bundle includes the B-ORBIT900-62 sneeze guard and the HL5-54NW lamp.
It uses self-contained R-290 refrigeration with electronic temperature control.
The unit operates on 120V, 60 Hz, single-phase power and uses a NEMA 5-15P plug.
Yes. It is insulated and includes a drain, and the documentation notes a 1-inch brass drain for easier cleaning.
Yes. The electronic control assembly can be mounted on either side of the condensing unit or remotely up to 4 feet away, but not over the condensing coil.
