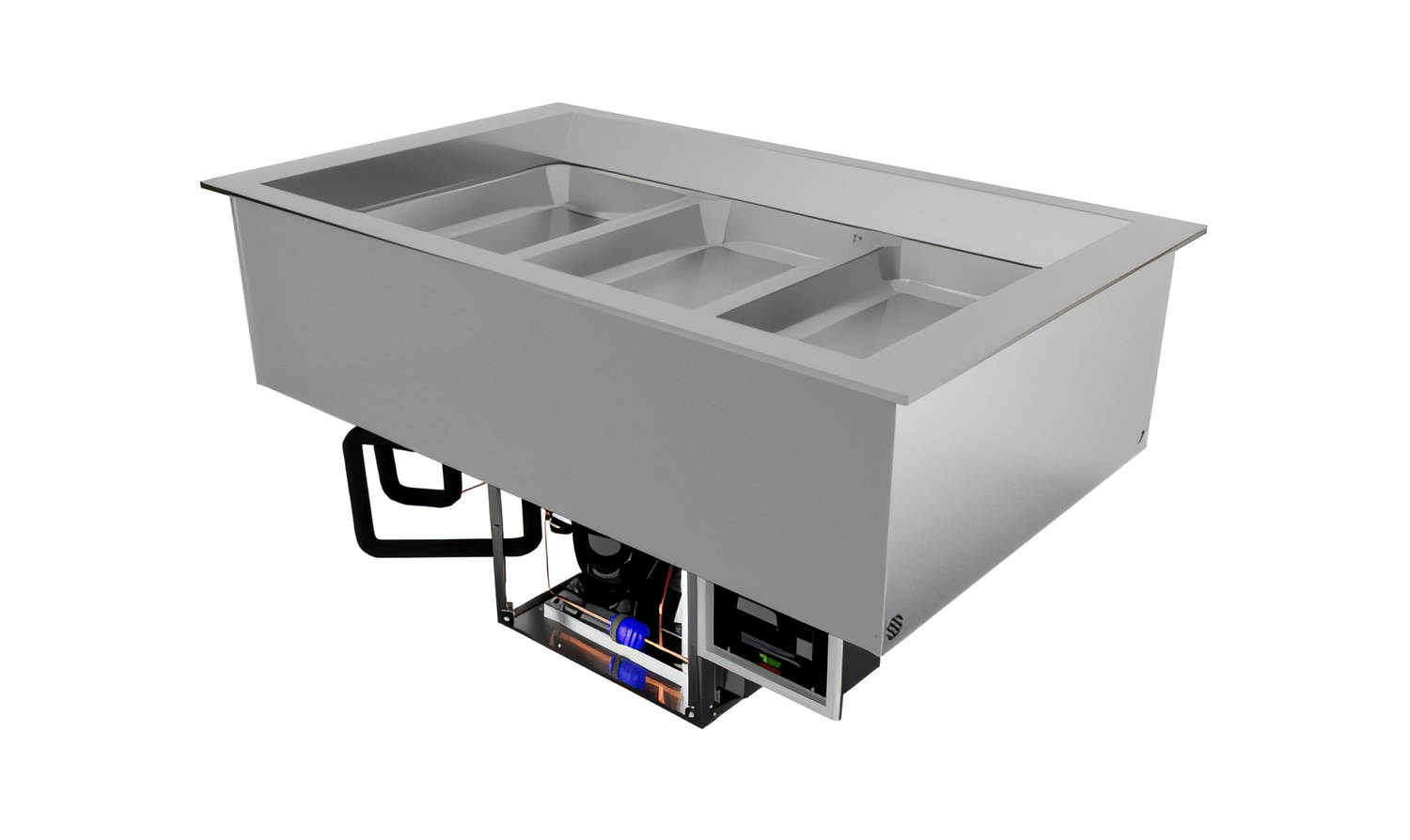

Hatco CWBP-3 R-290 Refrigerated Drop-In Well – 3 Pan

Engineered for demanding front- or back-of-house service lines, the CWBP-3 holds three full-size food pans in a seamless, top-mount package. Hatco’s patented angled cold-wall design blankets product with cold air instead of blowing it across the surface, preserving moisture and presentation for hours.

Key Features

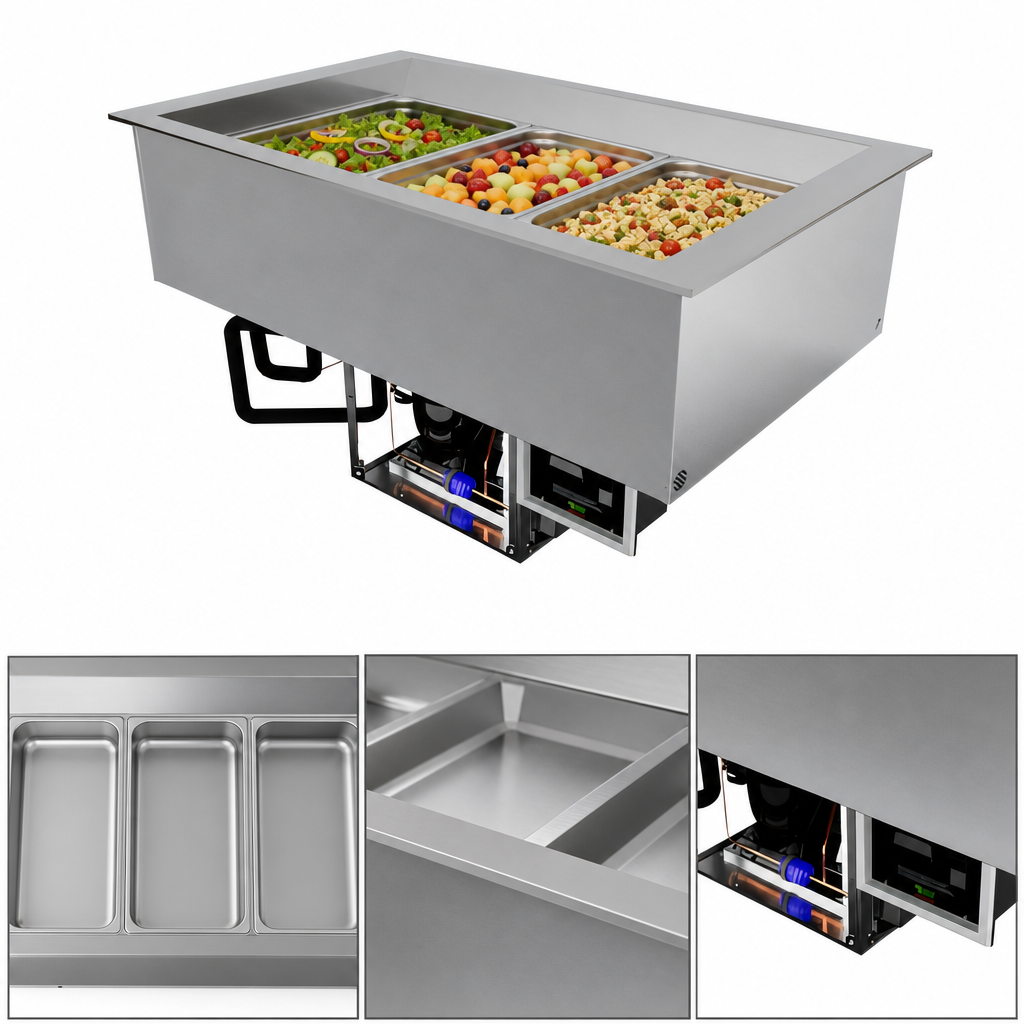

• Capacity: (3) full-size 12 × 20 in hotel pans (pans not included).
• Top-mount installation with a clean stainless-steel bezel for a flush, professional look.
• Angled interior walls create a “cold blanket” that keeps food below 40 °F without drying it out.
• Eco-friendly R-290 refrigeration, 1/5 HP compressor (120 V) for quiet, energy-efficient performance.
• Electronic temperature control with auto-defrost; mount on either side of the condenser or remotely up to 4 ft (not above coil).
• Sight glass, service valves, and dryer/filter built in for quick diagnostics and maintenance.
• Fixed-orientation condensing unit (cannot be rotated) simplifies drop-in cut-out planning.
• Foamed-in-place CFC-free insulation on sides & bottom plus 1 in brass drain with strainer for fast cleanup.
• Matches Hatco heated wells for a uniform serving line; NSF 7 component listed & cULus certified.
• Proudly made in the USA.

Perfect For

• Salad bars & cold buffets
• Universities & corporate cafeterias
• C-stores, delis & grab-n-go islands
• Hotel breakfast or banquet lines

Technical Specifications

Food pans, adapter bars, trivets and other accessories are sold separately.
