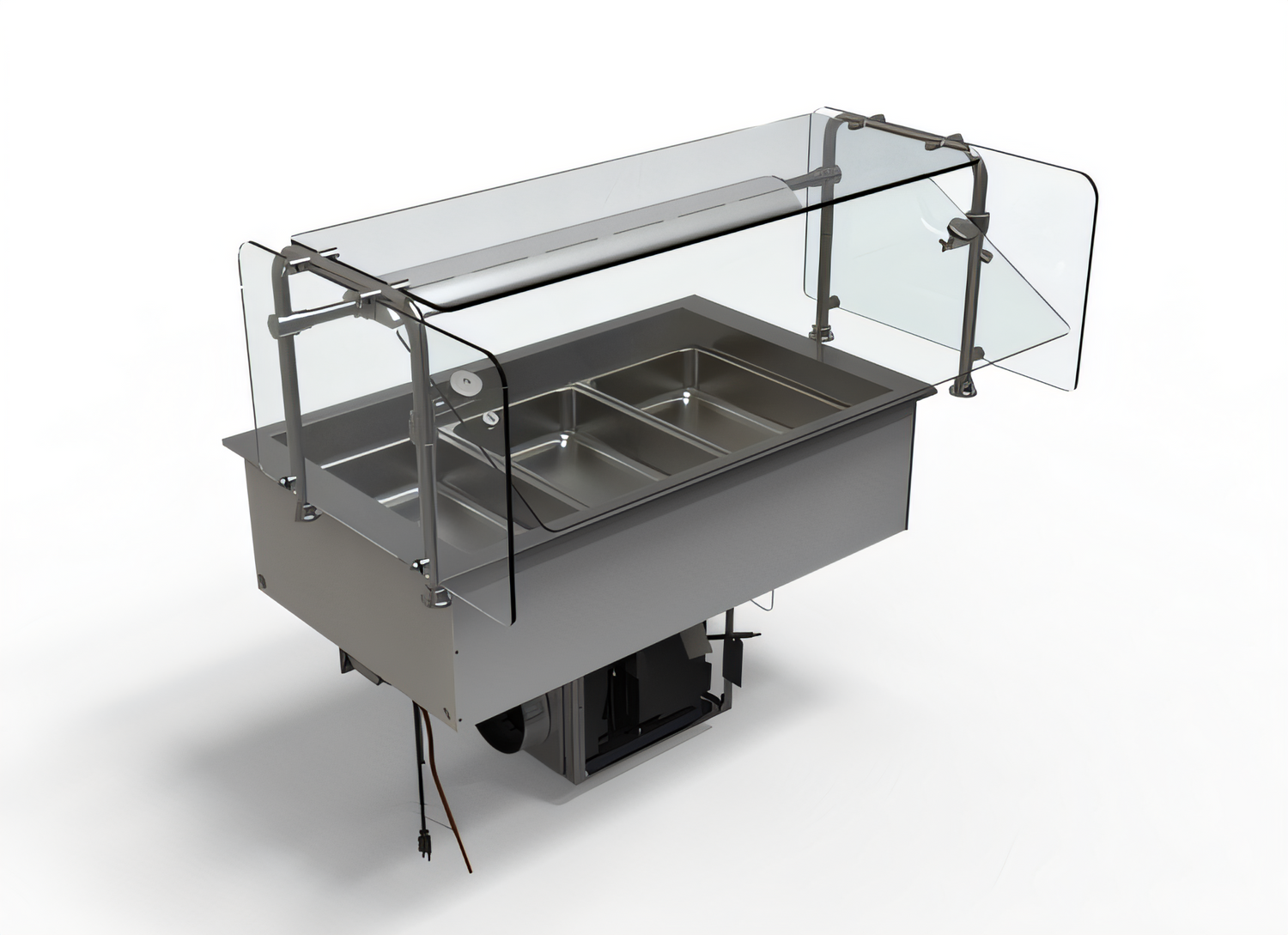

Hatco 3-Pan Full-Size Drop-In Refrigerated Cold Well Bundle with Sneeze Guard and Lamp

SKU: CWBP-3-BUNDLE
$9,347.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hatco New Arrivals Restaurant Equipment Steam Tables & Food Wells

Hatco 3-Pan Full-Size Drop-In Refrigerated Cold Well Bundle with Sneeze Guard and Lamp

Top-Mount, Self-Contained R-290, 120V

Keep pre-chilled foods cold and ready to serve with a self-contained drop-in cold well bundle that adds an integrated sneeze guard and lamp.

  • Holds three full-size 12" x 20" pans in a top-mount drop-in layout.
  • Self-contained R-290 refrigeration helps maintain safe serving temperatures for chilled foods.
  • Electronic temperature control with auto-defrost supports dependable day-to-day operation.
  • Aluminized steel housing, stainless steel bezel, and insulated construction help with durability and cold retention.
  • Bundle includes the B-ORBIT900-49 sneeze guard and HL5-42NW lamp for a complete serving setup.
  • 120V single-phase power with a NEMA 5-15P plug simplifies installation.

Overall Dimensions:

45.0"W x 27.0"D x 25.5"H

Product Weight:

173.0 lb

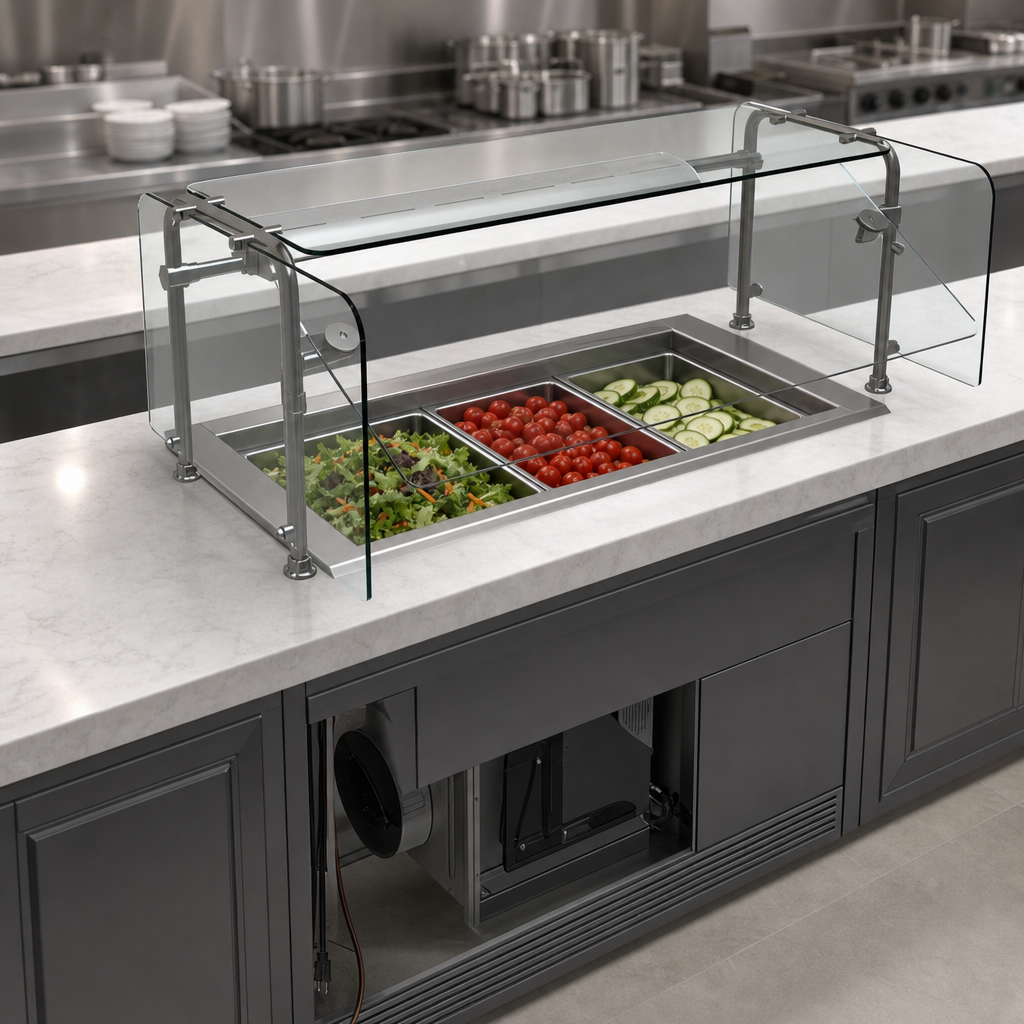

Straight Layout

Designed for straight-line buffet and serving line installations.

Top-Mount 3-Pan Well

Configured to hold three full-size 12" x 20" pans in a top-mount drop-in design.

Self-Contained R-290 Refrigeration

Built-in refrigeration uses environmentally friendly R-290 refrigerant.

Electronic Temperature Control

Advanced electronic control with auto-defrost support.

Flexible Control Mounting

The electronic control assembly can be mounted on either side of the condensing unit or remotely up to 4 feet away.

Durable Insulated Construction

Aluminized steel housing with a stainless steel bezel and insulated sides and bottom.

Integrated Drain

A 1-inch brass drain helps simplify cleanup.

Included Service Accessories

Bundle includes the B-ORBIT900-49 sneeze guard and HL5-42NW lamp.

Fixed Condenser Orientation

The condenser unit cannot be rotated.

Type Cold Well
Style Top Mount
Installation Type Drop-In
Refrigeration Type Self-Contained Refrigeration
Pan Capacity 3 Full-Size Pans
Pan Size Full-Size (12" x 20")
Controls Electronic Temperature Control
Material Aluminized Steel
Refrigerant Type R-290
Voltage 120 Volts
Amps 5.2 Amps
Watts 345 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 45 Inches
Shipping Depth 27 Inches
Shipping Height 26 Inches
Shipping Weight 173 Pounds

Certifications & Compliance

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Gr5 spec sheet PDF Download PDF Gr5 operator manual PDF Download PDF Hl5 spec sheet PDF Download PDF Hl5 operator manual PDF Download PDF Cwbp operator manual PDF Download

Frequently Asked Questions

It is designed for three full-size 12" x 20" pans.
It runs on 120 Volts, 60 Hz, single-phase power and uses a NEMA 5-15P plug.
Yes. The unit uses self-contained R-290 refrigeration with the condenser built into the unit.
The bundle includes the refrigerated drop-in well, the B-ORBIT900-49 sneeze guard, and the HL5-42NW lamp.
Yes. The control assembly can be mounted on either side of the condensing unit or remotely up to 4 feet away.
