Hatco  |  SKU: CWBP-2-BUNDLE

Hatco CWBP-2-BUNDLE Steam Tables & Food Wells

$8,494.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Gr5 operator manual Hl5 spec sheet Gr5 spec sheet Cwbp operator manual Hl5 operator manual
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

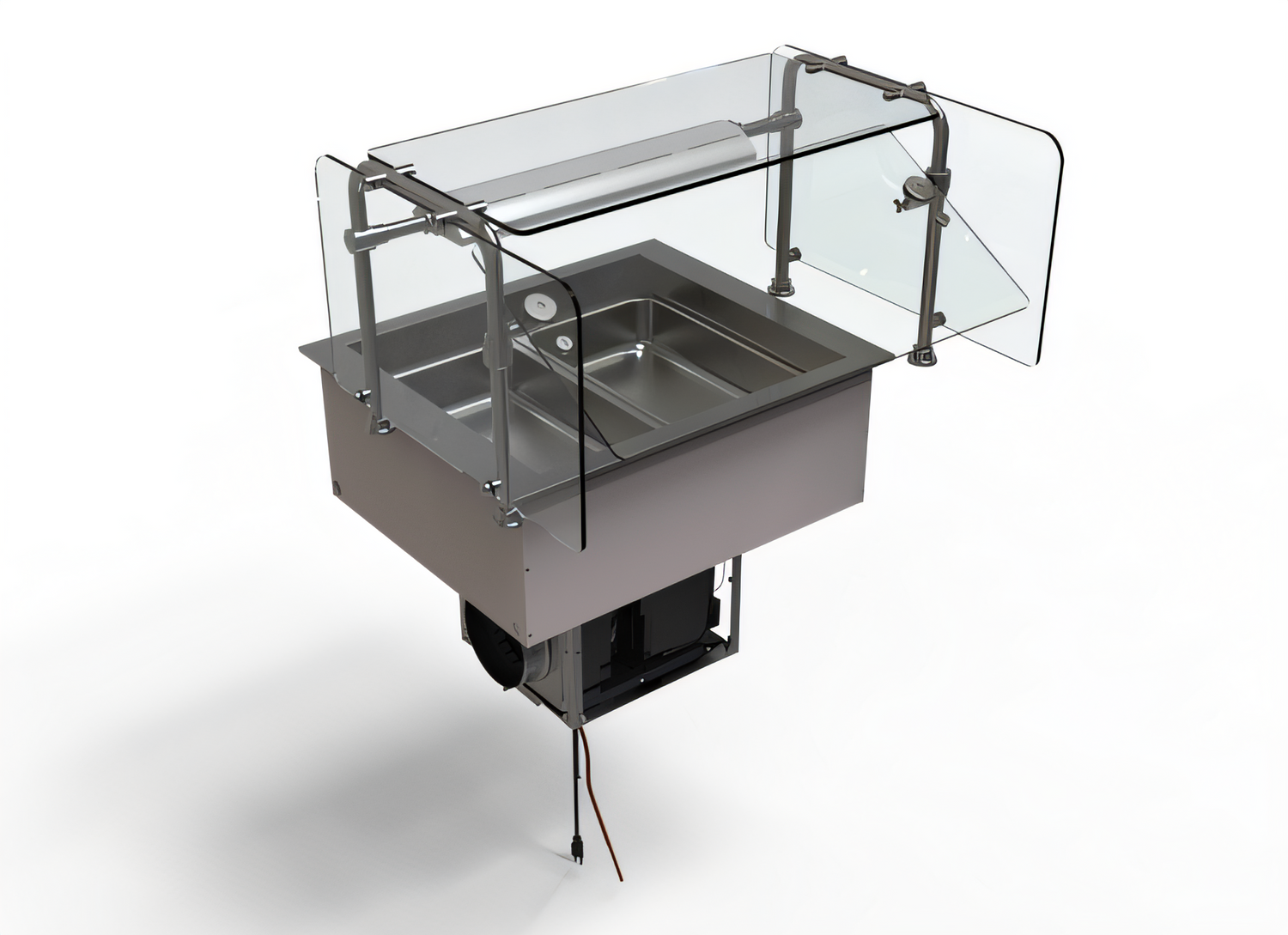

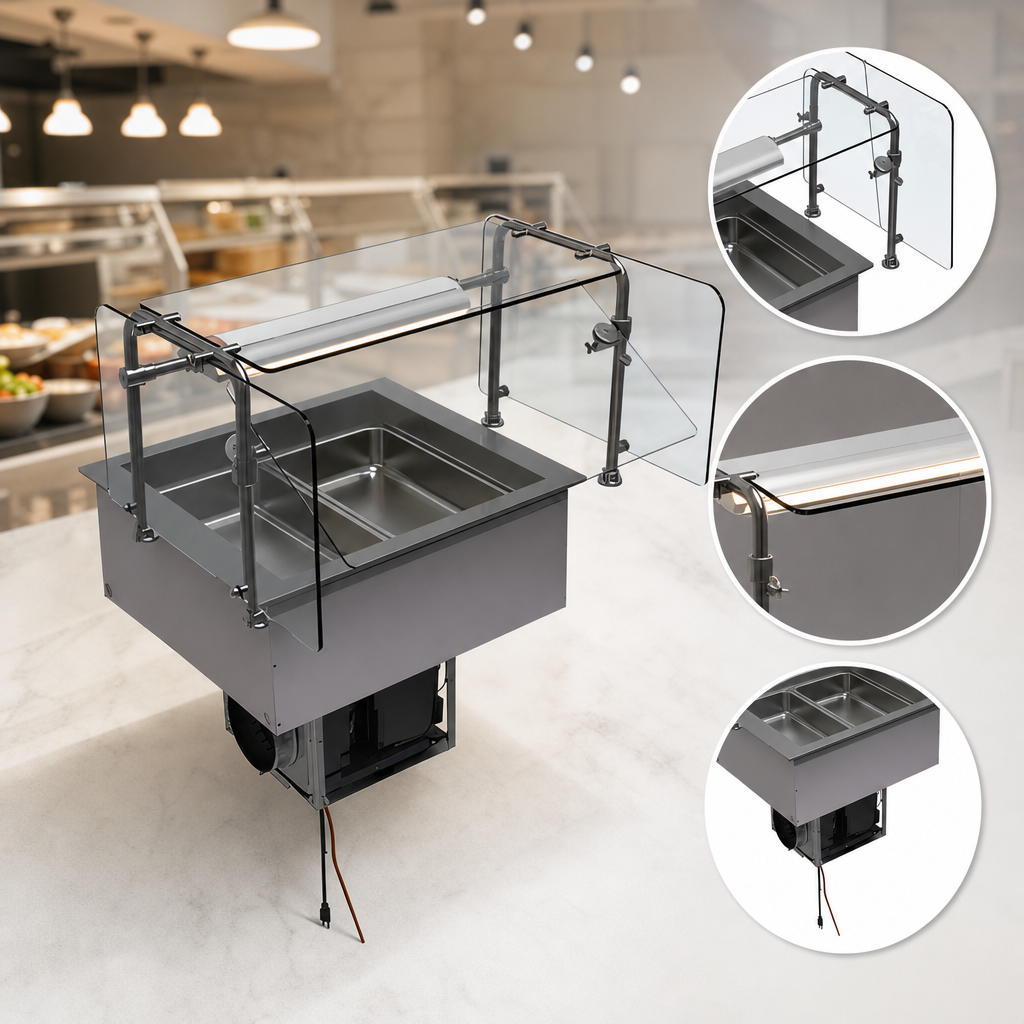

Hatco R-290 Refrigerated Drop-In Cold Well Bundle – 2-Pan

Includes B-ORBIT900-36 Sneeze Guard & HL5-30 Neutral-White LED Light

Build a cleaner, brighter and perfectly chilled serving line with a single SKU. This factory-matched bundle pairs Hatco’s NSF-7 certified CWBP-2 refrigerated well with a curved tempered-glass food shield and an energy-efficient Glo-Rite® LED light, giving you everything needed for a professional cold station right out of the box.

Key Benefits

  • 2 full-size pan capacity in a compact, top-mount footprint.
  • Angled cold-wall design blankets product with cold air for even holding without moisture loss.
  • Eco-friendly R-290 refrigerant, high-density insulation and auto-defrost for lower operating costs.
  • Electronic temperature control (remote-mount up to 4 ft) maintains a safe 33-40 °F (0.5-4 °C) range.
  • Curved B-ORBIT sneeze guard provides crystal-clear visibility while meeting food-shield codes.
  • HL5-30 dual-LED strip (4100 K) delivers brilliant neutral-white illumination using only 8 W.
  • 1" brass drain and removable pan support bars make clean-up fast and hassle-free.
  • Ships fully assembled, cULus listed and proudly Made in the USA.

What’s in the Box

Component Description
Refrigerated Well Hatco CWBP-2, 2-pan, top-mount cold wall, 1/5 HP compressor, fixed condenser, stainless bezel & aluminized steel housing.
Sneeze Guard B-ORBIT900-36 curved tempered-glass guard, 36" span, clear-anodized hardware.
Display Light Hatco HL5-30NW Glo-Rite® LED bar, 30" length, neutral-white (4100 K), on-board rocker switch.
Accessories Full-size pan support bars (2), electronic control box with 4 ft lead, factory-installed 1" drain.

Cold Well Specifications

Capacity (2) full-size 12" × 20" pans (pans not included)
Exterior Dimensions 32" W × 27" D × 12.02" H (well)
Counter Cut-Out 30.125"–31" W × 25.19"–26" D
Compressor 1/5 HP - hermetic
Refrigerant / Charge R-290, 4.5 oz (127.6 g)
Electrical 120 V / 60 Hz / 1-ph, 5.2 A, 345 W, NEMA 5-15P
Heat Rejection 1,681 BTU/hr
Agency Listings cULus, NSF/ANSI 7 component

HL5-30 LED Light Specifications

Length 30" (762 mm)
Wattage 8 W
Color Temperature Neutral White 4100 K
Lead Length 6" (152 mm) with NEMA 5-15P plug
Housing Clear-anodized aluminum with matching angle brackets

Perfect For

  • Salad & sandwich build lines
  • Grab-and-go delis or cafés
  • Hotel breakfast or brunch buffets
  • C-store cold topping stations
Installation Note: The condenser is fixed and must remain in the shipped orientation. Provide at least 4" (102 mm) of ventilation clearance on all sides.

Looking for a different size? Hatco R-290 wells are available in 1- to 6-pan configurations—contact us for a custom quote.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

32.1in

Width

32.0in

Depth

27.0in

Shipping Weight

150.0lbs

Pan Size

full-size (12" x 20")

Finish

stainless steel

Style

self-contained refrigeration

Pan Qty

2-pan

Layout

straight

Specifications

BUNDLE: COLD WELL DROP-IN, SNEEZE GUARD AND LIGHT. Drop-In Refrigerated Well, (2) pan size, includes: B-ORBIT900-36 sneeze guard & HL5-30NW lamp, top mount, electronic temperature control, pan support bars for full-size pans, condenser unit (cannot be rotated), sight glass, service valves, dryer/filter, insulated with drain, aluminized steel housing, stainless steel bezel, 1/5 HP, 120v/60/1-ph, NEMA 5-15P, R-290 refrigerant, cULus, Made in USA
