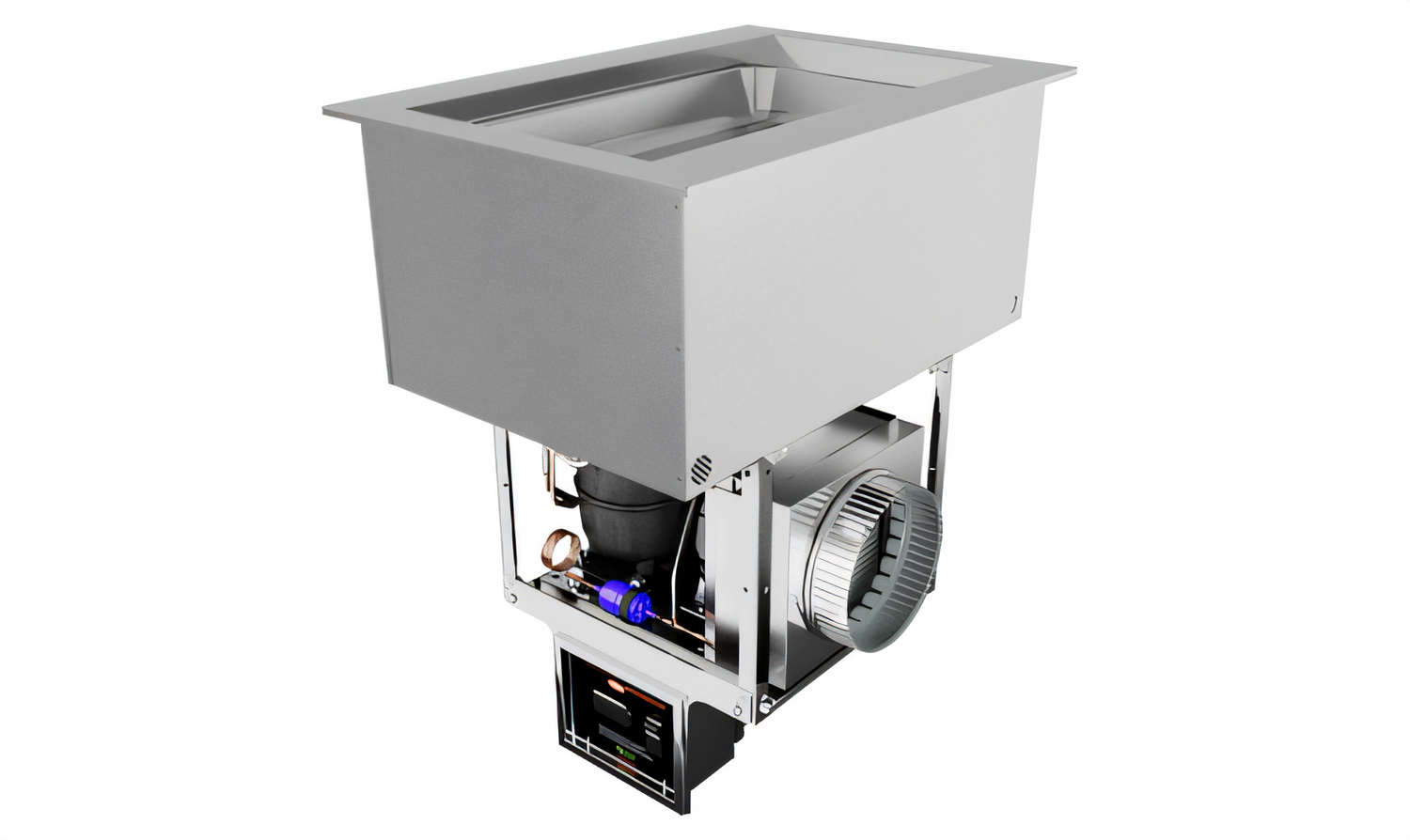

Hatco CWBP-1 Top-Mount Drop-In Refrigerated Cold Well, 1 Full-Size Pan, Self-Contained R-290

Electronic Temperature Control, Insulated Cold Wall Construction

Keep one full-size pan of pre-chilled food safely cold in a compact, top-mount drop-in well with efficient R-290 refrigeration and electronic temperature control.

  • Holds one full-size 12" x 20" pan in a compact 19-inch-wide drop-in footprint.
  • Self-contained R-290 refrigeration helps maintain safe serving temperatures without drying out food.
  • Electronic temperature control with auto-defrost supports consistent, low-maintenance operation.
  • Insulated sides and bottom improve cold retention for buffet and serving line use.
  • Durable aluminized steel housing with stainless steel bezel is built for commercial environments.
  • 1-inch brass drain and service-friendly refrigeration components simplify cleaning and maintenance.

Overall Dimensions:

19.0"W x 27.0"D x 32.1"H

Product Weight:

127.0 lb

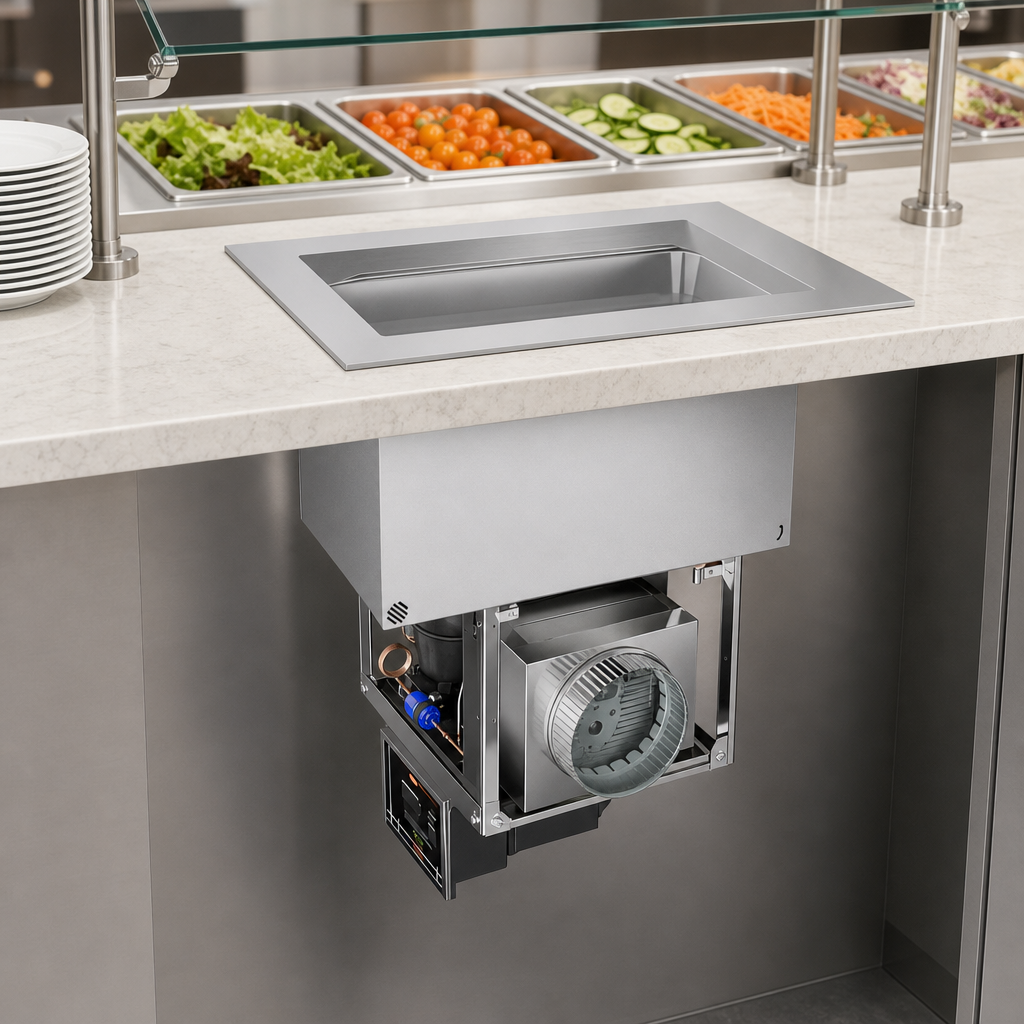

Top-Mount Drop-In Design

Installs from above the counter for a clean, integrated presentation on food bars and serving lines.

One Full-Size Pan Capacity

Configured for a single rectangular 12" x 20" pan.

Electronic Temperature Control

Advanced electronic control provides precise temperature management and auto-defrost functionality.

R-290 Self-Contained Refrigeration

Uses environmentally friendly R-290 refrigerant in a self-contained refrigeration system.

Insulated Cold Wall Construction

Insulated sides and bottom help retain cold temperatures and improve product holding performance.

Aluminized Steel Housing with Stainless Steel Bezel

Durable exterior construction combines aluminized steel housing with a stainless steel bezel.

1-Inch Brass Drain

Built-in drain simplifies cleaning and drainage.

Service-Friendly Refrigeration Components

Includes sight glass, service valves, filter-dryer, compressor, condenser unit, and refrigerant lines for maintenance support.

Flexible Control Mounting

The electronic control assembly can be mounted to either side of the condensing unit or remotely up to 4 feet away.

Angled Interior Wall Design

The angled inside wall improves access and helps cold air blanket the food product more effectively.

Type Cold Well
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 1
Pan Size Full-Size (12 Inches x 20 Inches)
Material Aluminized Steel
Finish Aluminum & Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R-290
Controls Electronic Temperature Control
Drain Connection Required
Drain Connection Size 1 Inch
Voltage 120 Volts
Amps 5.2 Amps
Watts 345 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
BTU 1,441 BTU/Hr
Compressor Horsepower 1/5 HP
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download PDF Cwbp operator manual PDF Download

Frequently Asked Questions

It holds one full-size rectangular pan measuring 12" x 20".
It uses R-290 refrigerant.
Yes. The advanced electronic controller activates auto-defrost.
No. It can be mounted to either side of the condensing unit or remotely up to 4 feet away, but not over the condensing coil.
The unit includes a 1-inch brass drain.
Available accessories include pan support bars, stainless steel food pans, a false bottom, a condensate evaporator pan, trivets, a slant kit, and a gasket.
