Hatco CSUX-48-S Steam Tables & Food Wells
Description

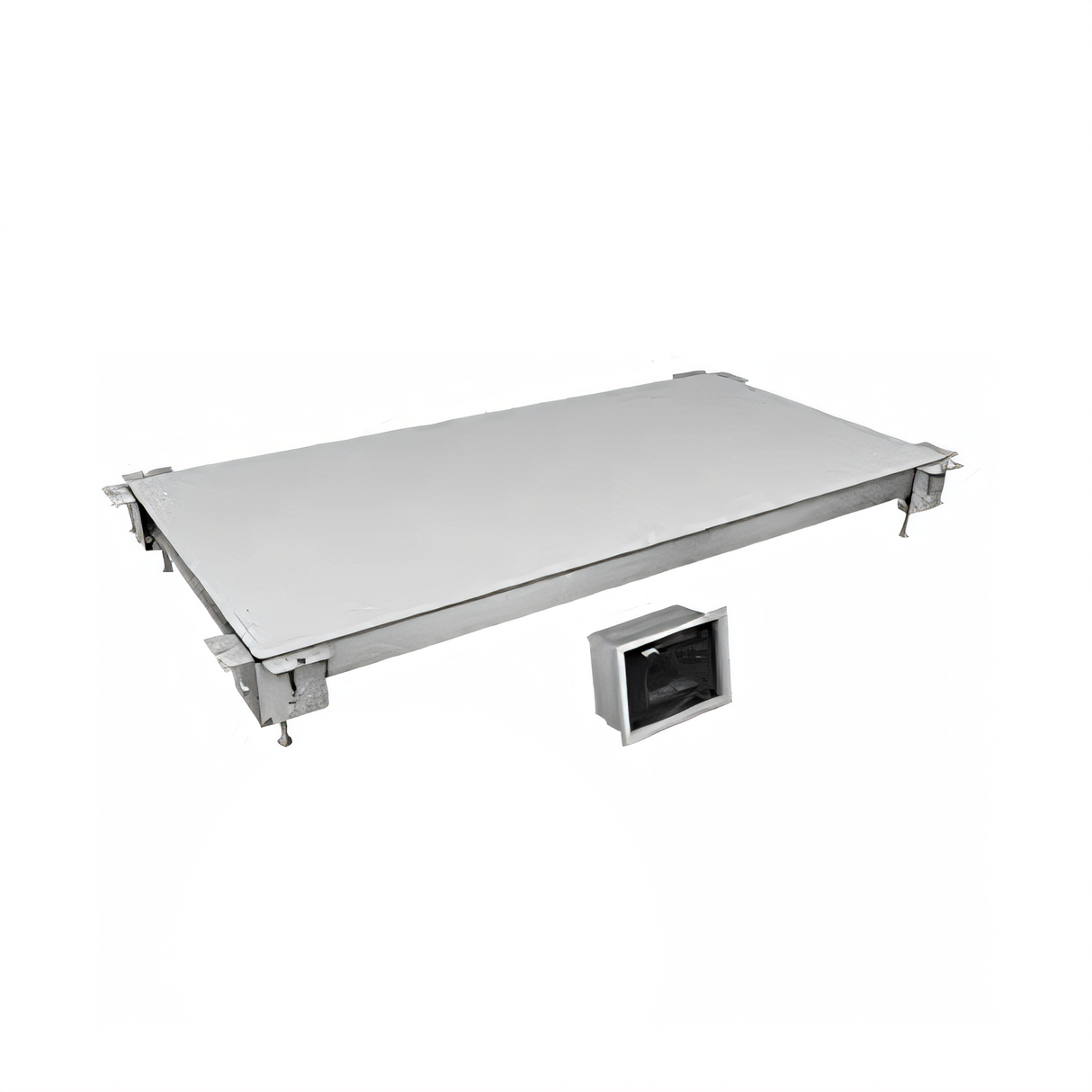

Hatco CSUX-48-S Cold Shelf Undermount
48" W × 24" D | Remote refrigeration ready (condenser not included)Give your grab-and-go dishes, desserts, beverages, or sushi the perfect chill—without giving up precious counter space. The CSUX-48-S mounts invisibly beneath your stone or solid-surface countertop, delivering an even blanket of cold across a generous 48 × 24 inch aluminum hard-coat surface, all controlled by a precision electronic thermostat.
Key advantages
- Remote design – shelf ships without a condenser; connect to the refrigeration system of your choice for ultimate layout flexibility.

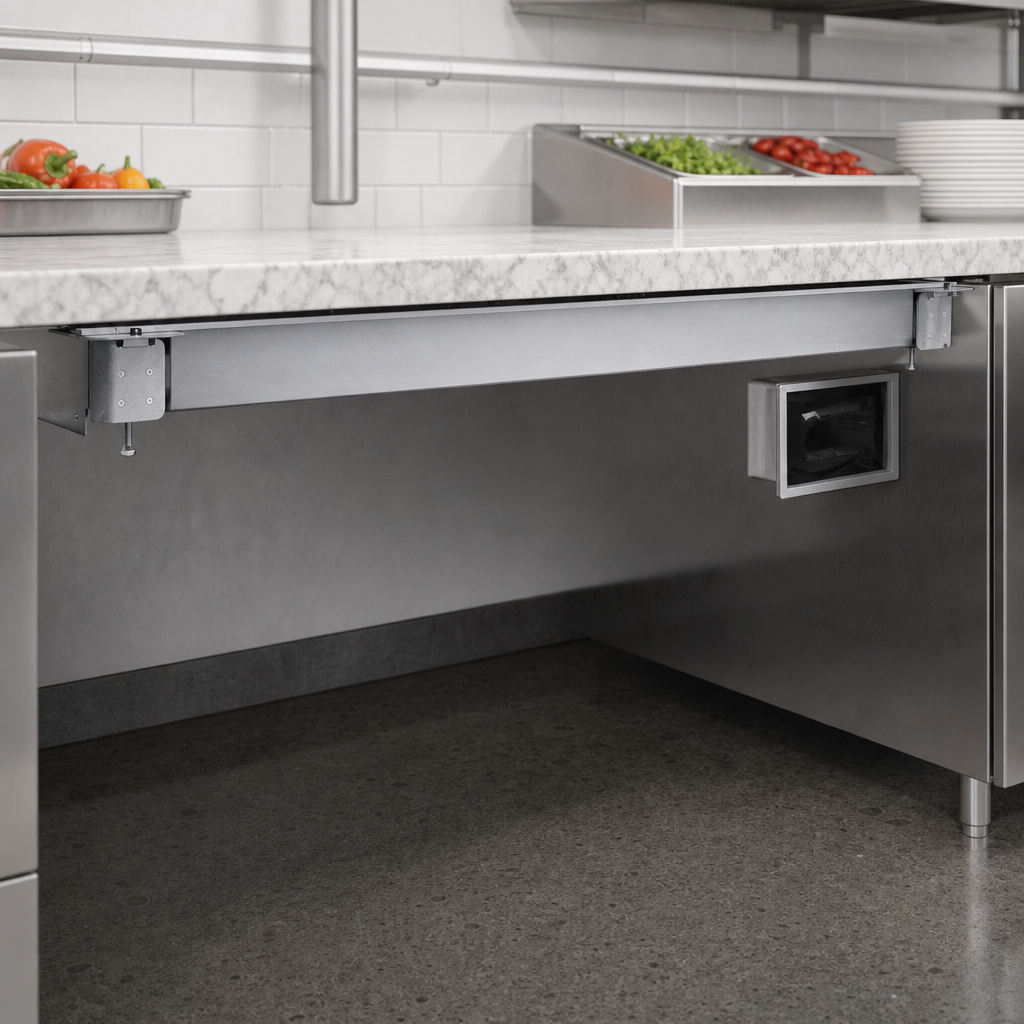

- True undermount installation keeps the countertop completely flush and easy to wipe clean.
- Hard-coat anodized aluminum surface delivers fast pull-down and durable scratch resistance.
- Factory-installed liquid line solenoid valve and TXV (shipped loose) for simple hook-up to remote system.
- Electronic temperature control box with 4 ft (1219 mm) lead allows convenient mounting inside cabinetry.
- Approved for granite, quartz (≤ 1 3⁄16" / 30 mm), Swanstone®, and specified stainless or aluminum substrates.
- cULus listed and proudly Made in the USA.
What’s in the box
- 48" × 24" cold shelf assembly with integrated refrigerant tubing & temperature probe
- Electronic Temperature Control Box (shipped loose)
- Liquid line solenoid valve (pre-mounted)
- TXV valve (shipped loose for field installation)
- Mounting brackets, leveling hardware & thermal mastic
- Installation & operating manual
Specifications
| Model | CSUX-48-S |
|---|---|
| Usable cold surface | 48" W × 24" D (1219 × 610 mm) |
| Overall shelf dimensions | 51.31" W × 27.31" D × 7.29" H (1303 × 694 × 185 mm) |
| Surface material | Anodized aluminum hard-coat |
| Electronic control power | 120 V, 12 W, 0.1 A, 60 Hz (other voltages available) |
| Evaporator load | 1,767 BTU/h |
| Mounting depth (below counter) | ≈ 2.125" (54 mm) shelf thickness |
| Listings | cULus, NSF Component |
| Origin | Made in USA |
Ideal for
- C-stores & coffee bars looking for seamless, self-serve cold wells
- Hotel breakfast buffets and concierge lounges
- Sushi, pastry, or dessert displays that demand a clean aesthetic
- Front-of-house deli or salad builds where customer interaction is key
Need a complete plug-and-play package? Ask about Hatco CSU Series shelves, which ship with an attached condensing unit.
