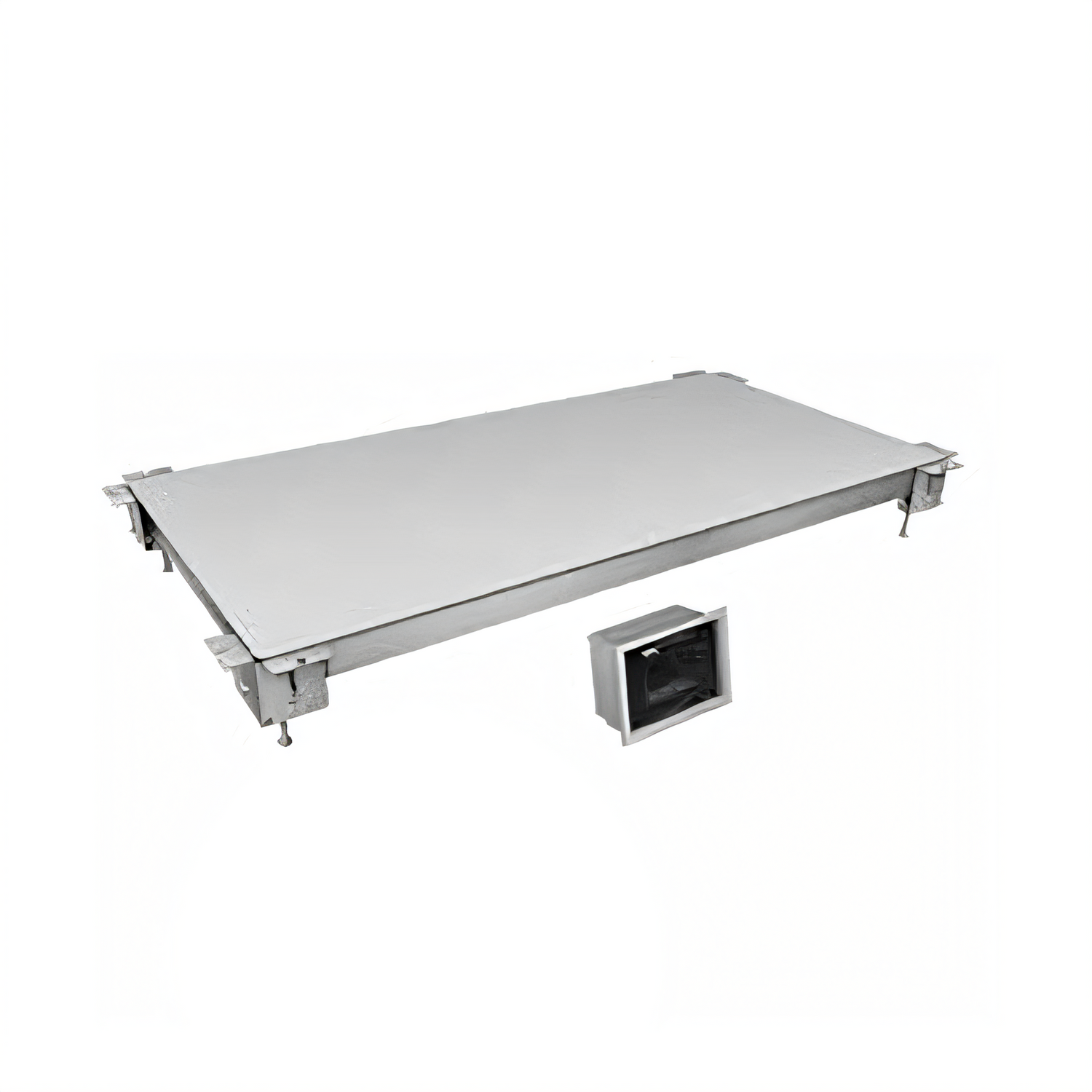

Hatco 48" Undermount Cold Shelf – Remote Refrigeration Ready
Hard-coat aluminum | 48" W × 19-1/2" D chill zone | Made in USACreate a seamless, high-impact cold display without sacrificing counter space. This Hatco undermount shelf installs beneath your stone, quartz, solid-surface, or stainless countertop and delivers consistent “grab-n-go” temperatures via its loose electronic control box. Simply connect to a remote refrigeration system (not included) and keep salads, desserts, beverages and more perfectly chilled all service long.
Key benefits
- Invisible integration – mounts directly to the underside of approved countertops up to 1 3/16" (30 mm) thick for a clean, flush look.
- Hard-coat anodized aluminum surface resists scratching, pitting and flaking for long-term durability.
- Precision electronic temperature control (shipped loose, 4 ft lead) maintains safe 36–41 °F (2–5 °C) holding temperatures.

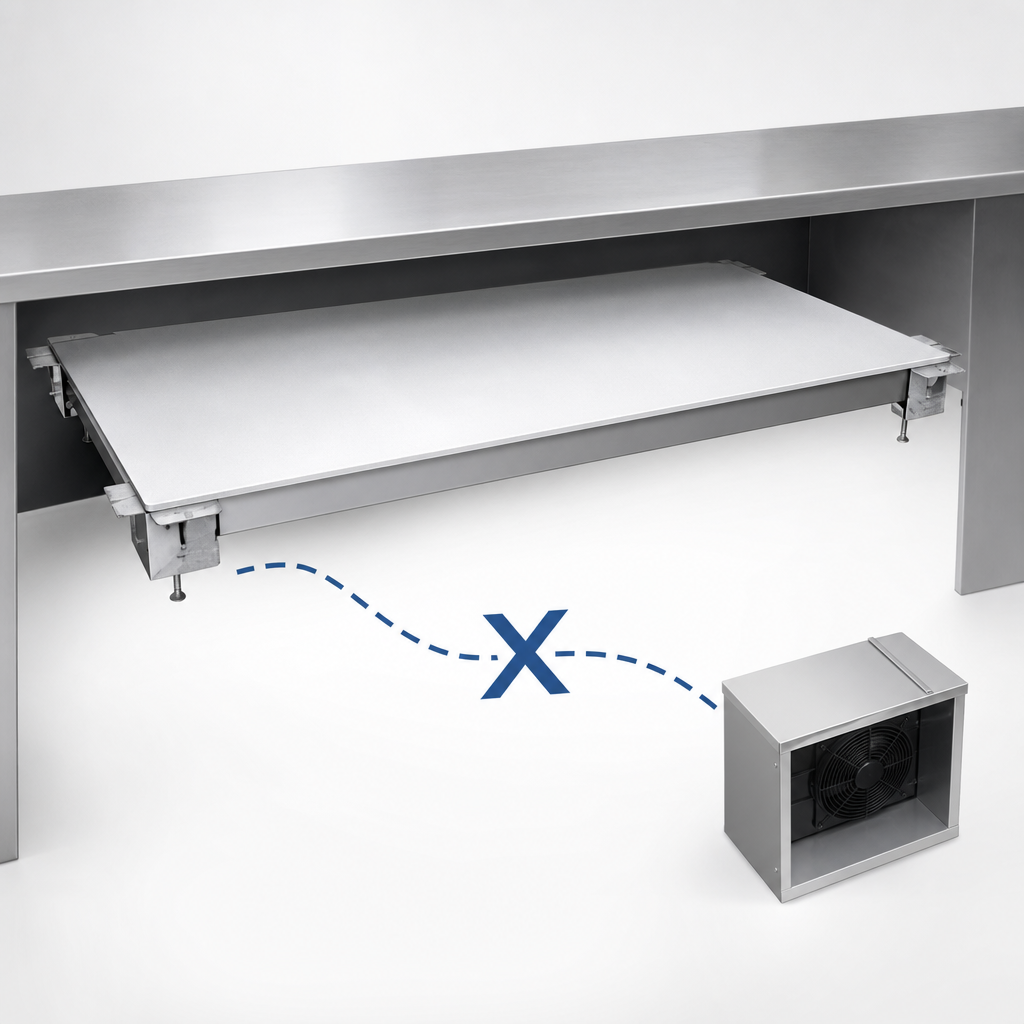

- Remote-ready design (CSUX series) ships with TXV valve and probe—connect to the condensing unit of your choice and the refrigerant that best suits your layout.
- Service-friendly control enclosure can be mounted up to 4 ft from shelf for easy access and a clutter-free counter face.
- Certified & backed by Hatco – cULus listed, NSF component recognized and proudly made in the USA.
Perfect for
- Grab-and-go islands & convenience stores
- Hotel breakfast bars and buffets
- Cafeteria & corporate serveries
- Dessert, pastry or sushi lines needing spot cooling
Specifications
| Usable chill area | 48" W × 19-1/2" D (1219 × 495 mm) |
|---|---|
| Overall shelf (W × D × H) | 51-5/16" × 22-13/16" × 7-5/16" (1303 × 579 × 185 mm) |
| Mounting clearance | 2-1/8" (54 mm) under-counter recess required |
| Electrical (control box) | 120/220/230/240 V, 17 W, 0.1 A, 60 Hz |
| Remote refrigeration load | ≈ 1 ,767 BTU/h evaporator capacity @ 25 °F (-4 °C) SST |
| Shipping weight | ≈ 128 lb (58 kg) |
| Certifications | cULus, NSF (component), Made in USA |
What’s included
- 48" undermount cold shelf with factory-installed temperature probe
- Loose electronic Temperature Control Box (4 ft cable)
- Loose TXV valve for field connection to remote condenser
- Installation & operating manual
Need a plug-and-play version with a factory condenser attached? See our CSU models or contact us for assistance.
