Hatco CSUX-36-I Steam Tables & Food Wells
Description

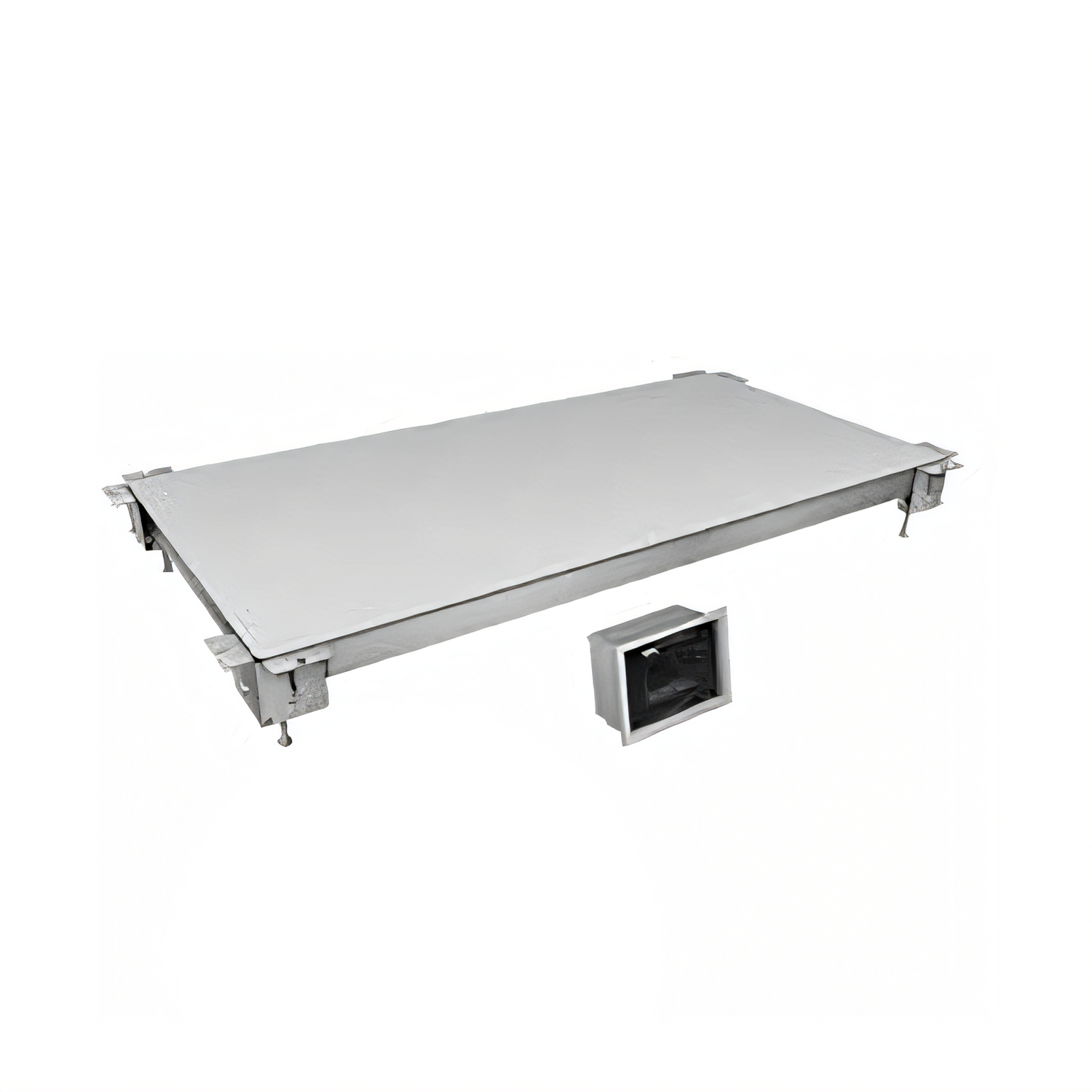

Hatco CSUX-36-I Undermount Cold Shelf – 36" × 19-1/2"
Remote-Ready • Hard-Coat Aluminum • Electronic Temperature ControlGive customers a perfectly chilled grab-and-go experience without giving up your design aesthetic. Mounted invisibly underneath the counter of your choice, the Hatco CSUX-36-I keeps food and beverages safely cold while only a sleek, hard-coat aluminum surface is visible to guests.
Why You’ll Love It

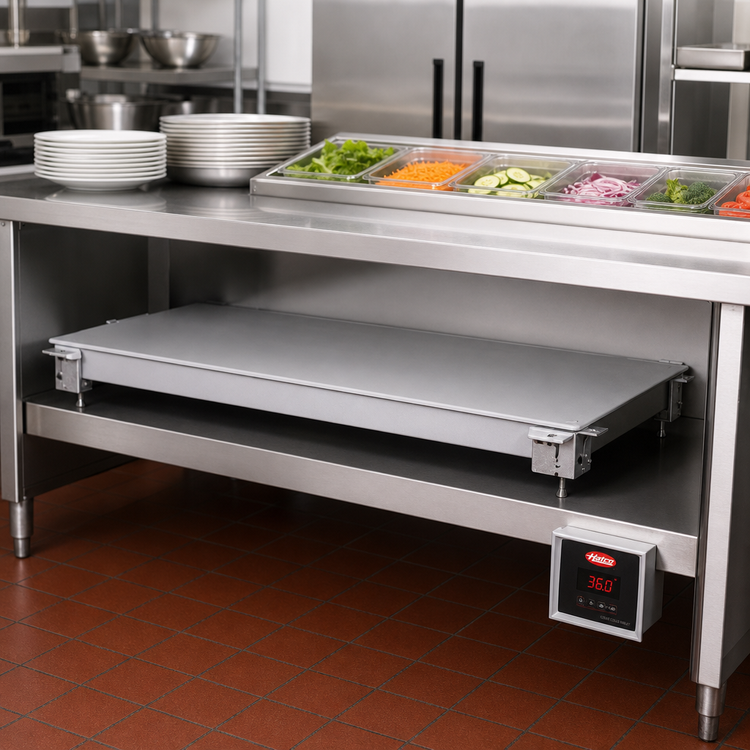

- Invisible installation – attaches to the underside of granite, quartz (≤ 1 3/16"), Swanstone® or approved stainless/aluminum counters.
- Durable hard-coat anodized aluminum top plate delivers fast, even cooling and resists scratches and stains.
- Electronic Temperature Control box (ships loose with a 4 ft lead) lets you dial-in and monitor holding temps with pinpoint accuracy.

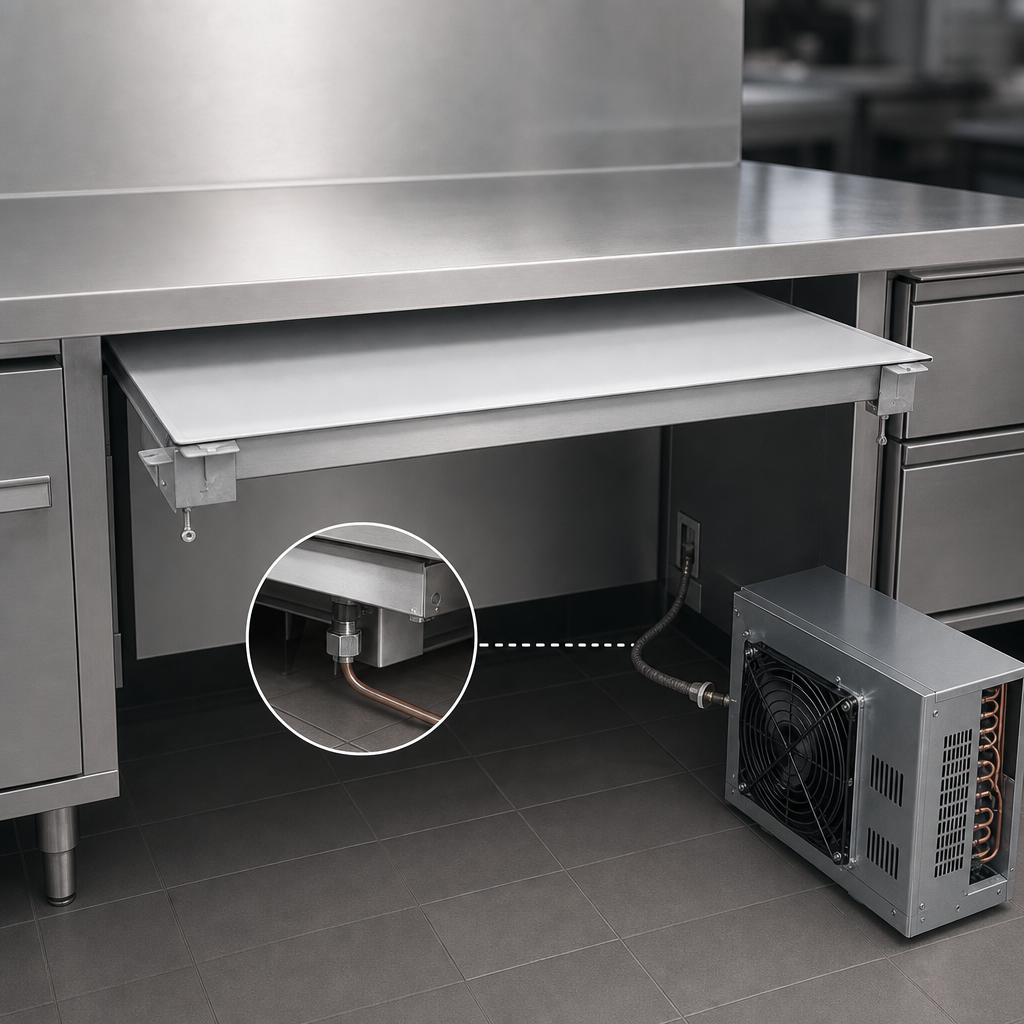

- Remote refrigeration flexibility – shelf ships with TXV valve (loose) and a factory-installed liquid-line solenoid valve, ready to connect to your own condensing unit.
- Low electrical draw (only 12 W) keeps operating costs minimal.
- Made in the USA and cULus listed for peace of mind.
Ideal Applications
- Deli & charcuterie displays
- Pastry & dessert bars
- Self-serve beverage or yogurt toppings stations
- Grab-n-go packaged salads, sandwiches, fruit cups & more
Technical Specifications
| Usable Chilled Surface | 36" W × 19.5" D (914 × 495 mm) |
|---|---|
| Overall Dimensions | 39.31" W × 22.81" D × 7.29" H (998 × 579 × 185 mm) |
| Construction | Hard-coat anodized aluminum top plate; steel undershelf assembly |
| Mounting Hardware | Leveling & support brackets included |
| Refrigeration | Remote connection; TXV (loose) & liquid-line solenoid valve pre-installed; compatible with R-513A or other approved refrigerants |
| Evaporator Capacity | 1,385 BTU/h @ 75 °F (24 °C) ambient |
| Electrical | 120 V, 1 ph, 0.1 A, 12 W, 60 Hz (220–240 V models available) |
| Control Lead Length | 4 ft (1.2 m) – field-mountable |
| Shipping Weight | ≈ 95 lb (43 kg) |
| Certifications | cULus, NSF Component, Made in USA |
What’s in the Box
- CSUX-36-I shelf assembly with factory-installed temperature probe
- Loose TXV valve for field installation
- Pre-installed liquid-line solenoid valve
- Electronic Temperature Control box with 4 ft lead
- Mounting & leveling hardware and documentation
Optional 7.5 ft control-box cord and extended compressor warranty are available at the time of original purchase. Contact your Hatco representative for details.
