Hatco CSUX-24-S Steam Tables & Food Wells
Description
Hatco Undermount Cold Shelf – 24" x 24"
Model CSUX-24-S | Remote Refrigeration Ready | Made in USAGive guests perfectly chilled grab-and-go items without cluttering your counter space. Hatco’s 24" × 24" Undermount Cold Shelf disappears beneath your stone, quartz or solid-surface top, delivering an even blanket of cold air through a hard-coat anodized aluminum surface that’s built for everyday service.
Key advantages
- Invisible, flush installation – mounts directly to the underside of approved countertops up to 1 3/16" (30 mm) thick.

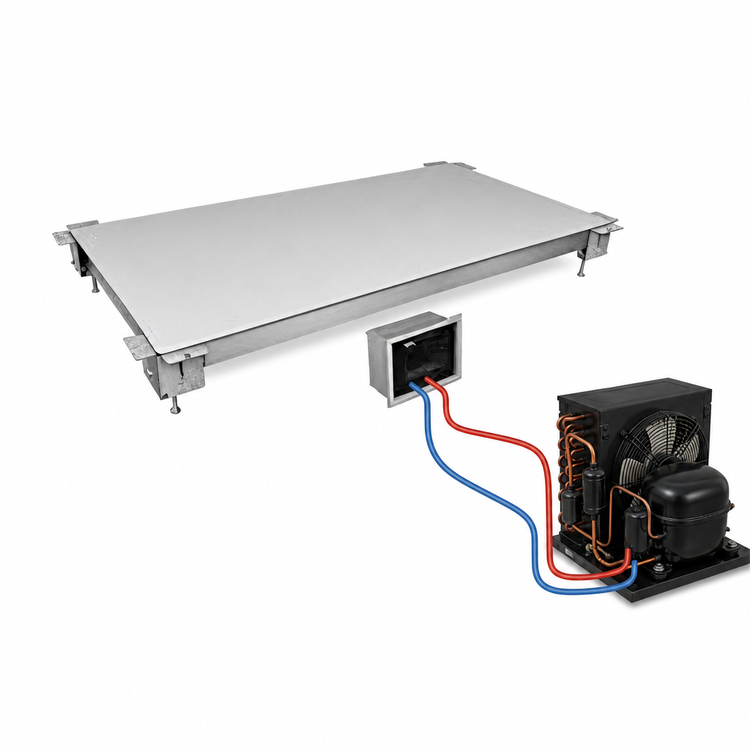

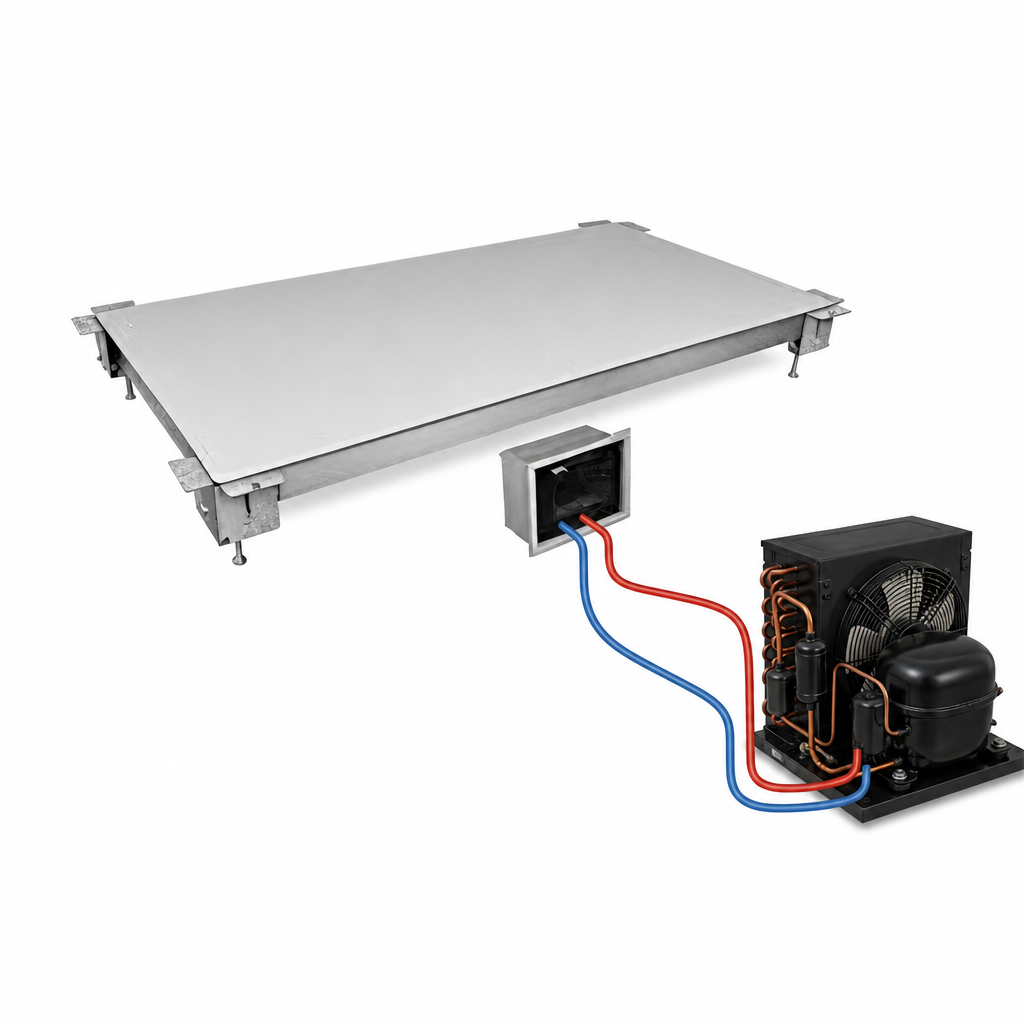

- Remote refrigeration design – connect to the condensing unit of your choice (not included) for maximum layout flexibility.
- Factory-installed TXV & liquid-line solenoid valve for quick hook-up to R-513A, R-404A or other compatible refrigerants.
- Electronic Temperature Control box (shipped loose) with 4' (1.22 m) lead for convenient mounting location.
- Hard-coat anodized aluminum deck – scratch-resistant, easy to wipe and ensures even temperature across the entire 24" × 24" surface.
- Ships with thermal mastic and applicator for a permanent, high-conductivity bond to the countertop.
- cULus listed and proudly built in Manitowoc, Wisconsin, USA.
At-a-glance specs
| Usable cold surface | 24" W × 24" D (610 × 610 mm) |
|---|---|
| Overall shelf assembly | 27.31" W × 27.31" D × 7.29" H (694 × 694 × 185 mm) |
| Electrical (control box) | 120 V 60 Hz or 220/230/240 V 50/60 Hz, 12 W, 0.1 A |
| Evaporator load | 1 216 BTU/hr |
| Control lead length | 4' (1.22 m) – optional 7.5' (2.29 m) lead available |
| Countertop materials | Granite, quartz, Swanstone® & select stainless or aluminum surfaces (ask for approval on other substrates) |
| Shipping weight | ≈ 85 lb (39 kg) |
| Certifications | cULus, NSF component |
Need other sizes? Hatco Undermount Cold Shelves are also available in 24" × 15.5", 24" × 19.5" and larger 36" or 48" widths. Contact us for details and lead-times.
