Hatco CSUR-48-S Steam Tables & Food Wells
Description
Hatco CSUR-48-S Undermount Cold Shelf — 48" W × 24" D

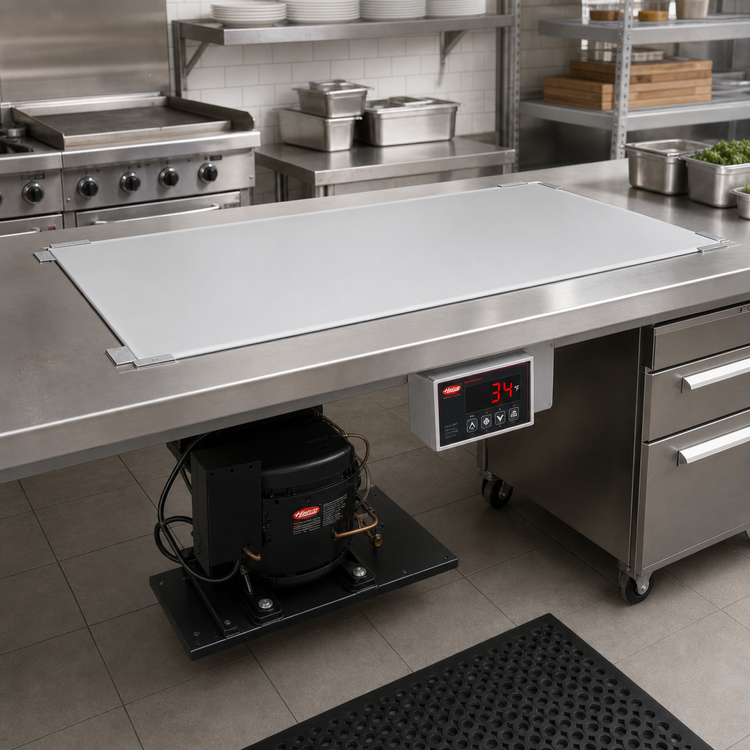

Remote refrigeration • R-513A • 5/8 HP • Made in USATurn any solid countertop into a seamless refrigerated display with Hatco’s CSUR-48-S Cold Shelf. The undermount assembly chills a full-size 48" × 24" zone while staying completely out of sight, giving you the clean presentation of a drop-in well without cutting a hole in the counter surface.
Why You’ll Love It
- Invisible installation – mounts directly to the underside of granite, quartz, Swanstone® or approved metal tops up to 1 3/16" (30 mm) thick.
- Generous 48" × 24" anodized aluminum hardcoat surface provides rapid, even chilling and wipes clean with ease.

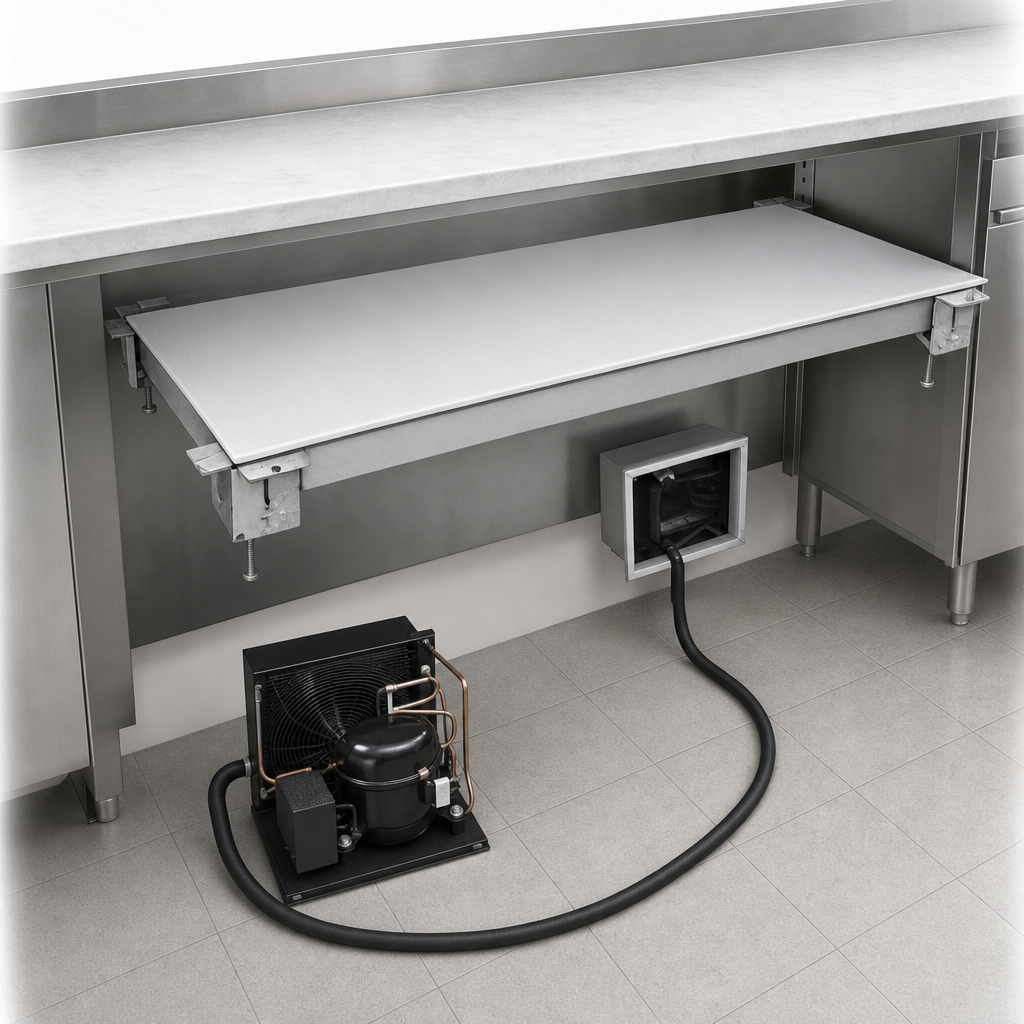

- Remote 5/8 HP condensing unit (shipped loose) runs on eco-friendly R-513A and can be positioned for quieter guest areas and easier service access.
- Unattached Electronic Temperature Control Box (4 ft/1219 mm lead) lets you place controls exactly where your staff needs them.
- Factory-assembled TXV valve and temperature probe mean less field work and faster start-up.
- Sight glass, service valves, dryer/filter and receiver included for straightforward maintenance.
- cULus listed and NSF component recognized for worry-free code compliance.
- Proudly engineered and manufactured in the USA.
At-a-Glance Specs
| Model | CSUR-48-S |
|---|---|
| Usable Chill Surface | 48" W × 24" D (1219 × 610 mm) |
| Overall Shelf Assembly | 51.31" W × 27.31" D × 7.29" H (1303 × 694 × 185 mm) |
| Compressor | 5/8 HP, air-cooled, remote (shipped loose) |
| Refrigerant | R-513A (low GWP, SNAP-compliant) |
| Electrical | 120 V / 60 Hz / 8.7 A — other voltages available |
| Control Box Lead | 4 ft (1219 mm) – optional 7.5 ft (2286 mm) upgrade |
| Countertop Compatibility | Granite, quartz, Swanstone®, select stainless/aluminum |
| Shipping Weight | ≈ 170 lb (77 kg) |
| Certifications | cULus, NSF Component |
| Country of Origin | USA |

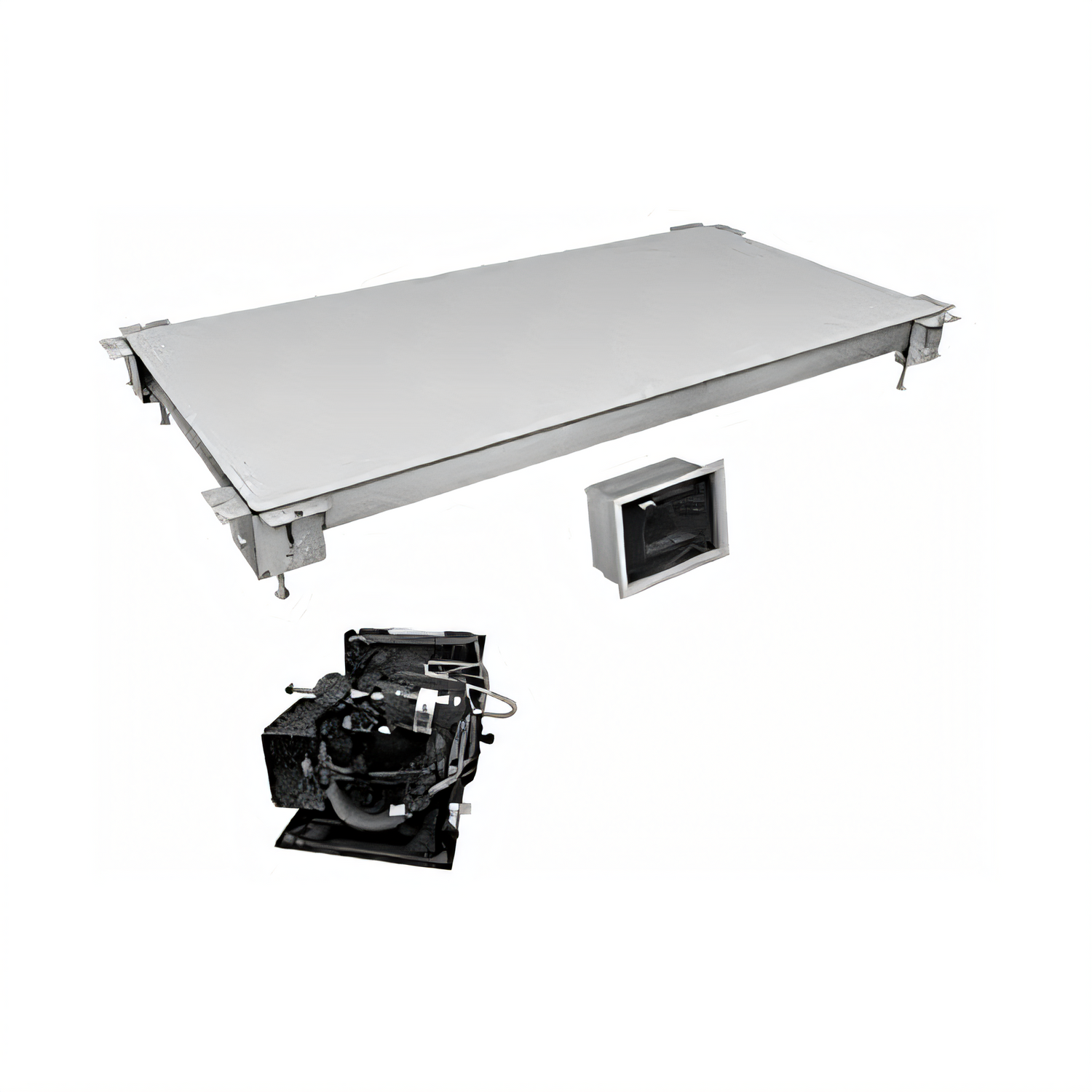

Includes shelf assembly, loose remote condenser, loose electronic control box, temperature probe, TXV valve, thermal mastic and applicator.
