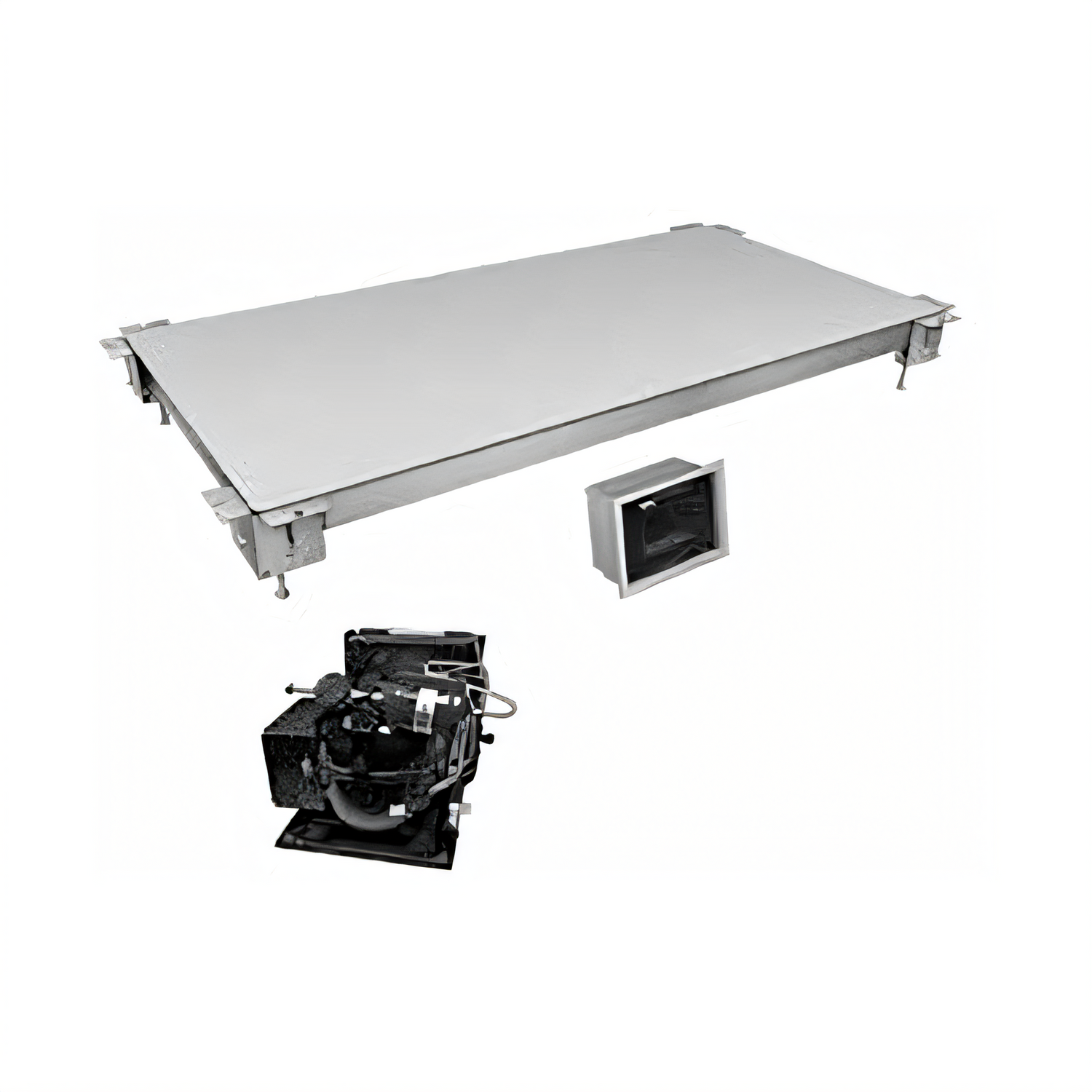

Hatco CSUR-48-I Undermount Cold Shelf – 48" × 19.5"
Remote refrigeration, unattached controls & hard-coat aluminum surfaceGive your grab-and-go program the chill factor it deserves without crowding your countertop. The Hatco CSUR-48-I mounts invisibly under stone, quartz or stainless worktops and delivers an even, HACCP-compliant cold zone across a spacious 48 × 19.5 inch surface. A remote 1/3 HP condensing unit running eco-friendly R-513A refrigerant ships loose, letting you position it for the easiest service access and the quietest guest experience.
Key Features

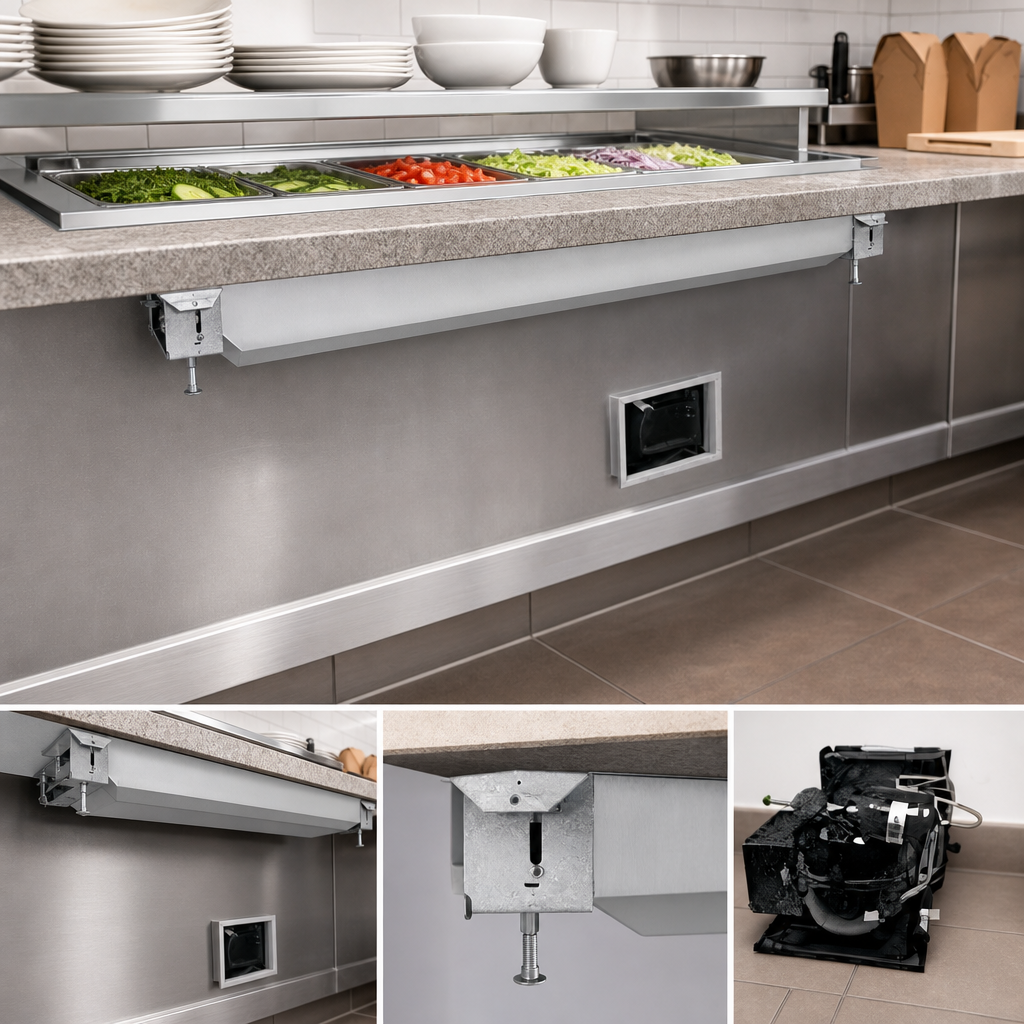

- Undermount design keeps refrigeration hidden for a clean, upscale presentation.
- Hard-coat anodized aluminum top resists scratches, corrosion and acidic spills.
- Electronic Temperature Control Box (ships loose) provides precise, digital set-points; 4 ft (1.2 m) lead included.
- Remote 1/3 HP condensing unit (R-513A) may be mounted up to 4 ft (1.2 m) from shelf center for quiet operation and fast serviceability.
- Approved for granite & quartz up to 1 3⁄16" (30 mm), Swanstone® and select stainless or aluminum counters.
- Ships with thermal mastic caulk and applicator for optimal heat transfer during installation.
- cULus listed, NSF component recognized and proudly Made in the USA.
Perfect For
- Cafés & coffee bars
- Deli or market sandwich stations
- Hotel grab-and-go islands
- Supermarket prepared-food counters
Technical Specifications
| Model | CSUR-48-I |
|---|---|
| Usable shelf area | 48" W × 19.5" D (1219 × 495 mm) |
| Overall dimensions (shelf) | 51.31" W × 22.81" D × 7.29" H (1303 × 579 × 185 mm) |
| Compressor | 1/3 HP remote | R-513A refrigerant |
| Electrical (120 V) | 450 W | 5.9 A | 60 Hz | NEMA 5-15P (other voltages available) |
| Control box lead length | 4 ft (1.2 m) standard | 7.5 ft (2.3 m) optional |
| Condensing unit placement | Up to 4 ft (1.2 m) from shelf center |
| Construction | Hard-coat anodized aluminum surface with integrated temperature probe |
| Approx. ship weight | 166 lb (75 kg) |
| Certifications | cULus, NSF Component |
Need extra reach? A 7.5 ft control-box cord or an extended 4-year parts-only compressor warranty is available at the time of purchase. Contact your Hatco representative for details.
