Hatco CSUP-48-S Steam Tables & Food Wells
Description

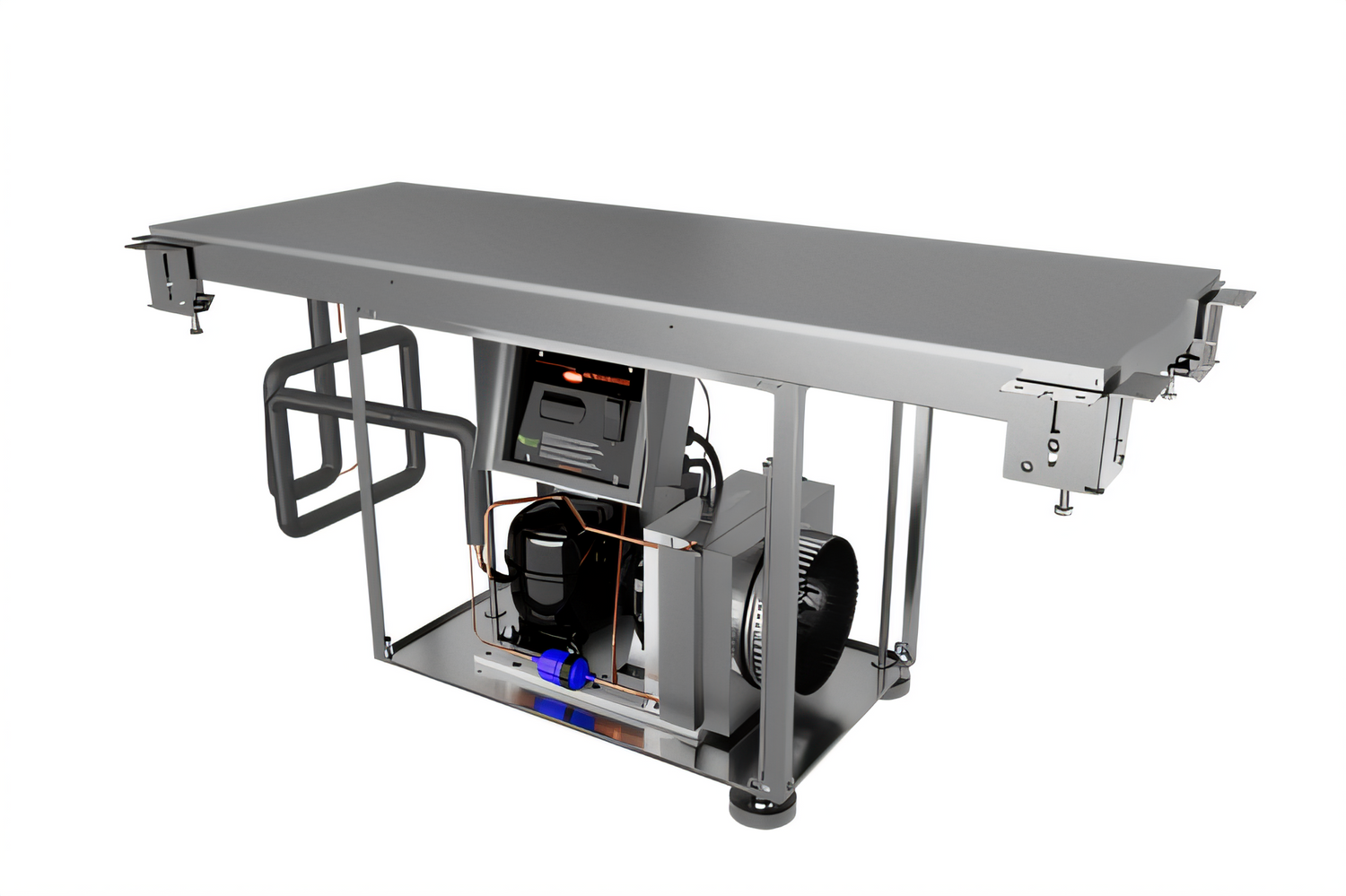

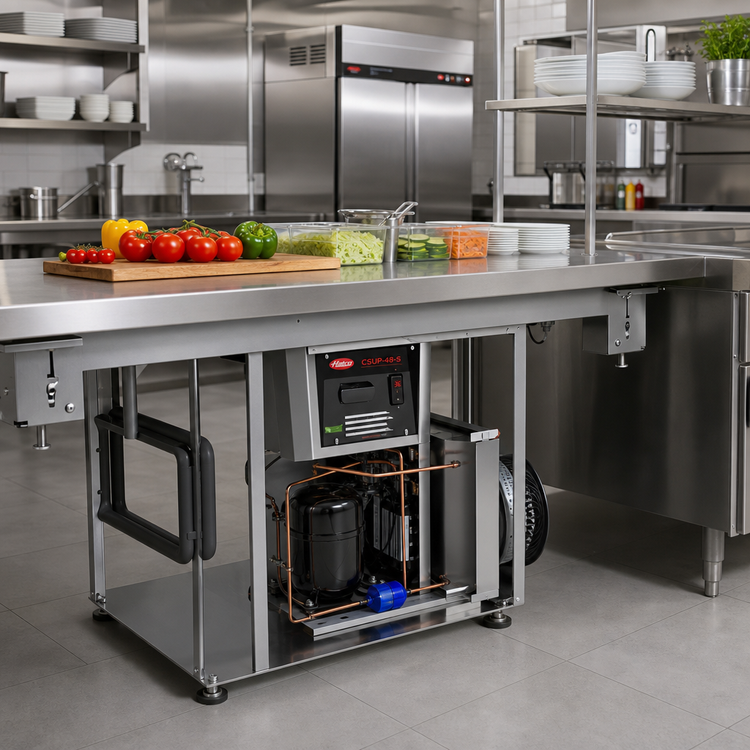

Hatco CSUP-48-S R-290 Undermount Cold Shelf – 48" W x 24" D
Self-contained refrigerated display shelf with electronic temperature controlGive pastries, grab-and-go meals, seafood or deli platters the perfect chill zone without giving up valuable counter space. The Hatco CSUP-48-S installs beneath your counter, leaving only a sleek, anodized aluminum surface visible to customers while a powerful R-290 self-contained refrigeration system quietly does the work below.
Why you’ll love it

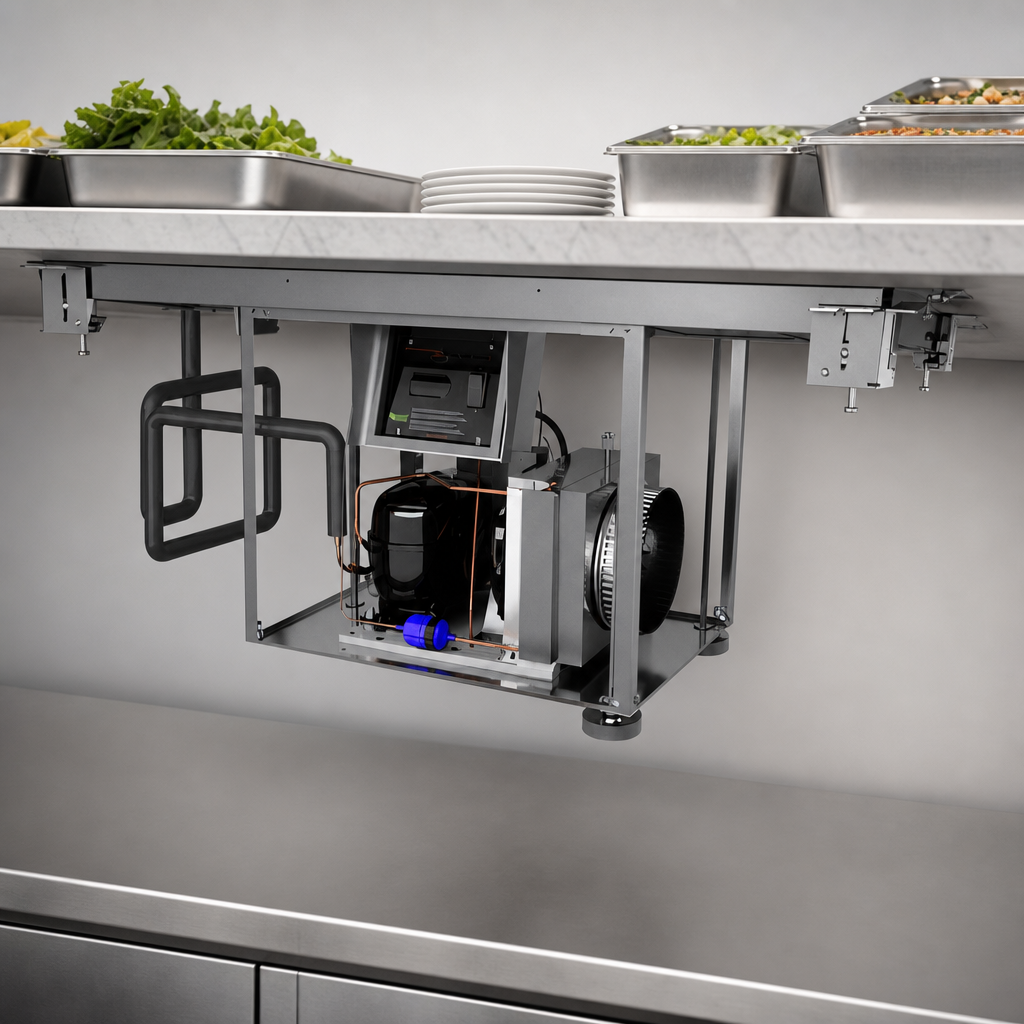

- True flush-mount design – mounts directly to granite, quartz (≤ 13/16"/30 mm), Swanstone®, stainless or aluminum tops.
- 48" × 24" usable shelf gives you up to 8 ft2 of evenly chilled merchandising area.
- Factory-attached electronic temperature control box (4 ft lead) for quick, accurate setup.
- Eco-friendly R-290 refrigerant paired with a 1/2 HP compressor for fast pull-down & low energy use.
- Hard-coat anodized aluminum surface wipes clean and resists scratching.
- Ships with thermal mastic caulk & applicator for a food-safe, sealed installation.
- cULus listed, NSF component recognized and proudly Made in the USA.
Technical specifications
| Usable shelf size | 48" W × 24" D (1219 × 610 mm) |
|---|---|
| Overall dimensions* | 51.31" W × 27.31" D × 23.13" H (1303 × 694 × 587 mm) – height adjustable up to 38" (965 mm) |
| Compressor | 1/2 HP, self-contained |
| Refrigerant / charge | R-290 (propane), 4.5 oz (0.128 kg) |
| Electrical (standard USA) | 120 V / 60 Hz / 1-phase, 560 W, 9.3 A, NEMA 5-15P |
| Alternate voltages | 220–240 V models available (50/60 Hz). Contact us for details. |
| Heat rejection | 4,318 BTU/hr |
| Shipping weight | 176 lb (80 kg) |
| Certifications | cULus, NSF Component, Ecovation Naturally |
| Country of origin | Made in USA |
*Overall dimensions include condenser and mounting hardware.
Perfect for
- Bakeries & cafés needing a seamless cold surface for cakes or chocolate.
- Supermarket delis displaying sushi, salads or charcuterie.
- Bar or buffet lines holding garnishes, desserts or cold beverages.
- Any operator wanting a minimalistic, front-of-house presentation with back-of-house efficiency.
All Hatco equipment is backed by 24/7 parts & service assistance (U.S. & Canada). Have questions about fit or voltage? Contact our team – we’re happy to help.
