Hatco | SKU:
CSUP-36-S
Hatco CSUP-36-S Steam Tables & Food Wells
$4,999.20
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hatco CSUP-36-S Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco CSUP-36-S Steam Tables & Food Wells
$4,999.20
Unit price
/
Unavailable
Description

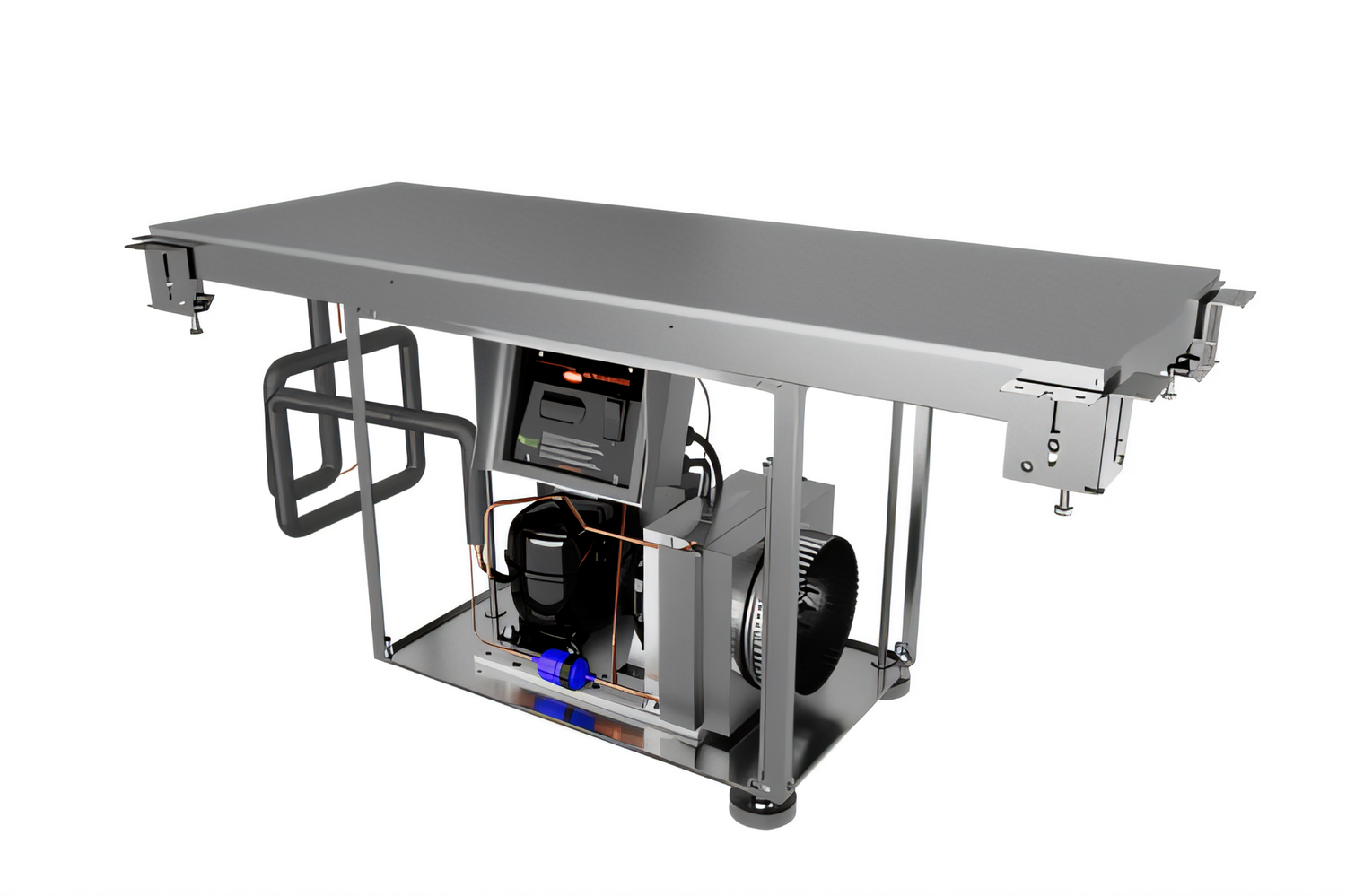

Hatco CSUP-36-S R-290 Undermount Cold Shelf – 36" x 24"
Self-contained, electronically controlled refrigeration you install under your own countertop.Give beverages, grab-n-go entrées, desserts and deli items the perfect “chill zone” without sacrificing presentation. The Hatco CSUP-36-S disappears beneath stone, solid-surface or metal counters, delivering a seamless, modern look with commercial-grade cooling power.
Why You’ll Love It
- Undermount design keeps the refrigeration hardware out of sight while maximizing usable countertop space.
- Eco-friendly R-290 refrigerant and a 1/3 HP compressor provide fast pull-down temps with minimal environmental impact.
- Attached electronic temperature control box (4 ft lead) lets staff dial-in and monitor holding temps with ease.
- Anodized aluminum hardcoat surface stands up to heavy commercial use and wipes clean in seconds.
- Ships with thermal mastic caulk and applicator for a rock-solid bond to approved countertop materials.
- Made in the USA and cULus & NSF Component listed for worry-free code compliance.
Technical Specifications
| Model | CSUP-36-S |
|---|---|
| Usable Chill Area | 36" W × 24" D (914 × 610 mm) |
| Overall Dimensions | 39.31" W × 27.31" D × 23.13" H (height adjustable up to 38" / 965 mm) |
| Construction | Anodized aluminum hardcoat surface with attached condenser & control box |
| Refrigeration | Self-contained, R-290, 1/3 HP compressor |
| Electrical (Std.) | 120 V, 440 W, 6.5 A, 60 Hz, NEMA 5-15P plug |
| Shipping Weight | 144 lb (66 kg) |
| Agency Approvals | cULus, NSF Component, EcOization Naturally |
| Country of Origin | Made in USA |
| Warranty | 24/7 parts & service support (U.S./Canada) |

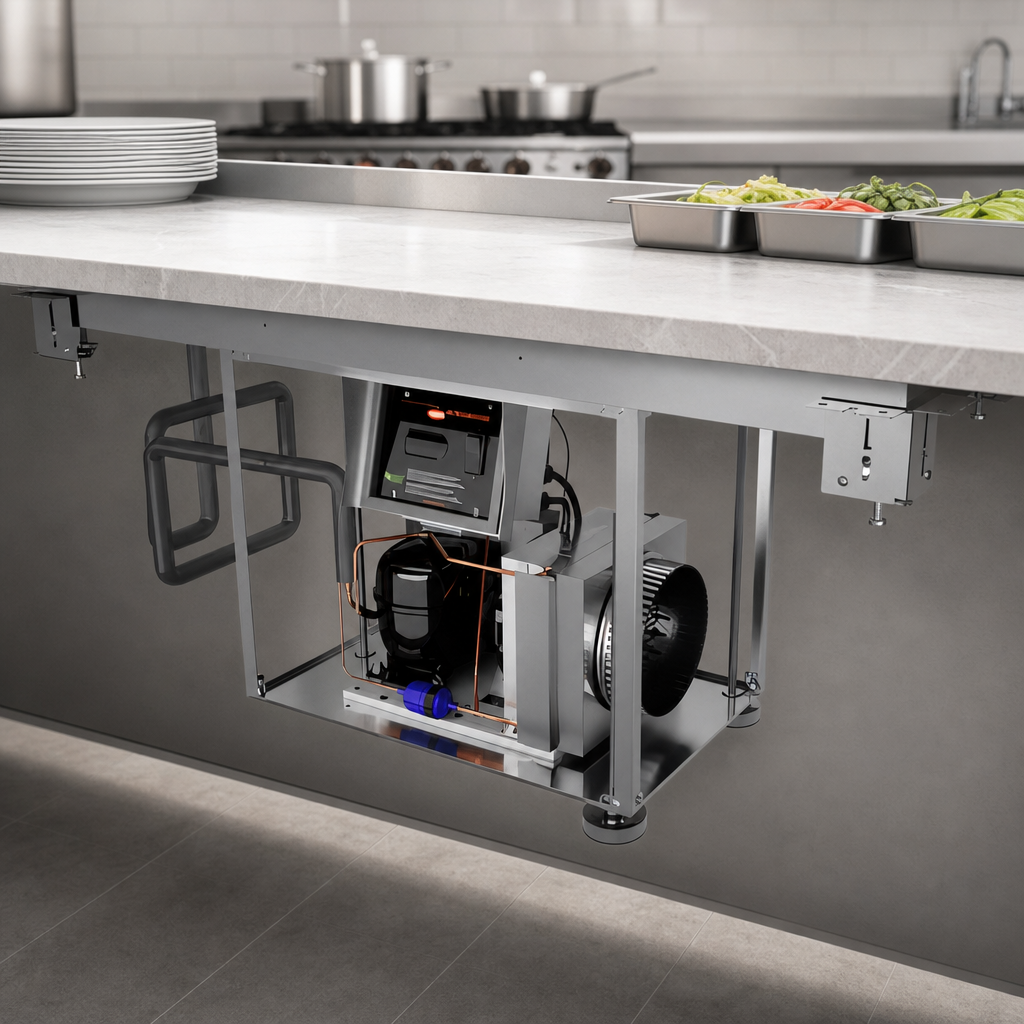

Simple Undermount Installation
- Mounts directly to the underside of granite, quartz (≤ 13/16"), Swanstone® and approved stainless/aluminum tops.
- Adjustable brackets let you fine-tune unit height and level after placement.
- Factory-applied charge of 3.9 oz (0.111 kg) R-290 for plug-and-play operation.
Need a different voltage or countertop material? Contact us – Hatco can confirm compatibility before you buy.
Installation Reminder: Reinforce or brace the countertop to support the weight of the shelf and its
contents. Refer to Hatco’s Installation & Operating Manual for complete cut-out and mounting instructions.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, Made in USA
Height
23.13in
Width
39.31in
Depth
27.31in
Shipping Weight
144.0lbs
Construction
aluminum
Controls
electronic controls
Type
undermount
Specifications
Cold Shelf, undermount, 36"W x 24"D, electronic temperature control, attached control box, self-contained refrigeration, R-290 refrigerant, aluminum hardcoat, cULus, Made in USA
