Hatco  |  SKU: CSUP-36-I

Hatco CSUP-36-I Steam Tables & Food Wells

$4,824.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

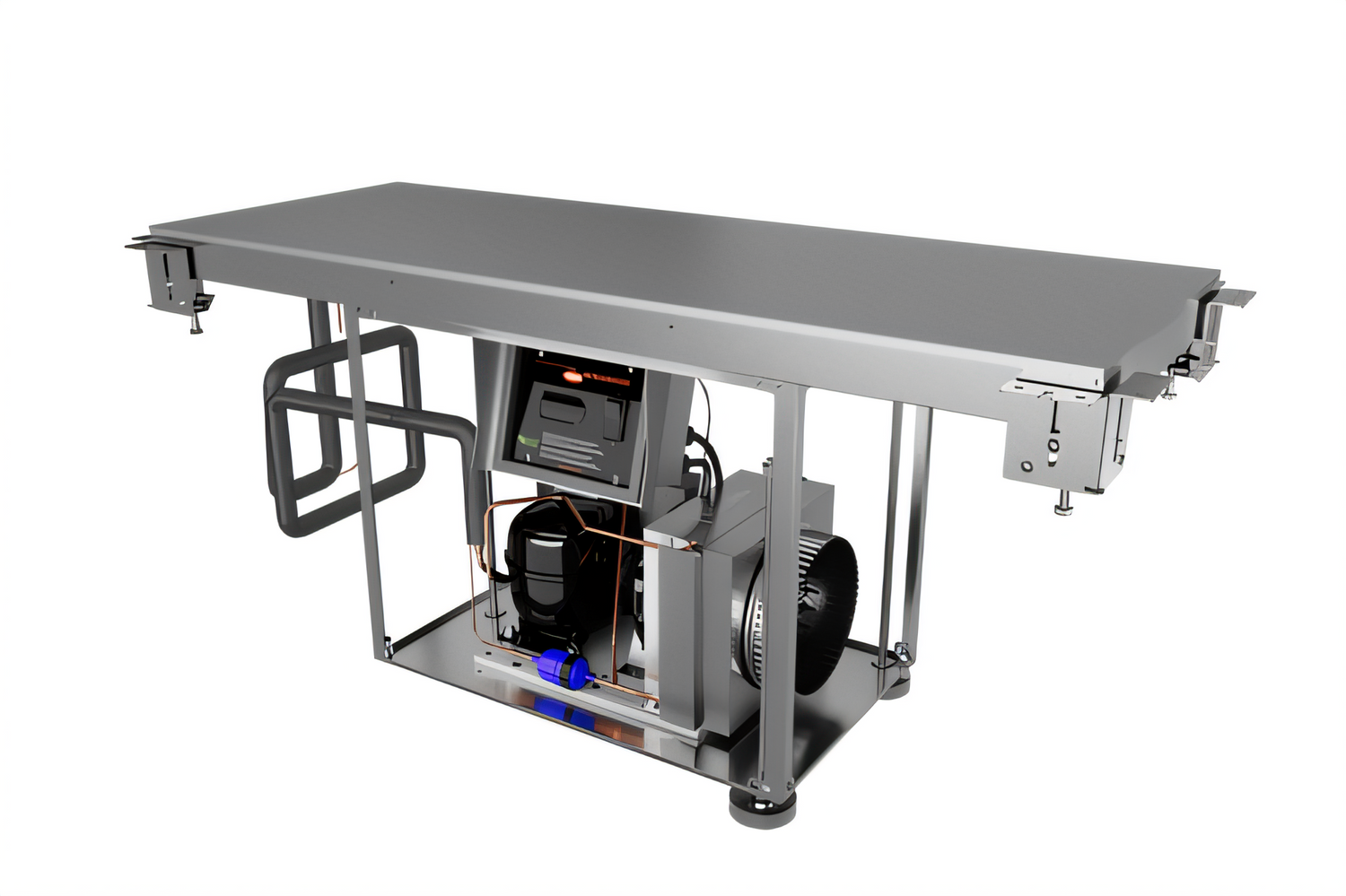

Hatco R-290 Undermount Cold Shelf – 36" x 19-1/2"

Self-contained refrigeration • Electronic temperature control • Aluminum hardcoat surface

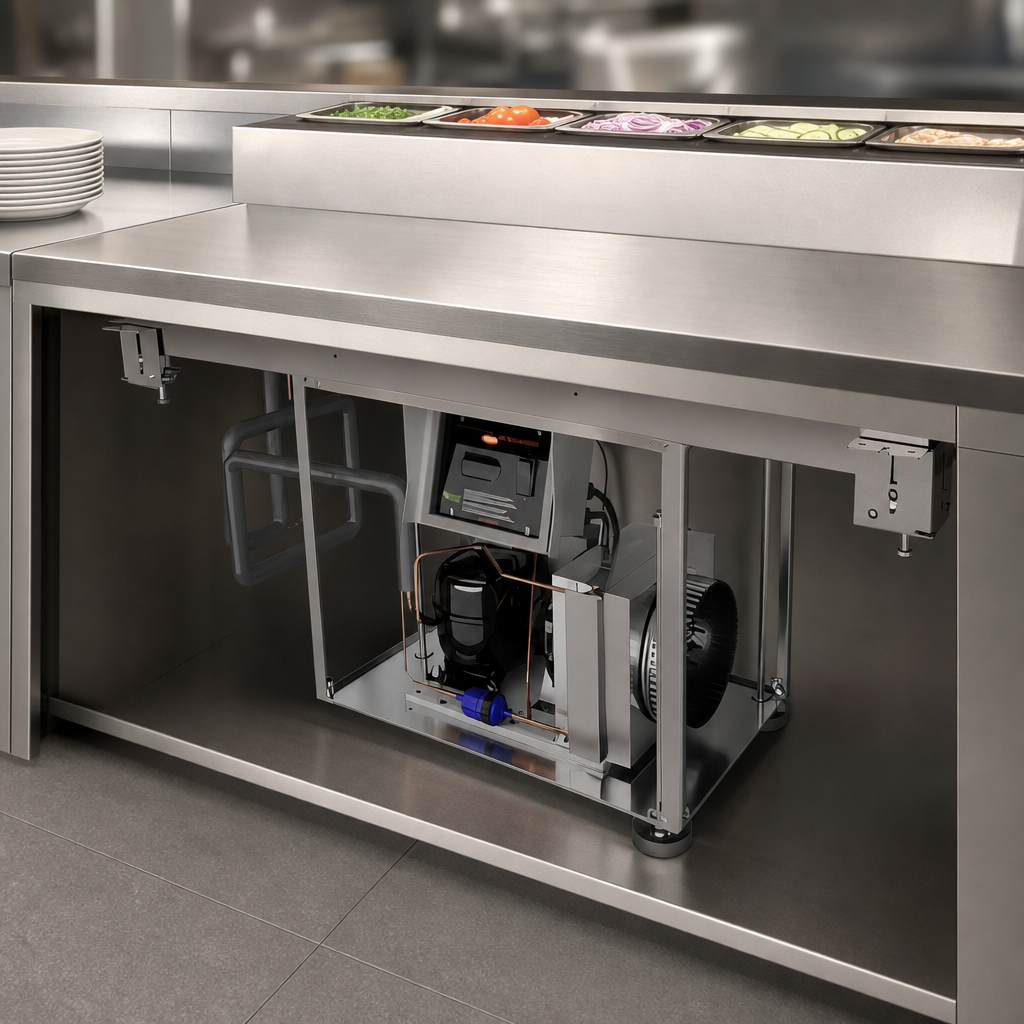

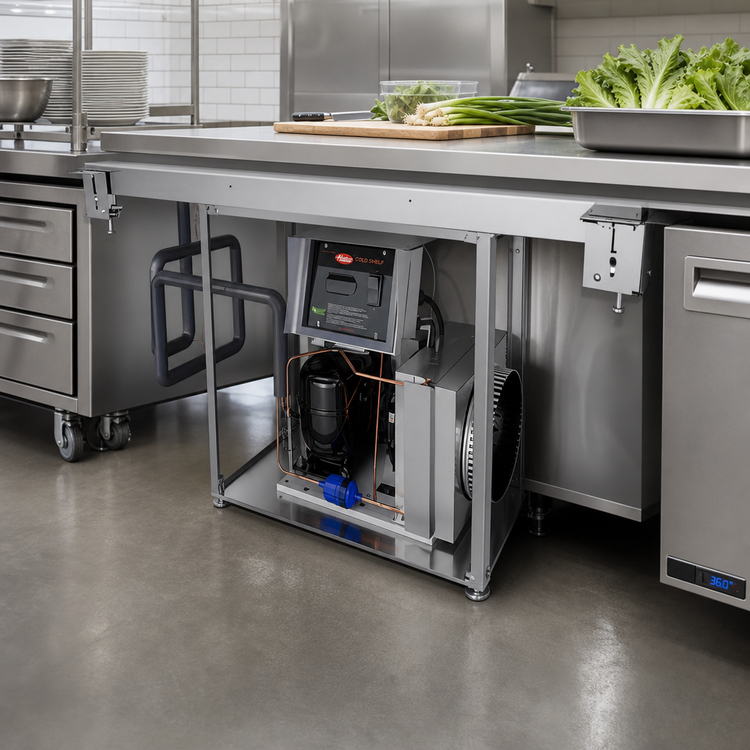

Give your buffet, salad bar or grab-and-go station a seamless, high-performance cold zone. Hatco’s undermount 36-inch cold shelf sits flush beneath your counter, delivering consistent, food-safe temperatures without sacrificing presentation space.

Top reasons operators choose Hatco
  • Eco-friendly R-290 refrigerant for rapid pull-down temps and reduced environmental impact.
  • Durable aluminum hardcoat surface—knife-safe, stain-resistant and easy to wipe clean.
  • Patented thermal break minimizes condensation and prevents temperature transfer to the surrounding countertop.
  • Electronic Temperature Control (ETC) with 4 ft (1.2 m) lead allows intuitive, front-of-cabinet mounting.
  • Factory-sealed, self-contained refrigeration installs quickly—just drop in and plug into a standard 120 V outlet.
  • Made in the USA and cULus listed for worry-free compliance.
Ideal applications
  • Salad & deli prep lines
  • Sushi, poke & seafood displays
  • Dessert and pastry merchandising
  • Grab-and-go beverage wells
  • Back-of-house cold ingredient staging
Product specifications
Usable chilled surface 36" W × 19.5" D (914 × 495 mm)
Overall frame size* 39" W × 22.5" D (991 × 572 mm)
Height (adjustable) 23.25" H – adjustable up to 38" H (591 – 965 mm)
Compressor 1/3 HP, self-contained
Refrigerant / charge R-290 / 3.8 oz (0.108 kg)
Voltage 120 V, 60 Hz, NEMA 5-15P
Wattage / Amps 440 W / 6.5 A
Certifications cULus, NSF component
Country of origin Made in USA

*Overall dimensions include mounting flange; chilled surface dimensions reflect the usable cold zone.

Installation note: This is an undermount, flush-top unit. Adequate ventilation around the condenser is required—follow all clearance guidelines in the installation manual.

For reliable, energy-efficient cold holding backed by Hatco’s legendary 24/7 service network, add this 36-inch undermount cold shelf to your serving line today.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

23.13in

Width

39.31in

Depth

22.81in

Shipping Weight

140.0lbs

Type

undermount

Construction

aluminum

Controls

electronic controls

Specifications

Cold Shelf, undermount, 36"W x 19-1/2"D, electronic temperature control, attached control box, self-contained refrigeration, R-290 refrigerant, aluminum hardcoat, cULus, Made in USA
