Hatco CSUP-24-S R-290 Undermount Cold Shelf – 24" x 24"
Seamless refrigerated countertop solution | Made in the USATurn any qualifying solid surface into a flawless refrigerated display. The Hatco CSUP-24-S mounts out of sight beneath your counter, delivering an even 24" x 24" (610 mm x 610 mm) cold zone that keeps salads, desserts and grab-and-go items perfectly chilled without cluttering your countertop.
Key Advantages

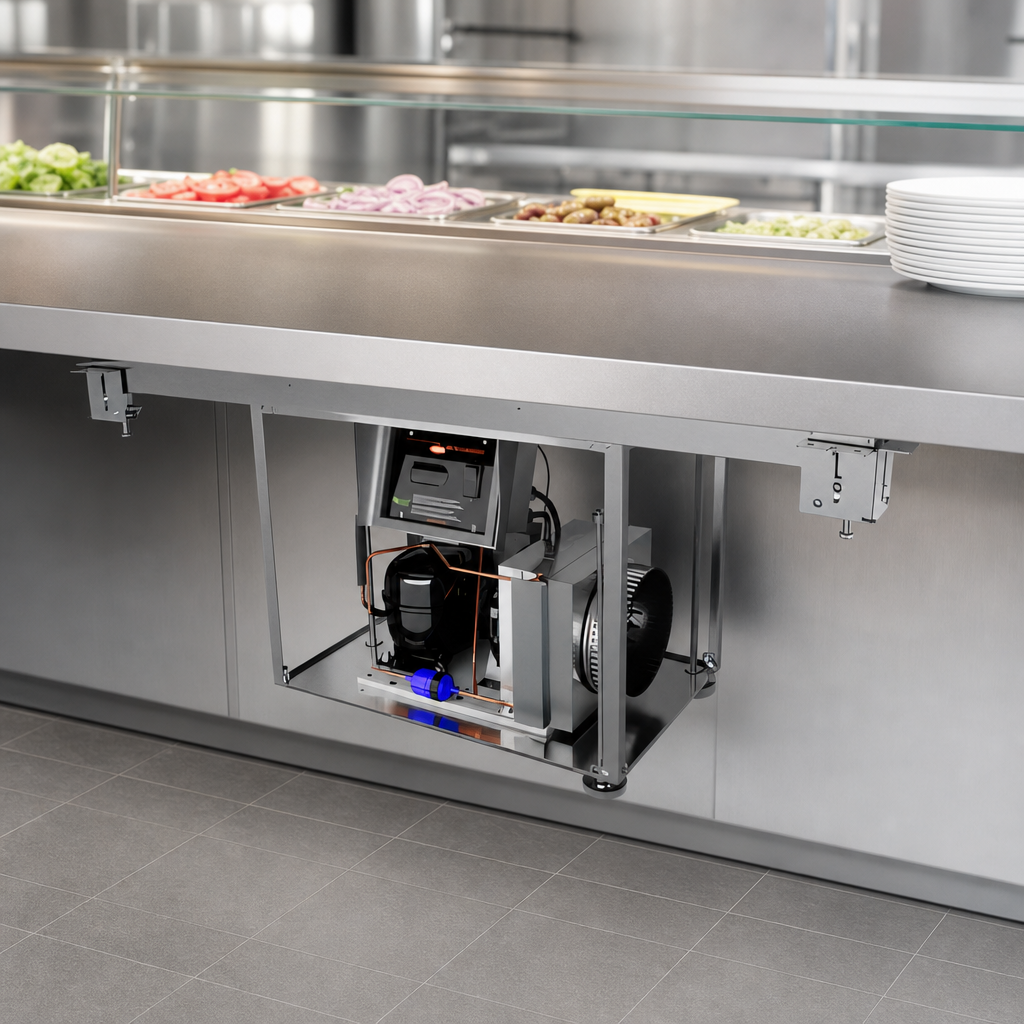

- Invisible installation – mounts directly to granite, quartz (≤ 1-3/16" / 30 mm), Swanstone® or Hatco-approved metal counters.
- Eco-friendly, self-contained refrigeration uses efficient R-290 refrigerant and a 1/5 HP compressor.
- Electronic Temperature Control Box (pre-wired, 4' lead) for precise, user-friendly adjustments.
- Hard-coat anodized aluminum surface delivers uniform cooling and resists scratches, acids and spills.
- Ships plug-and-play – factory charged, fully assembled and fitted with a NEMA 5-15P cord set.
- Thermal mastic and applicator included to maximize heat transfer during installation.
- cULus listed component and backed by Hatco’s 24/7 parts & service assistance (U.S./Canada).
Technical Specifications
| Usable Chill Zone | 24" W × 24" D (610 mm × 610 mm) |
|---|---|
| Overall Dimensions | 27.31" W × 27.31" D × 23.125" H (694 mm × 694 mm × 587 mm) Height adjustable up to 38" (965 mm) |
| Compressor / Refrigerant | 1/5 HP, R-290 | Factory charge – 3.7 oz (0.105 kg) |
| Electrical | 120 V, 345 W, 5.2 A, 60 Hz, NEMA 5-15P |
| Heat Rejection | 2,324 BTU/hr |
| Surface Material | Hard-coat anodized aluminum |
| Certifications | cULus, NSF component, EcOization Naturally |
| Approx. Shipping Weight | 130 lb (59 kg) |
Looking for a different footprint? The Hatco CSUP series is also available in 24" × 15.5" and 36" & 48" shelf lengths. Contact us for sizing and availability.
