Hatco CSSBX-4818 Steam Tables & Food Wells
Description

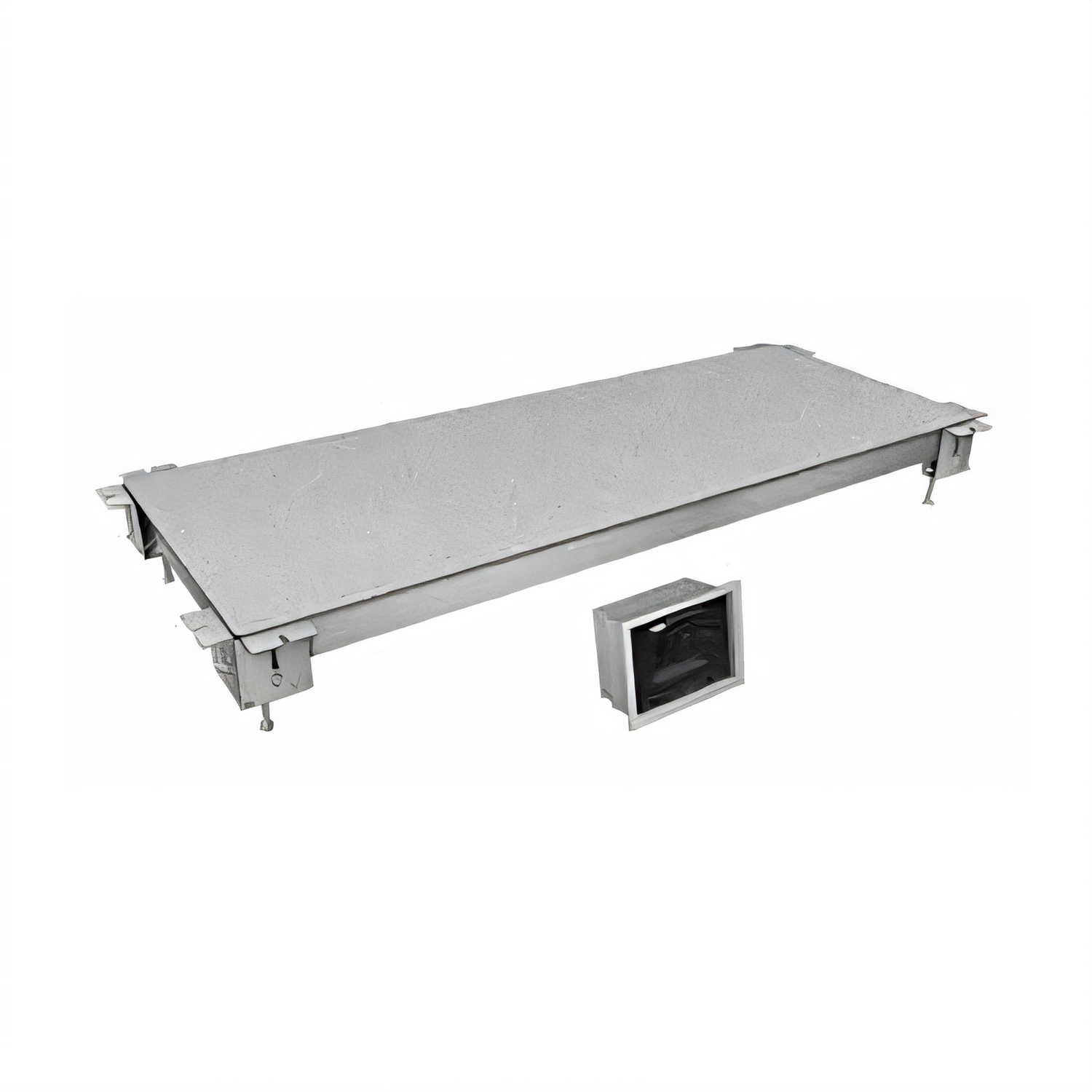

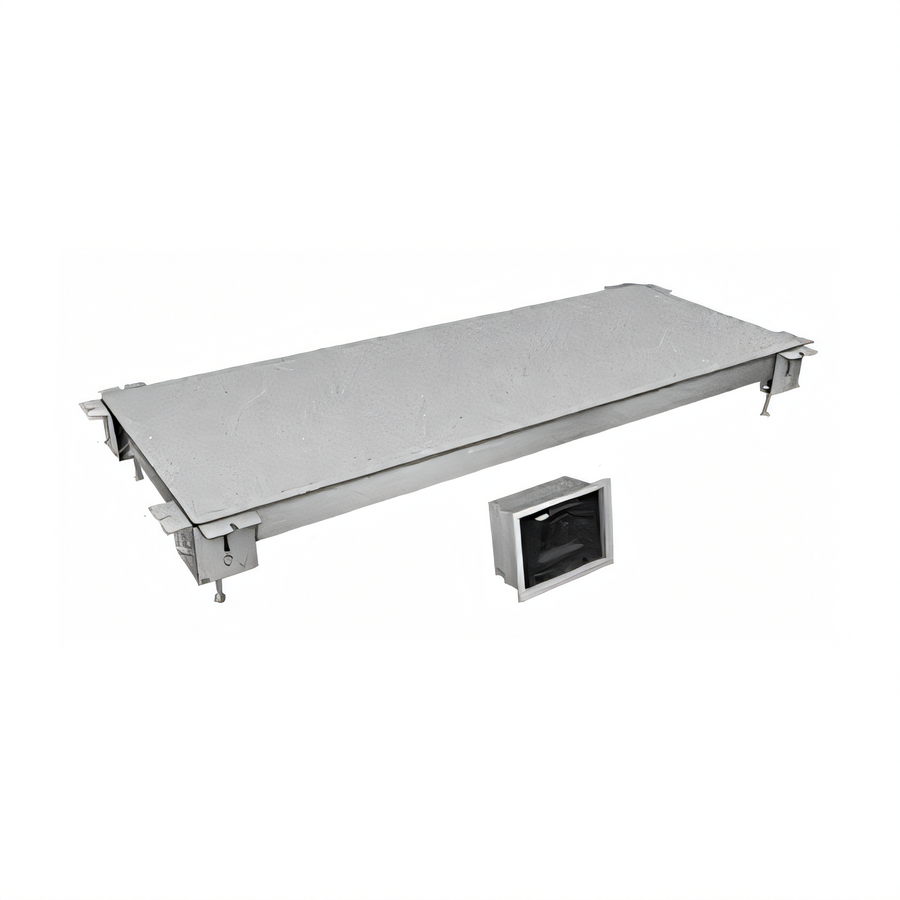

Hatco CSSBX-4818 Simulated Stone® Cold Shelf
48" W x 18" D • Built-In • Remote Refrigeration ReadyGive chefs the freedom to showcase chilled entrées, sushi, salads, pastries and more—right in the counter—with Hatco’s largest remote “X” cold shelf. The CSSBX-4818 delivers reliable, even cooling across 5.7 ft² of food-safe simulated stone, while its low-profile design disappears into the serving line for a seamless, upscale presentation.
Why you’ll love it
- Remote-ready: connect to an existing refrigeration rack or dedicated condensing unit (refrigerant and compressor by others).
- Swanstone® solid-surface top in three non-porous, NSF-listed colors—Night Sky (standard), Gray Granite or Bermuda Sand.
- Patented thermal break eliminates condensation on adjacent countertops.
- Electronic temperature control box (shipped loose) with 4 ft (1219 mm) lead for simple, front-of-house mounting.
- Factory-installed TXV & liquid-line solenoid valve assure proper refrigerant flow and quick hook-up.
- Matches Hatco GRSSB heated shelves for a fully integrated hot-cold line-up.

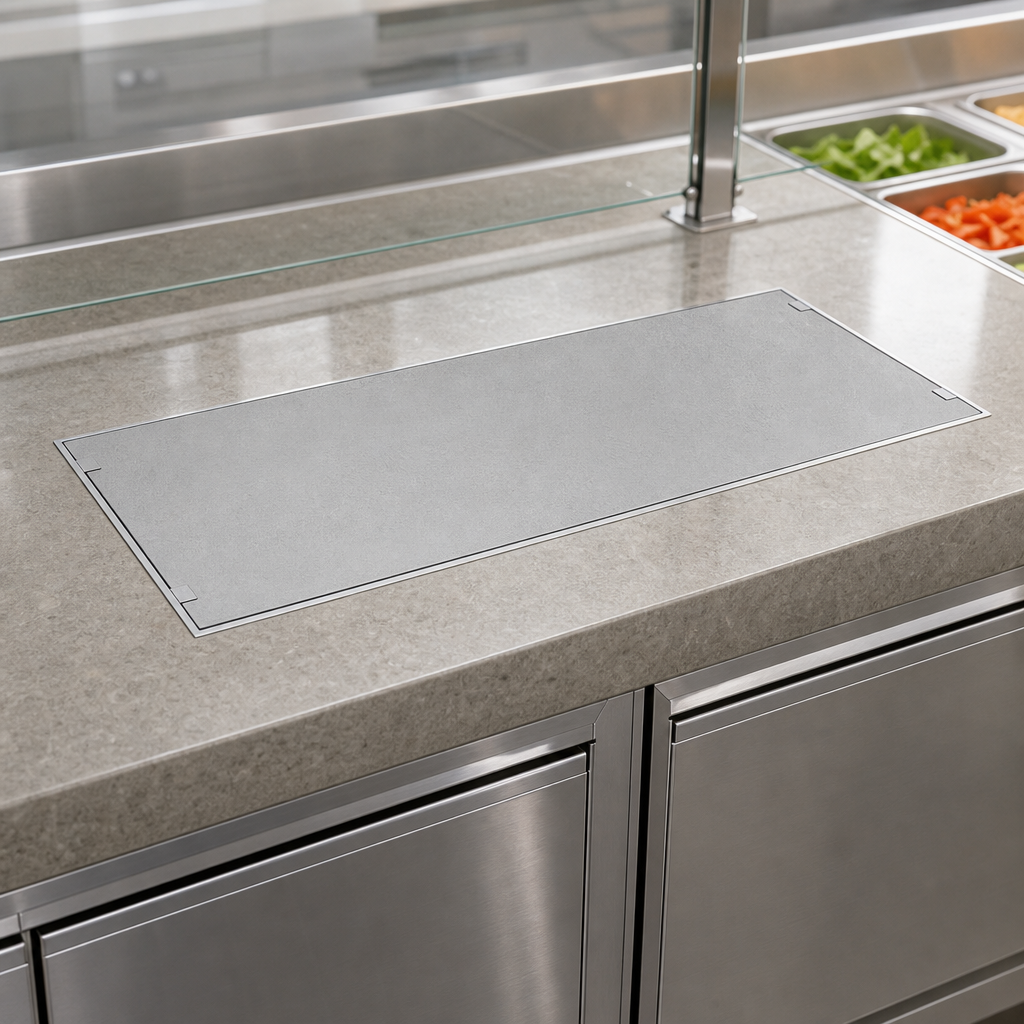

- Flush, bottom-mount design—only the elegant stone surface is visible to guests.
- cULus-listed, NSF component recognized and proudly Made in the USA.
Technical snapshot
| Model | CSSBX-4818 (remote “X” series) |
|---|---|
| Usable chilled surface | 48 ″ W × 18 ″ D (1219 × 457 mm) |
| Overall footprint | 51 ″ W × 21 ″ D × 7.54 ″ H (1295 × 533 × 191 mm) |
| Counter cut-out | 48.375 ″ W × 18.375 ″ D with ⅜ ″ radius corners |
| Electrical (controls only) | 120 V, 12 W, 0.1 A, 60 Hz 220-240 V, 17 W, 0.1 A, 50 Hz |
| Refrigerant load | 1,649 BTU/hr evaporator @ 10 °F TD |
| Shipping weight | ≈ 116 lb (53 kg) |
| Certifications | cULus, NSF (component) |
What’s in the box
- Simulated stone shelf assembly with factory-mounted temperature probe
- TXV valve (loose for field connection)
- Liquid-line solenoid valve (pre-mounted to shelf)
- Electronic Temperature Control box & 4 ft wiring harness
- Leveling & support brackets, hardware and documentation
Need a different size? Hatco offers 24, 30 and 36 inch models in the same remote “X” series.
