Hatco CSSBX-3618 Steam Tables & Food Wells
Description

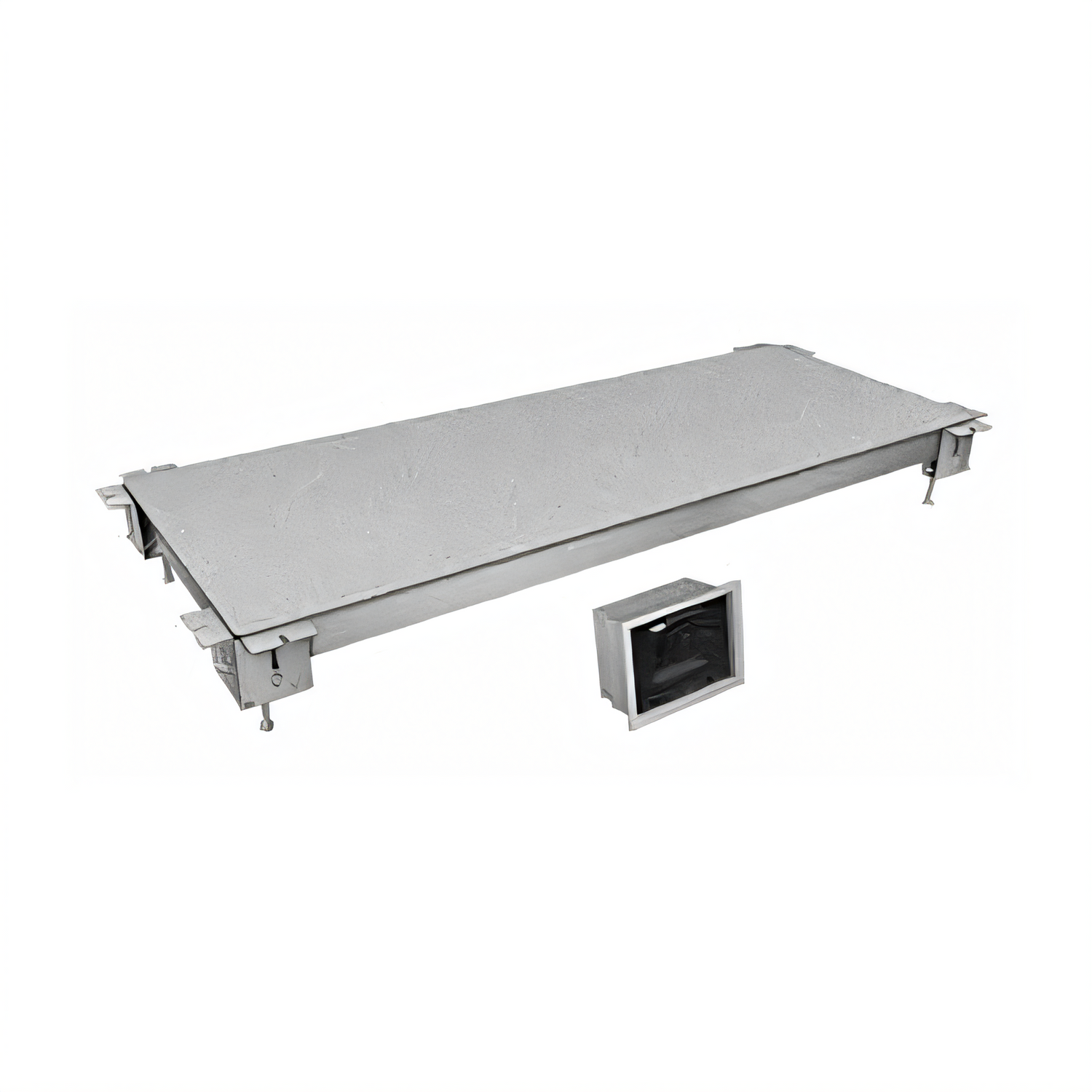

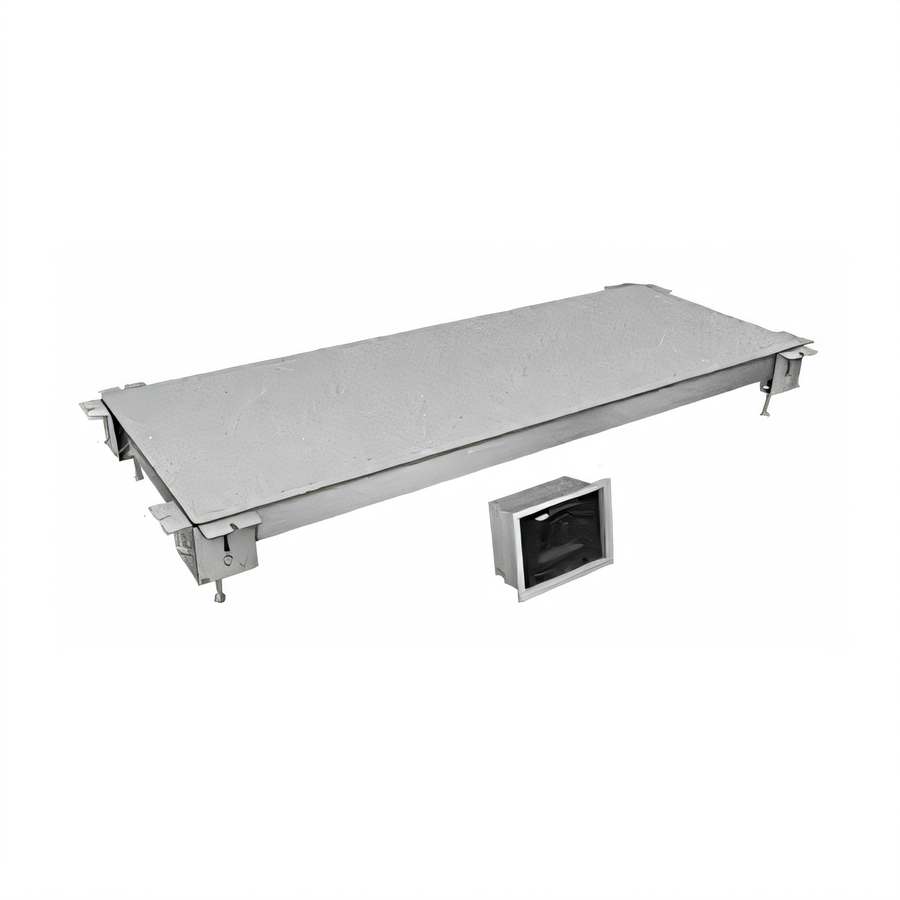

Hatco CSSBX-3618 Simulated Stone™ Cold Shelf

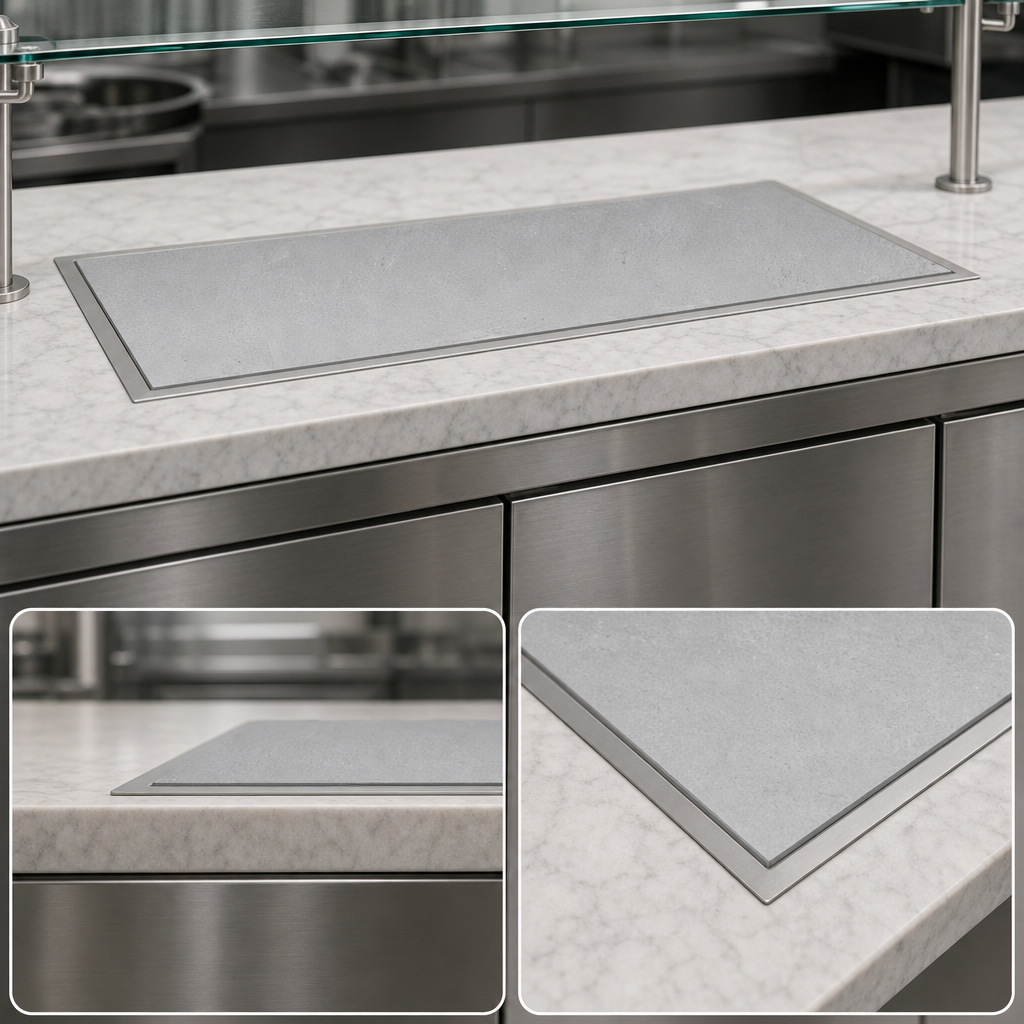

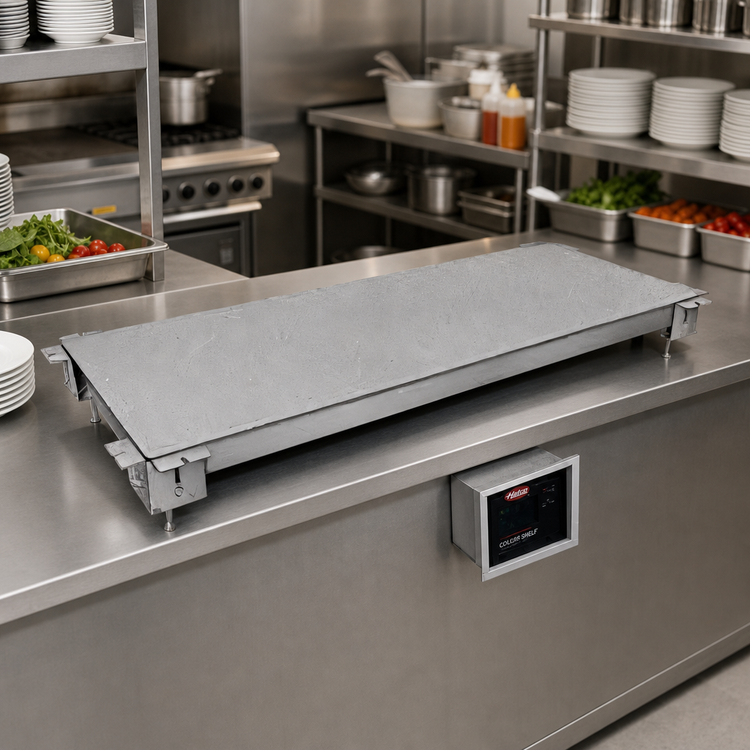

36" W × 18" D • Flush-mount remote refrigeration model (condenser not included)Give your buffet, deli or action station a sleek, continuous stone look—while keeping menu items safely chilled. The Hatco CSSBX-3618 installs flush with your countertop and connects to a remote refrigeration system, letting you position the compressor anywhere out of sight for the quietest, cleanest presentation possible.
Key benefits
- Swanstone® food-safe simulated stone surface—scratch, stain & impact resistant.
- Patented thermal break around the perimeter drastically reduces condensation on surrounding surfaces.
- Remote design offers maximum fabrication flexibility; shelf ships with TXV and liquid-line solenoid valve pre-installed.
- Electronic Temperature Control Box (loose) with 4' (1219 mm) lead—mount it where it’s easiest to access; optional 7.5' (2286 mm) cord available.
- Minimal electrical load—only the control circuitry is powered at the shelf (0.1 A).
- Pairs perfectly with Hatco GRSSB Heated Simulated Stone Shelves for seamless hot/cold runs.
- cULus listed, NSF (component) certified and proudly made in the USA.
At-a-glance specs
| Model | CSSBX-3618 |
|---|---|
| Overall dimensions | 39" W × 21" D × 7.54" H (991 × 533 × 191 mm) |
| Cooled surface | 36" W × 18" D (914 × 457 mm) |
| Electrical | 120 V, 60 Hz, 12 W, 0.1 A • 220/230/240 V, 50/60 Hz, 17 W, 0.1 A |
| Evaporator load | 1,347 BTU/hr (0.40 kW) at 75 °F (24 °C) ambient |
| Shipping weight | 100 lb (46 kg) |
| Surface material | Swanstone® solid surface |
| Standard finish | Night Sky; optional Gray Granite or Bermuda Sand (non-returnable) |
| Certifications | cULus, NSF (component) |
What’s included
- Cold shelf assembly with temperature probe
- Assembled TXV & liquid-line solenoid valve
- Electronic Temperature Control Box (loose) with 4' cord & plug
- Installation & operating manual
Popular options (factory-fit)
- Gray Granite or Bermuda Sand simulated stone colors
- 7.5' (2286 mm) control-box cord
- Extended compressor warranty (U.S. & Canada)
Need a self-contained version? Check out Hatco CSSB or CSSBR models.
