Hatco  |  SKU: CSSBX-2418

Hatco CSSBX-2418 Steam Tables & Food Wells

$3,655.77
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Color chart Catalog brochure Parts list Owner's manual
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

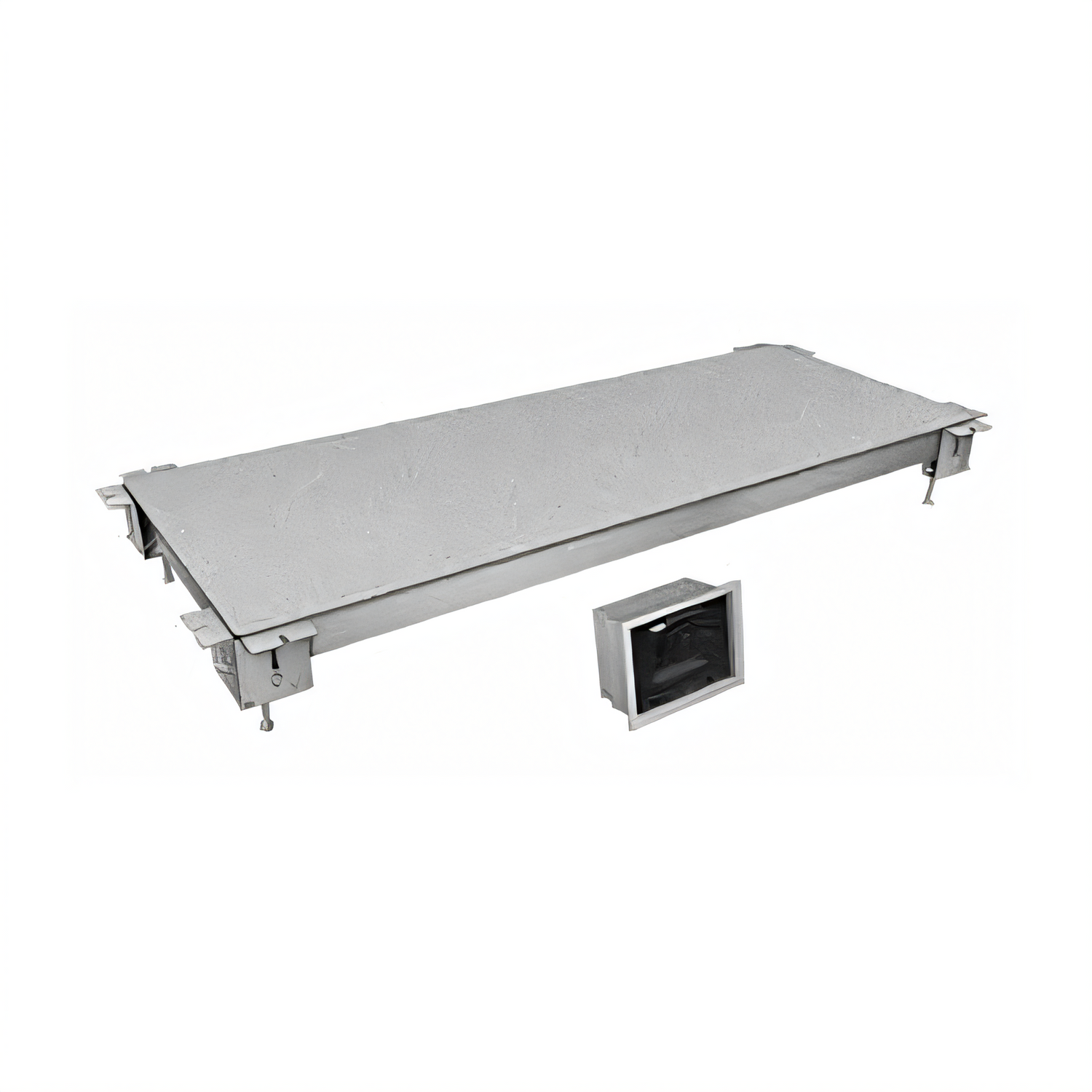

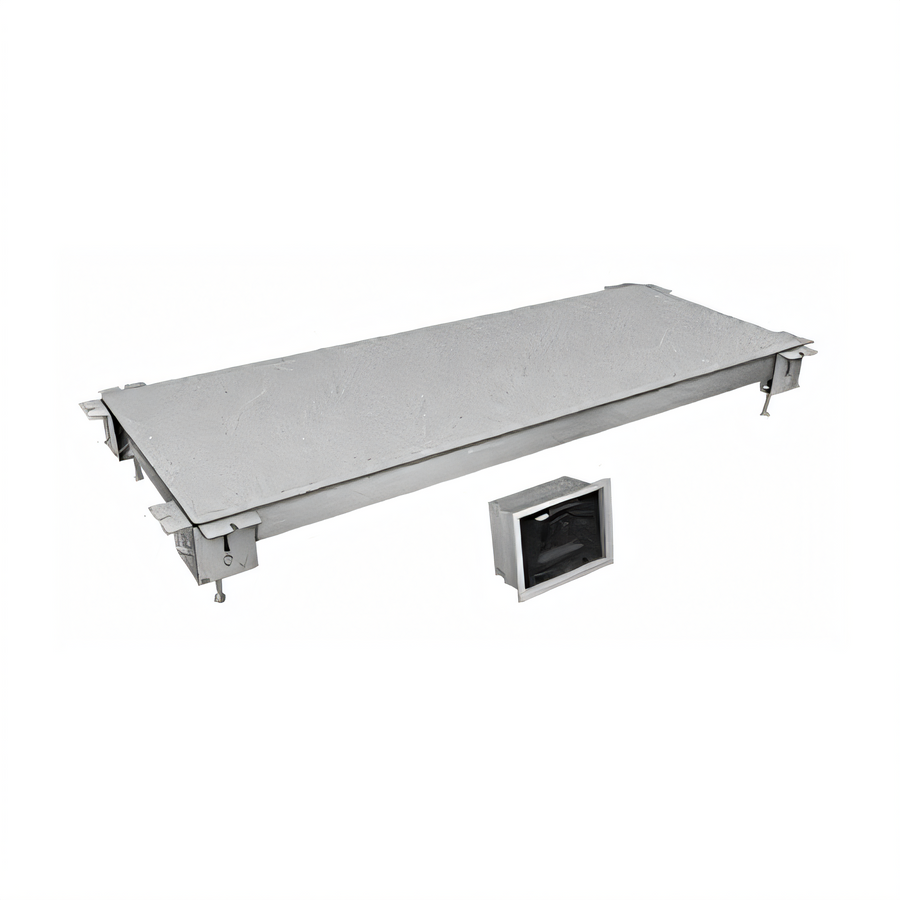

Hatco Cold Simulated Stone Shelf – Remote-Ready 24" × 18"

Model CSSBX-2418 | Flush built-in refrigerated deck

Give your buffet, cafeteria line or chef’s counter a high-end, stone look while keeping menu items safely chilled. The CSSBX-2418 installs flush with the countertop and is engineered for connection to a remote refrigeration system—so all the noise and heat stay out of sight and out of mind.

Top features

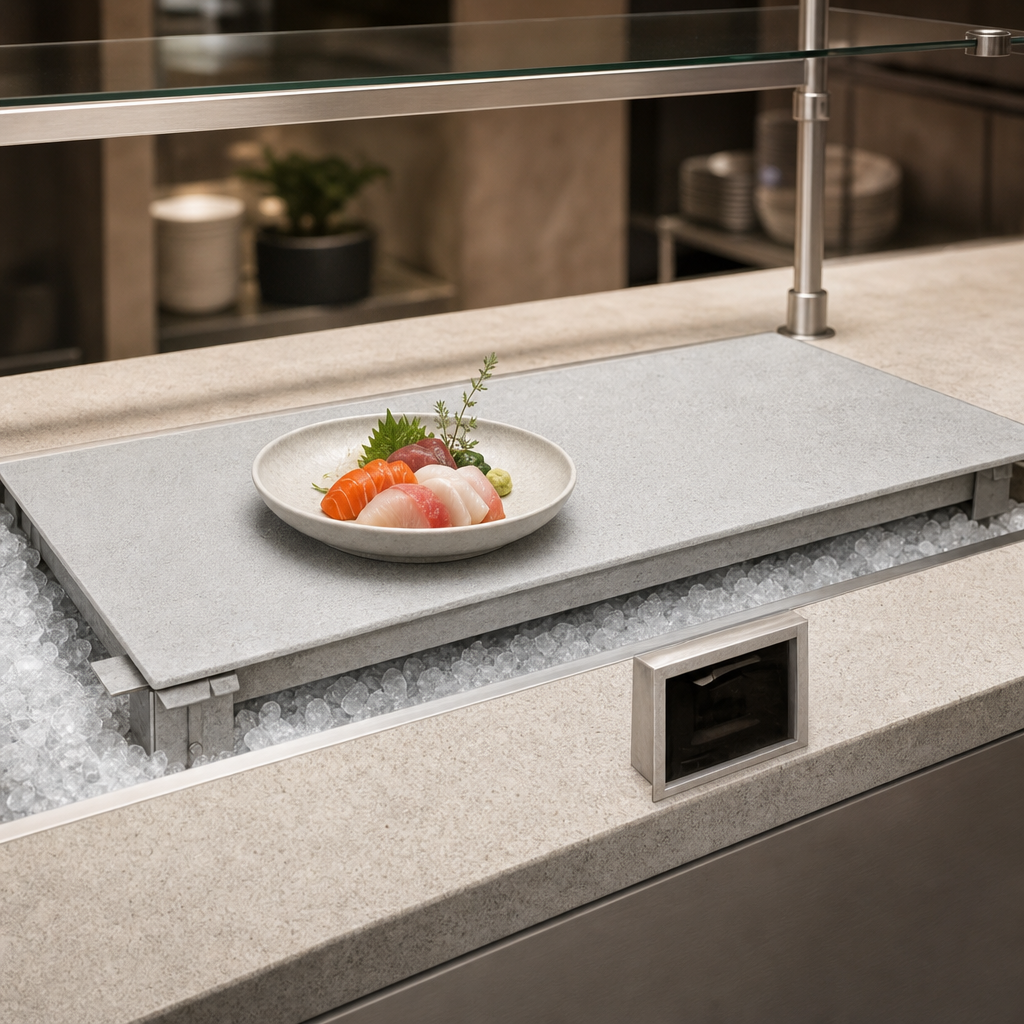

  • Swanstone® simulated-stone surface in Night Sky (standard) or optional Gray Granite / Bermuda Sand.
  • Remote-ready design – no condenser on board; tie into a rack or standalone system for maximum layout flexibility.
  • Patented thermal break minimizes condensation and prevents cold transfer to surrounding countertop materials.
  • Electronic Temperature Control Box (shipped loose) with a 4' (1219 mm) cord; 7.5' (2286 mm) cord available.
  • Factory-installed liquid-line solenoid valve and temperature probe; TXV valve shipped loose for fast field hook-up.
  • Low-energy electronics – draws only 12-17 W (≈0.1 A) to power the control system.
  • Perfect visual match to Hatco GRSSB heated simulated-stone shelves for cohesive hot & cold presentations.
  • NSF component listed, cULus certified and proudly Made in the USA.

Specifications

Cooled surface (usable) 24" W × 18" D  (610 × 457 mm)
Overall dimensions 27" W × 21" D × 7.54" H  (686 × 533 × 191 mm)
Deck thickness (above counter) 2.36"  (60 mm)
Evaporator load 953 BTU/hr
Electrical (control only) • 120 V, 60 Hz, 12 W, 0.1 A
• 220 / 230 / 240 V, 50 / 60 Hz, 17 W, 0.1 A
Shipping weight 75 lb (35 kg)
Certifications cULus, NSF (component)
Country of origin USA
Remote refrigeration required: this shelf is supplied without a condenser. Connect to a properly sized remote condensing unit (≈1,000 BTU/hr @ 10 °F suction) using the provided TXV, solenoid valve and probe. Installation should be performed by a qualified refrigeration technician.

Factory options (order with unit)

  • Color upgrade – Gray Granite or Bermuda Sand (non-returnable custom finish).
  • 7.5' (2286 mm) control-box cord for extended mounting reach.

Need a turnkey solution with an integral condenser? Take a look at Hatco models CSSB-2418 (self-contained) or CSSBR-2418 (remote condenser supplied).

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

7.54in

Width

27.0in

Depth

21.0in

Shipping Weight

75.0lbs

Size

18"

Construction

stone

Controls

electronic controls

Type

built-in

Specifications

Simulated Stone Cold Shelf, built-in, flush with counter top, 24"W x 18"D, electronic temperature control (shipped loose), designed for remote refrigeration (not included), cULus, Made in USA
