Hatco CSSBR-3618 Steam Tables & Food Wells
Description
Hatco CSSBR-3618 Cold Simulated Stone Shelf – 36" × 18"

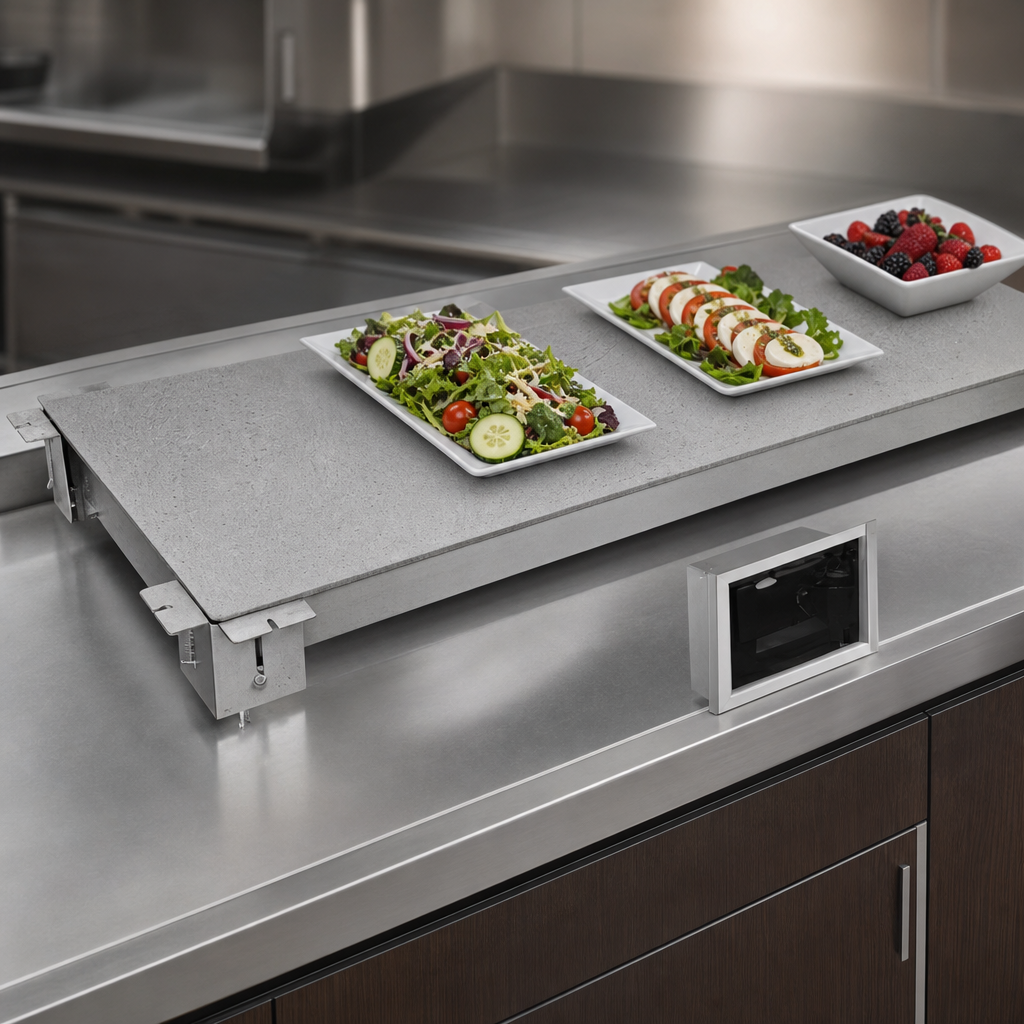

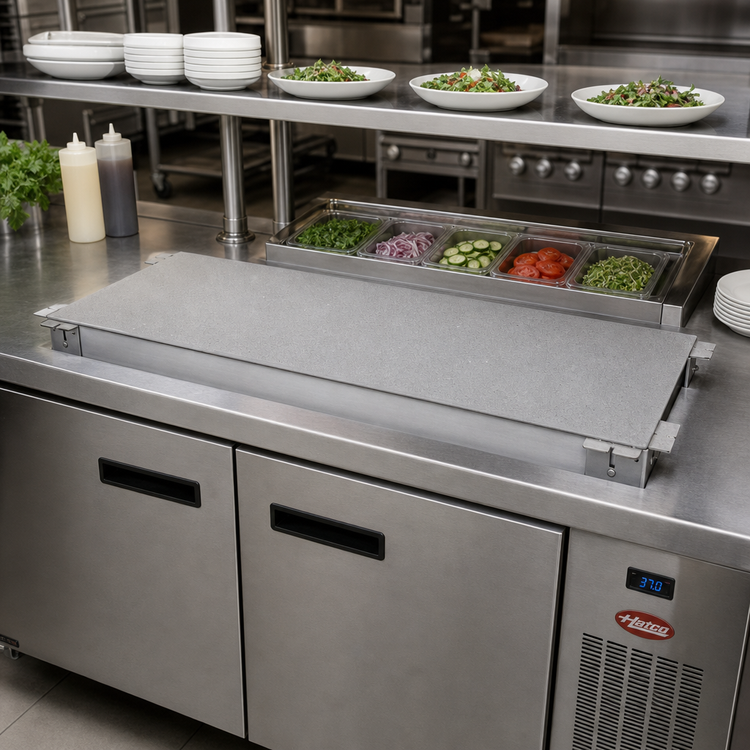

Built-In • Remote Refrigeration • Swanstone® SurfaceGive guests a chilled, eye-catching display without giving up counter space. The Hatco CSSBR-3618 drops flush into your countertop, keeping salads, sushi, desserts and beverages cold on a stunning stone-look surface while the refrigeration components stay out of sight.
Key benefits
- 36" × 18" (914 × 457 mm) usable chilled area—perfect for pans, platters or direct-to-stone merchandising.
- Remote 1/5 HP condensing unit (R-513A) ships loose and may be mounted up to 4' (1219 mm) from the shelf for flexible fabrication.
- Unattached electronic temperature control box with 4' (1219 mm) lead for convenient front-of-counter mounting.
- Patented thermal break virtually eliminates condensation and heat transfer to surrounding surfaces.
- Food-safe Swanstone® surface in three designer colors—Night Sky, Gray Granite or Bermuda Sand.
- Bottom-mount, flush-to-counter design delivers a clean, built-in look that maximizes serving space.
- Pairs seamlessly with Hatco GRSSB Heated Simulated Stone Shelves for cohesive hot-cold layouts.
- Easy-service condenser with sight glass, service valves, dryer/filter and receiver.
- cULus listed, NSF component recognized and Made in the USA.
Specifications
| Model | CSSBR-3618 |
|---|---|
| Installation | Built-in, flush to countertop |
| Overall dimensions (W × D × H) | 39" × 21" × 7.54" (991 × 533 × 191 mm) |
| Usable chilled surface | 36" × 18" (914 × 457 mm) |
| Compressor | 1/5 HP remote condensing unit (included, ships loose) |
| Refrigerant | R-513A (factory charged) |
| Standard electrical | 120 V, 60 Hz, 300 W, 3.8 A (220-240 V options available) |
| Control-box lead length | 4' (1219 mm) |
| Maximum distance to condenser | 4' (1219 mm) from shelf center |
| Shipping weight | Approx. 137 lb / 63 kg |
| Certifications | cULus, NSF Component |
| Country of origin | USA |

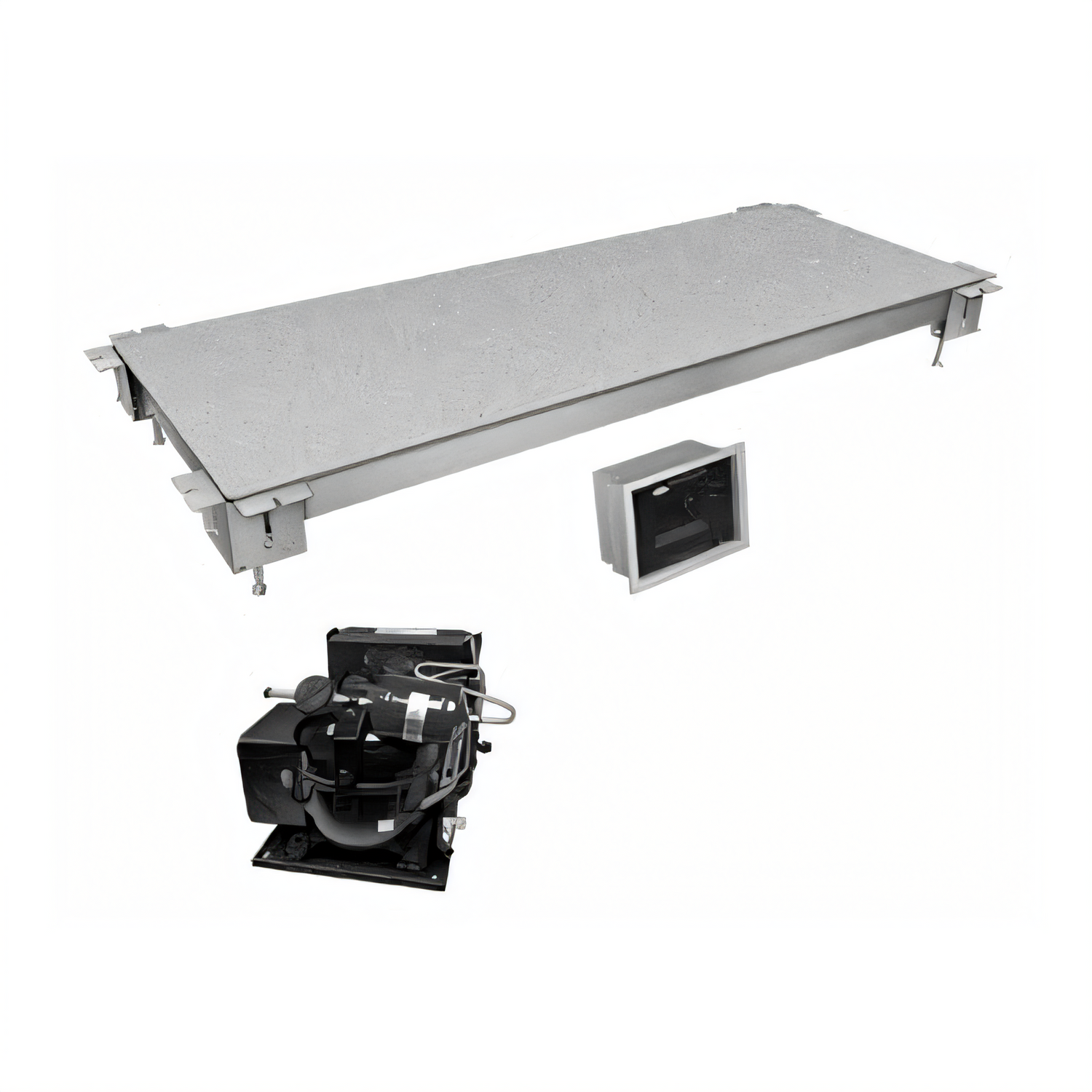

What’s included
- Swanstone® cold shelf assembly with temperature probe
- Unattached electronic temperature control box
- Remote 1/5 HP condensing unit (pre-charged with R-513A)
- Assembled TXV valve and flexible refrigeration lines
Countertop cut-out: 36.375" W × 18.375" D (924 × 467 mm) with 0.375" (10 mm) corner radius. Refer to the installation manual for complete fabrication details.
Optional upgrades (factory-order only)
- Extended 4-year compressor parts-only warranty (U.S. & Canada)
- 7.5' (2286 mm) control-box lead
- Non-standard Swanstone® colors (non-returnable)
