Hatco CSSBFX-48-I Steam Tables & Food Wells
Description

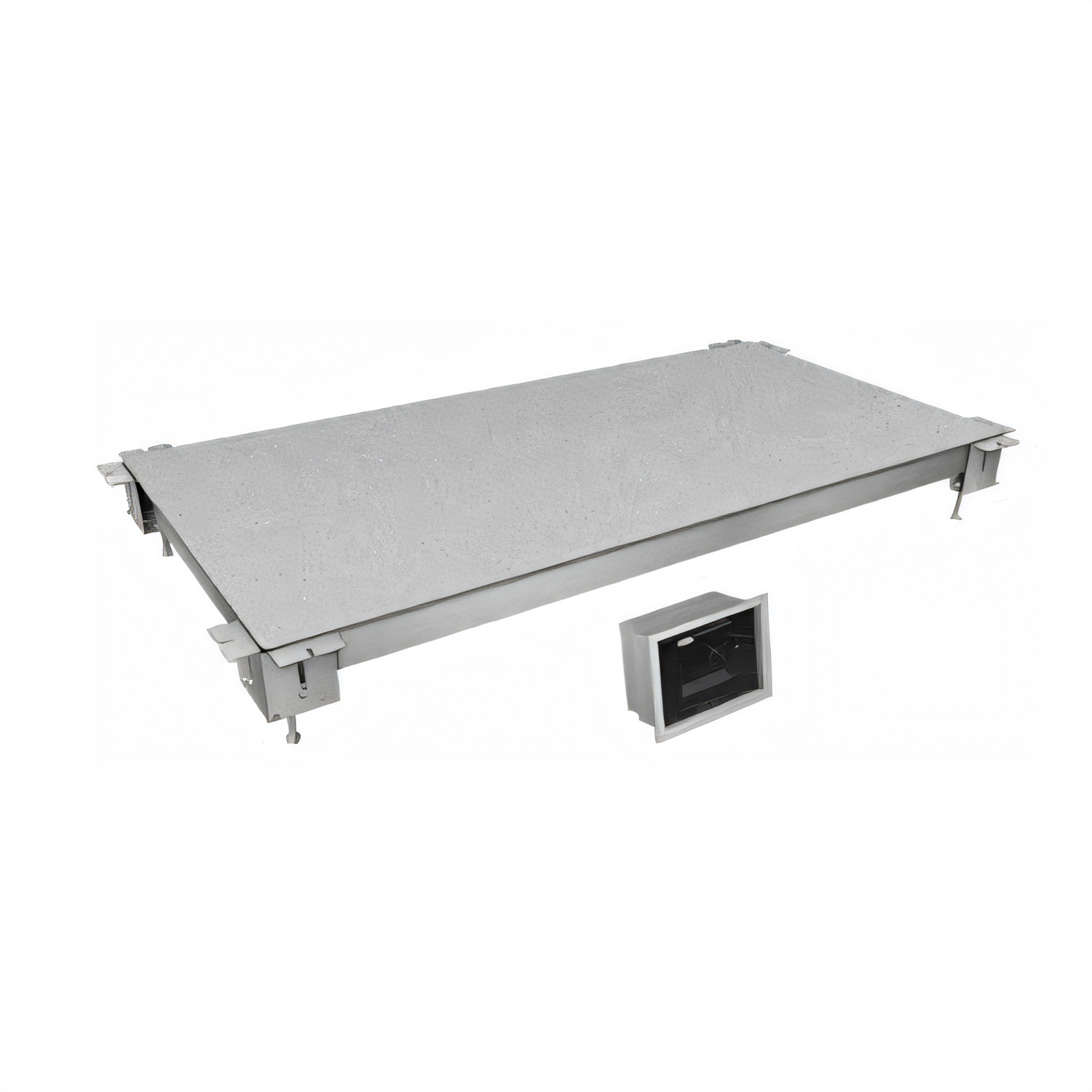

Hatco CSSBFX-48-I Simulated Stone Cold Shelf
48" W × 19-1/2" D • Built-In Flush Top • Remote Refrigeration ReadyGive your cold display the upscale look of natural stone and the performance of a commercial refrigeration system with Hatco’s Made-in-USA CSSBFX-48-I Cold Simulated Stone Shelf. Designed to mount perfectly flush with your counter, this 48" × 19-1/2" shelf keeps salads, sushi, desserts and grab-&-go favorites in the ideal chill zone—no messy ice pans required.
Key benefits
- Remote-ready design lets you pair the shelf with the condenser of your choice (condensing unit not included), keeping heat and noise away from guests.

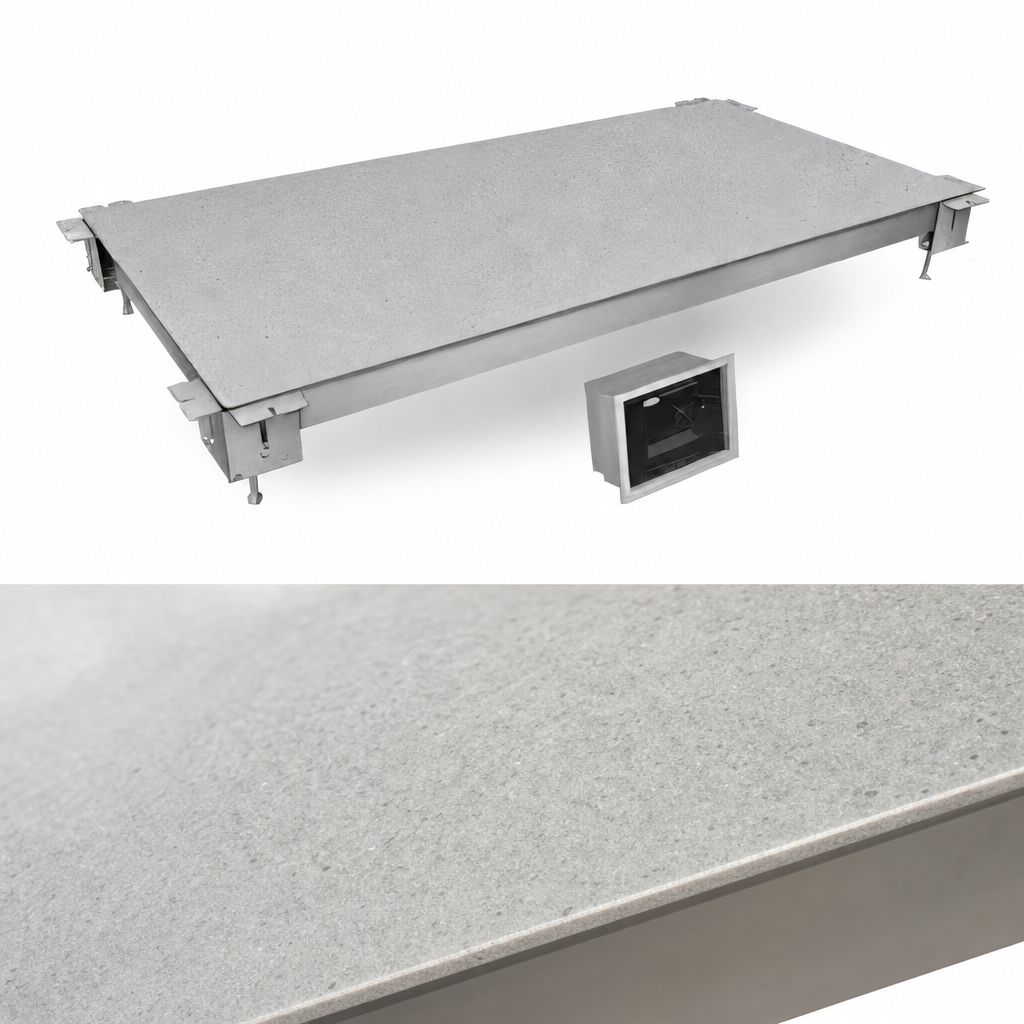

- Food-safe Swanstone® simulated stone top looks like quarried stone yet resists stains, scratches and thermal shock.
- Patented thermal break dramatically reduces condensation and prevents cold transfer to surrounding countertop materials.
- Electronic Temperature Control Box (shipped loose) with 4 ft (1.22 m) lead; optional 7.5 ft (2.29 m) lead available for maximum mounting flexibility.
- Uniform cooling across the entire surface—no hot spots, no ice refills, no wasted labor.
- NSF component listed and cULus certified for effortless code compliance.
- Backed by Hatco’s legendary 24/7 parts & service support.
Color choices
Choose from three elegant solid-surface colors (non-returnable):
- Night Sky (standard)
- Gray Granite
- Bermuda Sand
Cut-out & installation data
| Countertop cut-out | 48.375" W × 19.875" D (0.375" corner radius) |
|---|---|
| Overall under-counter size | 51" W × 22.5" D × 7.52" H |
| Cooled surface | 48" W × 19.5" D (1219 × 495 mm) |
| Electrical | 12 W • 0.1 A • 50/60 Hz • 120/220/230/240 V (control circuitry only) |
| Control box lead | 4 ft (1.22 m) standard • 7.5 ft (2.29 m) optional |
| Shipping weight | Approx. 128 lb (58 kg) |
| Refrigerant | R-513A (or as supplied by remote condenser) |
Full dimensional drawings, line-set requirements and mounting instructions are available in the Installation & Operation Manual.
Ideal applications
- Buffet and cafeteria serving lines
- Hotel breakfast bars & banquet setups
- Deli, salad or sushi stations
- C-store and grab-&-go merchandisers
Upgrade your cold food presentation with the durability, flexibility and style only Hatco can deliver—add the CSSBFX-48-I Simulated Stone Cold Shelf to your line-up today!
