Hatco CSSBFX-48-F Steam Tables & Food Wells
Description

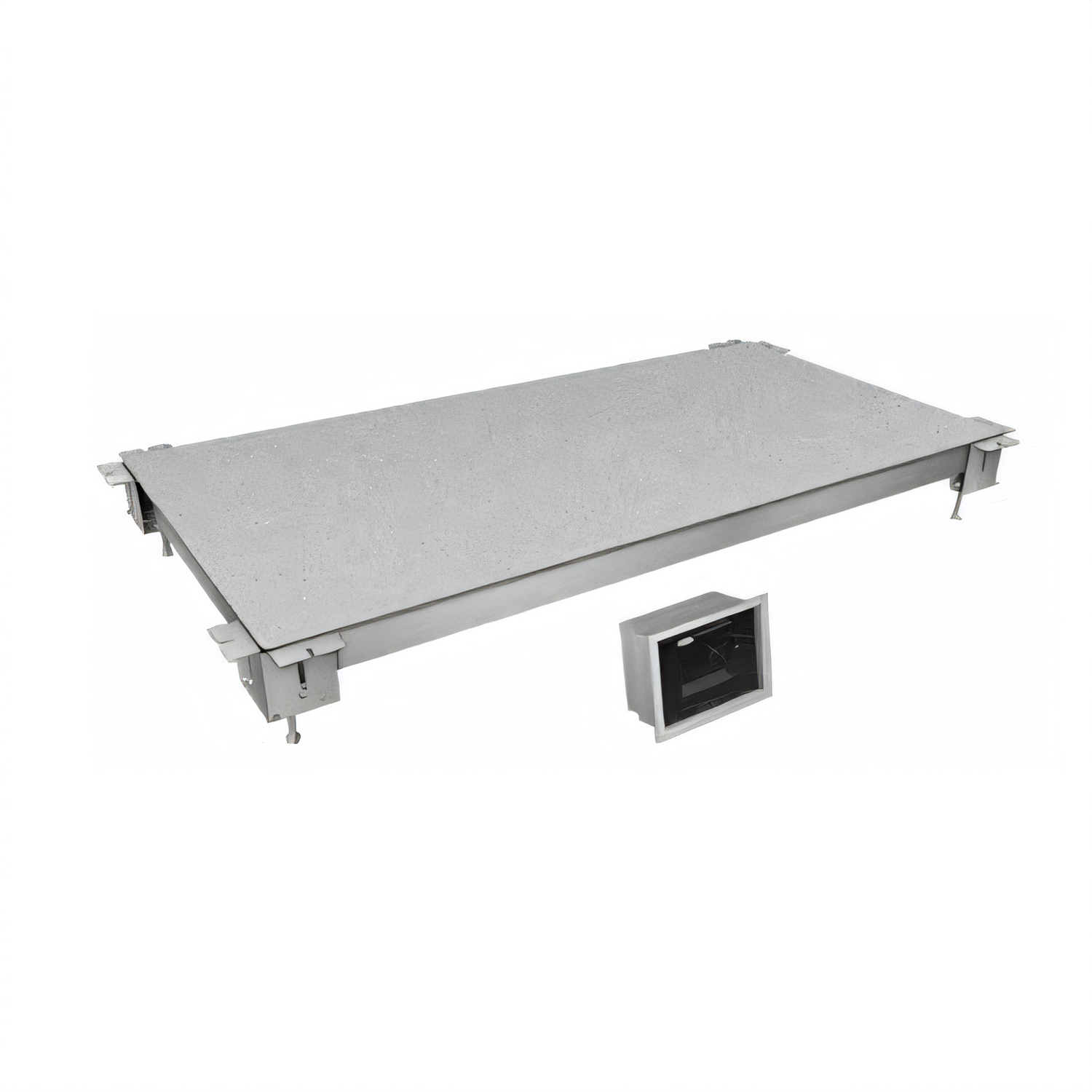

Hatco CSSBFX-48-F Simulated Stone® Cold Shelf

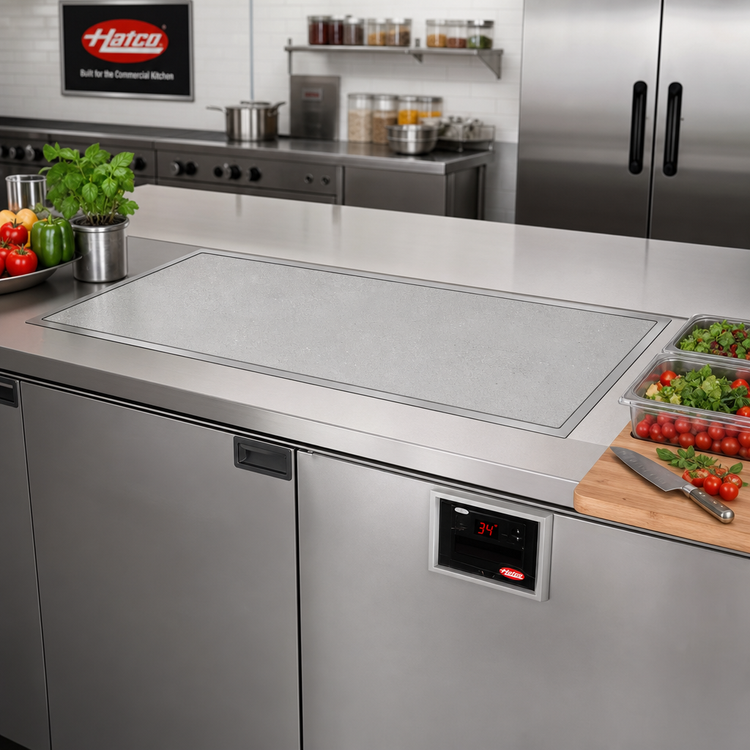

48" W x 15-1/2" D built-in flush top – remote refrigeration-ready (condenser not included)Create a striking, sanitary, made-to-order cold zone in any buffet, cafeteria, or grab-and-go line. The Hatco CSSBFX-48-F drops into your counter completely flush, presenting food on an elegant Swanstone® simulated-stone surface while an electronic control box (shipped loose) regulates temperatures for perfect, even chilling all service long.
Why you’ll love it
- Sleek 48" x 15.5" chilled serving area keeps salads, desserts & beverages at food-safe temps.
- Remote refrigeration design – pair with your own condensing unit for ultimate layout flexibility.
- Factory-installed liquid-line solenoid valve & TXV simplify field refrigeration hook-up.
- Integrated electronic temperature control (loose-shipped) with 4' lead for easy mounting & precise dialing-in.
- Patented thermal break cuts condensation and protects surrounding countertop materials.

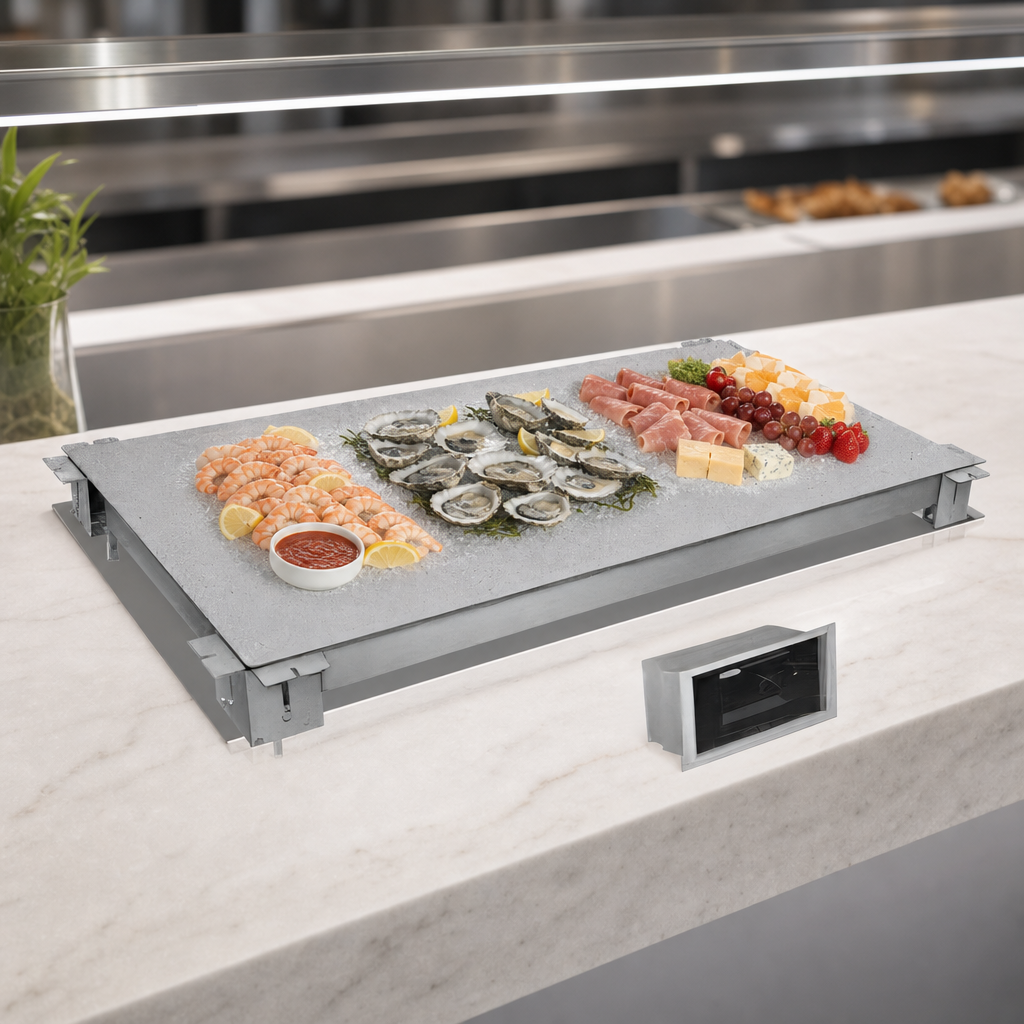

- Durable Swanstone® surface offered in three chilled stone looks: Night Sky (standard), Gray Granite or Bermuda Sand.
- NSF Component & UL Listed; proudly Made in the USA.
Specifications
| Model | CSSBFX-48-F (remote, no condenser) |
|---|---|
| Overall dimensions (W × D × H) | 51" × 18.5" × 7.52" (1295 × 470 × 191 mm) |
| Usable chilled surface | 48" × 15.5" (1219 × 394 mm) |
| Cut-out required | 48.375" × 15.875" with 0.375" radius corners (1229 × 403 mm) |
| Control box cut-out | 7.438" W × 5.625" H (189 × 143 mm) |
| Electrical (control only) | 120, 220, 230 or 240 V — 12 W, ≤0.1 A, 50/60 Hz |
| Refrigerant | Compatible with R-404A, R-448A, R-513A & other industry-standard gases (field supplied) |
| Approx. ship weight | 99 lbs (45 kg) |
Installation highlights
- Shelf ships with temperature probe, TXV & solenoid pre-installed.
- 4' (1219 mm) cord from shelf to control box – optional 7.5' (2286 mm) cord available at purchase.
- Mount condensing unit (by others) per manufacturer guidelines; BTU load ≈ 1,649 BTU/hr.
- Control box must be easily accessible for staff.
Available simulated stone colors
- Night Sky (standard)
- Gray Granite (option)
- Bermuda Sand (option)
Custom colors are non-returnable and must be specified at time of order.
Warranty & approvals
Hatco backs every shelf with 24/7 parts & service assistance (U.S. & Canada). Additional four-year compressor coverage is available when purchased with a Hatco condensing unit.
