Hatco CSSBFX-36-S Steam Tables & Food Wells
$4,599.94
Unit price
/
Unavailable
Description

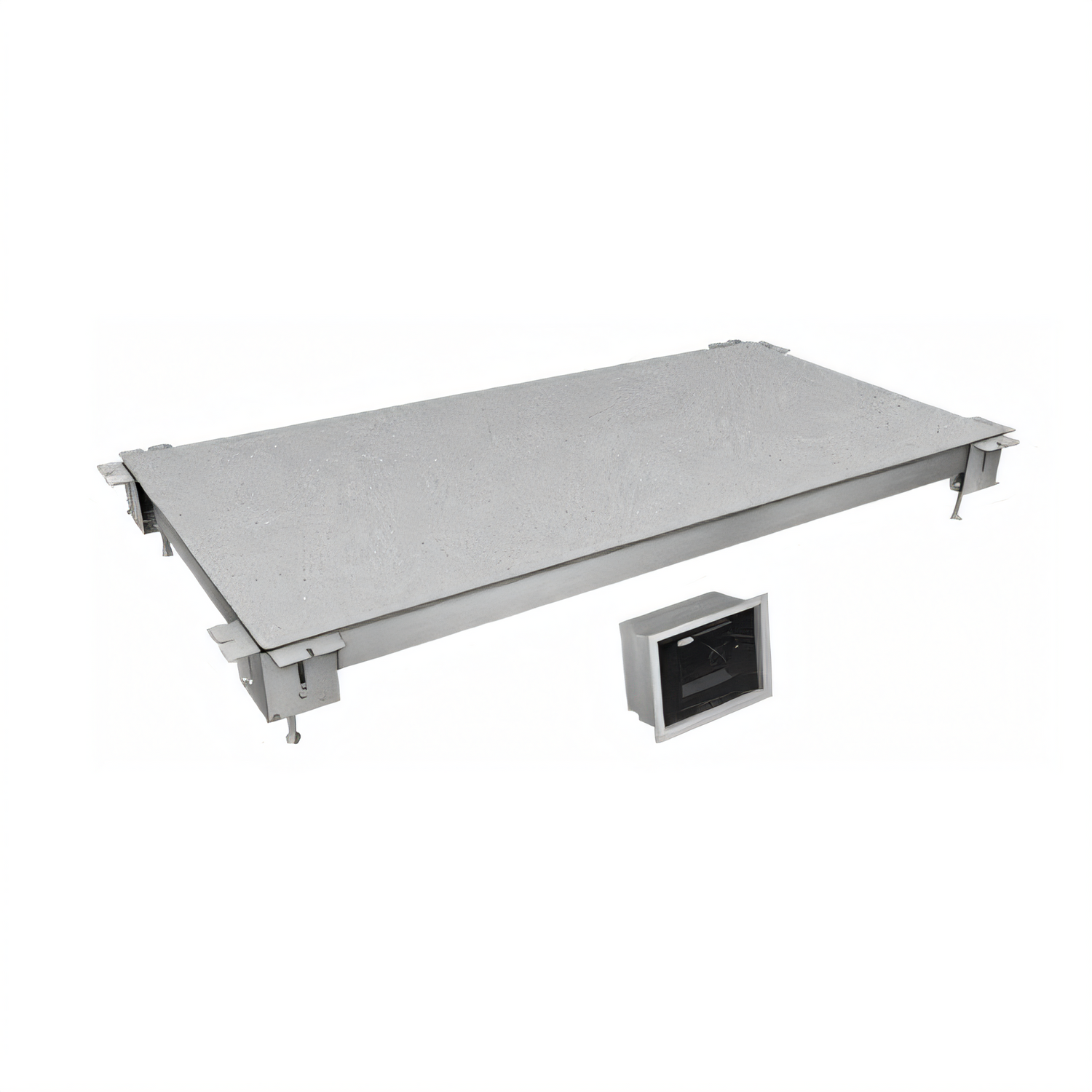

Hatco CSSBFX-36-S Simulated Stone Cold Shelf

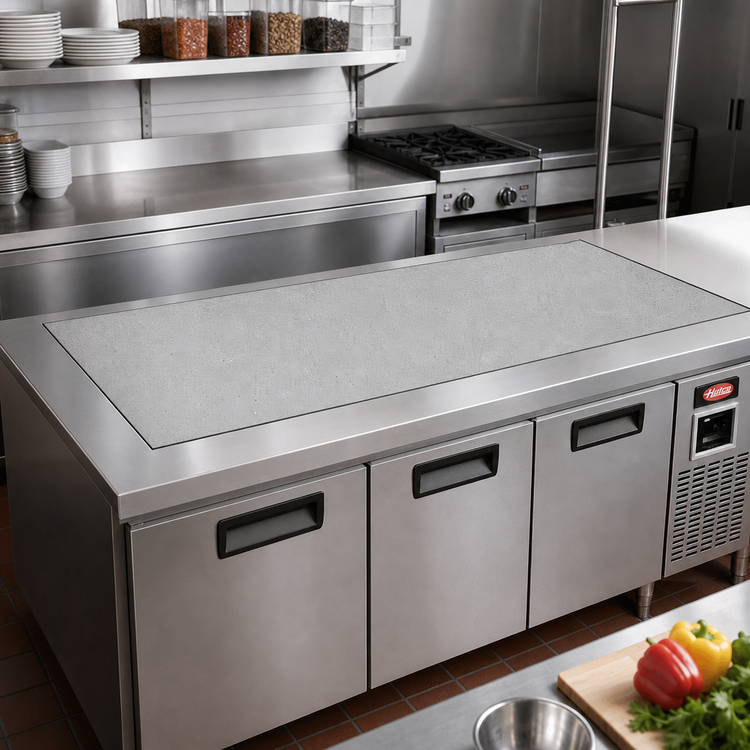

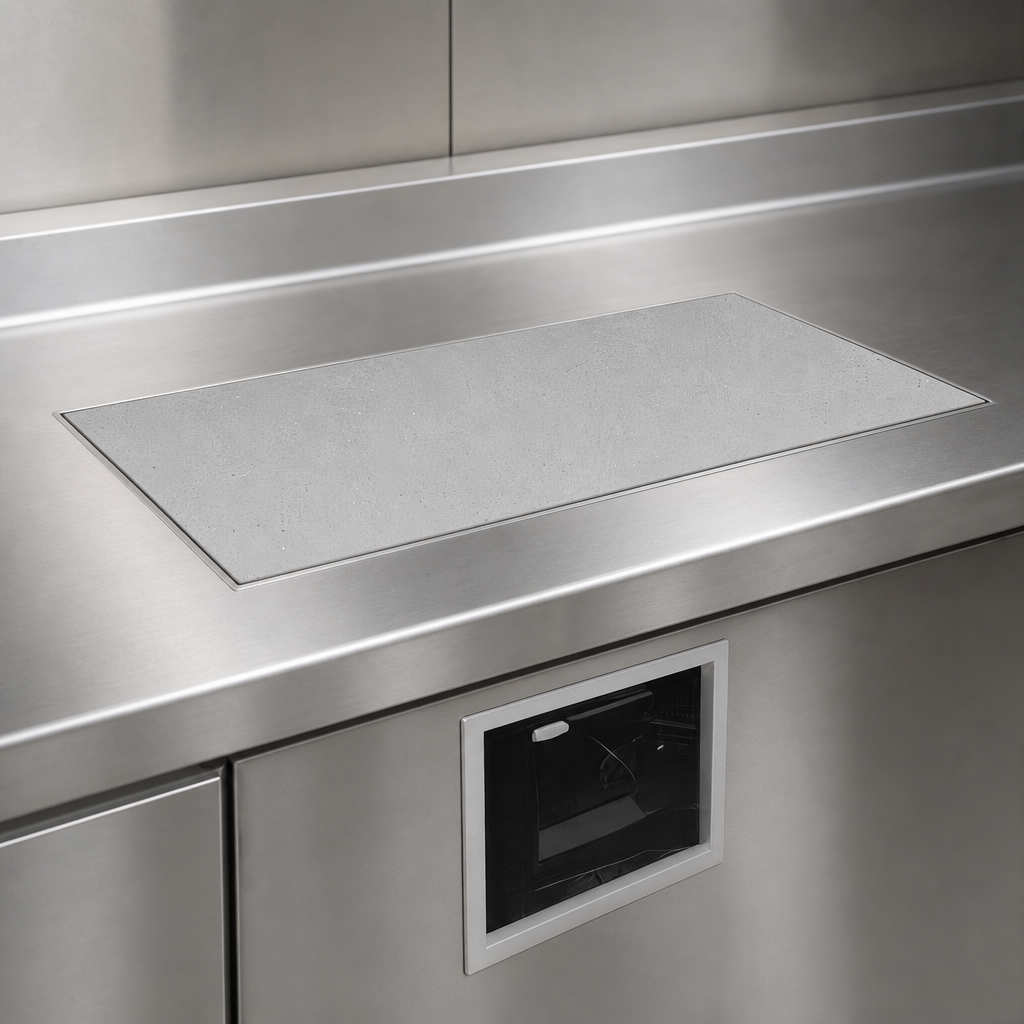

36" W × 24" D built-in flush top • remote refrigeration readyGive your buffet or grab-and-go line the upscale look of natural stone with the holding power of a commercial cold well. The Hatco CSSBFX-36-S mounts flush into your counter and keeps product safely chilled without the visual bulk of a drop-in pan.
Stand-out features
- Remote refrigeration design – shelf ships without a condenser so you can tie it into an existing rack or a field-supplied condensing unit.
- Generous 36" × 24" (914 × 610 mm) usable refrigerated surface ideal for sheet-pan desserts, salads & packaged items.
- Food-safe Swanstone® simulated stone in three elegant colors: Night Sky (standard), Gray Granite or Bermuda Sand (special order).
- Patented thermal break virtually eliminates condensation at the counter interface.
- Electronic Temperature Control box (ships loose) with 4' lead for easy front-of-cabinet mounting; optional 7.5' cord available.
- Factory-installed TXV valve & liquid-line solenoid for fast hook-up to your refrigeration system.
- NSF (Component) & cULus listed; proudly Made in the USA.
At-a-glance specs
| Model | CSSBFX-36-S |
|---|---|
| Usable refrigerated surface | 36" W × 24" D (914 × 610 mm) |
| Overall dimensions | 39" W × 27" D × 7.52" H (991 × 686 × 191 mm) |
| Countertop cut-out* | 36.375" × 27.375" with ⅜" radius corners |
| Electrical (control box) | 120 V, 60 Hz, 12 W, 0.1 A (220-240 V models available) |
| Approx. ship weight | ≈ 122 lb (55 kg) |
| Refrigeration connection | 3/8" ODF liquid & 1/2" ODF suction; pre-charged TXV for remote system |
| Refrigerant | Configured for R-513A; compatible with other refrigerants supplied by installer |
*Refer to the Installation & Operating Manual for complete cut-out and clearance requirements.
Perfect for
- Buffet & cafeteria cold stations
- Supermarket deli islands
- Hotel breakfast bars
- Grab-n-go retail displays
Installation note: This shelf is supplied without a condensing unit.
A qualified refrigeration technician is required to connect the shelf to a remote system and commission the electronic controls.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, Made in USA
Height
7.52in
Width
39.0in
Depth
27.0in
Shipping Weight
122.0lbs
Controls
electronic controls
Construction
stone
Size
36"
Type
built-in
Specifications
Simulated Stone Cold Shelf, built-in flush top, 36"W x 24"D, electronic temperature control (shipped loose), designed for remote refrigeration (not included), Made in USA
