Hatco  |  SKU: CSSBFX-24-F

Hatco CSSBFX-24-F Steam Tables & Food Wells

$4,019.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Parts list Catalog brochure Owner's manual Color chart
Related Searches
Commercial Shelving Food Holding & Warming Equipment Hatco Specialty Shelving Steam Tables & Food Wells Storage & Transport Walk-in Cooler Shelving

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

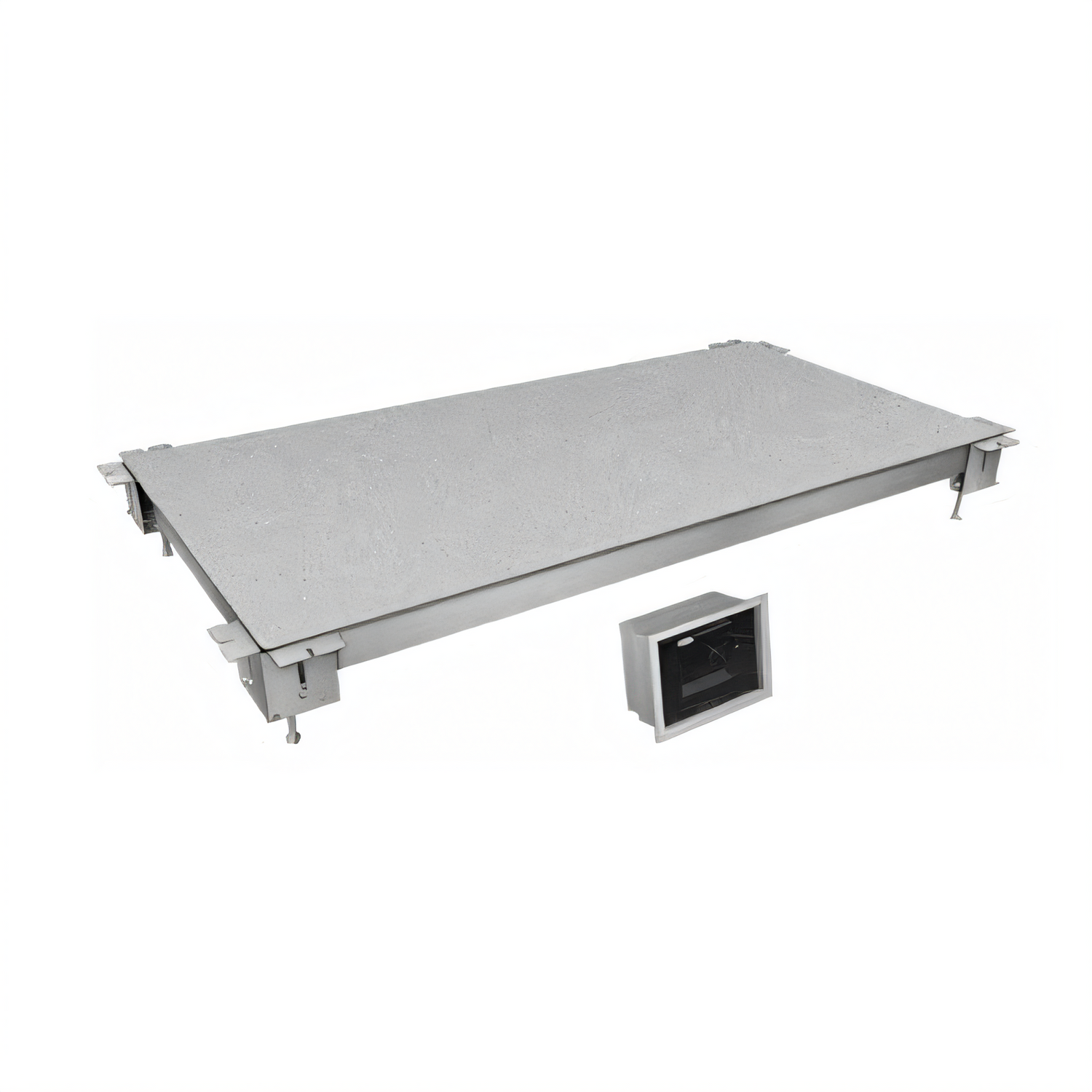

Hatco CSSBFX-24-F Simulated Stone Cold Shelf – 24" x 15-1/2"

Built-In Flush Top | Remote Refrigeration (condenser not included)

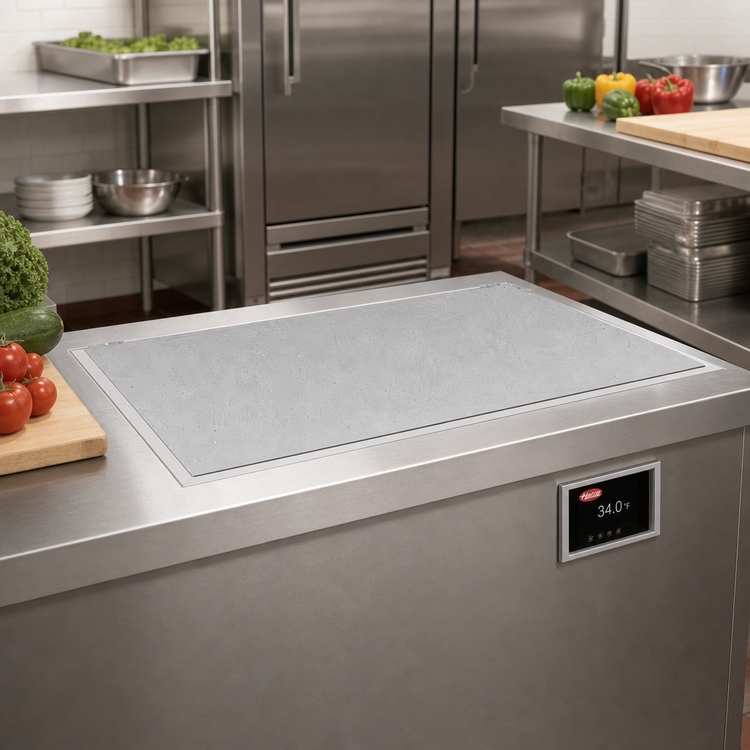

Create an eye-catching, refrigerated presentation without sacrificing counter space. The Hatco CSSBFX-24-F drops flush into your countertop and connects to a remote condensing system of your choice, keeping salads, desserts and grab-n-go items in the ideal chill zone while giving you full design freedom.

Key Advantages
  • 24" x 15.5" usable chilled surface maintains product at or below 41 °F (5 °C).
  • Remote refrigeration design (condenser supplied by others) frees up under-counter space and streamlines service access.
  • Patented thermal break virtually eliminates condensation on surrounding surfaces.

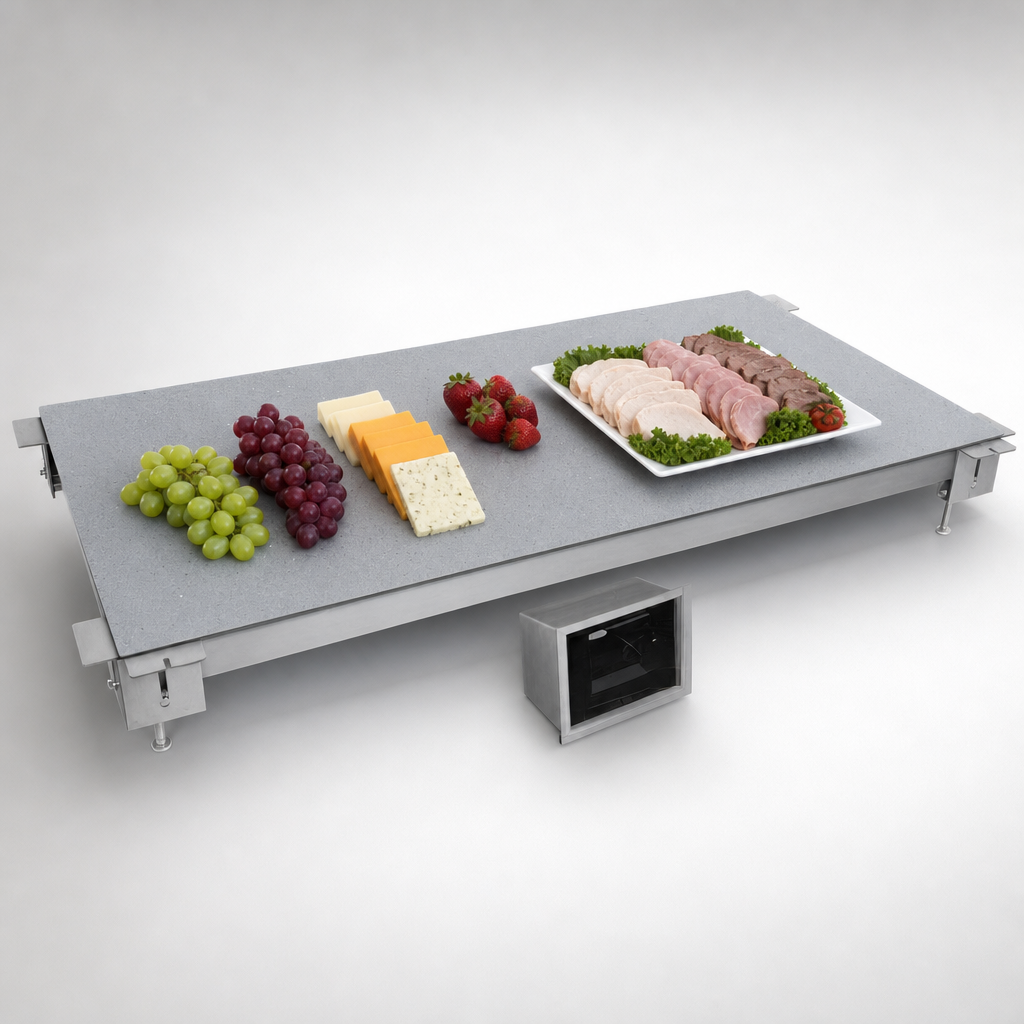

  • Food-safe Swanstone® simulated stone top resists scratches, staining and chemicals.
  • Electronic Temperature Control box (shipped loose) with a 4' (1219 mm) lead for easy front-panel mounting.
  • Factory-mounted liquid line solenoid valve and loose TXV valve simplify field connection.
  • Bottom-mount, flush-top profile delivers a clean, contemporary look.
  • cULus listed, NSF component recognized and proudly Made in the USA.
Specifications
Model CSSBFX-24-F
Overall Dimensions (W x D x H) 27" x 18.5" x 7.52"  (686 x 470 x 191 mm)
Usable Chilled Surface 24" x 15.5"  (610 x 394 mm)
Countertop Cut-out 24.375" x 15.875" (619 x 403 mm) with 0.375" radius corners
Electrical (Control Box) 120, 220, 230 or 240 V | 12 W | 0.1 A | 60 Hz
Refrigeration Connects to remote condensing unit (not included); TXV & solenoid valve supplied
Ship Weight 69 lb (32 kg)
Top Material Swanstone® simulated stone – Night Sky standard
Standard Inclusions
  • Shelf assembly with embedded temperature probe
  • Loose TXV valve for field installation
  • Liquid line solenoid valve (factory-mounted to shelf)
  • Electronic Temperature Control box with 4' (1.2 m) cord
  • Mounting hardware
Color Choices (factory order)
  • Night Sky – standard
  • Gray Granite
  • Bermuda Sand

Non-standard colors are factory-made and non-returnable.

Important: This shelf is engineered for connection to a remote refrigeration system (condenser and refrigerant lines not included). A licensed refrigeration contractor must size, supply and install the condensing unit and complete all field refrigeration work.

Need extra reach? A factory-installed 7.5' (2.3 m) control-box lead is available at the time of order.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

7.52in

Width

27.0in

Depth

18.5in

Shipping Weight

69.0lbs

Controls

electronic controls

Size

24"

Type

built-in

Construction

stone

Specifications

Simulated Stone Cold Shelf, built-in flush top, 24"W x 15-1/2"D, electronic temperature control (shipped loose), designed for remote refrigeration (not included), Made in USA
