Hatco CSSBFR-48-S Steam Tables & Food Wells
Description
Hatco CSSBFR-48-S Simulated Stone Cold Shelf
48" W × 24" D • Flush-Top Built-In • Remote R-513A RefrigerationGive your buffet line a premium, seamless look while keeping salads, desserts and grab-n-go items safely chilled. The Hatco CSSBFR-48-S combines a food-safe Swanstone® simulated-stone surface with a powerful remote condensing unit for precise, even cooling—all without cluttering the countertop.
Key Features
- Large 48" × 24" chilled surface holds full-size hotel pans, sheet pans or platters.
- Remote 5/8 HP condensing unit (ships loose) can be positioned up to 4 ft from the shelf for design flexibility and quieter operation at the serving line.
- Eco-friendly R-513A refrigerant meets the latest low-GWP standards.
- Electronic Temperature Control box (unattached) with 4 ft lead for quick front-mount installation and precise digital adjustment.
- Patented thermal break virtually eliminates condensation and heat transfer to surrounding countertop materials.
- Bottom-mount, flush-top design drops cleanly into a cut-out for a smooth, guest-facing surface.

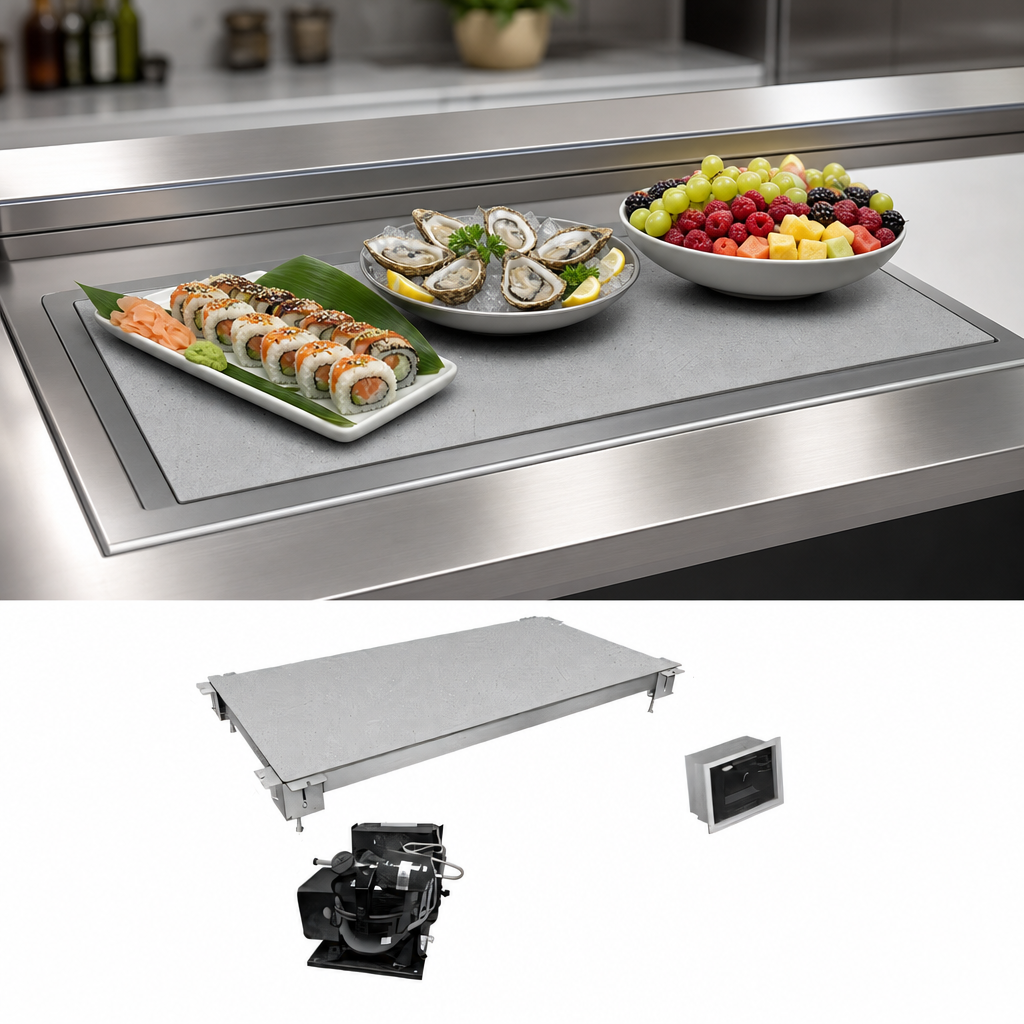

- Durable Swanstone® simulated stone is NSF-listed, scratch-resistant and available in three colors: Night Sky (standard), Gray Granite or Bermuda Sand.
- cULus and NSF (component) listed; proudly Made in the USA.
Technical Specifications
| Model | CSSBFR-48-S |
|---|---|
| Overall Dimensions (includes brackets) |
51" W × 27" D × 7.52" H |
| Usable Cooled Surface | 48" W × 24" D |
| Compressor | 5/8 HP remote, shipped loose with refrigerant lines & TXV |
| Refrigerant | R-513A |
| Electrical | 120 V, 800 W, 8.7 A, 60 Hz (other voltages available) |
| Control Box Lead | 4' (1219 mm) factory-wired cord |
| Cut-Out Size | 48.375" W × 24.375" D with 0.375" radius corners |
| Approx. Ship Weight | 187 lb (85 kg) |
| Certifications | cULus, NSF Component |
| Country of Origin | Made in the USA |
Installation Highlights

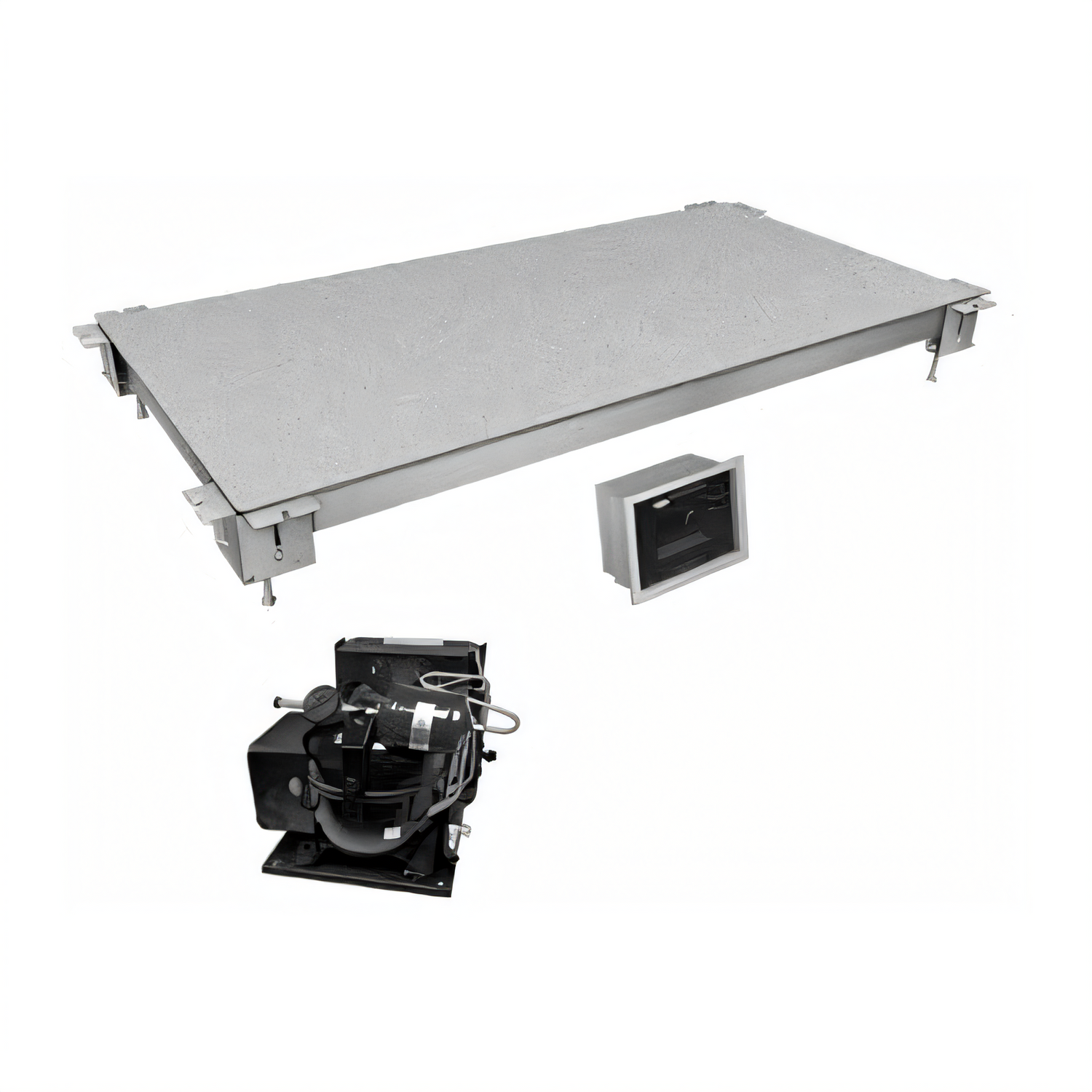

- Ships with shelf assembly, temperature probe, TXV, electronic control box, remote condensing unit and flexible refrigerant lines.
- Professional refrigeration hook-up recommended. Follow included Installation & Operating Manual for line-set routing and refrigerant charging.
- Control box and condenser may be surface-mounted inside the base cabinet for easy access and serviceability.
Looking for a different size or depth? Chat with our equipment specialists—we stock flush-top cold shelves from 24" to 48" wide.
