Hatco CSSBFR-24-F Steam Tables & Food Wells
Description
Hatco CSSBFR-24-F Cold Simulated Stone Shelf – 24" x 15-1/2"
Built-In Flush Top • Remote Refrigeration • Electronic ControlDeliver picture-perfect, food-safe chilling right in your countertop. The Hatco CSSBFR-24-F combines the upscale look of stone with the proven performance of a commercial refrigerated shelf—ideal for salads, desserts, sushi and more.
Key advantages
- Remote 1/5 HP condensing unit (R-513A) ships loose and can be placed up to 4' (1219 mm) from the shelf for a quieter, cooler serving area.
- Patented thermal break virtually eliminates condensation and heat transfer to nearby surfaces.
- Unattached Electronic Temperature Control box with 4' (1219 mm) lead maintains precise holding temps; optional 7.5' (2286 mm) cord available.
- Swanstone® simulated stone surface is NSF-listed, scratch-resistant and easy to wipe clean.
- Flush-mount profile sits level with the counter for seamless plate movement and a high-end presentation.
- Condensing unit includes sight glass, service valves, dryer/filter and receiver for easy field service.
- Made in the USA and listed to cULus & NSF standards.
Ideal for
- Self-serve buffet & cafeteria lines
- Hotel breakfast stations
- Grab-and-go merchandisers
- Gourmet delis & bakeries
Specifications
| Model | CSSBFR-24-F |
|---|---|
| Usable chilled surface | 24" W × 15-1/2" D (610 mm × 394 mm) |
| Overall body size | 27" W × 18-1/2" D × 7.52" H (686 mm × 470 mm × 191 mm) |
| Cut-out (with 0.375" radius)* | 24.375" W × 18.875" D (619 mm × 480 mm) |
| Compressor | 1/5 HP remote, R-513A refrigerant |
| Electrical | 120 V, 300 W, 3.8 A, 60 Hz (220-240 V models available) |
| Refrigerant line length | 4' (1219 mm) flexible, pre-charged |
| Shipping weight | Approx. 119 lb (54 kg) |
| Certifications | cULus, NSF |
| Country of origin | Made in USA |
*Refer to the installation manual for complete cut-out and support details.
Finish options
Select your solid-surface color (non-returnable). Night Sky ships as standard if no selection is made.
- Night Sky (standard)
- Gray Granite
- Bermuda Sand

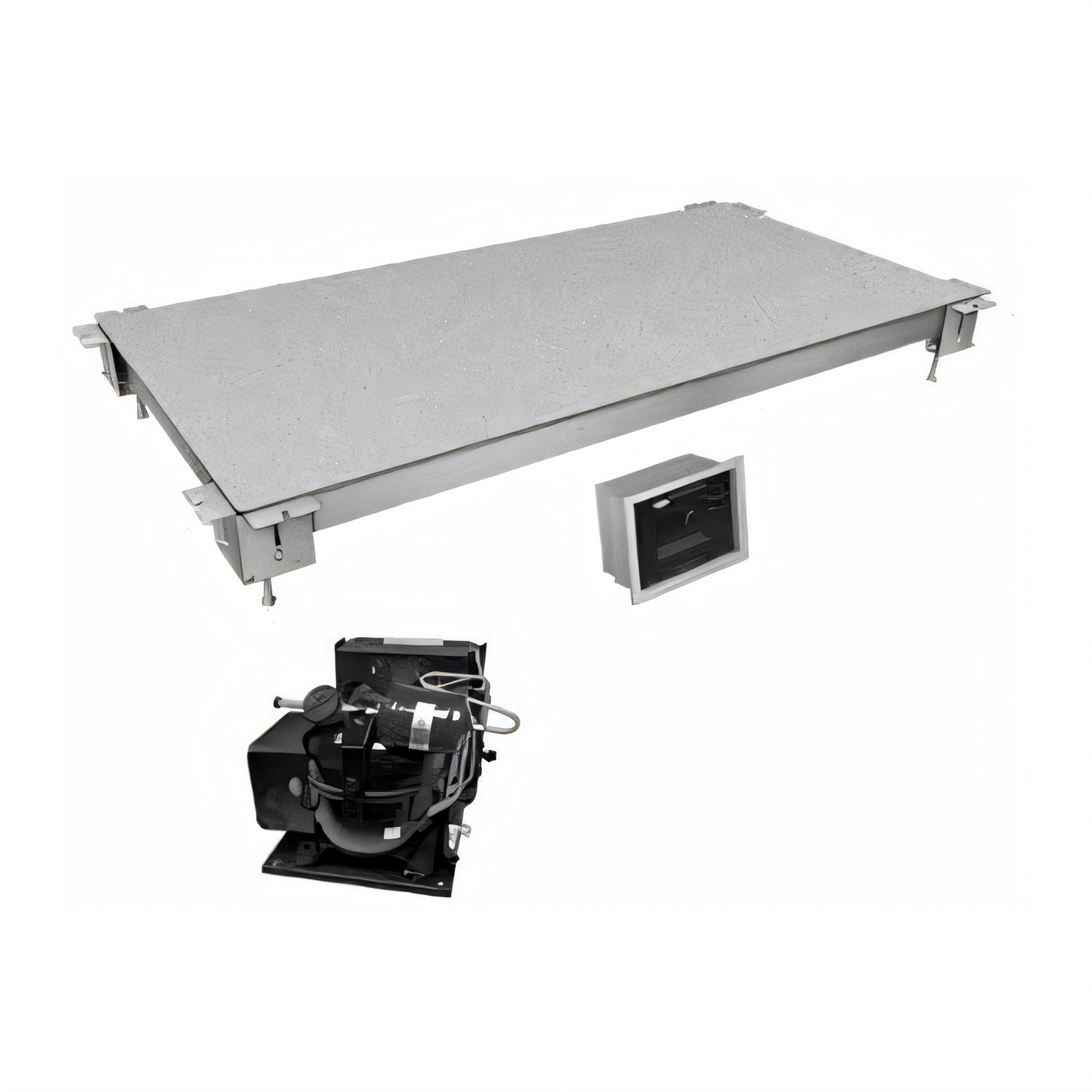

What’s in the box
- Simulated stone shelf with temperature probe & TXV
- Remote condensing unit with 4' refrigerant lines
- Unattached Electronic Temperature Control box
- Liquid-line solenoid valve
- Mounting hardware & installation manual
Need a longer control-box cord or an extended compressor warranty? Ask before ordering—these options are only available at the time of purchase.
