Hatco CSSBFP-24-S Steam Tables & Food Wells
Description
Hatco CSSBFP-24-F Simulated Stone® Cold Shelf
24" W x 15-1/2" D Built-In Flush Top • R-290 Refrigerant • Made in USAGive guests a perfectly chilled presentation without sacrificing counter space. The Hatco CSSBFP-24-F Cold Simulated Stone Shelf drops in flush with your countertop, delivering a sleek, foodsafe display surface that keeps salads, sushi, desserts and grab-n-go favorites firmly in the safe “chill zone.” Its eco-friendly R-290 refrigeration system, electronic temperature control and patented thermal-break design make it the smartest way to add reliable cold holding to any buffet, cafeteria or café line.
Why You’ll Love It

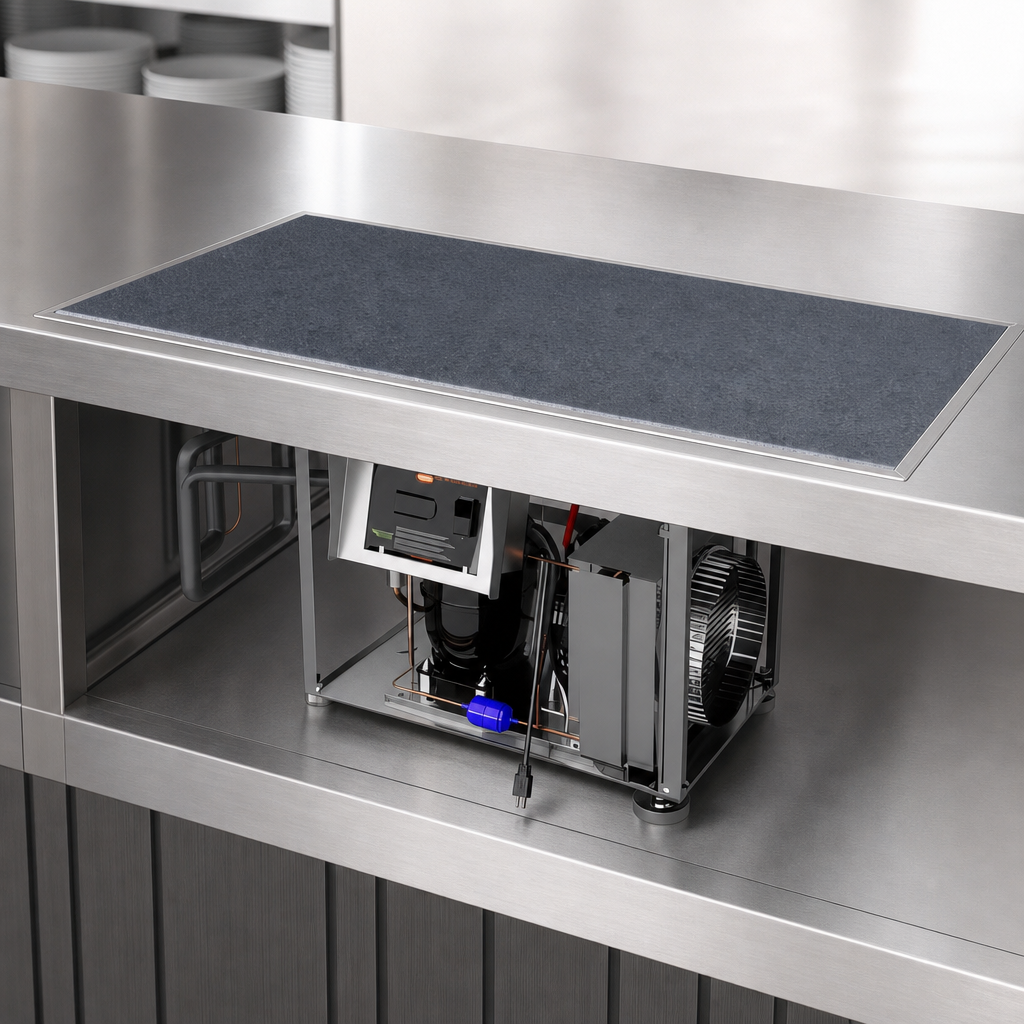

- Flush-mount design sits level with existing counters for a clean, built-in look.
- Durable Swanstone® simulated stone top in Night Sky (standard) resists scratches and cleans easily; optional Gray Granite or Bermuda Sand colors available (non-returnable).
- Eco-conscious R-290 refrigerant and high-efficiency 1/5 HP compressor reduce energy use and global-warming impact.
- Patented thermal break around the perimeter minimizes condensation and prevents cold transfer to adjacent surfaces.
- Digital Electronic Temperature Control box (with 4 ft lead) lets you mount controls up to 4" from the shelf center for easy operator access.

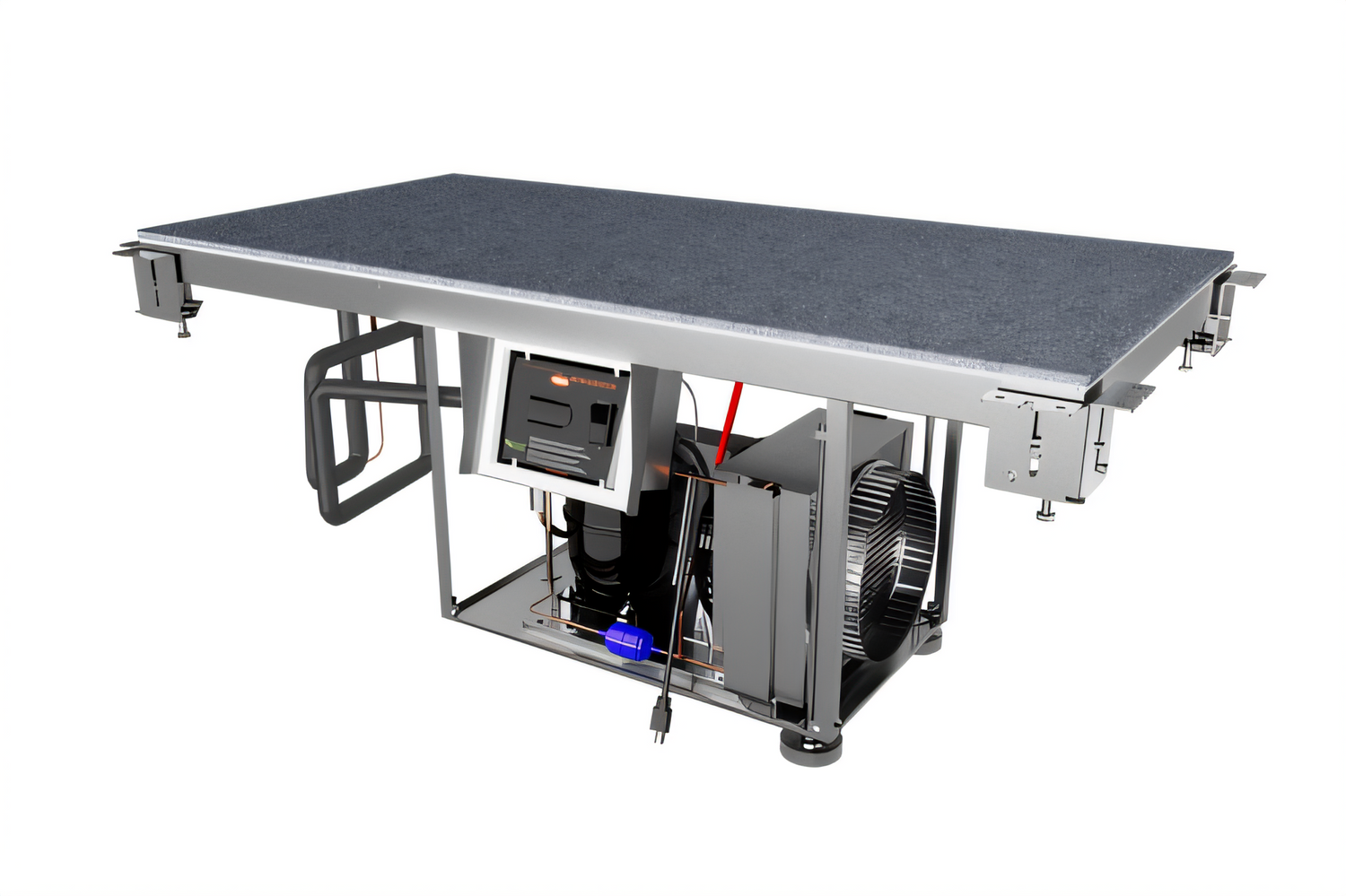

- Self-contained, bottom-mount refrigeration—no remote condenser or extra plumbing required.
- Foodsafe surface is cULus and NSF component certified for worry-free operation.
- Built, tested and supported in the USA with 24/7 parts & service assistance (U.S. & Canada).
Model CSSBFP-24-F Specifications
| Usable Chilled Surface | 24" W x 15-1/2" D (610 x 394 mm) |
|---|---|
| Overall Dimensions | 27" W x 18-1/2" D x 23-1/4" H (686 x 470 x 591 mm) – height adjustable up to 38" (965 mm) |
| Compressor | 1/5 HP, self-contained |
| Refrigerant / Charge | R-290, 3.5 oz (0.099 kg) |
| Electrical | 120 V, 5.2 A, 345 W, 60 Hz, NEMA 5-15P plug |
| Heat Rejection | 1,852 BTU/hr |
| Shipping Weight | Approx. 114 lb (52 kg) |
| Certifications | cULus, NSF Component, Ecologization Naturally |
| Country of Origin | USA |
Cut-Out Recommendation
Countertop opening should be 24.375" W x 15.875" D (619 x 403 mm) with 0.375" radiused corners. Refer to the Installation & Operating Manual for full mounting instructions and ventilation requirements.
Factory Options (order with unit)
- Simulated stone colors: Gray Granite or Bermuda Sand
Non-standard colors are custom built to order and non-returnable.
