Hatco CSBFX-48-S Steam Tables & Food Wells
Description

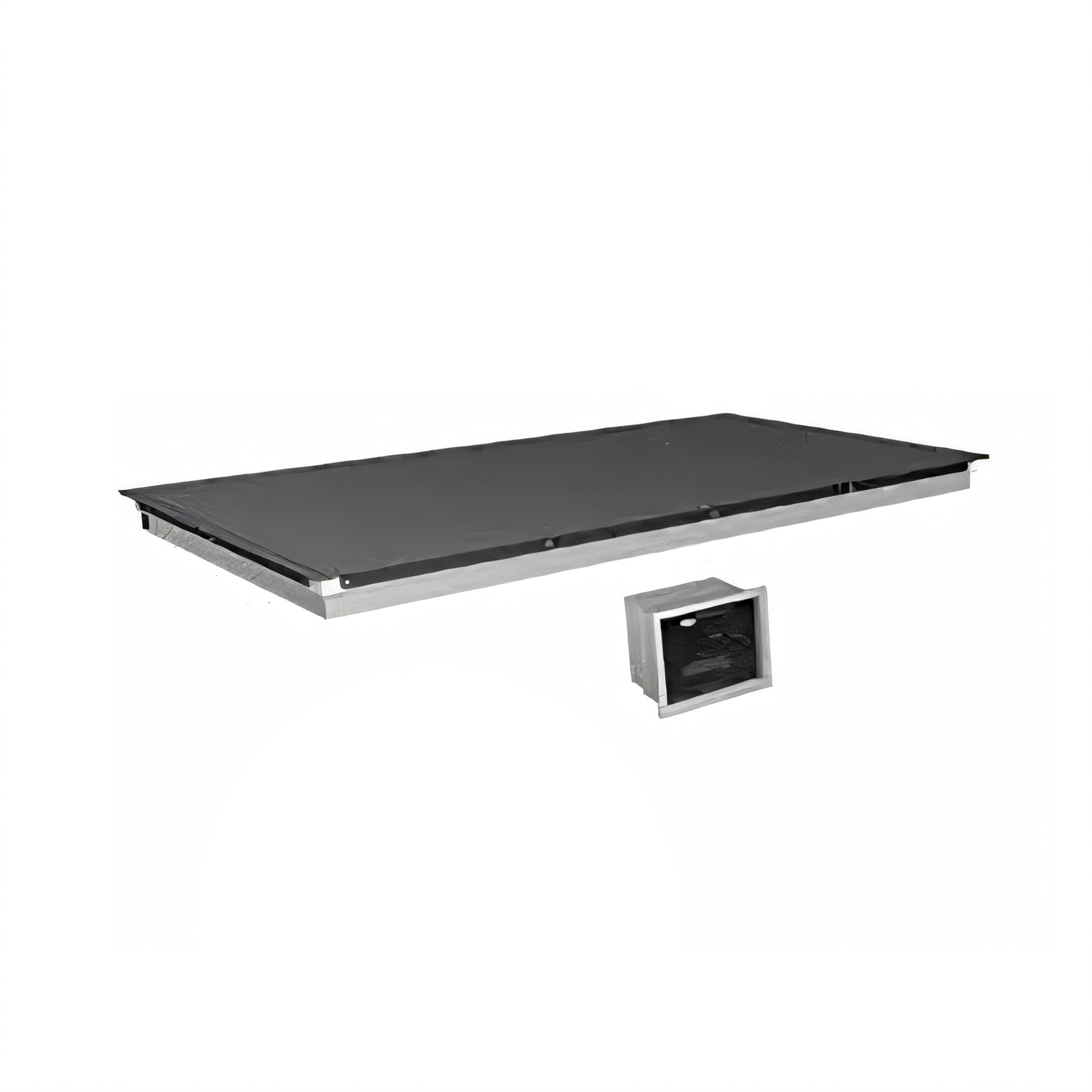

Hatco CSBFX-48-S Cold Shelf – Built-In Flush Top (48" x 24")
Remote-ready refrigerated display for buffets, beverage stations & grab-and-go linesKeep pre-chilled food and drink presentations safely below 41 °F without sacrificing design freedom. The CSBFX-48-S drops in flush with your countertop and connects to the remote refrigeration system of your choice, giving fabricators and operators maximum layout flexibility while delivering Hatco’s legendary holding performance.
Key advantages
- Remote refrigeration by others – select the condenser, refrigerant and placement that best fit your kitchen layout.
- Hardcoat aluminum surface stands up to acidic foods, aggressive cleaners and constant traffic.
- Patented perimeter thermal break minimizes condensation and heat transfer to adjoining surfaces.
- Electronic Temperature Control (shipped loose) with 4 ft (1.22 m) lead simplifies installation and provides precise °F/°C set-points.
- Factory-installed TXV valve and liquid-line solenoid (on shelf) speed field hookup.

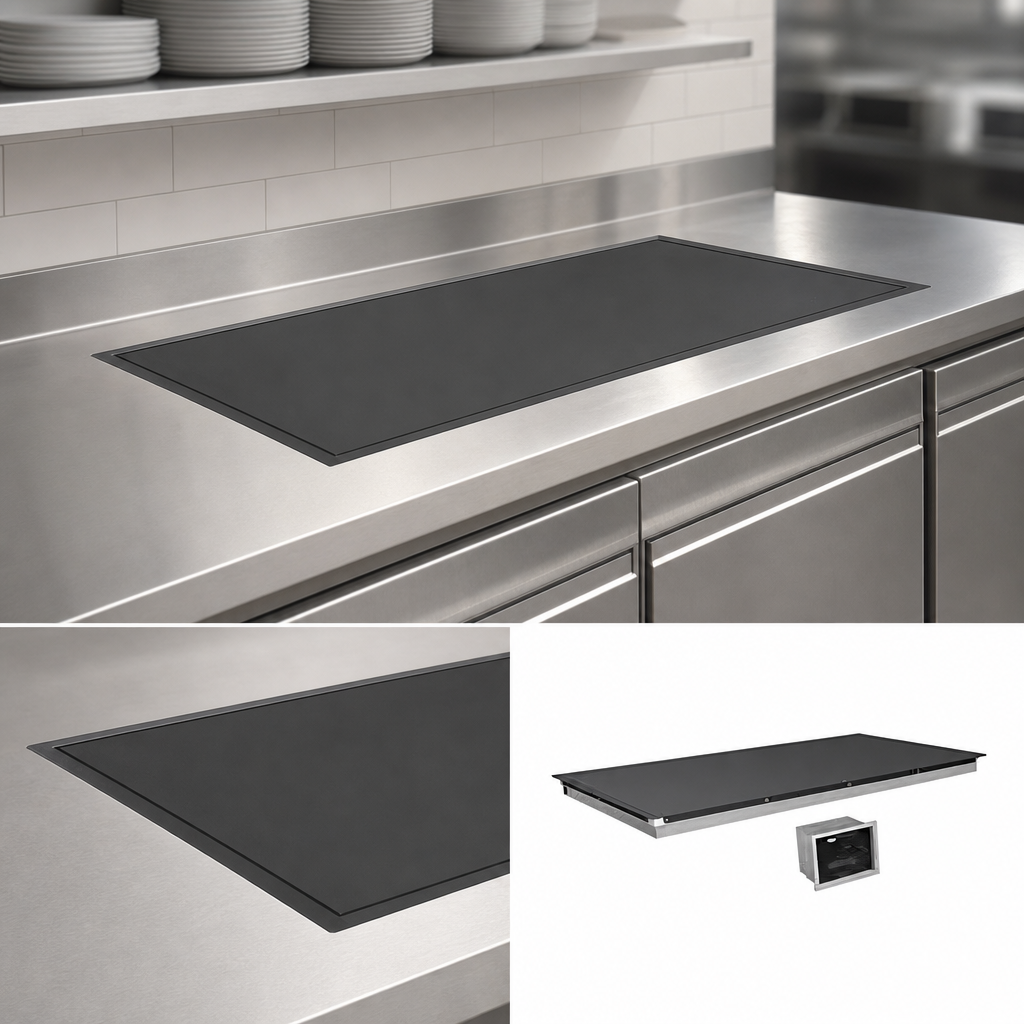

- Top-mount, flush design pairs perfectly with Hatco GRSBF heated shelves for seamless hot/cold buffet lines.
- cULus & NSF component listed; proudly Made in the USA.
Specifications
| Model | CSBFX-48-S (remote, no condenser supplied) |
|---|---|
| Usable shelf area | 48" W × 24" D (1219 × 610 mm) |
| Overall dimensions (WxDxH) | 49.5" × 25.5" × 7.29" (1257 × 648 × 185 mm) |
| Surface material | Hardcoat aluminum, flush top |
| Electrical (shelf only) | 120/220/230/240 V, 12 W, 0.1 A, 60 Hz – cord & plug supplied with control box |
| Required evaporator load | 3,009 BTU/hr (883 W) |
| Control box lead length | 4 ft (1.22 m) standard • optional 7.5 ft (2.29 m) on export models |
| Shipping weight | Approx. 122 lb (56 kg) |
| Certifications | cULus, NSF (component) |
What’s included
- Flush-mounted cold shelf assembly with temperature probe.
- Assembled TXV valve (shipped loose for field connection).
- Liquid-line solenoid valve (pre-installed on shelf).
- Electronic Temperature Control box with power cord & 4 ft lead.
- Leveling & support hardware.
- Installation & operation manual.
Looking for a matching hot shelf? Pair the CSBFX-48-S with Hatco’s GRSBF-48-S heated flush top shelf for a unified hot & cold serving line.
