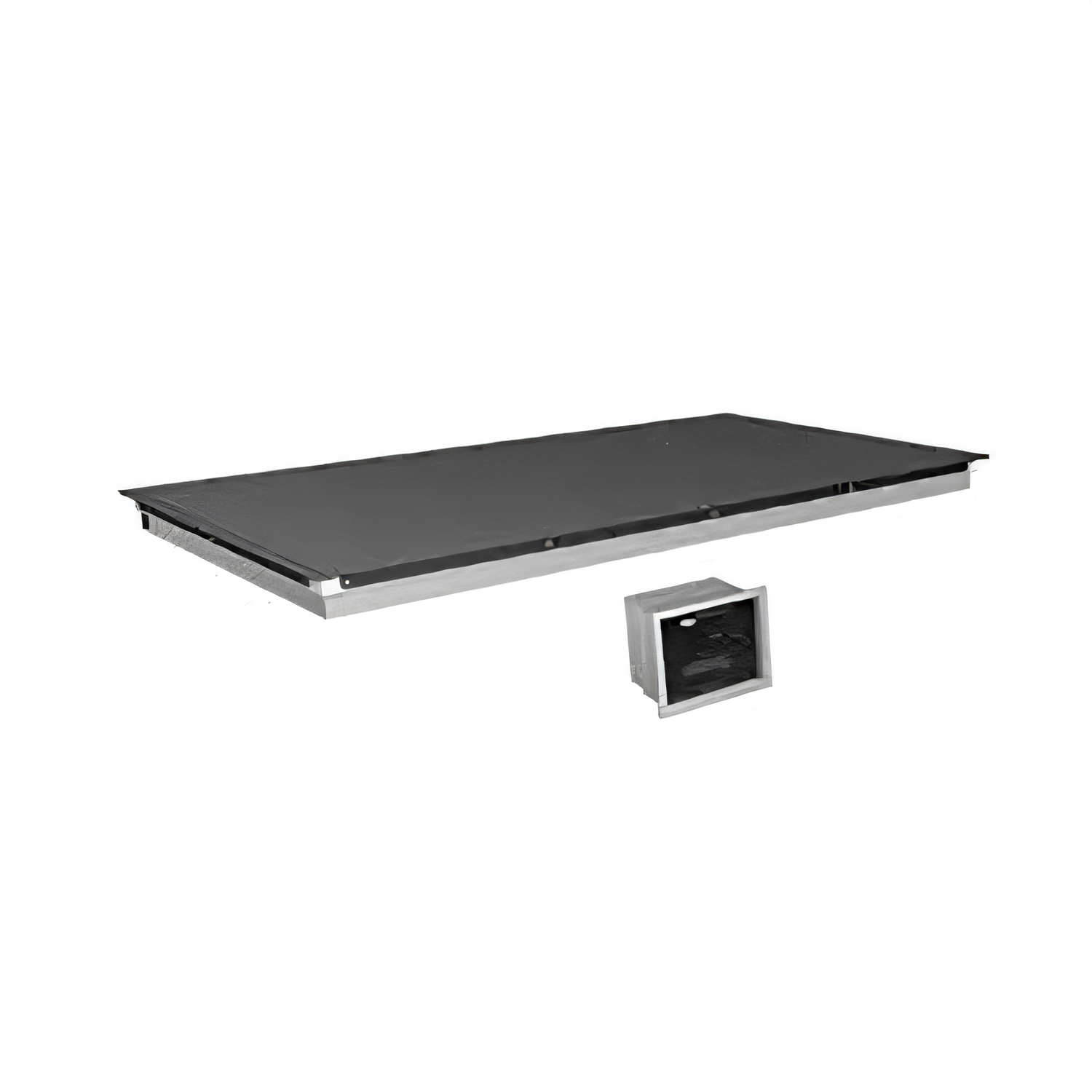

Cold Shelf, Built-In Flush Top – 48" x 19 ½"
Model CSBFX-48-I | remote-ready cold holding from HatcoGive guests the chill they’re looking for—without giving up precious counter space. Hatco’s CSBFX-48-I Cold Shelf drops in flush, presents a sleek hard-coat aluminum surface and relies on remote refrigeration (condensing unit supplied by others) to keep salads, desserts, beverages, sushi and more safely below 41 °F / 5 °C*. Perfect for buffets, delis, grab-and-go displays or any front-of-house application where eye-appeal and temperature control matter equally.
Why You’ll Love It
- True flush mount – installs level with the countertop for a seamless, easy-wipe presentation.
- Hard-coat aluminum deck – durable, non-porous and NSF component-listed for direct food contact.

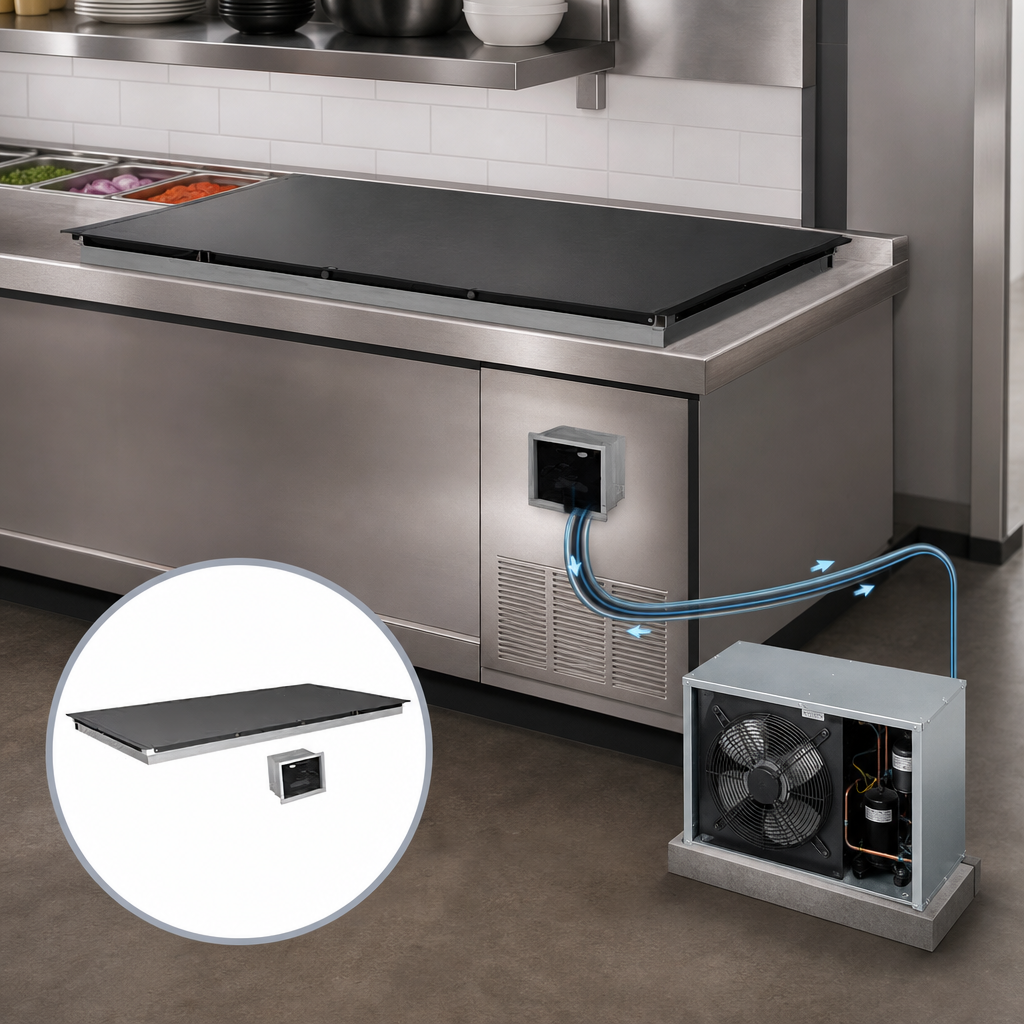

- Remote refrigeration flexibility – choose the condensing unit, refrigerant and location that best suit your layout (liquid & suction connections provided).
- Electronic temperature control – loose control box with 4 ft (1.22 m) lead lets you position the interface exactly where staff need it.
- Patented thermal break around the perimeter cuts condensation and prevents cold bleed into adjacent surfaces.
- Matches Hatco GRSBF heated shelves for a coordinated hot-and-cold lineup.
- cULus listed and Made in the USA.
How It Works
- The shelf ships pre-assembled with a TXV, temperature probe and liquid-line solenoid valve.
- Connect the shelf’s suction & liquid lines to your remote condensing unit (refrigerant of choice).
- Mount the electronic control box up to 4 ft from the unit (optional 7.5 ft cord available).
- Set your desired holding temperature and the controller cycles the solenoid valve to maintain it—no guesswork.
At-a-Glance Specifications
| Usable Deck Size | 48" W × 19 ½" D (1219 × 495 mm) |
|---|---|
| Overall Dimensions (incl. under-counter housing) |
49.5" W × 21" D × 7.29" H (1257 × 533 × 185 mm) |
| Cut-out (countertop) | Width 48.6–49.0" × Depth 20.125–20.5" (1234–1245 × 511–521 mm) |
| Electrical (control box) | 120, 220, 230 or 240 V, 12 W, 0.1 A, 50/60 Hz |
| Evaporator Load | ≈ 1,453 BTU/hr † |
| Top Material | Hard-coat anodized aluminum, food-safe |
| Mounting | Top-mount, flush |
| Certifications | cULus, NSF (component) |
| Origin | Made in USA |
Installation Notes
- Unit does not include a condensing unit; refrigeration must be sized and supplied by installer.
- Shelf must be sealed into the counter with food-safe silicone and fully supported per Hatco instructions.
- Allow adequate clearance below for plumbing the refrigerant lines and servicing the TXV.
Warranty & Support
- Standard Hatco 1-year parts & labor warranty on the shelf assembly and control.
- Optional 4-year extended compressor warranty available (when purchased with Hatco remote package).
- 24/7 access to Hatco technical service and a worldwide parts network.
*Holding temperature range varies with food load, ambient conditions and refrigeration system sizing.
†Evaporator BTU/hr based on 10 °F (-12 °C) evaporating temperature and 75 °F (24 °C) ambient.
