Hatco  |  SKU: CSBFX-48-F

Hatco CSBFX-48-F Steam Tables & Food Wells

$4,581.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Parts list Catalog brochure Owner's manual
Related Searches
Commercial Shelving Food Holding & Warming Equipment Hatco Specialty Shelving Steam Tables & Food Wells Storage & Transport Walk-in Cooler Shelving

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

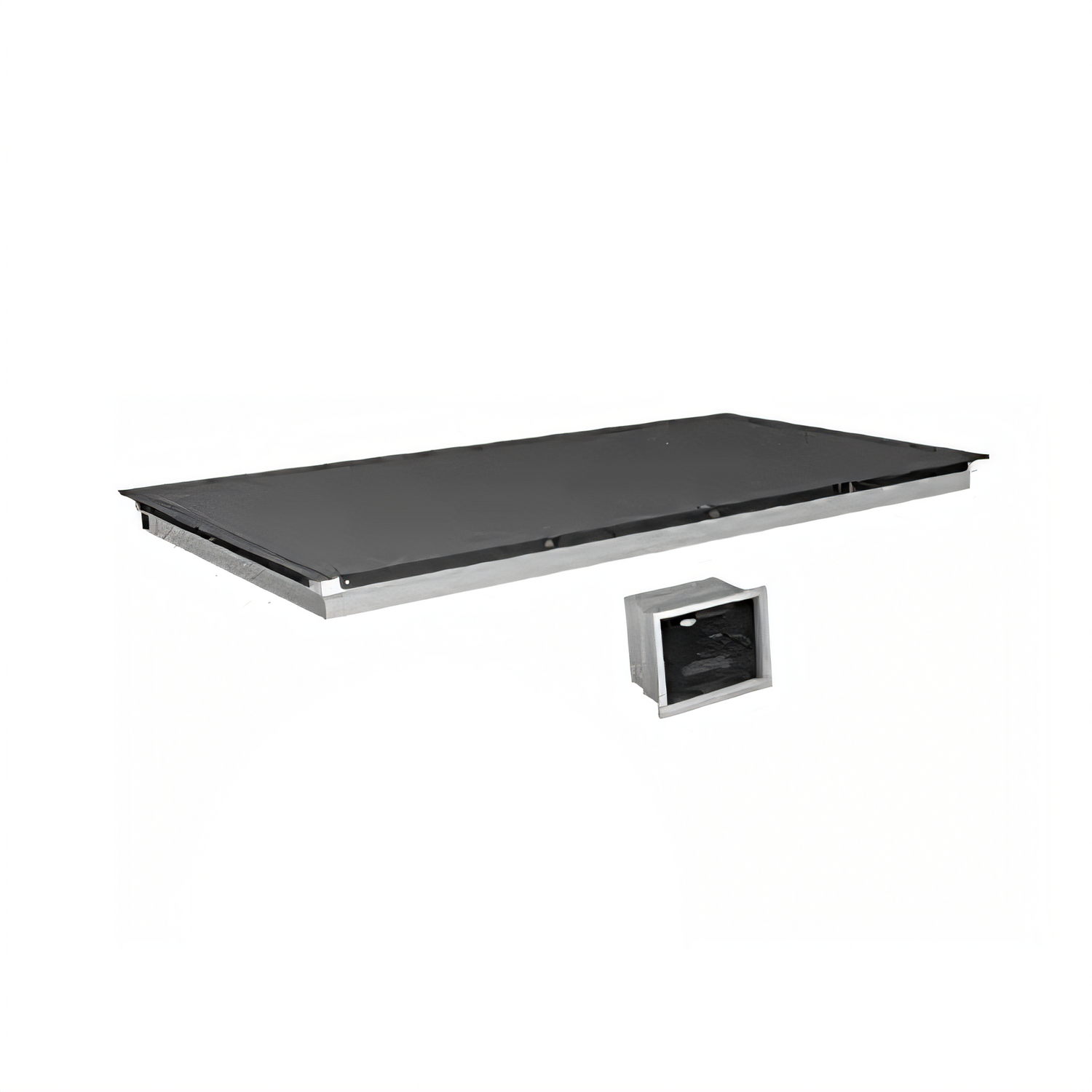

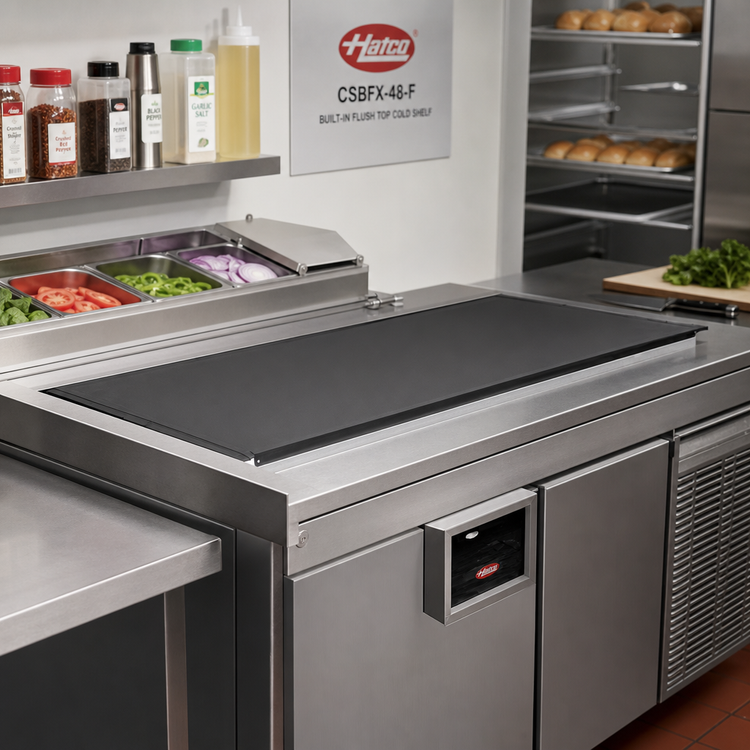

Hatco CSBFX-48-F Built-In Flush-Top Cold Shelf – 48″ W

Remote-ready | Hardcoat Aluminum | Electronic Temperature Control

Create a crystal-clear, chilled focal point in your countertop with Hatco’s CSBFX-48-F. This 48 inch flush-mount cold shelf keeps salads, beverages and grab-and-go items at safe, appetizing temperatures while giving you the freedom to connect to an existing or centralized refrigeration system.

Key Benefits

  • Seamless flush-top installation delivers a sleek, built-in look.
  • Durable hardcoat aluminum surface is food-safe, scratch-resistant and easy to wipe clean.

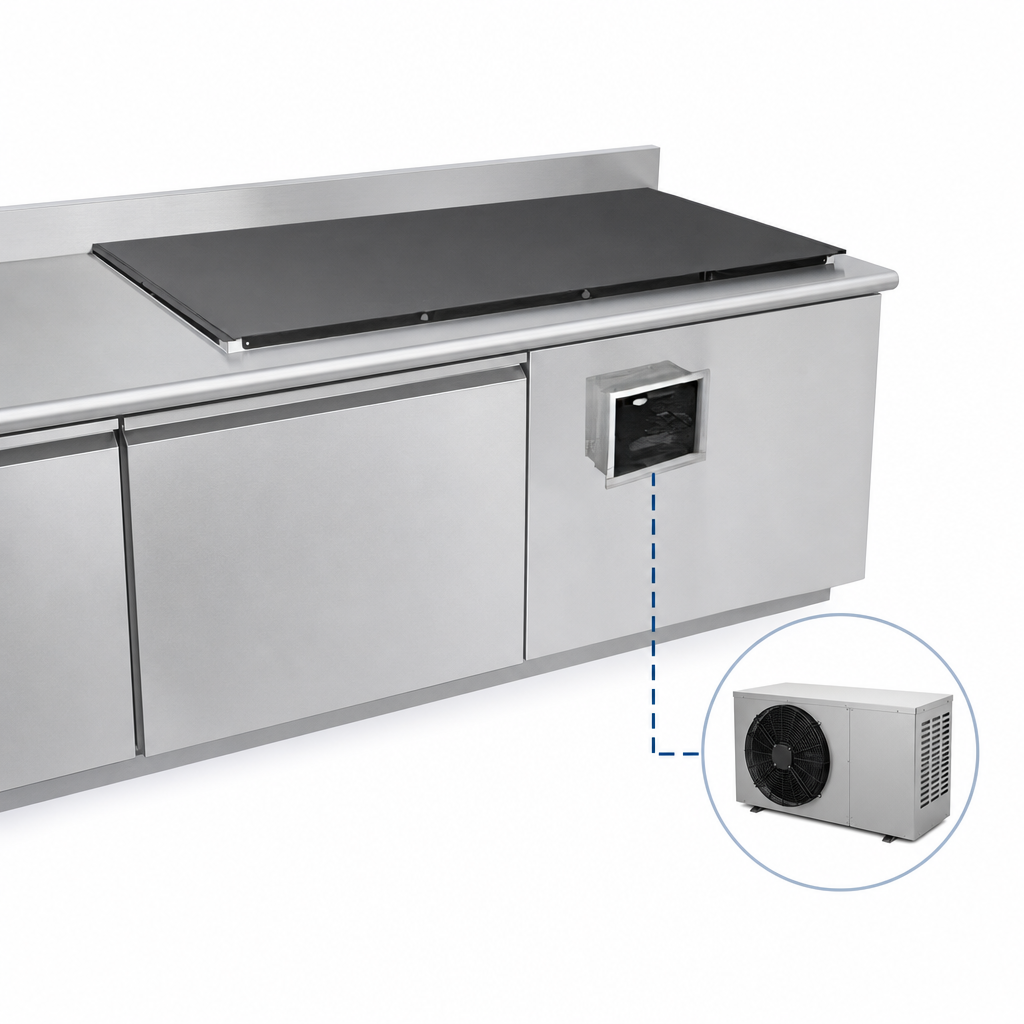

  • Remote-ready design (no condenser supplied) offers maximum layout flexibility and lets you choose the refrigeration package that fits your operation.
  • Patented thermal break around the perimeter minimizes condensation and protects surrounding countertop materials.
  • Field-adjustable electronic temperature controller (shipped loose with 4 ft/1.2 m lead) for convenient mounting and precise holding temps.
  • Coordinates perfectly with Hatco GRSBF heated shelves for an eye-catching hot & cold display line-up.
  • cULus listed, NSF component recognized and proudly made in the USA.

Technical Specifications

Model CSBFX-48-F (remote, no condenser)
Usable Chill Surface 48 in W × 15.5 in D  (1219 × 394 mm)
Overall Dimensions 49.5 in W × 17 in D × 7.29 in H  (1257 × 432 × 185 mm)
Countertop Cut-out 48.6–49.0 in W × 16.125–16.5 in D  (1234–1245 × 409–419 mm)
Control Box Cut-out 7.44 in W × 5.6 in H  (189 × 143 mm)
Electrical (control circuit) 120 / 220 / 230 / 240 V, 12 W, 0.1 A, 50/60 Hz
Evaporator Load Approx. 1,453 BTU/hr
Shipping Weight Approx. 93 lb  (43 kg)
Construction Top-mounted hardcoat aluminum with integrated temperature probe & liquid-line solenoid
Certifications cULus, NSF component
Origin Made in USA

What’s in the Box

  • Cold shelf assembly with factory-installed temperature probe
  • TXV valve (shipped loose for field connection)
  • Liquid-line solenoid valve (pre-mounted to shelf)
  • Electronic temperature control box with 4 ft (1.2 m) lead wire
  • Installation & operating manual
Heads-Up: This model is designed for use with a separate remote condensing unit (not included). Compatible with R-513A or other industry-standard refrigerants—consult your refrigeration specialist for sizing and connection details.

Want matching hot holding? Pair the CSBFX-48-F with Hatco GRSBF heated flush-top shelves for a unified, multi-temperature serving line.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

7.29in

Width

49.5in

Depth

17.0in

Shipping Weight

93.0lbs

Construction

aluminum

Size

48"

Controls

electronic controls

Type

built-in

Specifications

Cold Shelf, built-in flush top, 48"W x 15-1/2"D, electronic temperature control (shipped loose), designed for remote refrigeration (not included), aluminum hardcoat, top mount, cULus, Made in USA
