Hatco  |  SKU: CSBFX-36-I

Hatco CSBFX-36-I Steam Tables & Food Wells

$3,946.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Owner's manual Catalog brochure Parts list
Related Searches
Commercial Shelving Food Holding & Warming Equipment Hatco Specialty Shelving Steam Tables & Food Wells Storage & Transport Walk-in Cooler Shelving

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

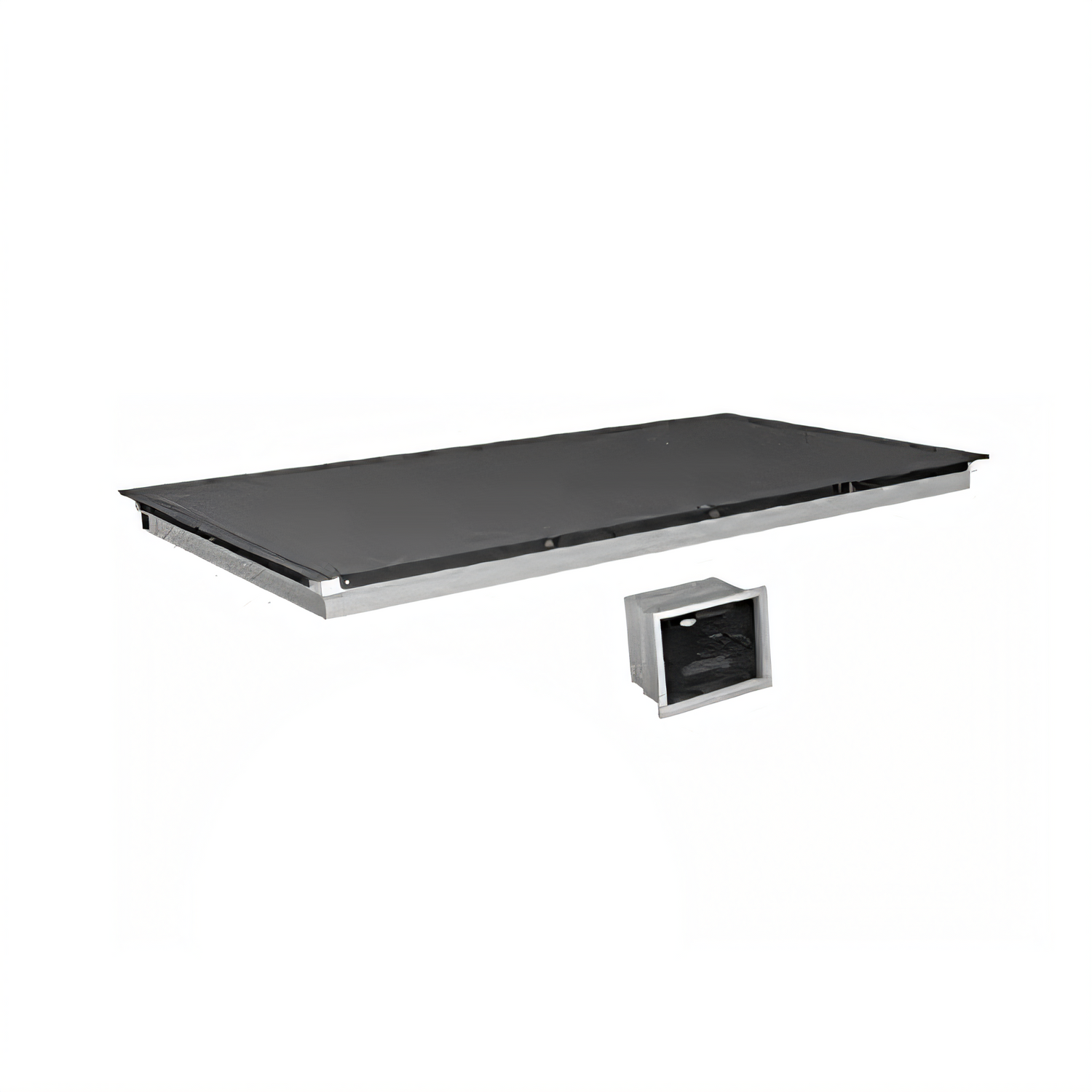

Hatco CSBFX-36-I Remote Cold Shelf – Built-In Flush Top

36" W × 19-1/2" D refrigerated display surface

Add an eye-catching, food-safe cold zone to any counter with the Hatco CSBFX-36-I. This flush-mount shelf keeps pre-chilled beverages, salads, hors d’oeuvres and desserts at perfect serving temperature while giving you total freedom to locate the remote refrigeration system out of sight.

Why you’ll love it

  • Remote refrigeration ready – no compressor shipped, so you can connect to the condensing unit of your choice.
  • Hard-anodized aluminum surface is scratch-, acid- and stain-resistant for years of service.
  • Patented thermal break dramatically reduces condensation and prevents cold transfer to surrounding countertops.
  • Electronic temperature control box (shipped loose) comes with a 4' (1219 mm) lead for flexible mounting.
  • Ultra-low 12 W / 0.1 A electrical draw—only the controls need power.
  • Top-mount, flush design cleans in seconds and perfectly matches Hatco GRSBF heated shelves for a unified line-up.
  • cULus listed, NSF component  •  Proudly Made in the USA.

Technical details

Model CSBFX-36-I
Usable shelf space 36" W × 19.5" D (914 × 495 mm)
Overall dimensions 37.5" W × 21" D × 7.29" H (953 × 533 × 185 mm)
Surface material Hardcoat anodized aluminum, flush top
Electrical (control box) 120 V, 12 W, 0.1 A, 60 Hz  •  220-240 V options available
Required evaporator load* ≈ 1,385 BTU/hr
Counter cut-out (min-max) 30"–37" W × 16.125"–16.5" D (see manual)
Approx. ship weight 92 lb (42 kg)
Certifications cULus, NSF component
Country of origin USA

Perfect for

  • Buffets & hotel breakfast bars
  • Grab-and-go cases & convenience stores
  • Sushi, tapas & charcuterie counters
  • Deli, salad or dessert stations
Remote refrigeration required: Shelf ships without a condensing unit. A qualified refrigeration technician must connect it to a properly sized remote compressor/condenser (refrigerant and line set not included).

*Evaporator load provided for sizing guidance only. Always consult a licensed refrigeration professional for final system design.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

7.29in

Width

37.5in

Depth

21.0in

Shipping Weight

92.0lbs

Type

built-in

Construction

aluminum

Controls

electronic controls

Size

36"

Specifications

Cold Shelf, built-in flush top, 36"W x 19-1/2"D, electronic temperature control (shipped loose), designed for remote refrigeration (not included), aluminum hardcoat, top mount, cULus, Made in USA
