Hatco CSBFX-36-F Steam Tables & Food Wells
Description

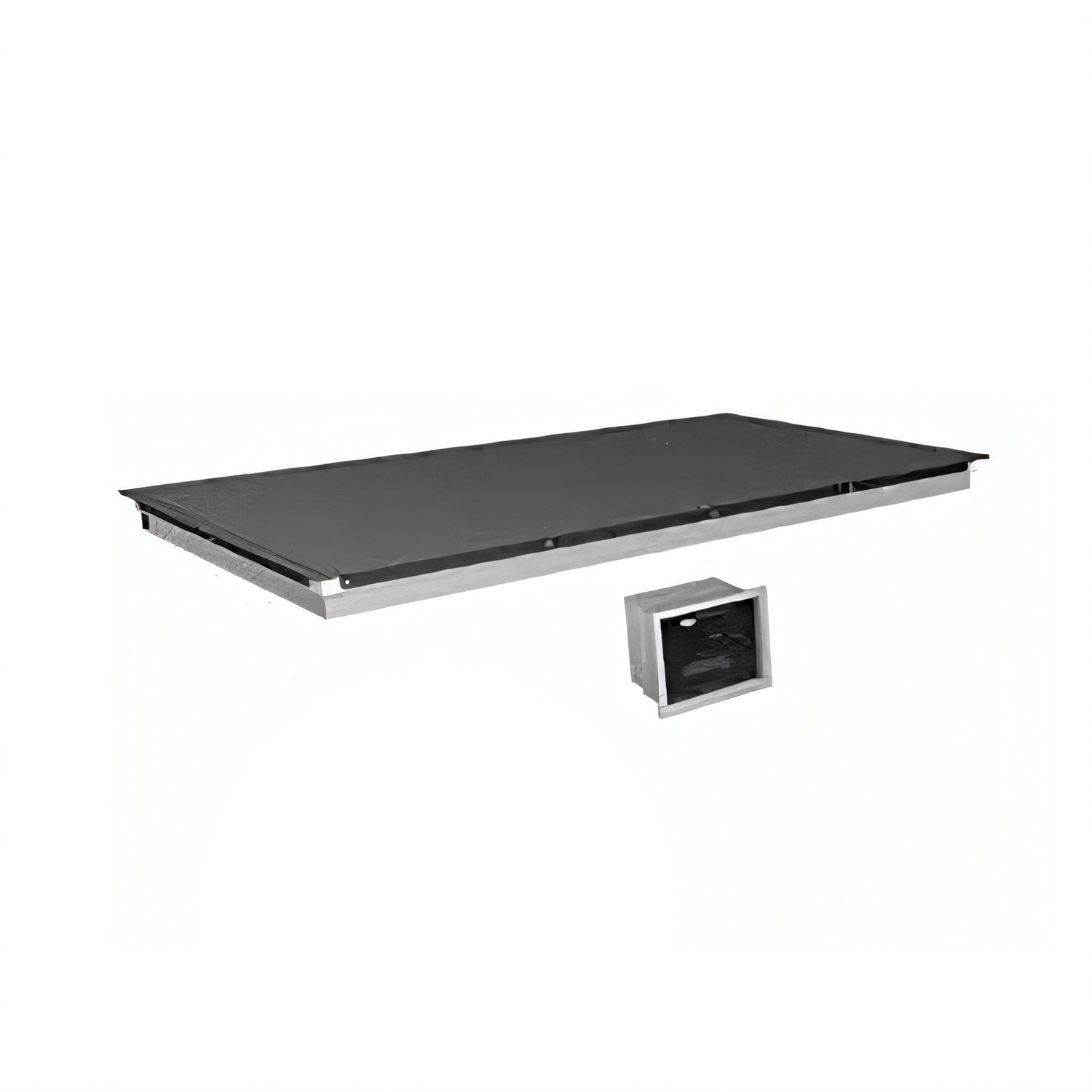

Hatco CSBFX-36-F Built-In Flush-Top Cold Shelf – 36" x 15 1⁄2"

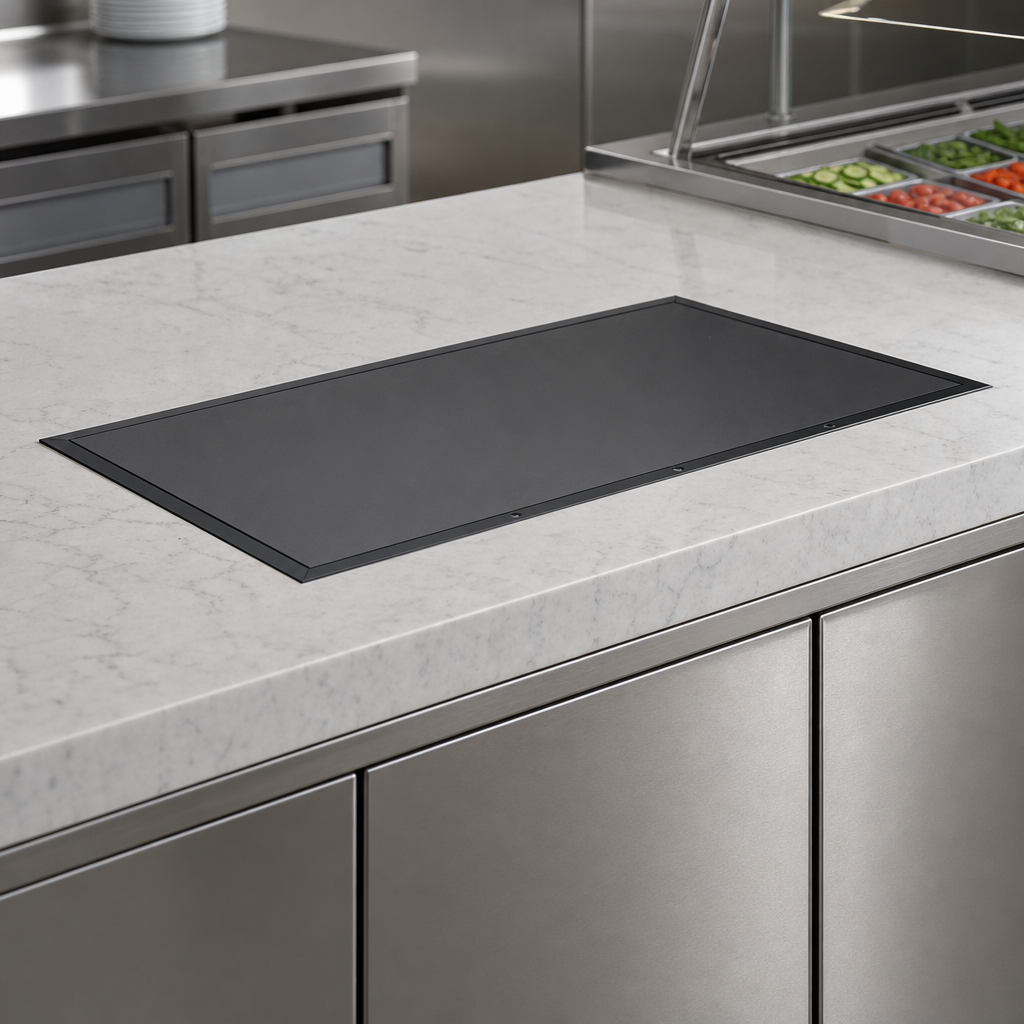

Remote-refrigeration ready with electronic temperature controlKeep pre-chilled entrées, desserts and beverages at food-safe temperatures without sacrificing counter space. The CSBFX-36-F sits perfectly flush in your countertop, offering a sleek, condensation-free presentation that complements any buffet, grab-and-go or make-ready line.
Key benefits
- Remote-ready design – connect to the condensing unit of your choice (condensing unit not included).
- Hardcoat aluminum surface delivers rapid, even chilling and resists scratches, acids and daily clean-ups.
- Patented thermal break limits sweat and stops the cold from migrating to adjacent surfaces.
- Electronic Temperature Control Box (shipped loose, 4 ft/1219 mm lead) for precise set-point adjustment and monitoring.
- Factory-installed liquid line solenoid plus loose TXV valve speed up field refrigeration hook-up.
- Top-mount installation matches Hatco GRSBF heated shelves for a unified hot-cold serving line.
- cULus listed, NSF component recognized and proudly Made in the USA.
Technical specifications
| Model | CSBFX-36-F |
|---|---|
| Overall dimensions (W × D × H) | 37.5" × 17" × 7.29" (953 × 432 × 185 mm) |
| Usable shelf area | 36" × 15.5" (914 × 394 mm) |
| Top material / finish | Hardcoat aluminum, flush-mount |
| Evaporator capacity | 1,183 BTU/hr |
| Electrical (control box) | 120, 220, 230 or 240 V • 12 W • 0.1 A • 50/60 Hz |
| Remote refrigeration | Required, supplied by others (compatible with multiple refrigerants) |
| Shipping weight | ≈ 76 lb (34 kg) |
| Certifications | cULus, NSF (component) |
| Country of origin | USA |
What’s included
- Cold shelf assembly with integrated temperature probe
- Loose Electronic Temperature Control Box (4 ft/1219 mm cord)
- Loose thermostatic expansion valve (TXV)
- Factory-installed liquid line solenoid valve
- Installation & Operating Manual
Looking for matching heated shelves or a Hatco remote refrigeration package? Contact our equipment specialists for assistance.
