Hatco CSBFX-24-S Steam Tables & Food Wells
Description

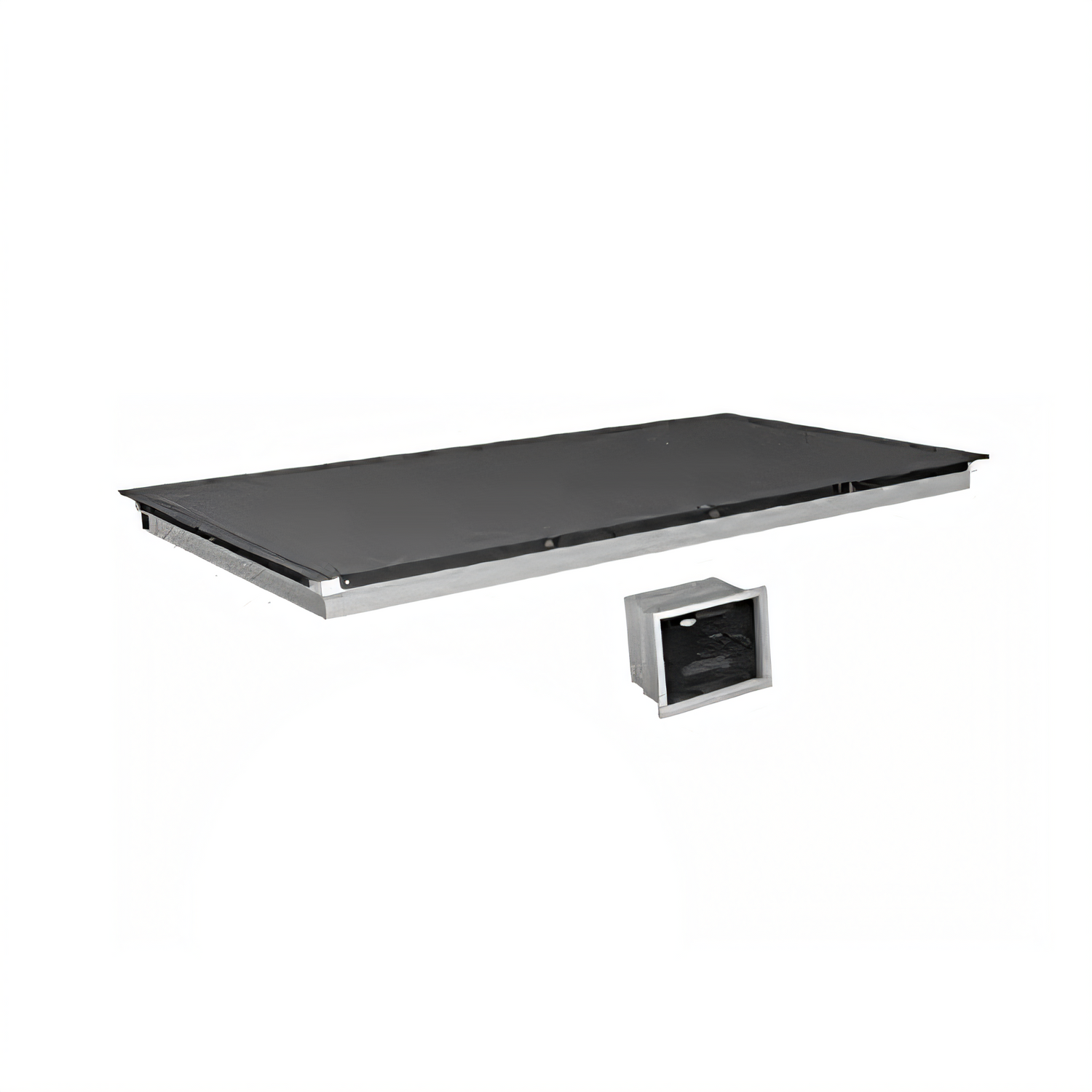

Hatco CSBFX-24-S Built-In Cold Shelf – 24" x 24"
Flush-mount, remote-ready refrigeration for perfectly chilled presentationsCreate an eye-catching, food-safe cold zone in any counter or buffet line. The Hatco CSBFX-24-S is a 24" x 24" hard-coat aluminum shelf that drops in flush with surrounding surfaces and holds pre-chilled plates, drinks and hors d’oeuvres at ideal temperatures—all while the refrigeration package is located remotely for a quieter, cleaner front-of-house.
Why you’ll love it

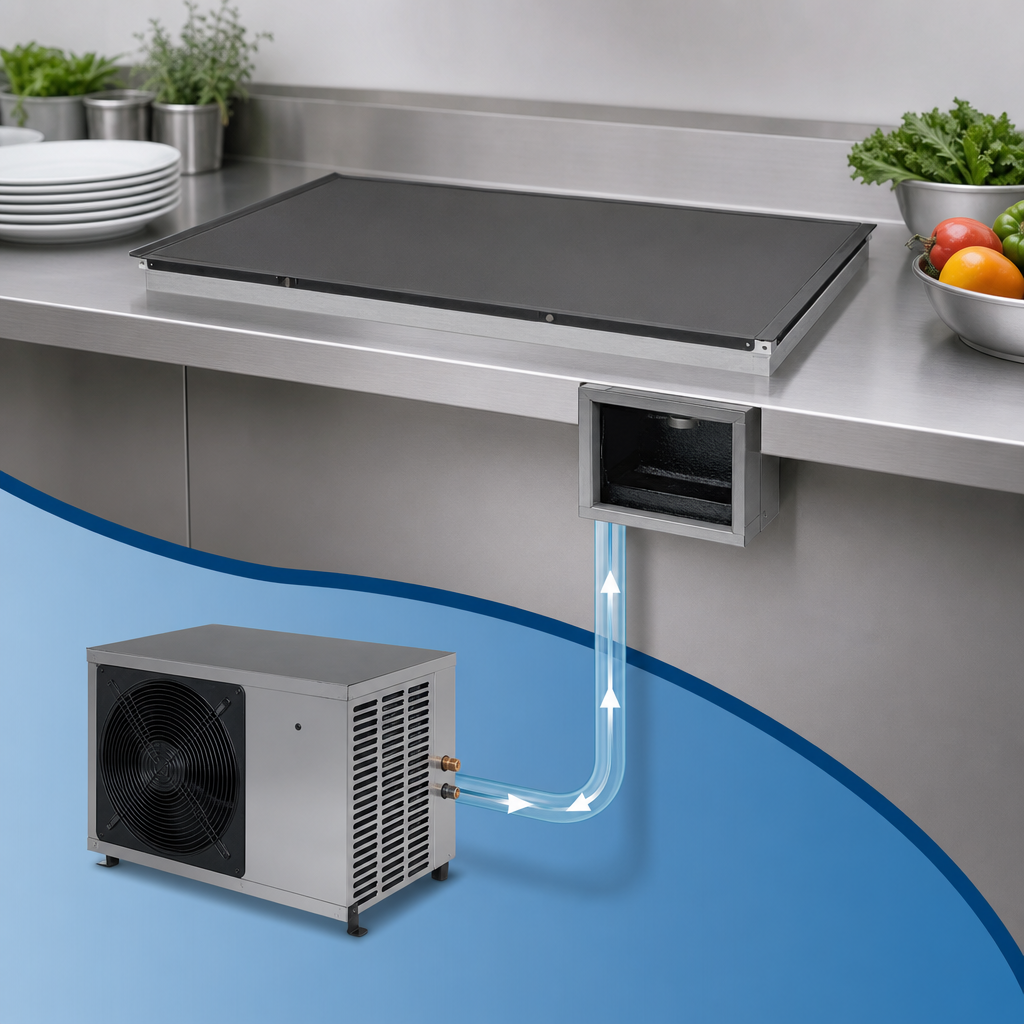

- Remote flexibility – Ships without a condensing unit so you can connect to an existing rack or a custom remote system of your choice.
- Hard-coat aluminum top – Even, responsive cooling with exceptional scratch and corrosion resistance.
- Patented thermal break – Minimises condensation and prevents cold migration to adjacent countertop materials.
- Electronic temperature control – Loose control box (4 ft lead) lets you set and monitor temperature from the operator side of the counter.
- Ultra-low profile – Flush 2.125" (54 mm) thick surface keeps the serving line sleek and ADA-friendly.
- Matches Hatco GRSBF heated shelves – Seamlessly alternate hot and cold wells in the same run for maximum menu versatility.
- Certified & built to last – cULus listed, NSF component recognised and proudly Made in the USA.
Perfect for
- Self-service beverage or salad stations
- Grab-and-go merchandising counters
- Hotel & banquet buffets
- Delis, cafés and coffee shops
- Supermarket prepared-food departments
Technical specifications
| Model | CSBFX-24-S (Remote, no condenser) |
|---|---|
| Overall dimensions (W × D × H) | 25.5" × 25.5" × 7.29" (648 × 648 × 185 mm) |
| Usable chill surface | 24" × 24" (610 × 610 mm) |
| Countertop cut-out (min-max) | 24.6"–25.0" W × 24.6"–25.0" D (625–635 mm W × 625–635 mm D) |
| Surface thickness | 2.125" (54 mm) flush with counter |
| Electrical (control circuit) | 120 / 220 / 230 / 240 V, 12 W, 0.1 A, 60 Hz |
| Evaporator load | ≈ 1,216 BTU/h (requires ≥ 1/3 HP remote compressor, R-513A or compatible refrigerant) |
| Control box lead | 4 ft (1219 mm) – optional 7.5 ft (2286 mm) |
| Shipping weight | ≈ 79 lb (36 kg) |
| Certifications | cULus, NSF component |
| Origin | Made in USA |
Need a different footprint? 24" × 15.5" and 24" × 19.5" models—as well as 36" and 48" widths—are also available. Ask our team for details.
