Hatco  |  SKU: CSBFX-24-I

Hatco CSBFX-24-I Steam Tables & Food Wells

$3,464.11
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Catalog brochure Parts list
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

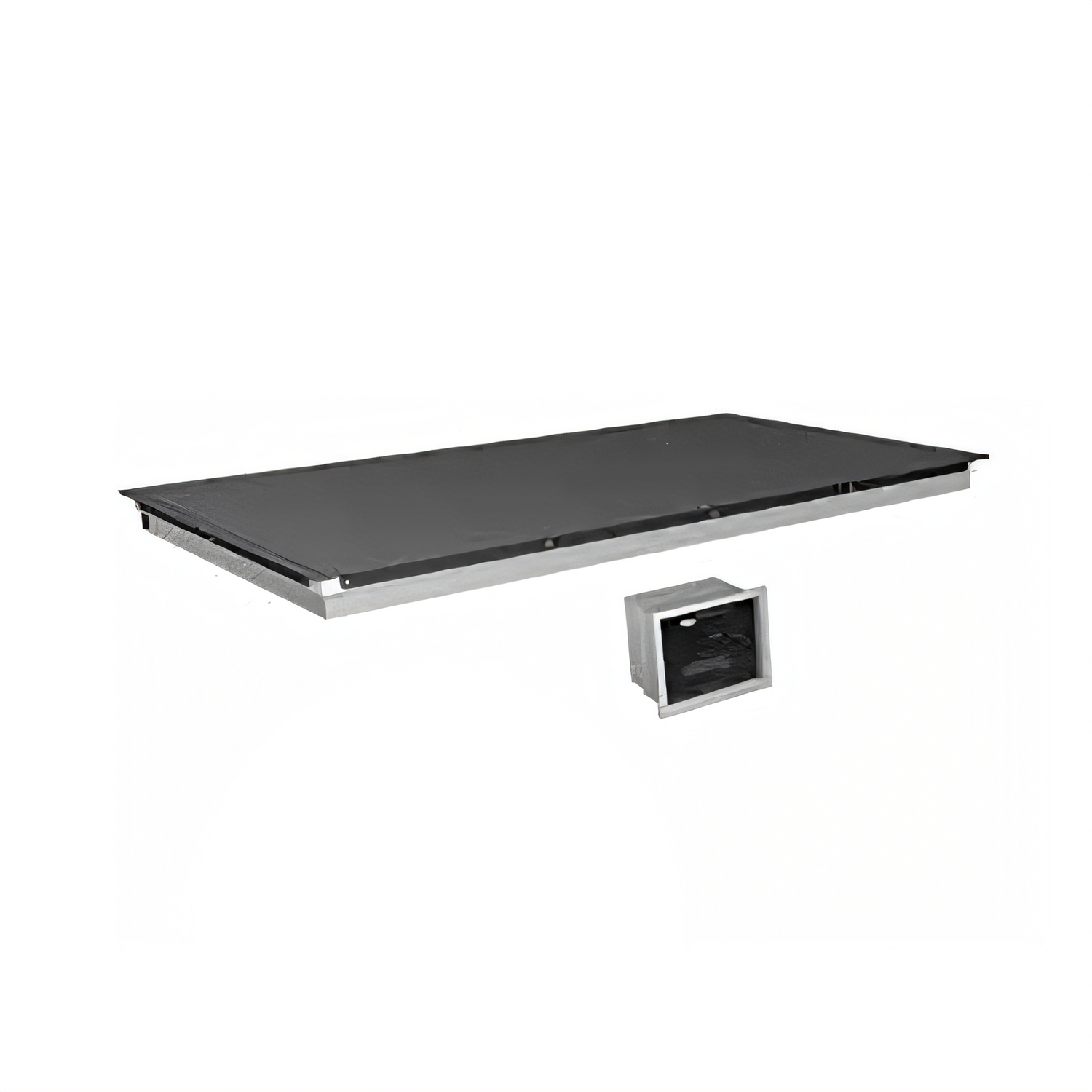

Hatco CSBFX-24-I Remote Flush-Top Cold Shelf – 24″ x 19½″

Built-in, remote-ready cold surface with loose electronic control (condenser not included)

Give your guests perfectly chilled salads, desserts, sushi or beverages without cluttering the counter. The Hatco CSBFX-24-I drops flush into your worktop, providing a durable hard-coat aluminum surface that maintains safe cold holding temperatures while keeping heat and compressor noise out of the serving area.

Why You’ll Love It

  • Hard-coat aluminum surface is food-safe, scratch-resistant and easy to wipe clean.
  • Patented thermal break around the perimeter minimizes condensation and protects surrounding finishes.

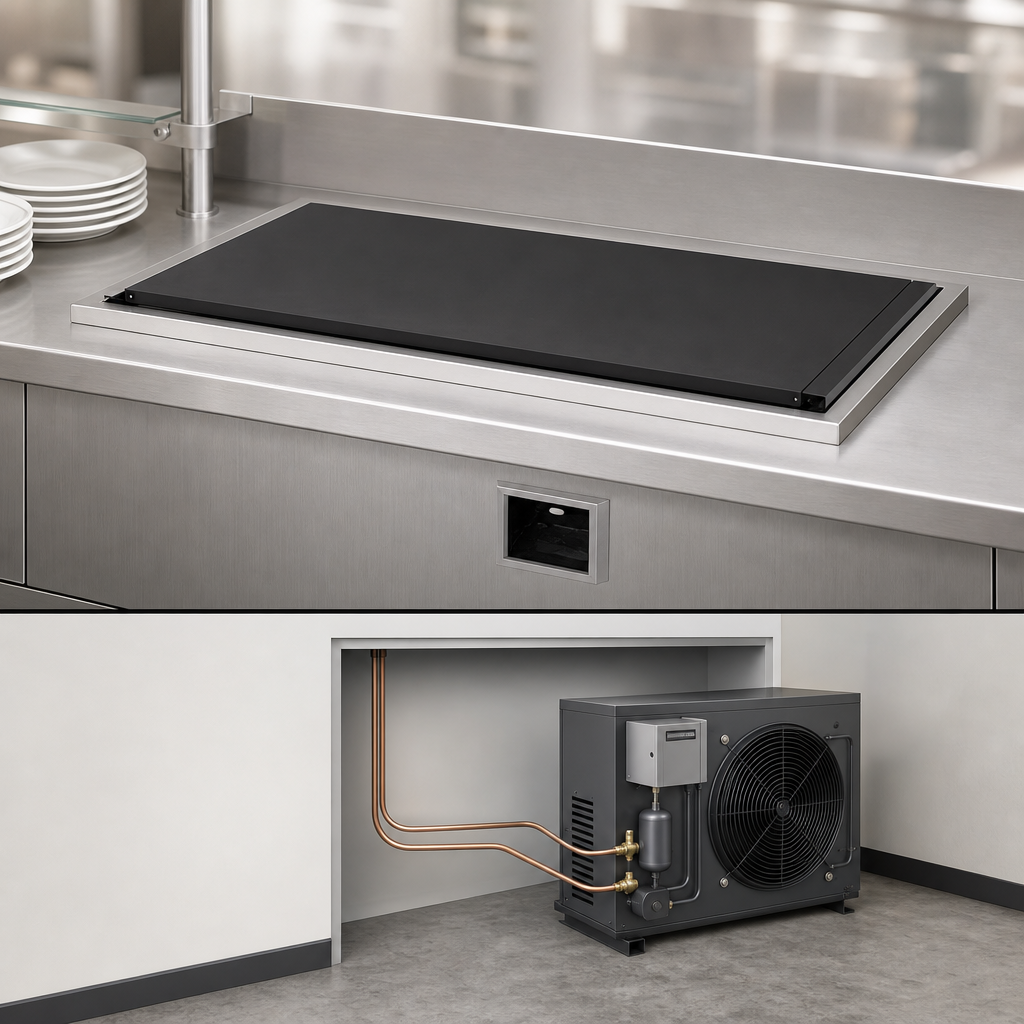

  • Remote-ready design connects to your own refrigeration system for a quieter, cooler front-of-house.
  • Factory-installed TXV valve and liquid-line solenoid (on shelf) streamline hook-up to R-513A or other refrigerants.
  • Electronic Temperature Control box (shipped loose) with 4 ft (1219 mm) lead wire for flexible mounting beneath the counter.
  • Flush top matches Hatco GRSBF heated shelves for a seamless hot-cold lineup.
  • Includes leveling and support brackets for a rock-solid installation.
  • cULus & NSF component listed; proudly made in the USA.

Specifications

Model CSBFX-24-I
Usable Shelf Area 24″ W × 19.5″ D (610 × 495 mm)
Overall Dimensions 25.5″ W × 21″ D × 7.29″ H (648 × 533 × 185 mm)
Construction Hard-coat anodized aluminum top; galvanized/stainless sub-frame
Mounting Flush, top-mount (includes 4 leveling bolts & support brackets)
Temperature Control Electronic controller with probe; separate control enclosure, 4′ lead
Refrigeration Remote connection (TXV & solenoid included); condenser supplied by others
Electrical (control only) 120/220/230/240 V, 12 W, 0.1 A, 50/60 Hz
Counter Cut-out 24.6–25.0″ W × 20.125–20.5″ D; height ≤ 5.6″ (143 mm)
Approx. Shipping Weight ≈ 71 lbs (33 kg)
Certifications cULus, NSF (component)
Origin Made in USA
Important: This cold shelf ships without a condensing unit. A qualified refrigeration technician must connect the included TXV valve and liquid-line solenoid to a compatible remote system. Follow Hatco installation guidelines to maintain performance and warranty coverage.

Need a matching hot zone? Pair this unit with Hatco GRSBF Heated Flush-Top shelves for a continuous, multi-temperature serving line.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

7.29in

Width

25.5in

Depth

21.0in

Shipping Weight

71.0lbs

Construction

aluminum

Size

24"

Controls

electronic controls

Type

built-in

Specifications

Cold Shelf, built-in flush top, 24"W x 19-1/2"D, electronic temperature control (shipped loose), designed for remote refrigeration (not included), aluminum hardcoat, top mount, cULus, Made in USA
