Hatco CSBFR-48-S Steam Tables & Food Wells
Description

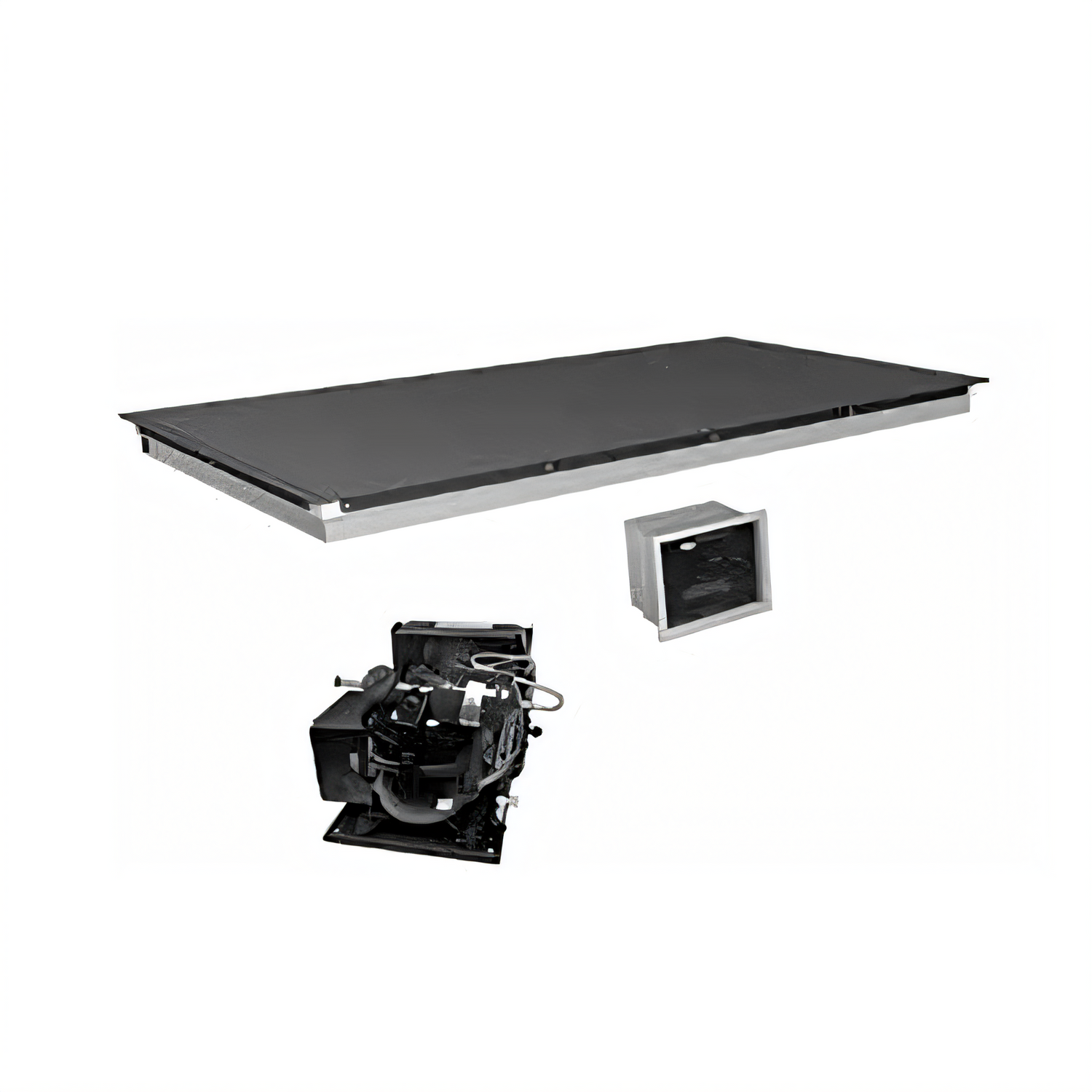

Hatco CSBFR-48-S Cold Shelf – Built-In Flush Top, Remote Refrigeration, 48" x 24"
Hardcoat aluminum surface • 5/8 HP remote condenser • Electronic temperature controlGive your chilled offerings the professional presentation they deserve. The Hatco CSBFR-48-S is a 48" W x 24" D flush-mount cold shelf that drops seamlessly into a counter while an included 5/8 HP remote condensing unit (shipped loose) keeps product temperatures low and noise/heat off the serving line. Built and certified in the USA, it’s the simple way to add a reliable refrigerated zone beside your hot wells, carving stations or bakery cases.
Why you’ll love it

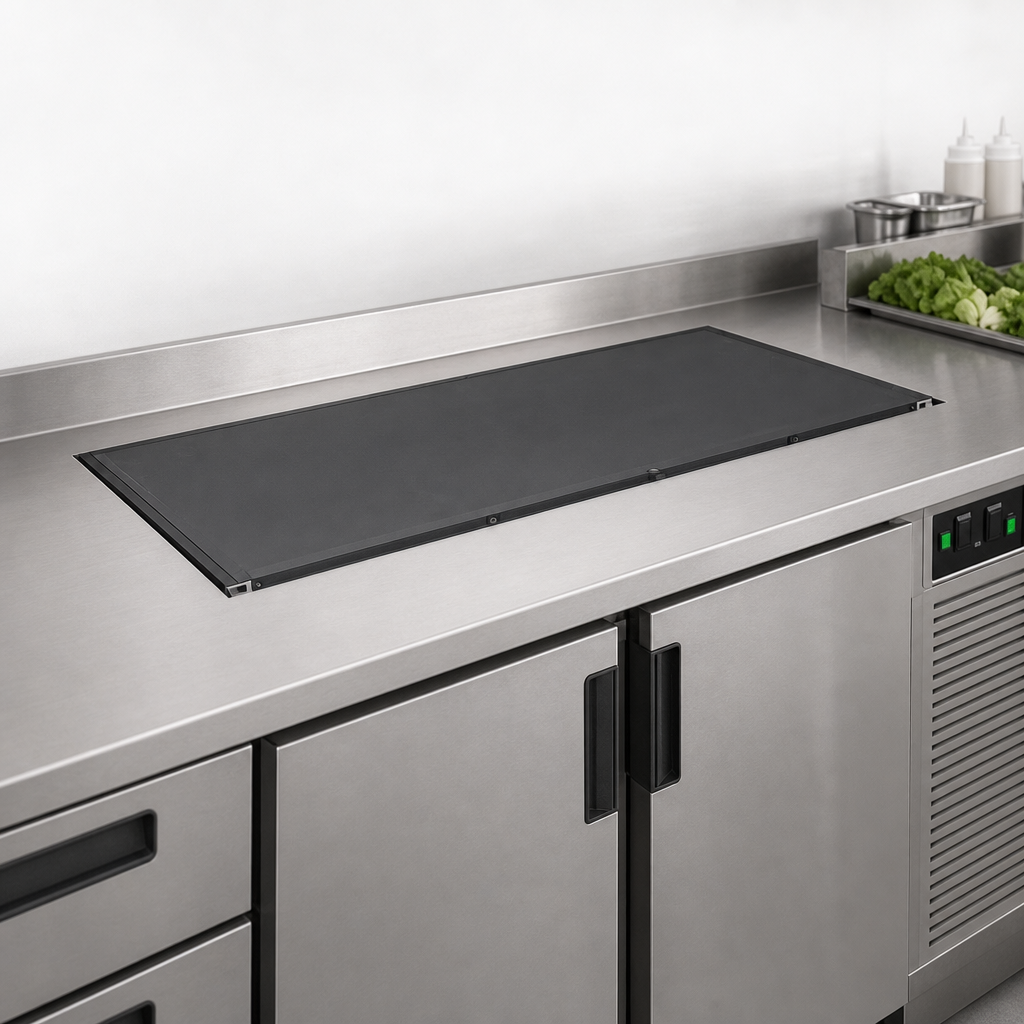

- True flush-top design sits level with the countertop for a clean, modern look and easy plate-to-shelf transfer.
- Durable hard-anodized aluminum surface is food-safe, scratch-resistant and cleans up fast.
- Remote 5/8 HP condenser (R-513A) mounts up to 4' (1.2 m) from the shelf—ideal for quieter, cooler serving areas.
- Electronic temperature control with digital read-out lets you dial in precise holding temps at the touch of a button.
- Patented ¾" (19 mm) thermal break around the perimeter minimizes condensation and prevents cold transfer to surrounding surfaces.
- Long, flexible refrigerant lines make it easy to slide the condenser out for service.
- Matches Hatco GRSBF heated flush shelves for a perfectly integrated hot/cold lineup.
Perfect for
- Grab-and-go drink zones
- Salad & deli bars
- Sushi, tapas and hors d’oeuvre displays
- Dessert or pastry finishing stations
- Hotel breakfast buffets
Technical specifications
| Model | CSBFR-48-S (remote, flush-top) |
|---|---|
| Overall size (W × D × H) | 49.5" × 25.5" × 7.3" (1,257 × 648 × 185 mm) |
| Usable shelf area | 48" × 24" (1,219 × 610 mm) |
| Compressor | 5/8 HP, R-513A refrigerant (included, shipped loose) |
| Electrical | 120 V, 800 W, 8.7 A, 60 Hz | 220–240 V, 904–984 W, 4.1 A, 50/60 Hz |
| Control box lead | 4' (1.2 m) factory-wired harness |
| Maximum condenser distance | 4' (1.2 m) from shelf center |
| Certifications | cULus Listed, NSF Component, EcO3 Listed |
| Country of origin | Made in USA |
Counter cut-out dimensions
For CSBFR-48-S installation the opening should be: 48.6"–49.0" (1,234–1,245 mm) W × 24.6"–25.0" (625–635 mm) D. Countertop thickness must not exceed 5.6" (143 mm). Always refer to the Installation & Operating Manual for complete guidelines.
Warranty & service
- Standard 1-year parts & labor warranty plus lifetime technical support.
- Optional extended 4-year compressor parts warranty available at time of purchase (U.S. & Canada only).
