Hatco CSBFR-48-F Steam Tables & Food Wells
Description

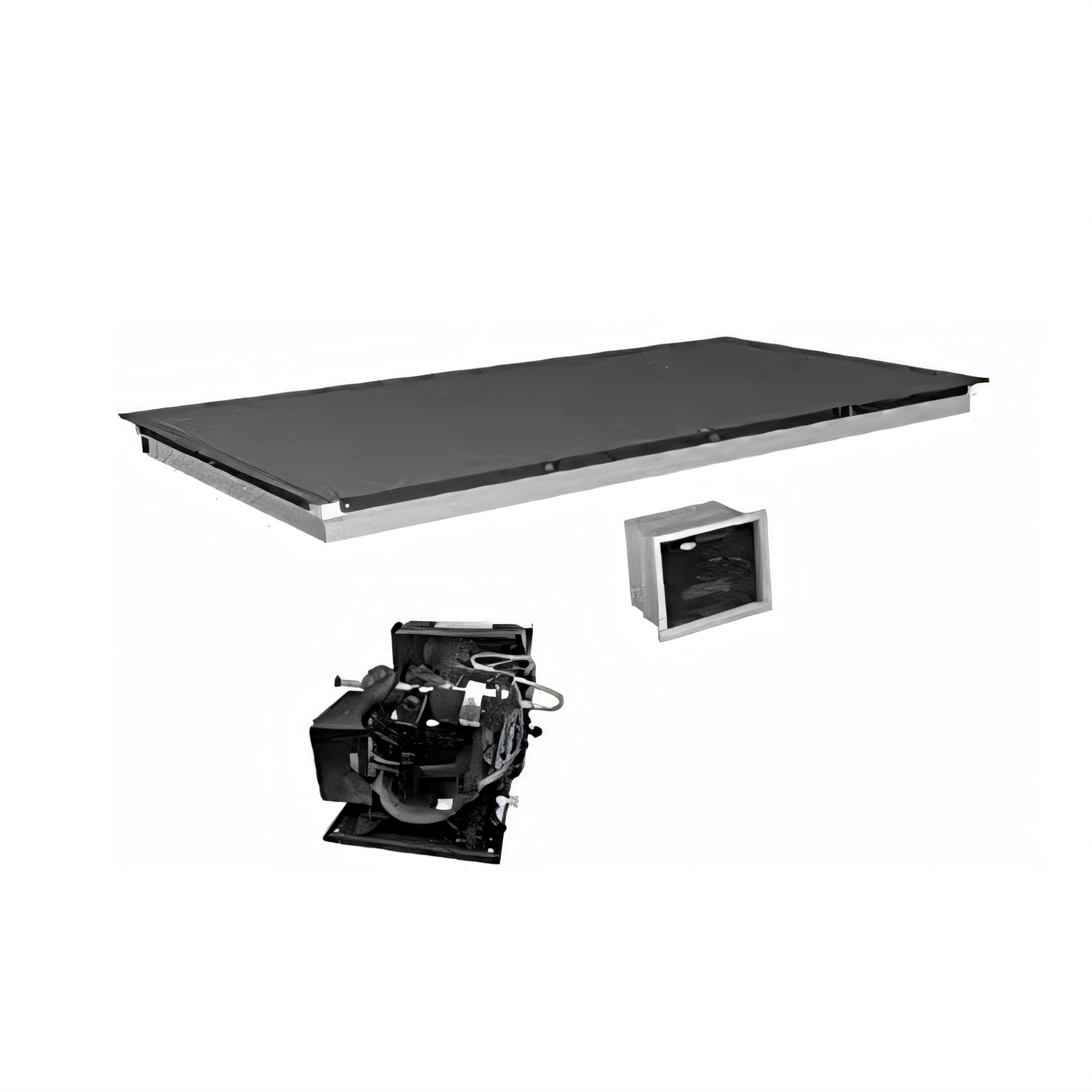

48" Built-In Flush Top Cold Shelf — Remote Refrigeration
Hatco CSBFR-48-F • 1/3 HP • cULus • Made in USASeamlessly drop a bank of dependable, frost-free cold into your counter. Hatco’s hard-coat aluminum Cold Shelf keeps pre-chilled beverages, salads, sushi, desserts and more at safe, appetising temperatures without the mess of ice.
- Flush-mount, food-safe hard-coat aluminum surface for easy wipe-down cleaning.
- Rugged remote 1/3 HP condensing unit (R-513A refrigerant) ships loose, giving fabricators installation freedom.
- Electronic Temperature Control box (4 ft / 1.2 m lead) lets staff dial-in precise holding temps.
- Patented thermal break isolates the cold zone to curb condensation on surrounding countertop.
- Evenly chilled holding < 41 °F (5 °C) across the entire 48" shelf – perfect for full-size hotel pans or platters.
- Pairs beautifully with Hatco GRSBF heated shelves for cohesive hot-and-cold merchandising.
- Certified cULus & NSF (component) for peace-of-mind performance.
Technical Specifications
| Usable Chill Surface | 48" W × 15.5" D (1219 × 394 mm) |
|---|---|
| Overall Shelf Assembly | 49.5" W × 17" D × 7.29" H (1257 × 432 × 185 mm) |
| Compressor | Remote, 1/3 HP – ships loose |
| Refrigerant | Eco-friendly R-513A |
| Electrical | 120 V, 450 W, 5.9 A, 60 Hz (220-240 V options available) |
| Control Interface | Digital thermostat with 4 ft (1.2 m) corded enclosure |
| Cut-Out (counter) | 48.6"–49.0" W × 16.125"–16.5" D (1234–1245 × 409–419 mm) |
| Certifications | cULus, NSF (component) |
| Origin | Made in USA |
Installation Highlights
- Remote compressor may be mounted up to 4 ft (1.2 m) from shelf — factory-charged lineset included.
- Condensing unit arrives with sight glass, service valves, dryer/filter and receiver for fast serviceability.
- Matches standard 3/4" (19 mm) counter thickness for a true flush appearance.
Factory Options (order with unit)
- Extended 7.5 ft (2.3 m) control-box cable.
- Additional 4-year parts-only compressor warranty (U.S. & Canada).
Built on Hatco’s legacy of durability and backed by 24/7 technical support, the CSBFR-48-F delivers unbeatable cold performance in a sleek, integrated package. Upgrade your presentation — keep it cool with Hatco.
