Hatco CSBFR-36-F Steam Tables & Food Wells
Hatco CSBFR-36-F Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco CSBFR-36-F Steam Tables & Food Wells
Description

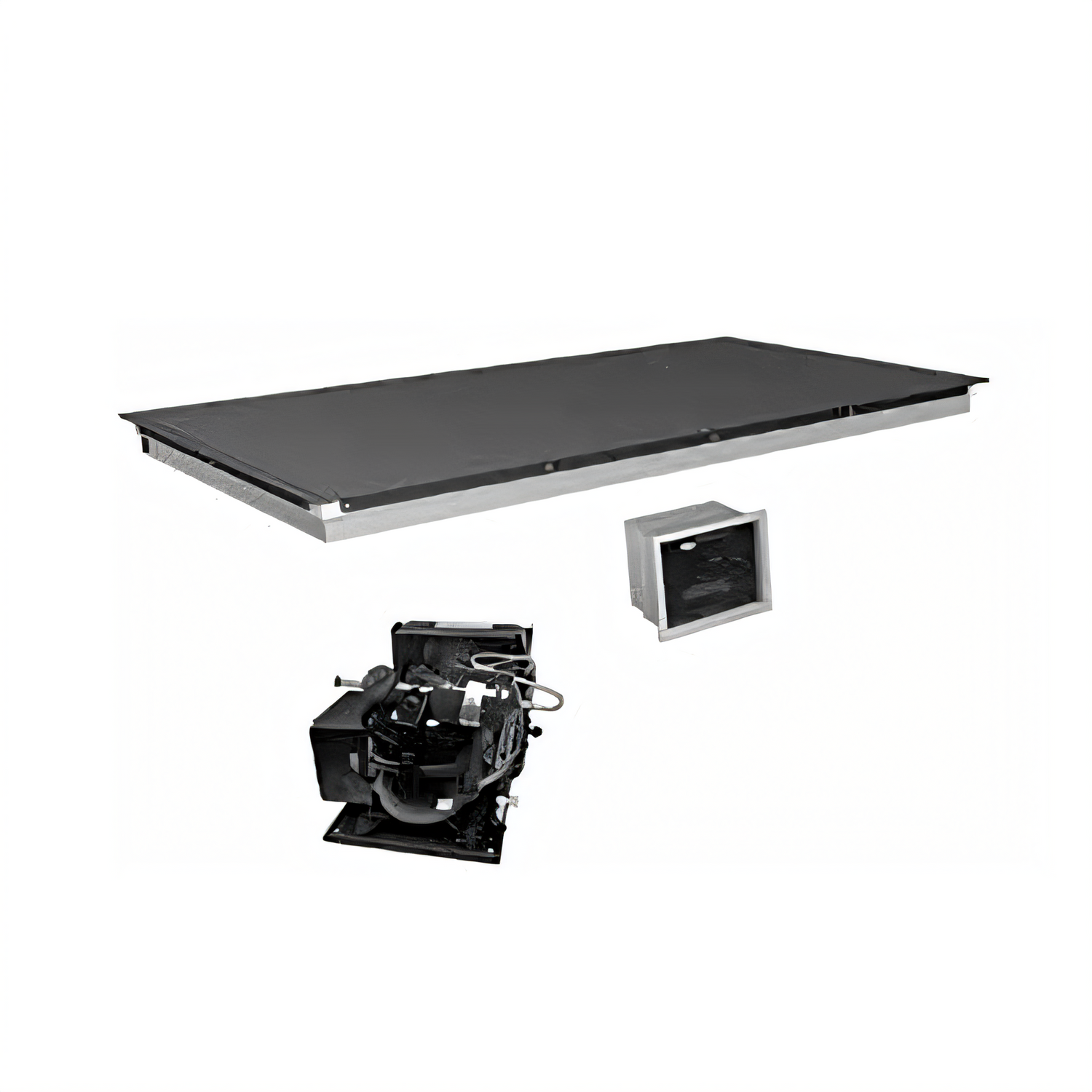

Hatco CSBFR-36-F Cold Shelf – 36" x 15-1/2" Built-In Flush Top
Remote-refrigerated, flush-mount cold holdingGive salads, sushi, desserts and drinks the chill they deserve—right in your countertop. Hatco’s CSBFR-36-F Cold Shelf provides even, reliable cooling across a rugged hard-coat aluminum surface, while its remote condensing unit keeps heat and noise away from the serving area.
Why you’ll love it
- Flush-mount 36" x 15.5" chilled surface blends seamlessly into stone, solid-surface or stainless counters.
- Durable hard-coat aluminum is NSF food-safe and resists scratches, pitting and corrosion.
- Electronic Temperature Control box (4' lead) keeps product in the ideal 34–40 °F (1–4 °C) range.
- Remote 1/5 HP condensing unit (included, shipped loose) can be installed up to 4' (1.2 m) from the shelf for quieter dining spaces and easier maintenance.
- Eco-conscious R-513A refrigerant paired with an efficient compressor helps lower energy costs.
- Patented perimeter thermal break dramatically reduces condensation and protects adjacent countertop materials.
- Factory-installed temperature probe and TXV valve speed up installation.
- Coordinates perfectly with Hatco GRSBF heated flush-top shelves for a cohesive hot/cold serving line.
- cULus listed and proudly Made in the USA.
Technical specifications
| Model | CSBFR-36-F |
|---|---|
| Usable cold surface | 36" W x 15 ½" D (914 × 394 mm) |
| Overall top size | 37 ½" W x 17" D (953 × 432 mm) |
| Height below counter | 7.29" (185 mm) shelf assembly |
| Compressor | 1/5 HP, remote |
| Refrigerant | R-513A (factory charged) |
| Electrical | 120 V / 1 ph / 60 Hz, 300 W, 3.8 A (other voltages available) |
| Shipping weight | Approx. 115 lb (52 kg) |
| Agency listings | cULus, NSF component |
| Country of origin | United States of America |
Installation notes
- Countertop cut-out template supplied; typical opening: 36 ⅝" W x 16 ¼" D (931 × 413 mm).
- Control box mounts up to 4' (1.2 m) from the shelf; optional 7.5' (2.3 m) cord available at time of order.
- Condensing unit ships with flexible refrigerant lines—no need to remove the shelf for future service.
Looking for additional sizes or matching heated shelves? Contact our team and we’ll build the perfect hot/cold lineup for your operation.
