Hatco CSBFR-24-S Steam Tables & Food Wells
Description

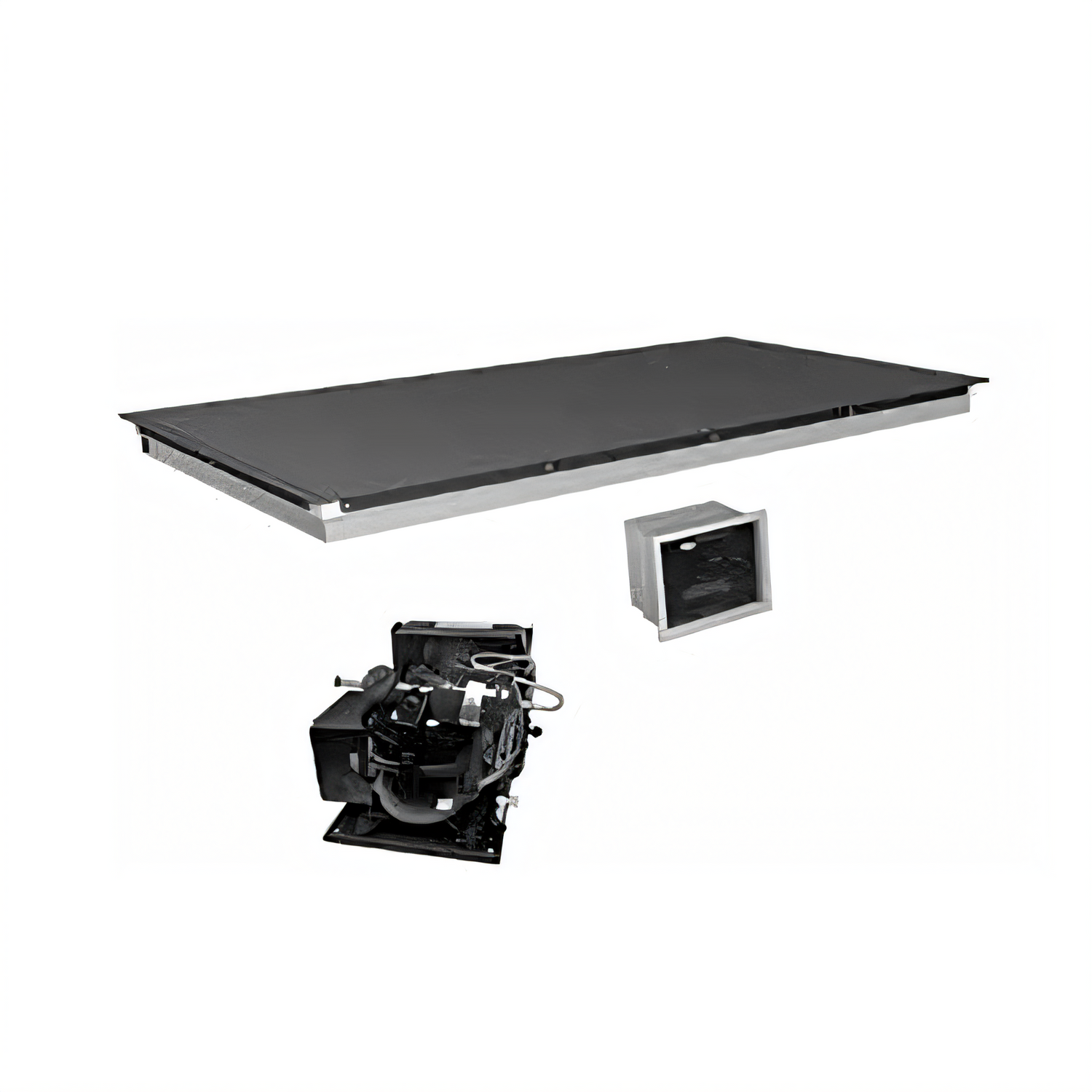

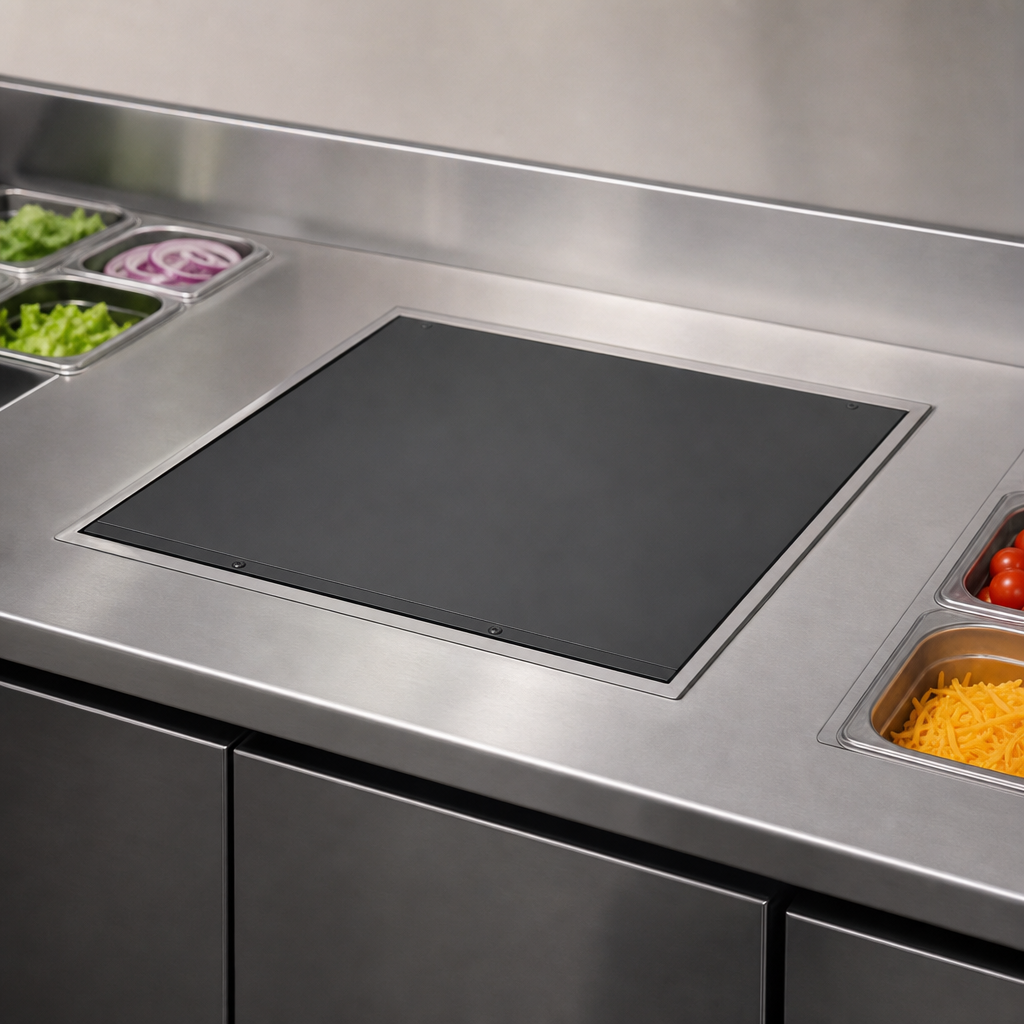

Hatco CSBFR-24-S Cold Shelf – 24" x 24" Built-In Flush Top

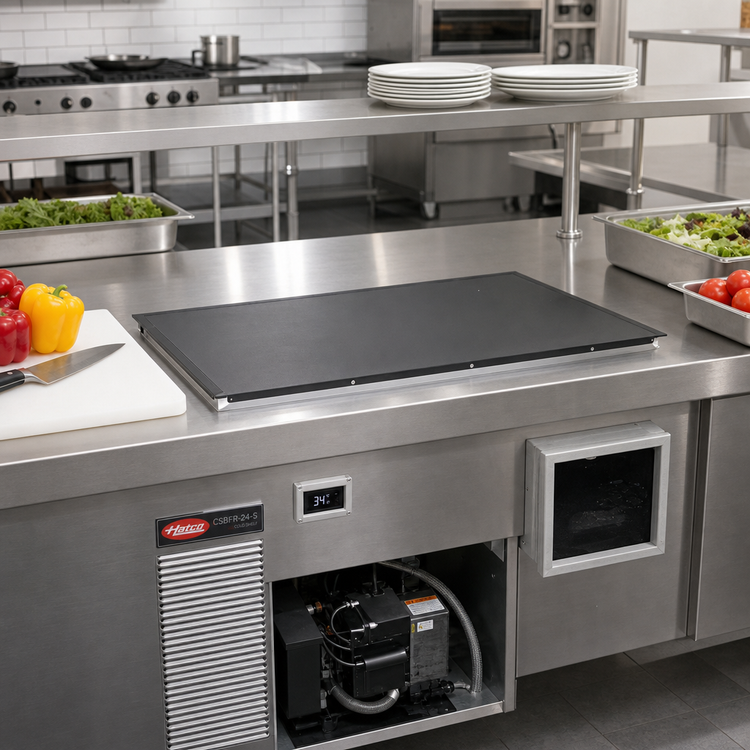

Remote refrigerated shelf with electronic temperature controlBring reliable, discreet refrigeration to your serving line. The Hatco CSBFR-24-S sits flush with your countertop, keeping beverages, salads, desserts and other pre-chilled items at food-safe temperatures while its remote condensing unit stays hidden from view for a clean, uninterrupted presentation.
Why Choose the CSBFR-24-S?
- Full 24" x 24" (610 x 610 mm) cold surface provides ample display space.
- Remote refrigeration package (condenser & control box ship loose) mounts up to 4' (1219 mm) from the shelf for maximum design flexibility.
- 1/5 HP R-513A compressor includes sight-glass, service valves, filter/dryer and receiver for easy maintenance.
- Electronic Temperature Control with 4' (1219 mm) lead-wire delivers precise, user-adjustable holding temperatures.
- Patented perimeter thermal break dramatically reduces condensation and prevents cold “bleed-over” to adjacent surfaces.
- Hard-anodized aluminum top is scratch-resistant, non-stick and fast to clean.
- Matches Hatco GRSBF heated shelves for a seamless hot/cold lineup.
- cULus listed, NSF component compliant and proudly Made in the USA.
Perfect For
- Buffet & cafeteria lines
- Grab-and-go beverage stations
- Salad, sushi or dessert bars
- C-stores, micromarkets & concessions stands
- Catering & hors d’oeuvre displays
Technical Specifications
| Model | CSBFR-24-S |
|---|---|
| Shelf style | Built-in flush top, remote refrigeration |
| Usable cold surface | 24" W x 24" D (610 x 610 mm) |
| Overall dimensions | 25.5" W x 25.5" D x 7.29" H (648 x 648 x 185 mm) |
| Compressor | 1/5 HP (R-513A refrigerant) |
| Electrical | 120 V / 300 W / 3.8 A / 60 Hz (220-240 V models available) |
| Control-box lead length | 4' (1219 mm) standard • 7.5' (2286 mm) optional |
| Remote distance | Condenser may be located up to 4' (1219 mm) from shelf center |
| Construction | Hard-coat anodized aluminum surface, stainless housing |
| Certifications | cULus, NSF component |
| Shipping weight | Approx. 124 lb (56 kg) |
| Country of origin | USA |
Optional factory upgrades include an extended four-year compressor parts warranty and longer control-box cord. Contact us prior to ordering for details.
