Hatco CSBFP-48-F Steam Tables & Food Wells
Description

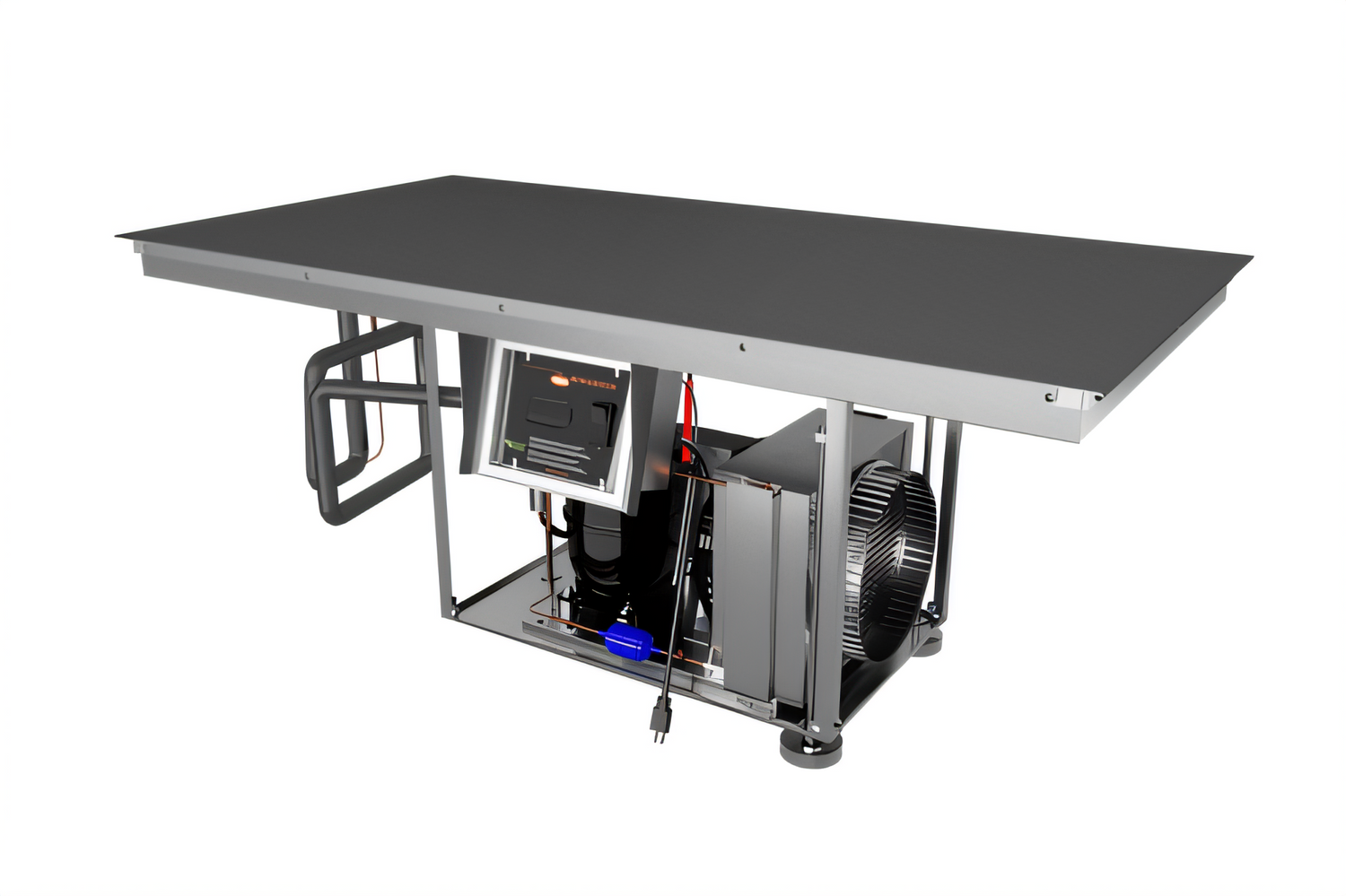

Hatco CSBFP-48-F R-290 Built-In Cold Shelf – Flush Top, 48" W x 15.5" D
Self-contained refrigerated drop-in shelf with electronic temperature controlChill and display grab-and-go favorites right at the counter edge. The Hatco CSBFP-48-F delivers even, quiet cooling across a durable hardcoat aluminum surface, giving salads, beverages, sushi, desserts and more the fresh appeal your guests expect.
Top reasons operators choose Hatco

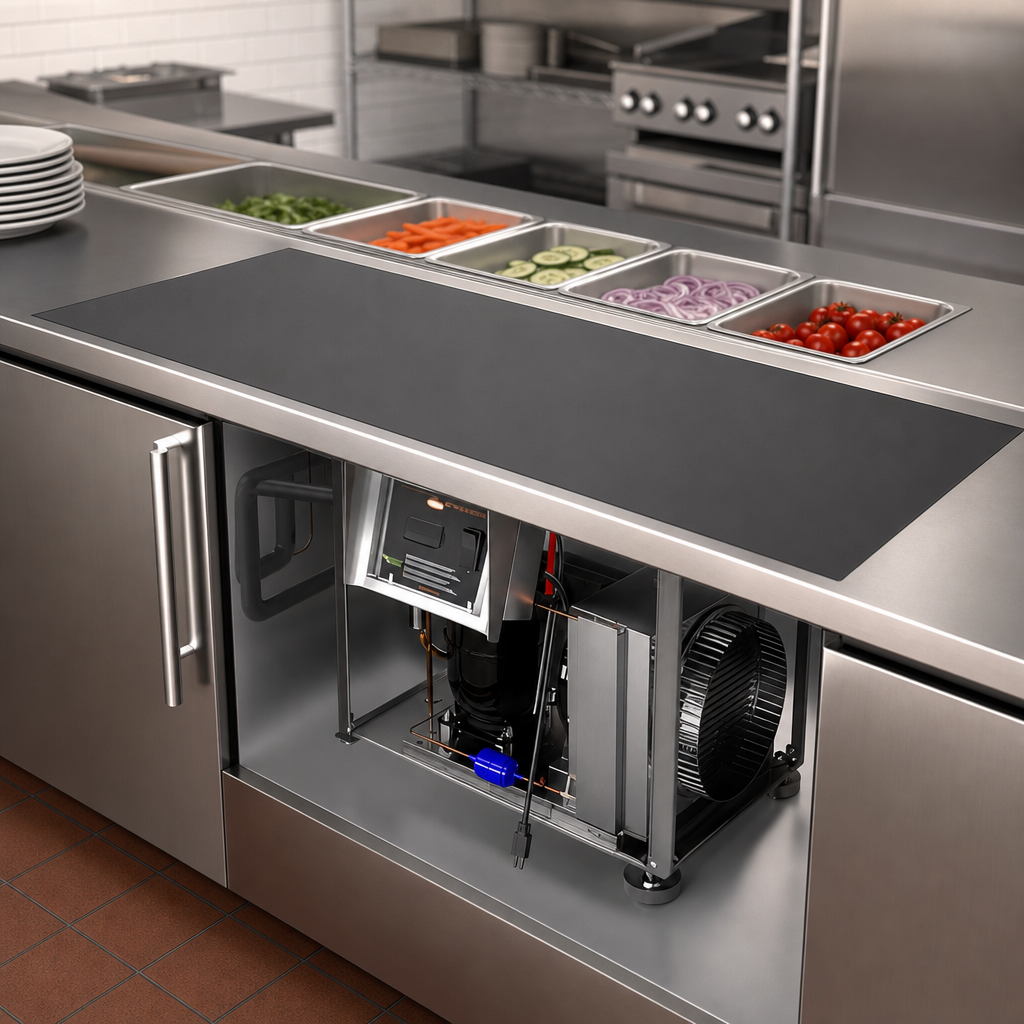

- 48" x 15.5" flush-mount deck installs level with your countertop for a clean, modern presentation.
- Attached condensing unit charged with eco-friendly R-290 (propane) refrigerant.
- External Electronic Temperature Control box (4 ft lead) for quick, precise adjustments.
- Patented thermal break minimizes condensation and prevents cold transfer to adjacent surfaces.
- Hardcoat aluminum top resists scratches, acids and stains and wipes clean in seconds.
- Pairs perfectly with Hatco GRSBF heated flush shelves for a seamless hot-cold line-up.
- Made in the USA; cULus listed and NSF component recognized.
Technical specifications
| Model | CSBFP-48-F |
|---|---|
| Usable shelf area | 48" W × 15.5" D (1219 × 394 mm) |
| Overall dimensions | 49.5" W × 17" D × 23.125" H (1257 × 432 × 587 mm) Height adjustable up to 38" (965 mm) |
| Countertop cut-out | 48.6 – 49.0" W × 16.125 – 16.5" D (1234 – 1245 × 409 – 419 mm) |
| Compressor | 1/3 HP, self-contained |
| Refrigerant charge | R-290, 3.8 oz (0.108 kg) factory filled |
| Electrical | 120 V, 440 W, 6.5 A, 60 Hz (NEMA 5-15P) 220-240 V variants available |
| Heat of rejection | 2,514 BTU/hr (120 V) |
| Construction | Hardcoat aluminum flush top, top-mounted design |
| Shipping weight | 138 lb (63 kg) |
| Certifications | cULus, NSF Component |
| Warranty | 24/7 parts & service assistance (U.S. & Canada) |
Perfect for
- Fast-casual service lines
- Hotel breakfast buffets
- Convenience-store grab-and-go islands
- Catering, banquets & commissary kitchens
Elevate your cold display with the performance, efficiency and craftsmanship of the Hatco CSBFP-48-F—engineered to keep food fresh and profits high shift after shift.
