Hatco CSBFP-36-S Steam Tables & Food Wells
Description

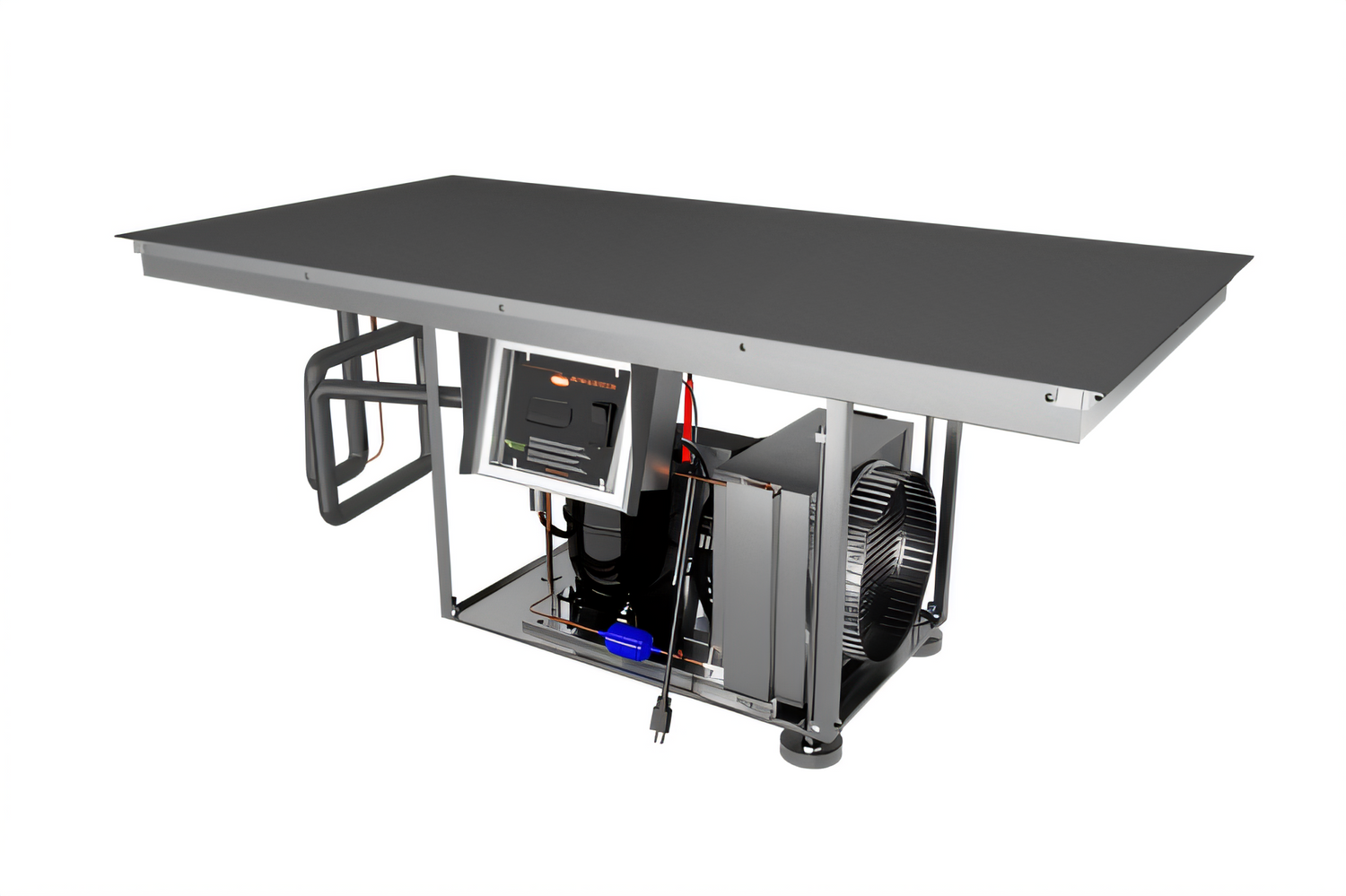

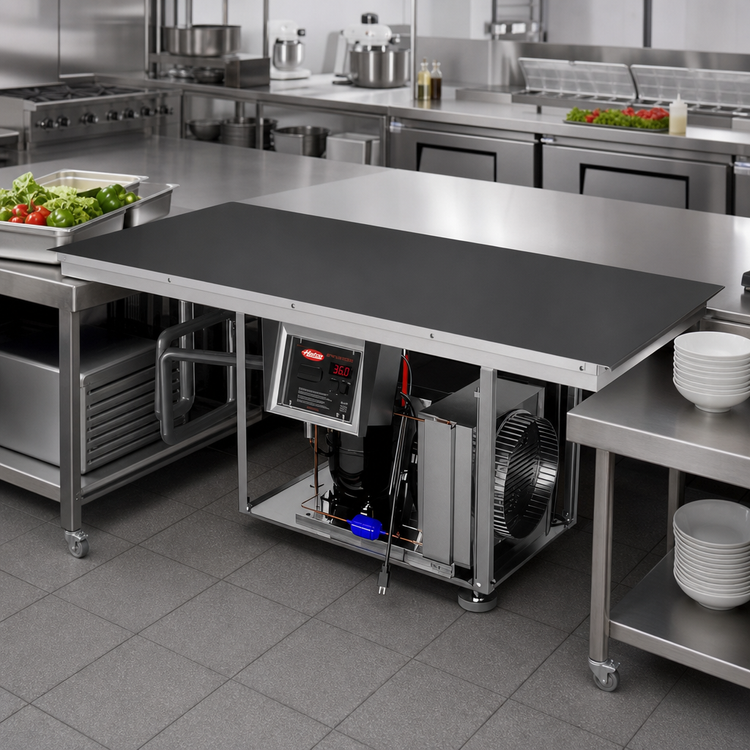

Hatco CSBFP-36-S Built-In Flush Top Cold Shelf – 36" x 24"
Eco-friendly, countertop-flush refrigeration for buffets, cafés & grab-and-go displaysGive guests perfectly chilled beverages, hors d’oeuvres and plated entrées—right on the counter. The Hatco CSBFP-36-S drops in completely flush, delivering a seamless 36" × 24" cold surface finished in Hatco’s ultra-durable aluminum hardcoat. A self-contained R-290 refrigeration system and electronic temperature control make set-up, operation and merchandising effortless.
Why you’ll love it

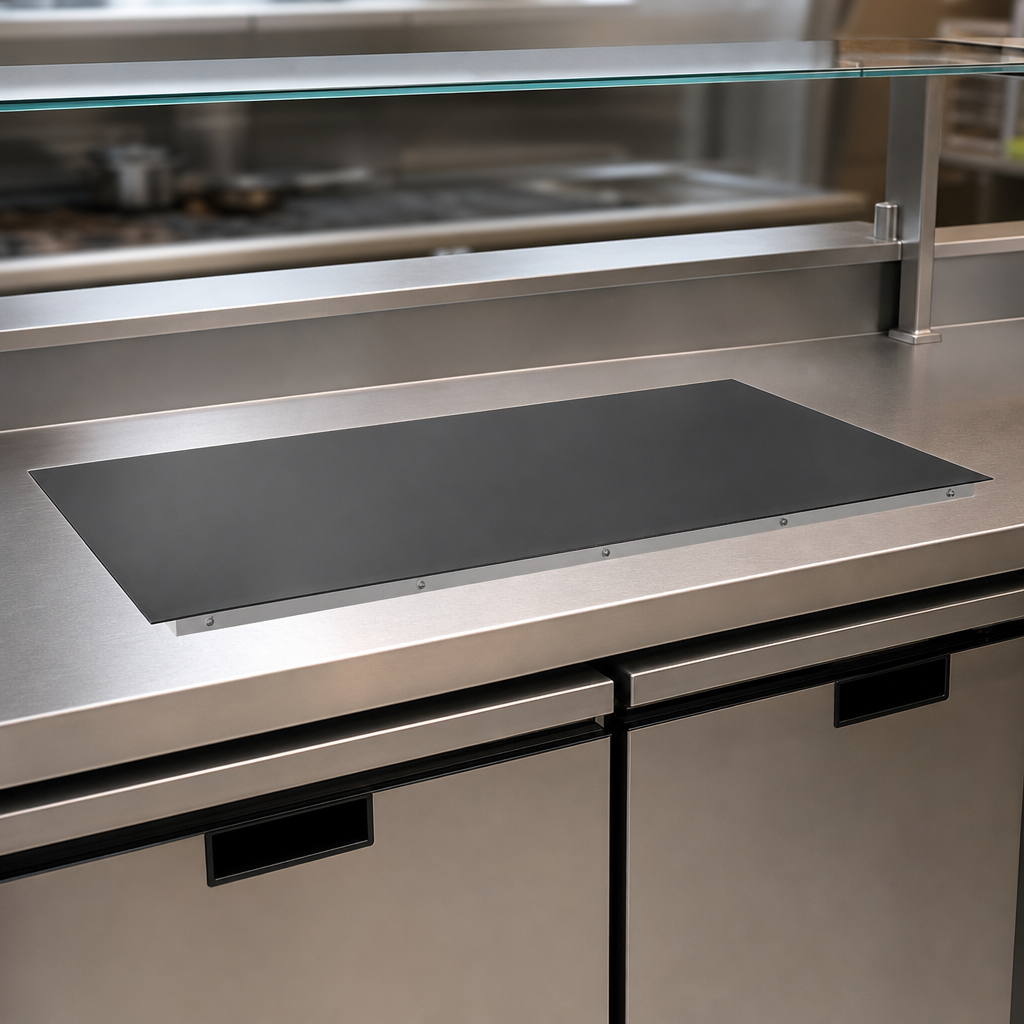

- Flush-mount, hardcoat aluminum top blends cleanly into any stone, solid-surface or stainless counter.
- Environmentally responsible R-290 refrigerant with an integrated 1/3 HP condenser—no remote compressor required.
- Electronic Temperature Control box (4 ft / 1219 mm lead) lets you dial in and monitor holding temps at a glance.
- Patented thermal break around the perimeter minimizes condensation and prevents cold transfer to adjacent surfaces.
- Matches the footprint and look of Hatco GRSBF heated shelves for cohesive hot-and-cold layouts.
- Shipped fully assembled, pre-charged and ready to drop in—just cut the hole, plug into a standard outlet and start chilling.
- cULus listed, NSF component recognized and proudly Made in the USA.
At-a-glance specs
| Model / Type | CSBFP-36-S | Built-In Flush Top Cold Shelf |
|---|---|
| Usable shelf area | 36" W × 24" D (914 × 610 mm) |
| Overall dimensions | 37.5" W × 25.5" D × 23.125" H (953 × 648 × 587 mm) — height adjustable up to 38" (965 mm) |
| Countertop cut-out | Width: 36.6 – 37.0" | Depth: 24.6 – 25.0" |
| Compressor | 1/3 HP, self-contained (air-cooled) |
| Refrigerant | R-290, factory charge 3.9 oz. (0.111 kg) |
| Electrical (standard) | 120 V, 6.5 A, 440 W, 60 Hz | NEMA 5-15P |
| Heat of rejection | 2,821 BTU/hr |
| Shipping weight | Approx. 151 lb (69 kg) |
| Certifications | cULus, NSF Component, Ecoization Naturally |
Ideal applications
- Breakfast bars & hotel buffets
- C-stores & grab-and-go kiosks
- Catering & banquet lines
- Gastro pubs, breweries & tasting rooms
Need a matching heated shelf, different size or international voltage? Explore the full Hatco CSBFP series or contact our team for assistance.
