Hatco CSBFP-36-F Steam Tables & Food Wells
Description

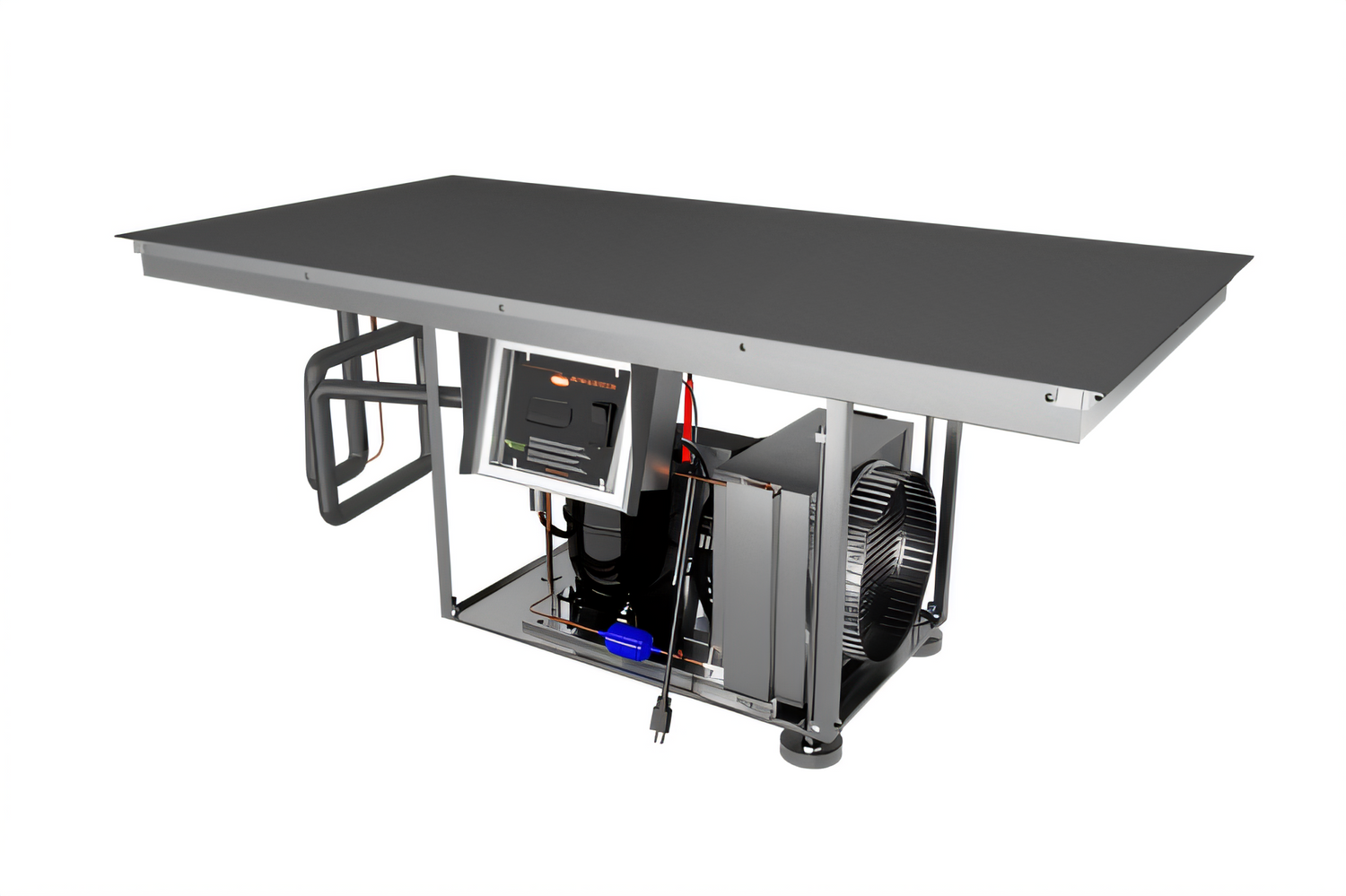

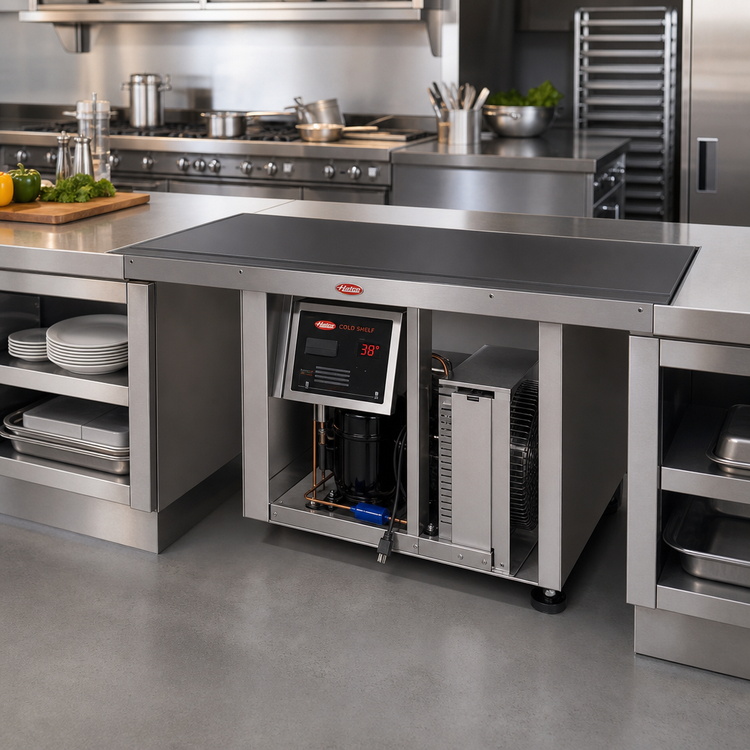

Hatco CSBFP-36-F R-290 Built-In Flush Cold Shelf – 36" x 15.5"
Seamless chilled holding for buffets, grab-and-go counters & moreDeliver perfectly chilled beverages, salads, sushi and desserts straight from this flush-mount cold shelf to your guests. Hatco’s CSBFP-36-F combines a rugged aluminum hardcoat surface with energy-saving R-290 refrigeration and precise electronic controls—giving you dependable, food-safe cold holding in a sleek, countertop-level package.
Key features
- Keeps product at 41 °F (5 °C) or below* across the entire 36" W x 15.5" D surface.
- Integrated 1/3 HP condensing unit uses natural R-290 refrigerant for lower environmental impact.
- Patented thermal break perimeter limits condensation and prevents cold transfer to adjacent countertop surfaces.
- Hard-wearing aluminum hardcoat top is NSF-listed and pairs perfectly with Hatco GRSBF heated shelves for a cohesive line-up.
- Electronic Temperature Control Box with 4 ft (1219 mm) lead lets you fine-tune holding temps with the push of a button.

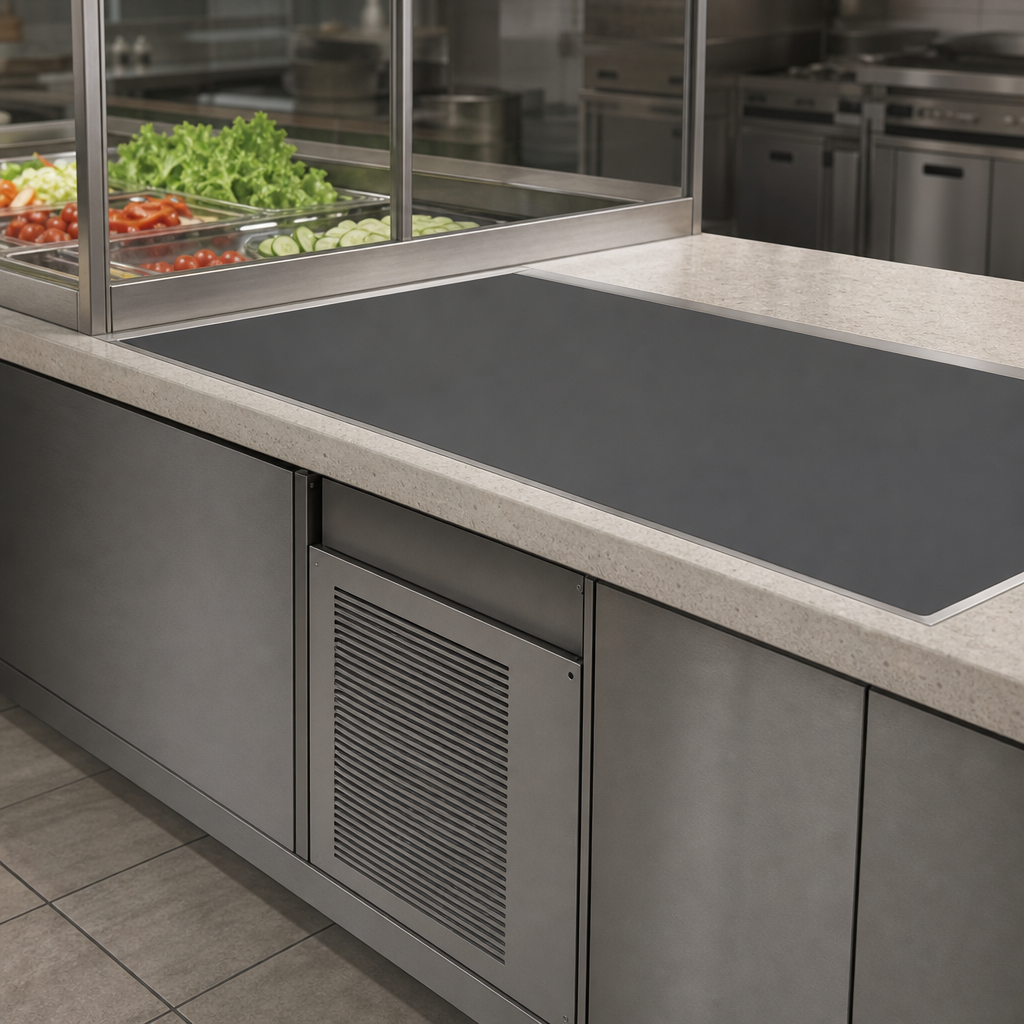

- Top-mount, flush installation means no drop-in rim—just a clean, snag-free presentation.
- cULus & NSF component listed; built in Milwaukee, WI, USA.
Specifications
| Manufacturer | Hatco Corporation |
|---|---|
| Model # | CSBFP-36-F |
| Style | Built-In Flush Top Cold Shelf |
| Usable Shelf Area | 36" W × 15.5" D (914 × 394 mm) |
| Overall Dimensions | 37.5" W × 17" D × 23.125" H (953 × 432 × 587 mm) Height adjustable up to 38" (965 mm) |
| Compressor | 1/3 HP, air-cooled |
| Refrigerant | R-290 (factory charge 3.7 oz / 0.105 kg) |
| Electrical | 120 V, 1-ph, 345 W, 5.2 A, NEMA 5-15P (other voltages available) |
| Heat of Rejection | 2,123 BTU/hr |
| Listings | cULus, NSF Component, Ecoization Naturally |
| Origin | Made in USA |
*Performance based on 75 °F (24 °C) ambient per Hatco installation guidelines.
Ideal applications
- Self-service buffets & cafeterias
- Grab-and-go merchandising lines
- Hotel breakfast bars
- C-stores, delis & coffee shops
- Event & catering stations
Upgrade your cold display with a flush, professional finish—choose the Hatco CSBFP-36-F for reliable, eco-friendly refrigeration right where you need it.
