Hatco CSBFP-24-S Steam Tables & Food Wells
Description

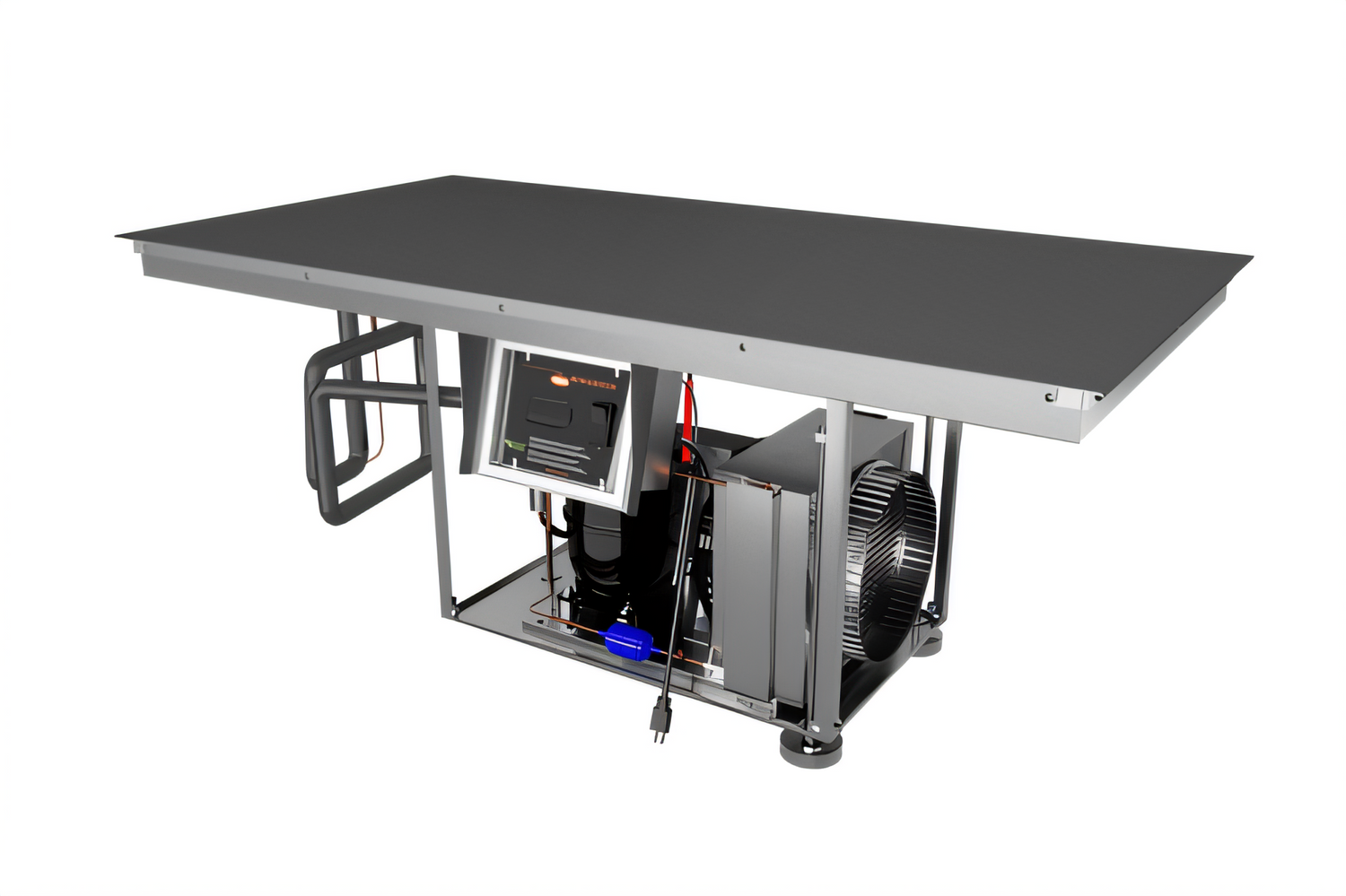

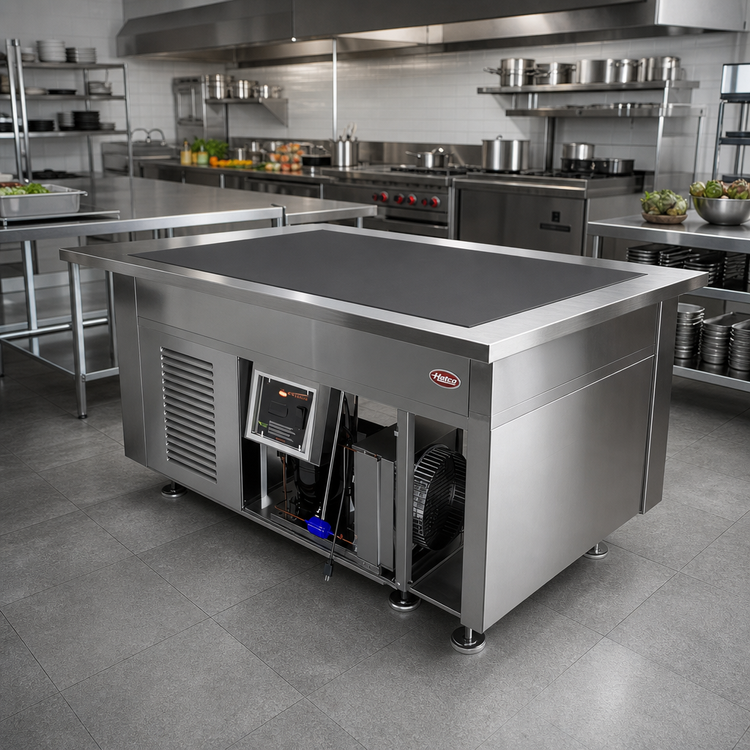

Hatco CSBFP-24-S R-290 Cold Shelf – 24" x 24" Flush-Top Built-In
Eco-friendly refrigerated drop-in shelf with 1/3-HP condensing unitBring reliable, energy-efficient cold holding to your buffet line or prep station with Hatco’s CSBFP-24-S flush-mount cold shelf. Designed to sit perfectly level with your countertop, this 24" x 24" aluminum hardcoat surface keeps pre-chilled beverages, salads, sushi and desserts at safe, appetizing temperatures—no messy ice required.
Key features & benefits

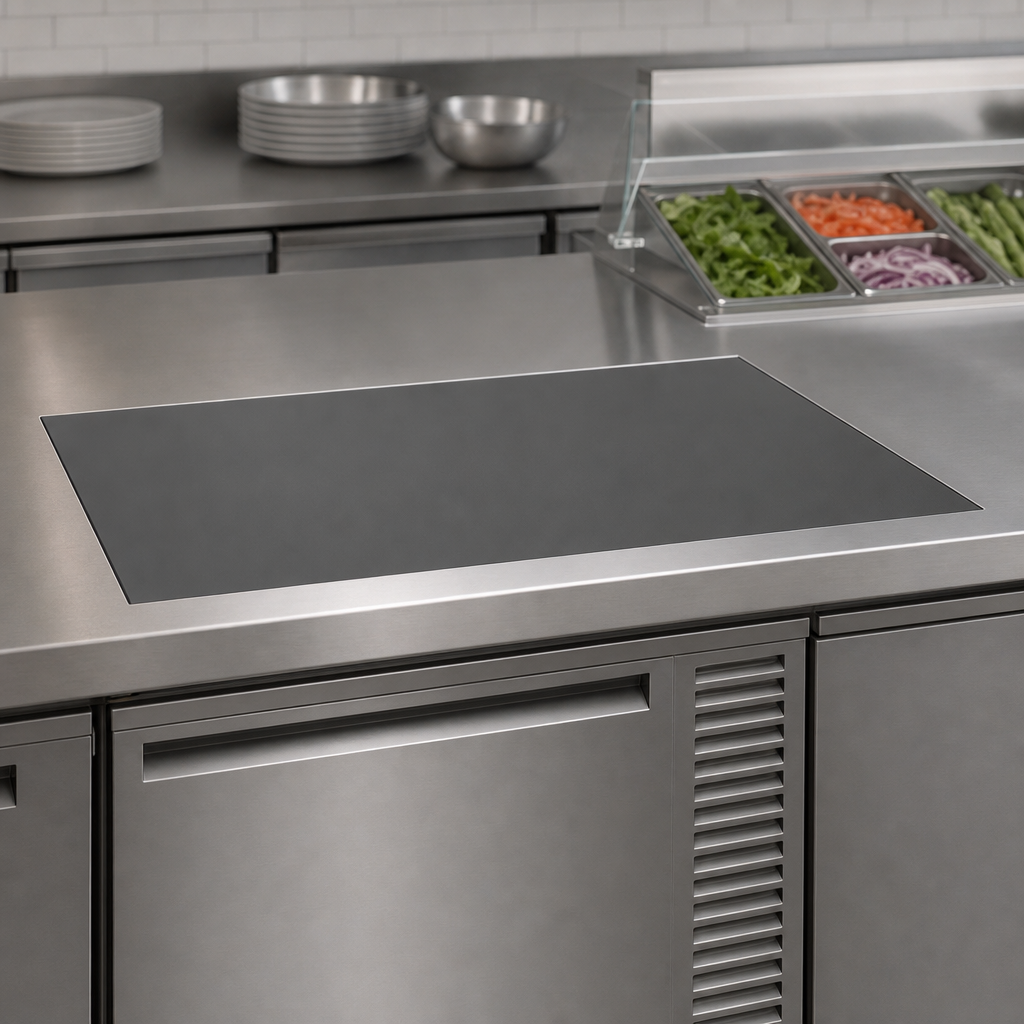

- True flush installation for a seamless counter surface—no rims, wells or ice pans to clean.
- Food-safe aluminum hardcoat top resists scratches, acids and harsh cleaners for long-term durability.
- Uses environmentally responsible R-290 refrigerant with extremely low global-warming potential.
- Factory-attached 1/3-HP self-contained condensing unit for quick “drop-in & plug” setup.
- Electronic Temperature Control box (4 ft lead) maintains precise holding temps throughout service.
- Patented thermal break minimizes condensation and prevents cold transfer to surrounding countertops.
- Coordinates with Hatco GRSBF heated shelves for a cohesive hot/cold buffet lineup.
- cULus & NSF component listed; backed by Hatco’s 24/7 parts & service support and proudly made in the USA.
At-a-glance specifications
| Model | CSBFP-24-S |
|---|---|
| Usable cold surface | 24" W × 24" D (610 × 610 mm) |
| Overall dimensions | 25.5" W × 25.5" D × 23.1" H (648 × 648 × 587 mm) Height adjustable up to 38" (965 mm) |
| Countertop cut-out | 24.6"–25.0" W × 24.6"–25.0" D (625–635 mm) |
| Compressor | 1/3 HP, self-contained |
| Refrigerant / charge | R-290, 3.7 oz (0.105 kg) |
| Electrical (120 V) | 345 W | 5.2 A | 60 Hz | NEMA 5-15P |
| Heat rejection | 2,150 BTU/hr |
| Construction | Hardcoat aluminum top with stainless & coated steel base |
| Certifications | cULus, NSF (component), Ecoization Naturally |
| Origin | Made in USA |
| Approx. ship weight | 124 lb (56 kg) |
Other voltages (220–240 V) are available; electrical specifications and plug types vary by selection.
Upgrade your cold holding station with the strength, style and sustainability of Hatco’s CSBFP-24-S—engineered for years of dependable service in the busiest commercial kitchens.
