Hatco CSBFP-24-I Steam Tables & Food Wells
Description

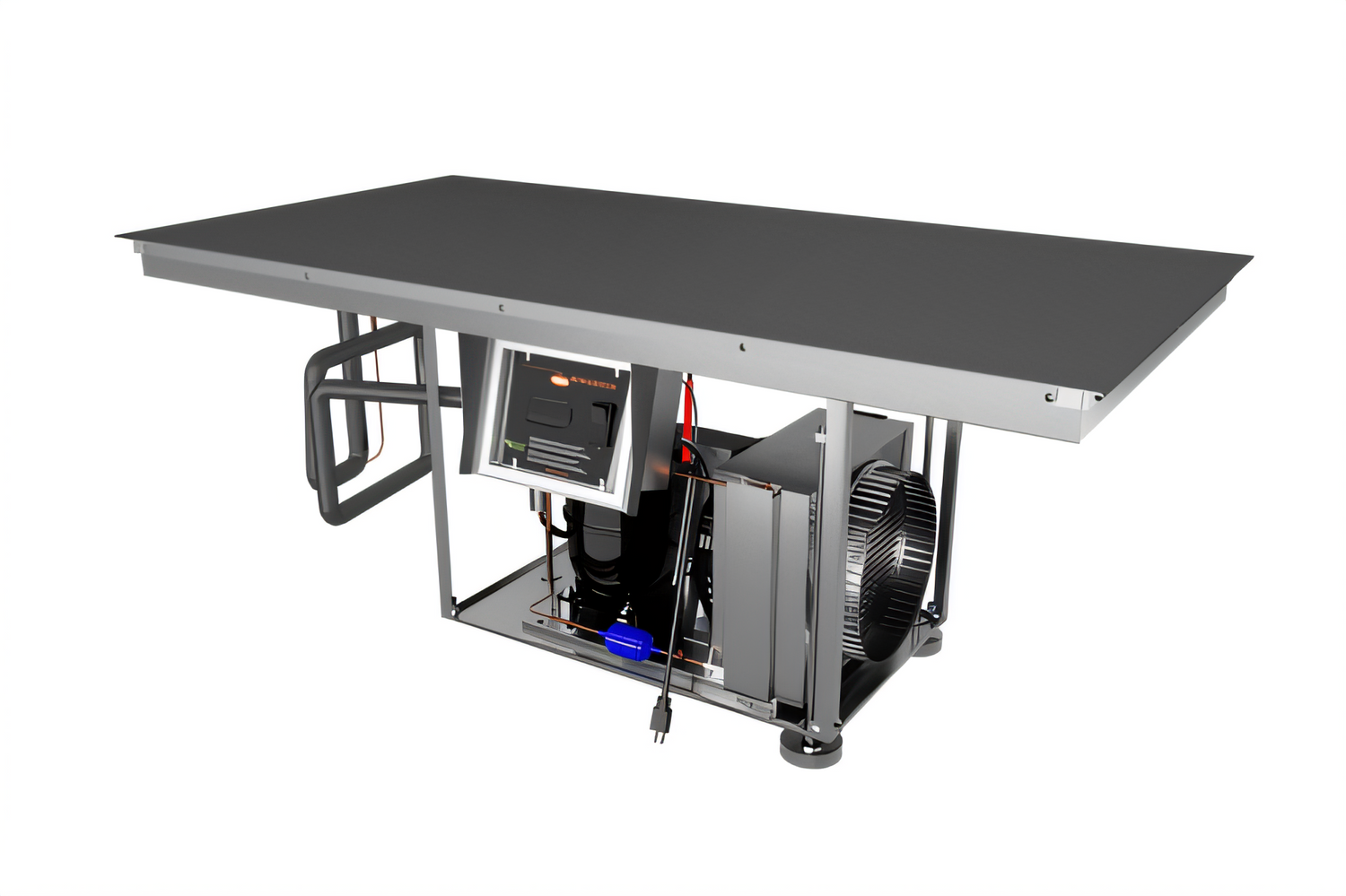

Hatco CSBFP-24-I R-290 Built-In Flush-Top Cold Shelf

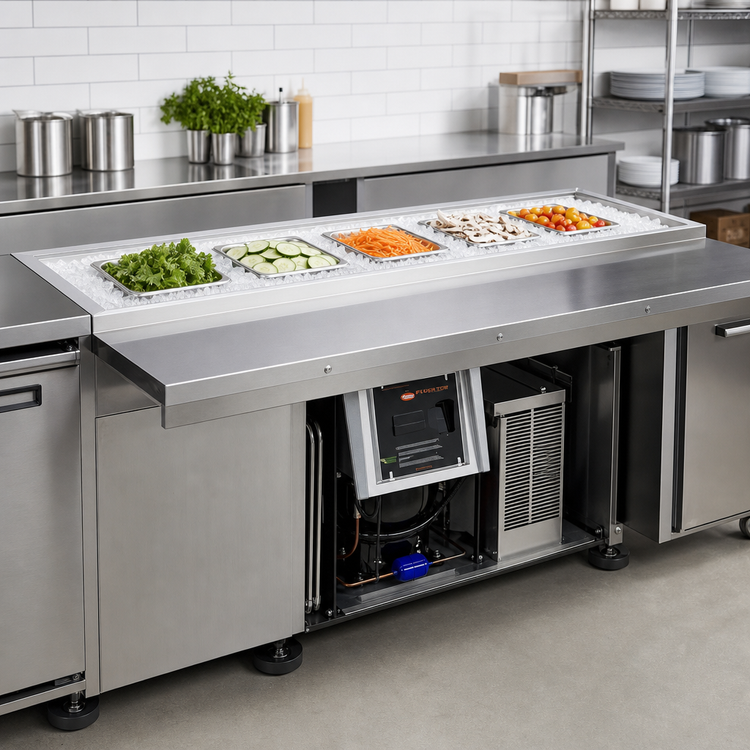

24" W x 19.5" D refrigerated display shelf | 1/3 HP compressorGive your buffet line, self-service station or back-of-house prep area a seamless chilled surface that holds salads, desserts, beverages and more at food-safe temperatures without sacrificing counter space. The Hatco CSBFP-24-I drops in flush, disappears into the décor and quietly delivers precision refrigeration with eco-friendly R-290.
Key advantages

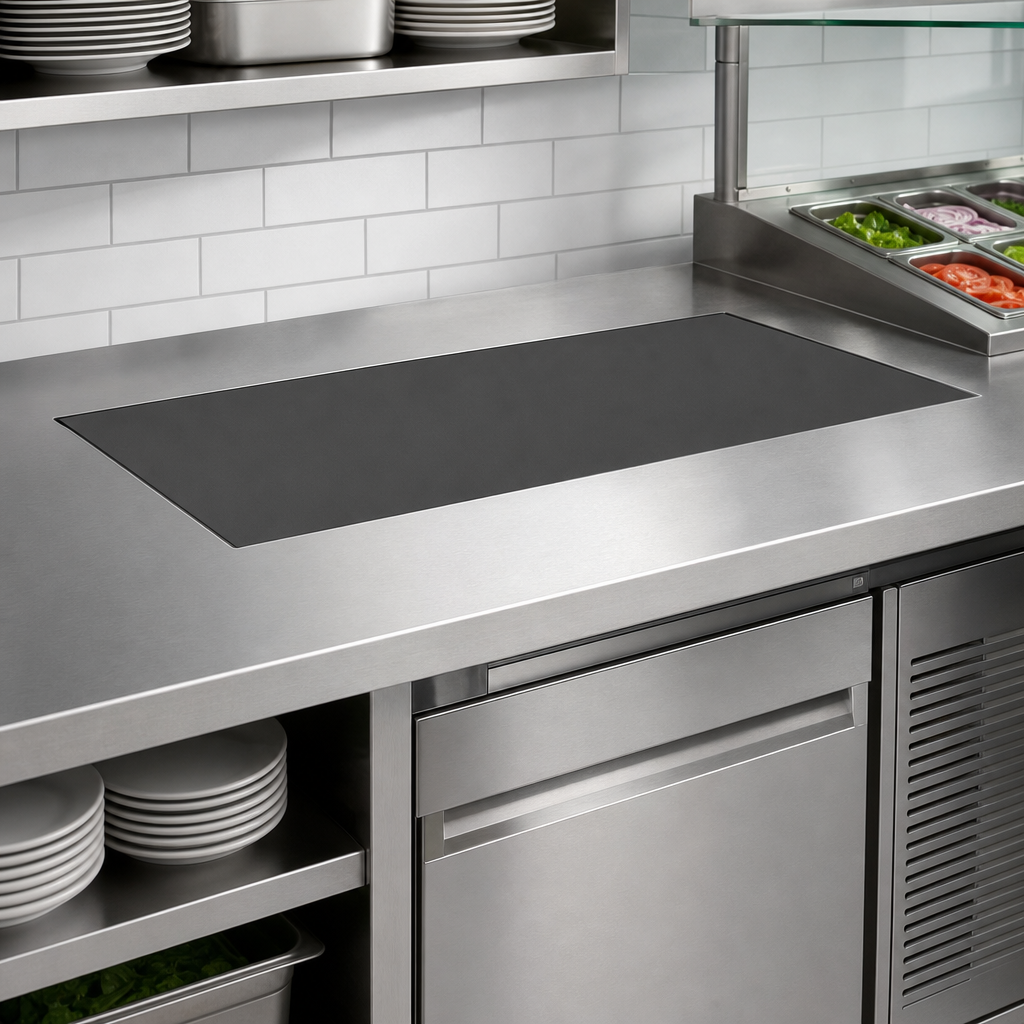

- Top-mount, flush installation creates a clean, continuous countertop presentation.
- 24" x 19.5" hardcoat aluminum surface is scratch-resistant and wipes clean in seconds.
- Attached 1/3 HP condensing unit arrives pre-charged with R-290 refrigerant for low-GWP, energy-efficient cooling.
- Electronic Temperature Control Box (4 ft lead) lets you dial in accurate holding temps at a glance.
- Patented thermal break limits condensation and stops cold transfer to adjacent workspace.
- Pairs perfectly with Hatco GRSBF heated shelves for a cohesive hot-and-cold lineup.
- cULus listed for safety and performance; proudly Made in the USA.
Technical specifications
| Model | CSBFP-24-I |
|---|---|
| Usable shelf area | 24" W x 19.5" D (610 x 495 mm) |
| Overall dimensions | 25.5" W x 21" D x 23.125" H (648 x 533 x 587 mm) – adjustable up to 38" H |
| Compressor | 1/3 HP, air-cooled, attached |
| Refrigerant / charge | R-290, 3.6 oz (0.102 kg) factory filled |
| Electrical | 240 V, 396 W, 3.3 A, 60 Hz (120 V configuration: 345 W, 5.2 A) |
| Heat rejection | ≈ 2,166 BTU/hr |
| Plug (120 V option) | NEMA 5-15P, 6 ft cord |
| Approx. shipping weight | 116 lb (53 kg) |
| Certifications | cULus, NSF Component |
| Country of origin | USA |
Countertop cut-out
24.6"–25.0" W x 20.125"–20.5" D (625–635 mm x 511–521 mm). Refer to the Installation & Operating Manual for full mounting instructions.
Backed by Hatco’s 24/7 parts & service support (U.S. & Canada). Need help planning your line? Contact your Hatco rep or download the full manual from the Hatco document library.
