Hatco C-9 High Temp & Low Temp Dishwashers
Description

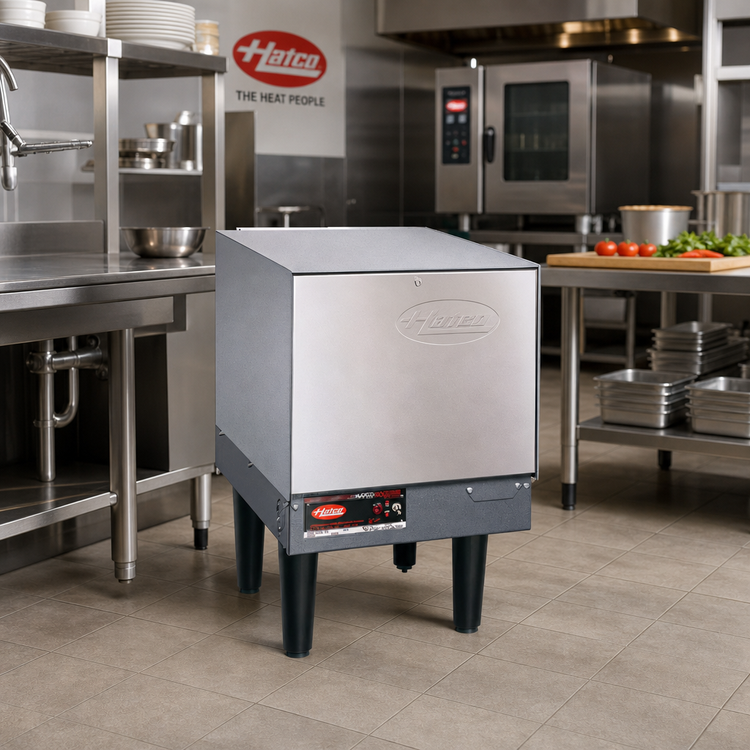

Hatco Compact Electric Booster Heater – 9 kW / 6 Gallon
Model C-9 | NSF & cULus | Made in USADeliver a consistent 180 °F (82 °C) final-rinse for your high-temp dishwasher without sacrificing floor space. Hatco’s 9 kW Compact Booster Heater packs big-volume performance into a rugged, 6 gallon (23 L) footprint that mounts easily beside or beneath the dish-machine.
Why You’ll Love It
- Instant sanitizing power – recovers 90 GPH @ 40 °F rise or 52 GPH @ 70 °F rise.
- Castone® lined tank with 10-year limited warranty resists corrosion and lime build-up.
- Space-saving 13 × 21 inch chassis with swing-away front panel for fast service access.
- Stainless steel front panel paired with a powder-coated silver-gray hammertone body for long-lasting good looks and easy cleaning.
- Factory pre-plumbed & pre-wired – installs in minutes with ¾" NPT inlet / outlet.
- Comprehensive safety suite: Low-water cut-off, high-limit, temperature & pressure gauges, pressure reducing valve, and T/P relief valve.
- Fiberglass insulation slashes standby heat loss for lower operating costs.
- Field-convertible from 3-phase to single-phase (208 V & 240 V only) for ultimate flexibility.*
Technical Specs

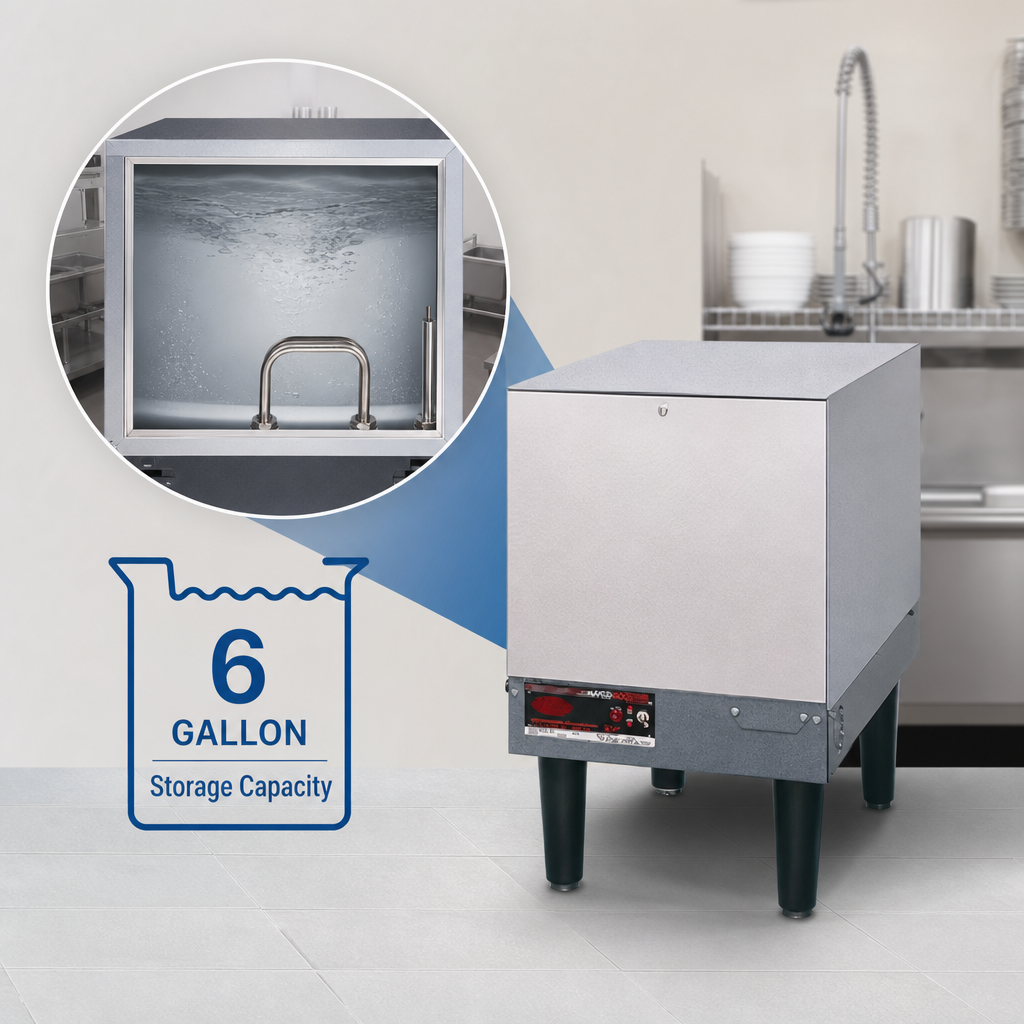

| Storage Capacity | 6 gal / 23 L |
|---|---|

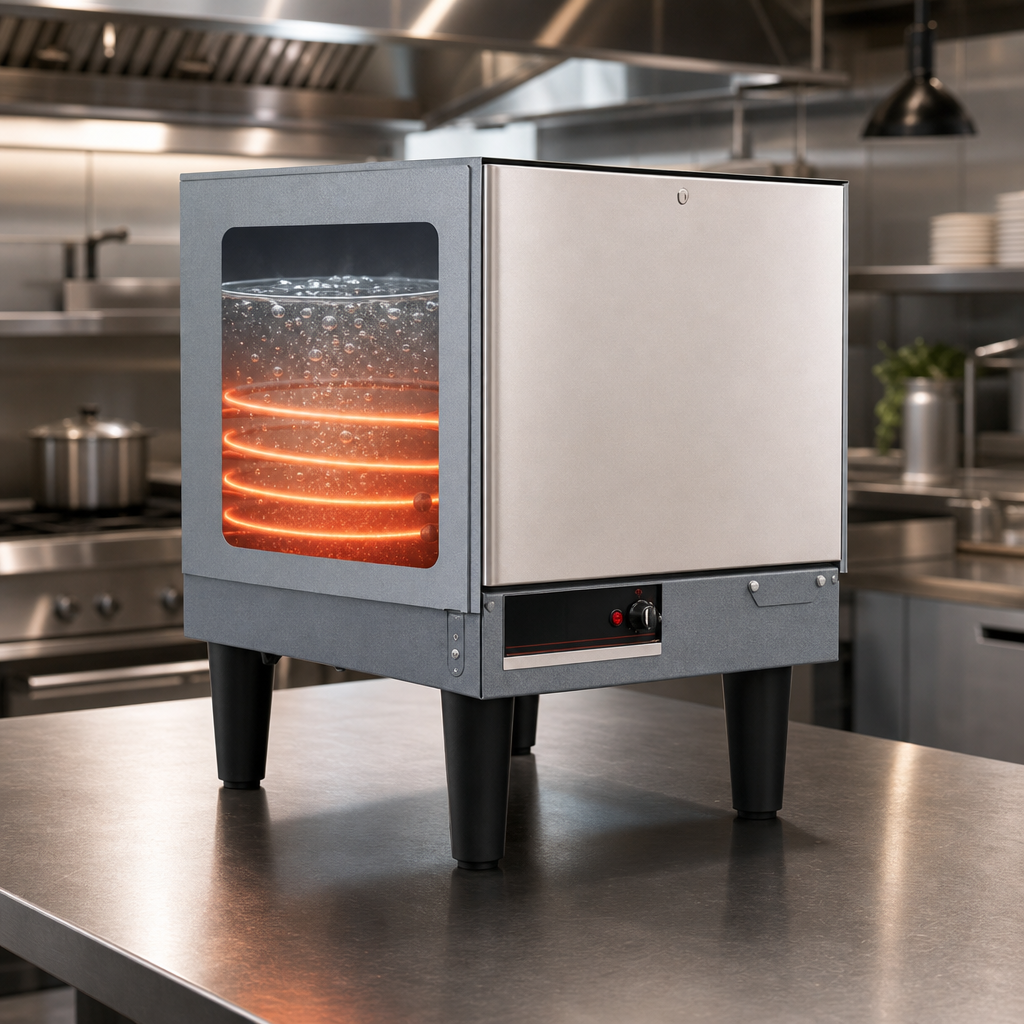

| Input | 9.0 kW electric |
| Recovery Rate | 90 GPH @ 40 °F rise | 52 GPH @ 70 °F rise |
| Voltage / Phase | 208 V or 240 V 1-&-3 Ø (field convertible) • 480 V 1-&-3 Ø |
| Full-Load Amps | 43.3 A @ 208 V 1Ø | 37.5 A @ 208 V 3Ø 37.5 A @ 240 V 1Ø | 32.4 A @ 240 V 3Ø 18.8 A @ 480 V 1Ø | 16.3 A @ 480 V 3Ø |
| Dimensions (W×D×H) | 13.06 ″ × 20.69 ″ × 13.78 ″ (add 6 ″ leg height & 26 ″ overall with relief valve) |
| Tank Construction | Castone® cementitious lining |
| Exterior | Stainless steel front • Powder-coated hammertone sides & back |
| Mounting | 6 ″ non-adjustable plastic legs (standard) or optional slide brackets |
| Certifications | NSF • cULus |
| Shipping Weight | Approx. 118 lb (54 kg) |
| Country of Origin | USA |
What’s Included
- Factory-installed ¾" NPT inlet & outlet fittings
- On/Off toggle switch with green power & red fault indicators
- Temperature/pressure gauges (in &out)
- Pressure reducing valve
- Temperature/Pressure relief valve
- Installation & operation manual
Rock-Solid Warranty
• 10-year limited warranty on the Castone tank
• 24/7 parts-and-service assistance (US & Canada)
*Field conversion applies to 208 V & 240 V 9 kW models only. Consult a licensed electrician for branch-circuit sizing and local code compliance.
