Hatco Compact Electric Booster Water Heater, 6 Gallon, 9 kW, 240V, 3-Phase

Quick Ship model with Castone® Lined Tank and 6-Inch Plastic Legs

This compact 6-gallon electric booster heater delivers 180°F final rinse water in a space-saving footprint.

  • Compact booster heater designed to supply the final 180°F rinse water needed for dish sanitizing and flash-drying.
  • 9.0 kW electric operation with 240V, 60 Hz, 3-phase service.
  • 6-gallon storage capacity fits tight dish room installations.
  • Castone® lined tank for durability, with a 10-year limited tank warranty.
  • Stainless steel front panel and powder-coated silver-gray hammertone body.
  • Factory pre-plumbed and pre-wired with built-in safety controls and 6-inch plastic non-adjustable legs.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

118.0 lb

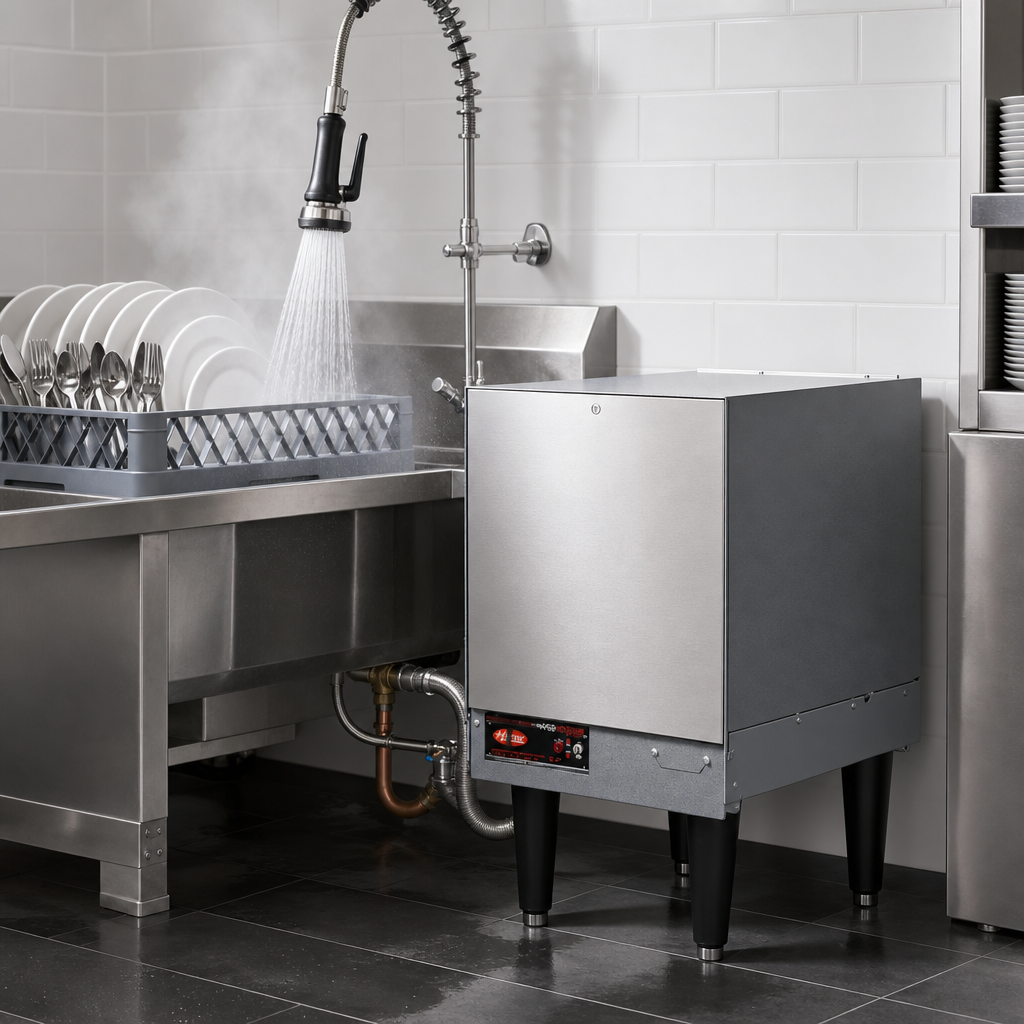

180°F Final Rinse Supply

Provides the hot final rinse water required to sanitize and flash-dry dishes and flatware.

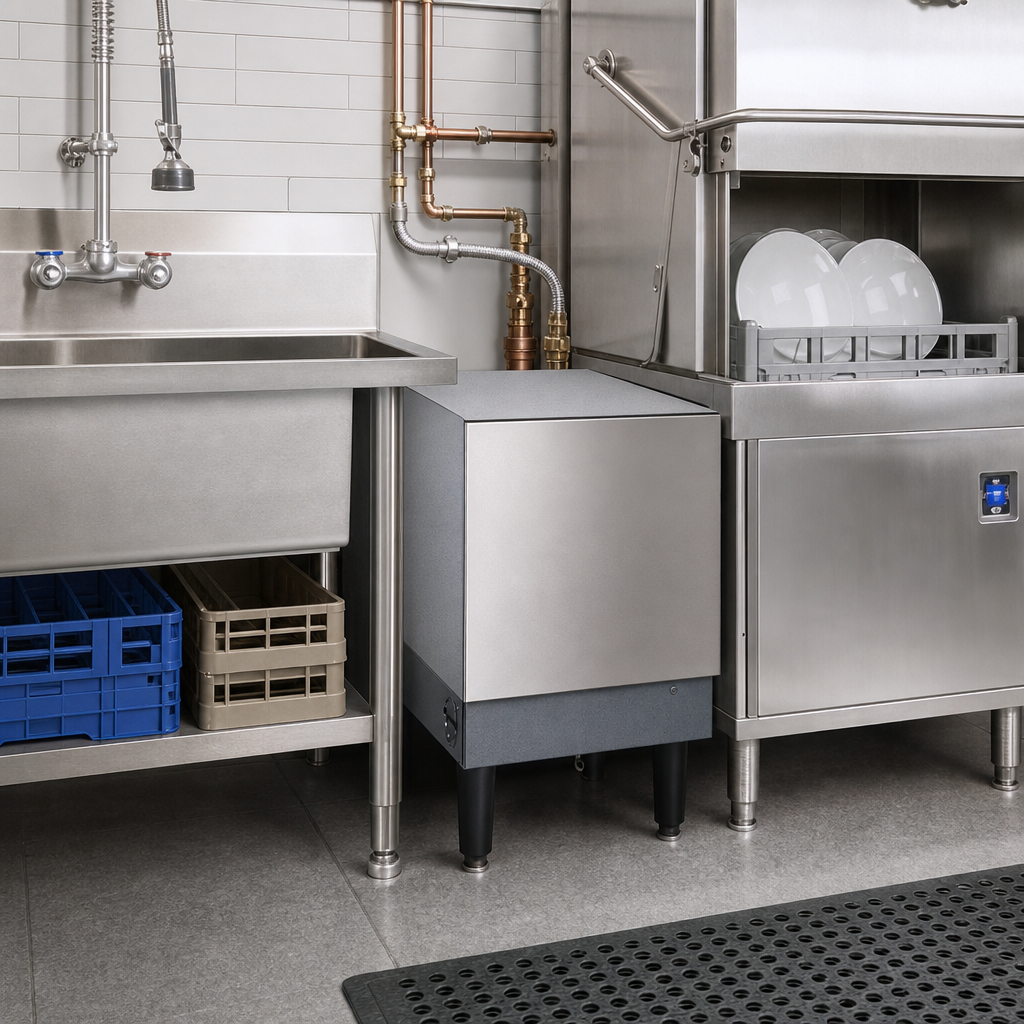

Compact Space-Saving Design

Designed to install next to the dishwasher in tight dish room spaces.

Castone® Lined Tank

Includes a Castone® lined tank for long-lasting performance and corrosion resistance.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, dual gauges, high-temperature limit control, low-water cut-off, pilot light, and on-off switch.

Factory Pre-Plumbed and Pre-Wired

Shipped with internal plumbing, a calibrated immersion thermostat, and a high-temperature limit switch for easier installation.

Durable Exterior Construction

Features a stainless steel front panel, powder-coated silver-gray hammertone body, and 6-inch plastic non-adjustable legs.

3/4 Inch NPT Connections

Internal plumbing includes 3/4" NPT pipe and fittings for inlet and outlet connections.

Type Booster Heater
Style Compact
Installation Type Floor Model (6-Inch Legs)
Capacity 6 Gallons
Finish Powder-Coated Silver-Gray Hammertone
Controls Built-In
Voltage 240 Volts
Hertz 60 Hz
Phase 3-Phase
Watts 9 kW
Amps 32.4 Amps
Breaker Size 50 Amps
Water Inlet Size 3/4 Inch NPT
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 118 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It supplies 180°F (82°C) final rinse water to sanitize and flash-dry dishes and flatware.
It requires 240V, 60 Hz, 3-phase electrical service and is rated at 9.0 kW.
The unit has a 6-gallon storage capacity.
Standard features include a Castone® lined tank, stainless steel front panel, powder-coated silver-gray hammertone body, and 6-inch plastic non-adjustable legs.
Yes, the booster heater is factory pre-plumbed and pre-wired with built-in controls.
Yes, the Castone® lined tank includes a 10-year limited warranty.
