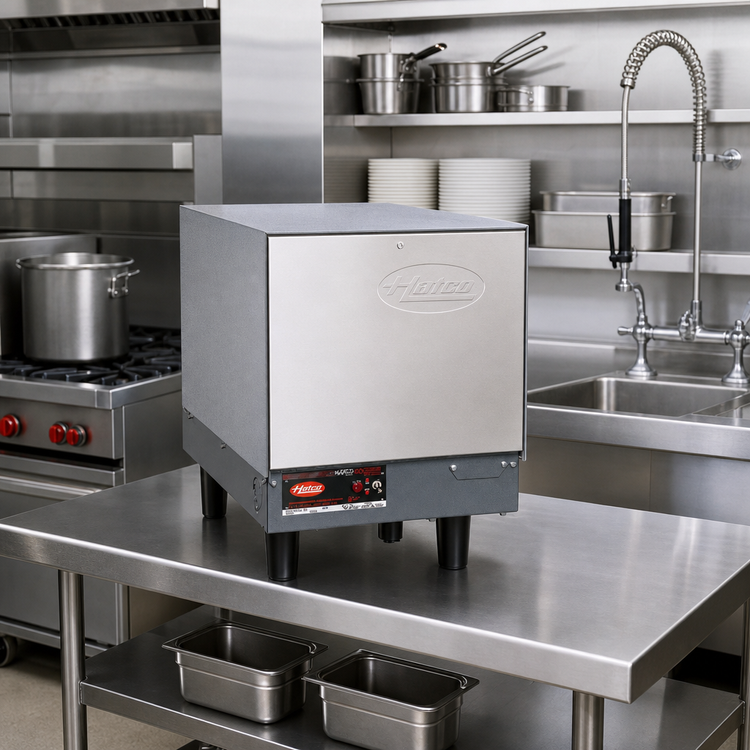

Hatco Compact Electric Booster Water Heater, 6 Gallon, 9 kW, 240V, 1-Phase

Stainless Steel Front Panel, Powder-Coated Silver-Gray Body, 6-Inch Legs

This compact 6-gallon booster heater delivers 180°F final-rinse water in a space-saving footprint built for busy dish rooms.

  • 6-gallon storage capacity supports final-rinse hot water demand in dish rooms.
  • Delivers 180°F (82°C) rinse water to help sanitize and flash-dry dishes and flatware.
  • 9.0 kW electric operation with 240V, 1-phase power.
  • Castone lined tank includes a 10-year limited warranty.
  • Stainless steel front panel and powder-coated silver-gray hammertone body.
  • Factory pre-plumbed and pre-wired with built-in safety controls for easier installation and service.

Overall Dimensions:

13.0"W x 20.75"D x 19.75"H

Product Weight:

118.0 lb

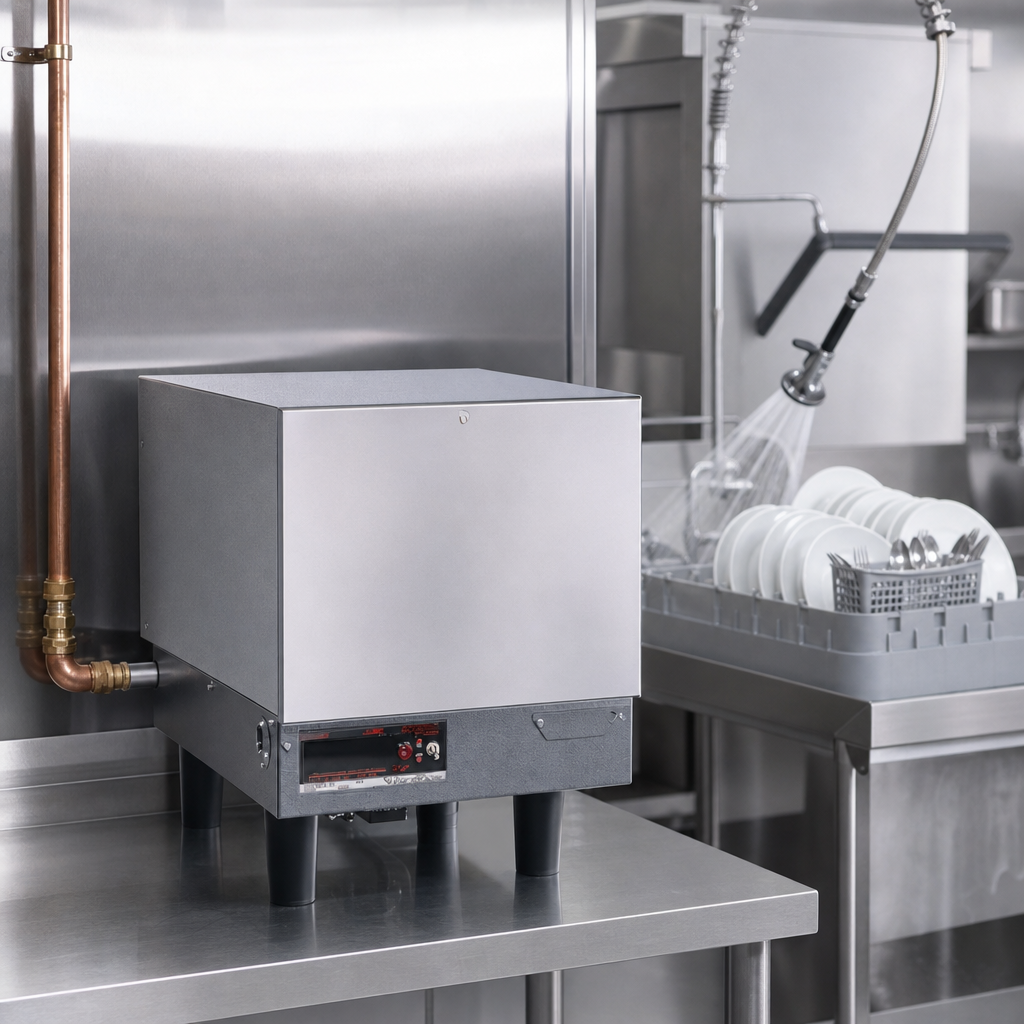

Final Rinse Performance

Supplies 180°F final-rinse water required for sanitizing and flash-drying dishes and flatware.

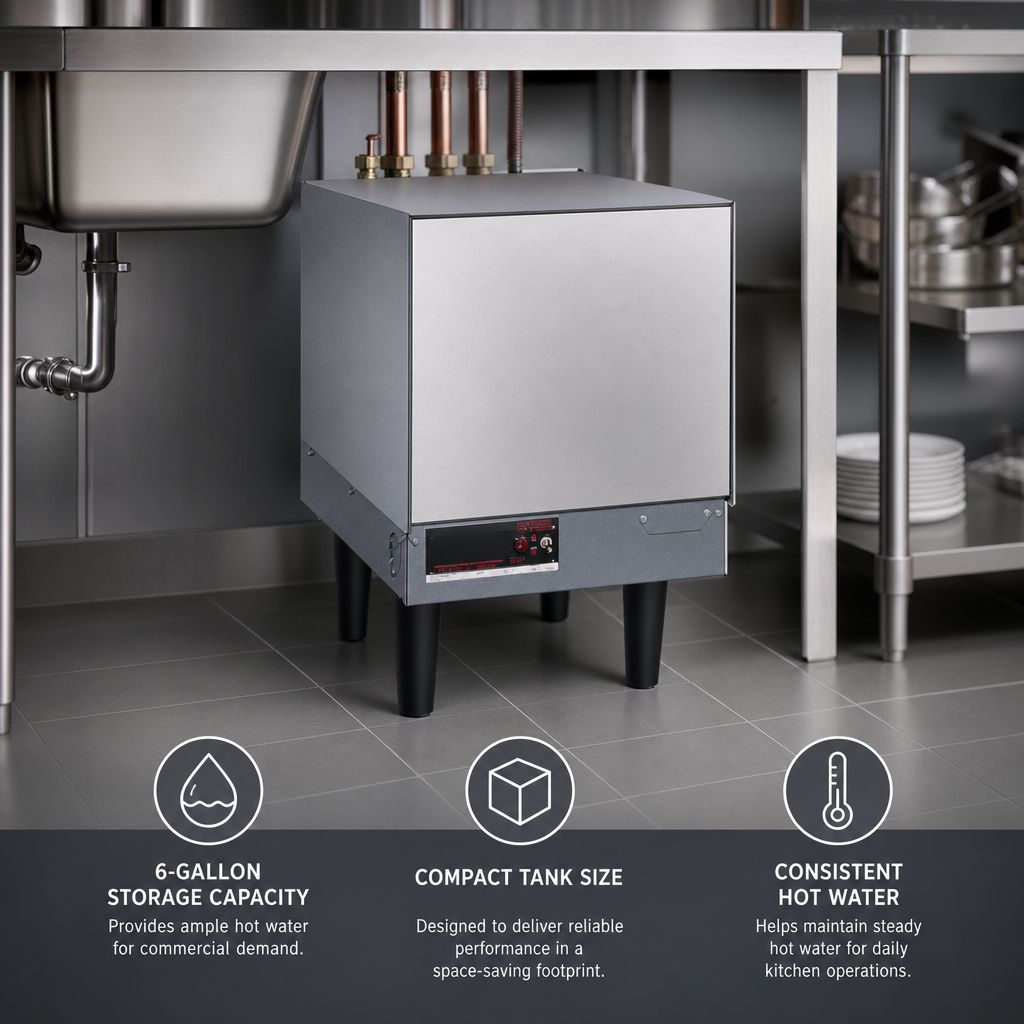

6-Gallon Storage Capacity

Compact tank size is designed to provide consistent hot water in a space-saving footprint.

Castone Lined Tank

Includes a Castone lined tank with a 10-year limited warranty for long-term durability.

Factory Pre-Plumbed and Pre-Wired

Arrives pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch.

Built-In Safety Components

Features a temperature/pressure relief valve, pressure reducing valve, low-water cut-off, pilot indicator light, and on-off switch.

Service-Friendly Design

Swing-away front panels provide quick access to probes and elements, and fiberglass insulation helps minimize heat loss.

Durable Exterior

Stainless steel front panel with a powder-coated silver-gray hammertone body and 6-inch legs.

Installation Flexibility

Space-saving compact design can be installed next to the dishwasher and is available with slide brackets for under-dishtable mounting.

Type Electric Booster Heater
Style Compact
Installation Type Floor Model
Capacity 6 Gallons
Voltage 240 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 9 kW
Amps 37.5 Amps
Breaker Size 50 Amps
Water Inlet Size 3/4 Inch NPT
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Controls Thermostatic
Shipping Width 13 Inches
Shipping Depth 21 Inches
Shipping Height 20 Inches
Shipping Weight 118 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited tank warranty

Documents

PDF Cutsheet PDF Download PDF Quick ship PDF Download PDF Catalog brochure PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It provides 180°F (82°C) final-rinse water for sanitizing and flash-drying dishes and flatware.
The unit has a 6-gallon storage capacity.
It is rated at 240 volts, 60 Hz, single-phase, and 9.0 kW.
The heater includes 3/4-inch NPT pipe and fittings for inlet and outlet connections.
It includes a temperature/pressure relief valve, pressure reducing valve, high-temperature limit control, and low-water cut-off.
The Castone lined tank includes a 10-year limited warranty.
